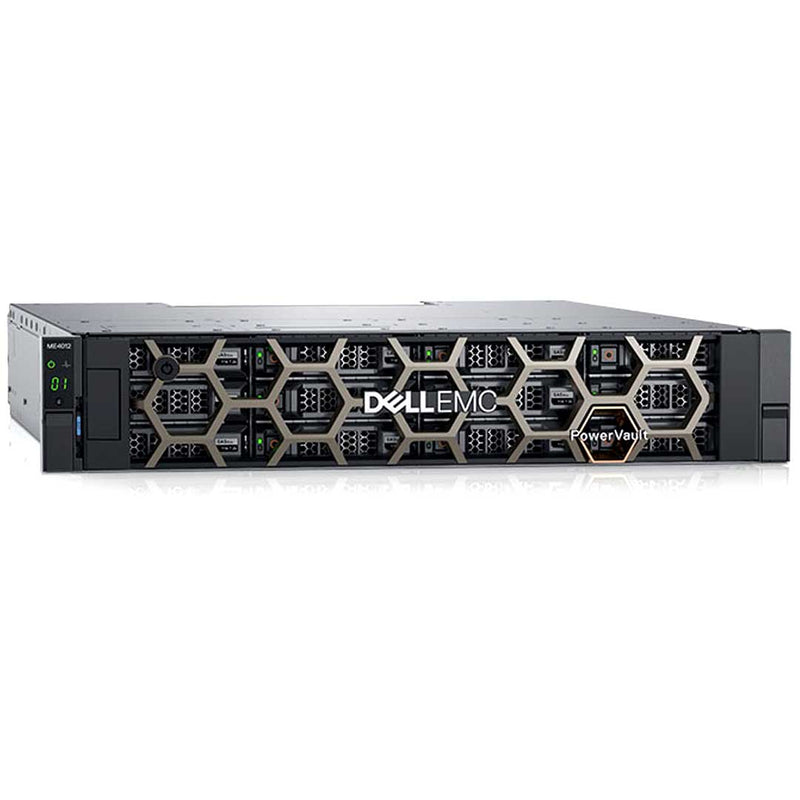

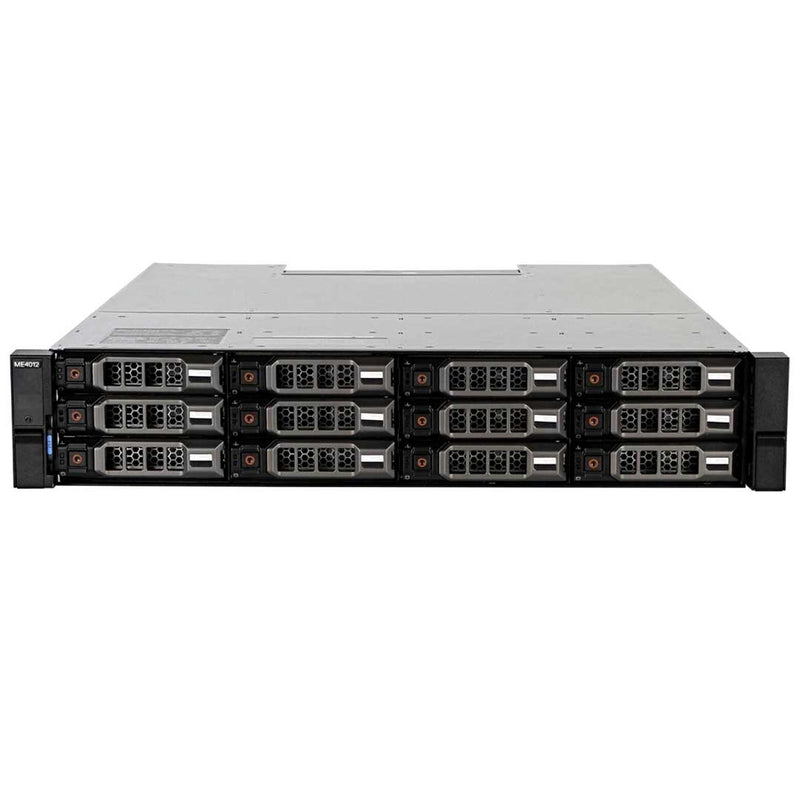

Dell PowerVault ME412 12x3.5" SAN Expansion Storage Array CTO
Quick Specs
2U rack server
Controllers:Supports Single or Dual Configuration
Controller Ports:Three 12Gb SAS Connection
Controller Cache:8GB Cache
Expansion:Up to nine can be connected
Storage:12 LFF Drives
Max Storage:336 drives or 4PB
Expansion Options
The Dell PowerVault ME412 is an exceptional storage array that offers high-speed data transfer and ample cache memory for optimal performance. With 8GB of cache in the 12 3.5" HDDs chassis, this storage array is designed to meet the needs of small businesses that require a reliable and efficient storage solution.
PowerVault ME412 and ME424 expansion enclosures can only be used with either ME*012 or ME*024 base arrays.

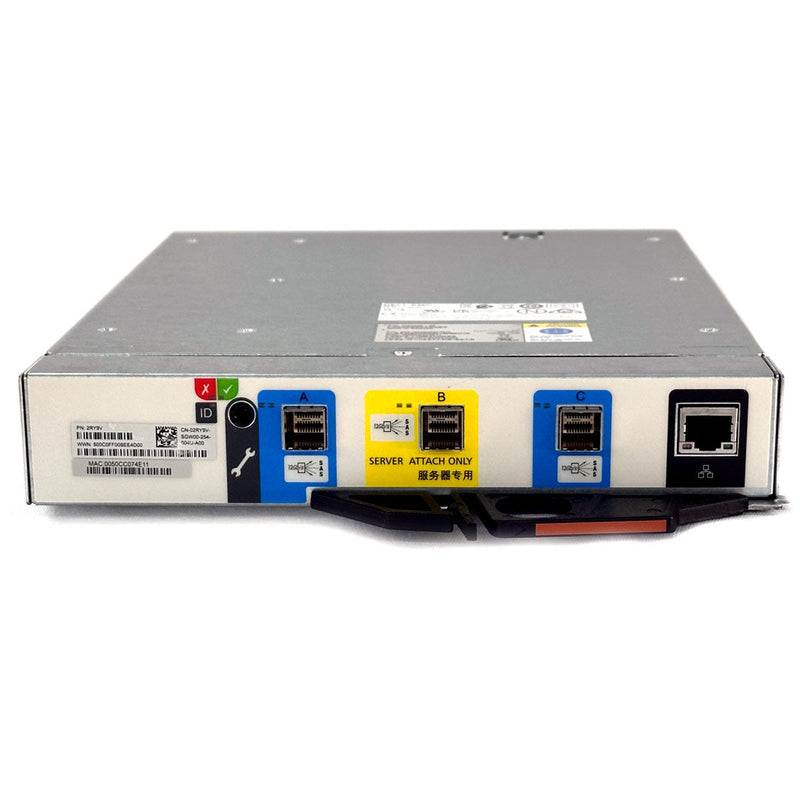

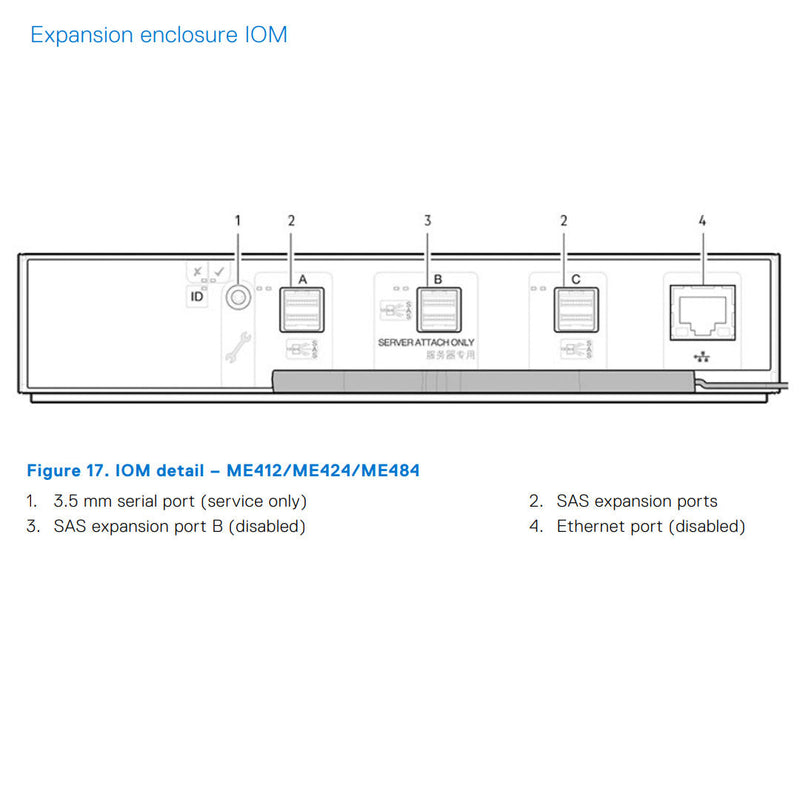

3 port 12Gb SAS Expansion Module
6 x 12Gb SAS ports per array
These same chassis form factors are used for the supported expansion enclosures; but with I/O modules instead of controller modules. To make this system an expansion Array you simply need to install the 3-port 12Gb IOM SAS Module in the rear of the system. With this new I/O Module installed you can daisy chain up to 9 2U or 3 5U Systems to the ME4024 SAN Storage Array.
| Rule | SAS | 10GBaseT iSCSI | CNC |
|---|---|---|---|
System maximum is up to 4 PB or 336 disk drives, whichever comes first. For example:
|
X | X | X |
Up to nine additional ME412/ME424 expansion enclosures or three ME484 expansion enclosures are supported. A combination of ME412/ME424 and ME484 expansion enclosures is not supported.
|
X | X | X |
Embedded SMI-S provider:
|
X | X | X |
Presenting the same volume (LUN) through FC AND iSCSI to one or more hosts or host groups is not supported.
|
N/A | N/A | X |
ME4012 and ME4024 storage systems support up to nine ME4012/ME4024 expansion enclosures or three ME4084 expansion enclosures. However, a combination of ME4012/ME4024 and ME4084 expansion enclosures is not supported. ME4084 storage systems support up to three ME4084 expansion enclosures.
