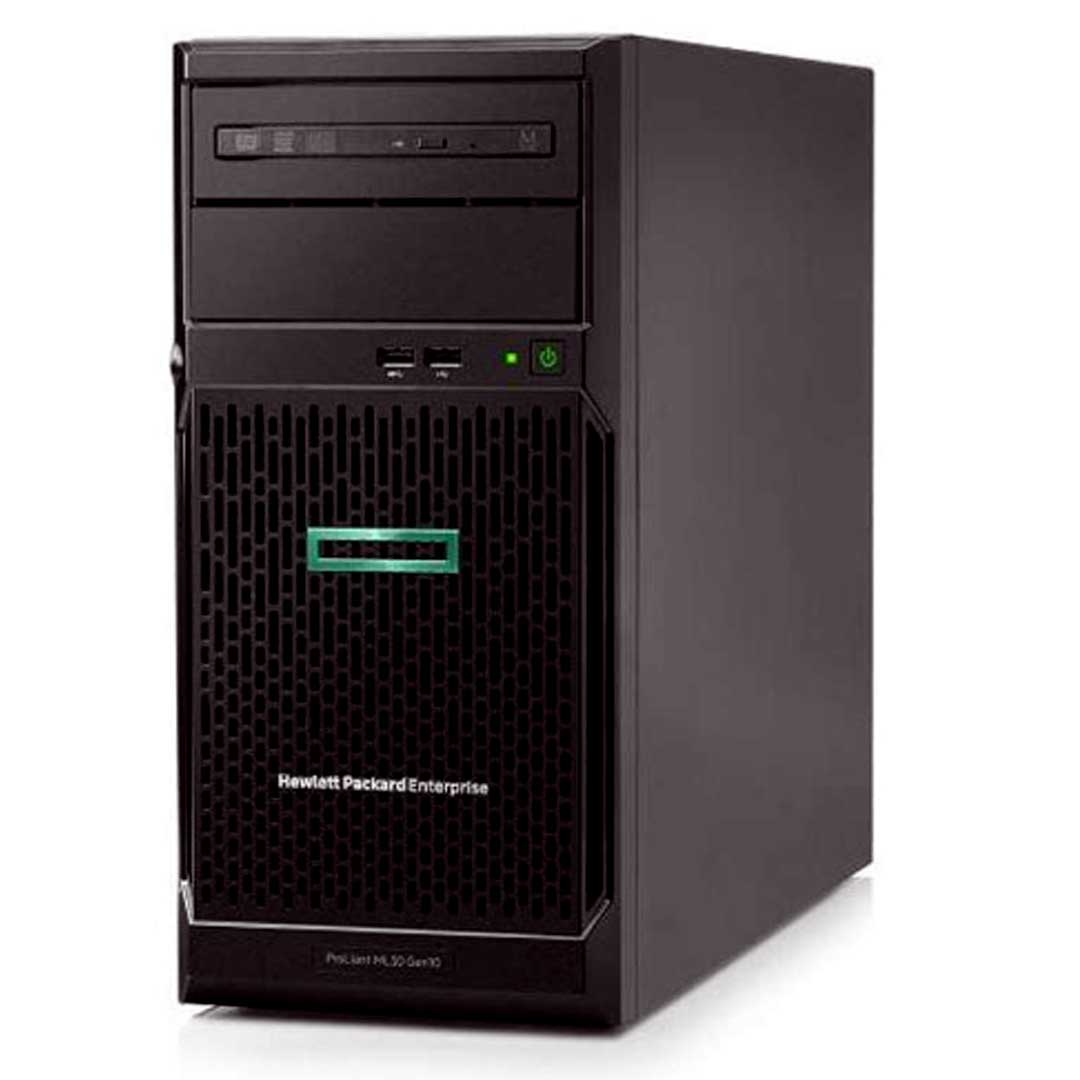

HPE ProLiant ML30 Tower Server (G10+) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- (1) Intel Xeon E-2100/2200, up to 8 cores 95W
- (4) 3200 MT/s HPE DDR4 UDIMM | Max 128GB
- (4) PCIe expansion slots
- PCIe Slot 1 is Gen 4.0 x16
- Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
- Embedded Intel Virtual RAID on CPU (Intel VROC)
- MegaRAID Support
- Onboard M.2 NVMe/SATA SSD support.

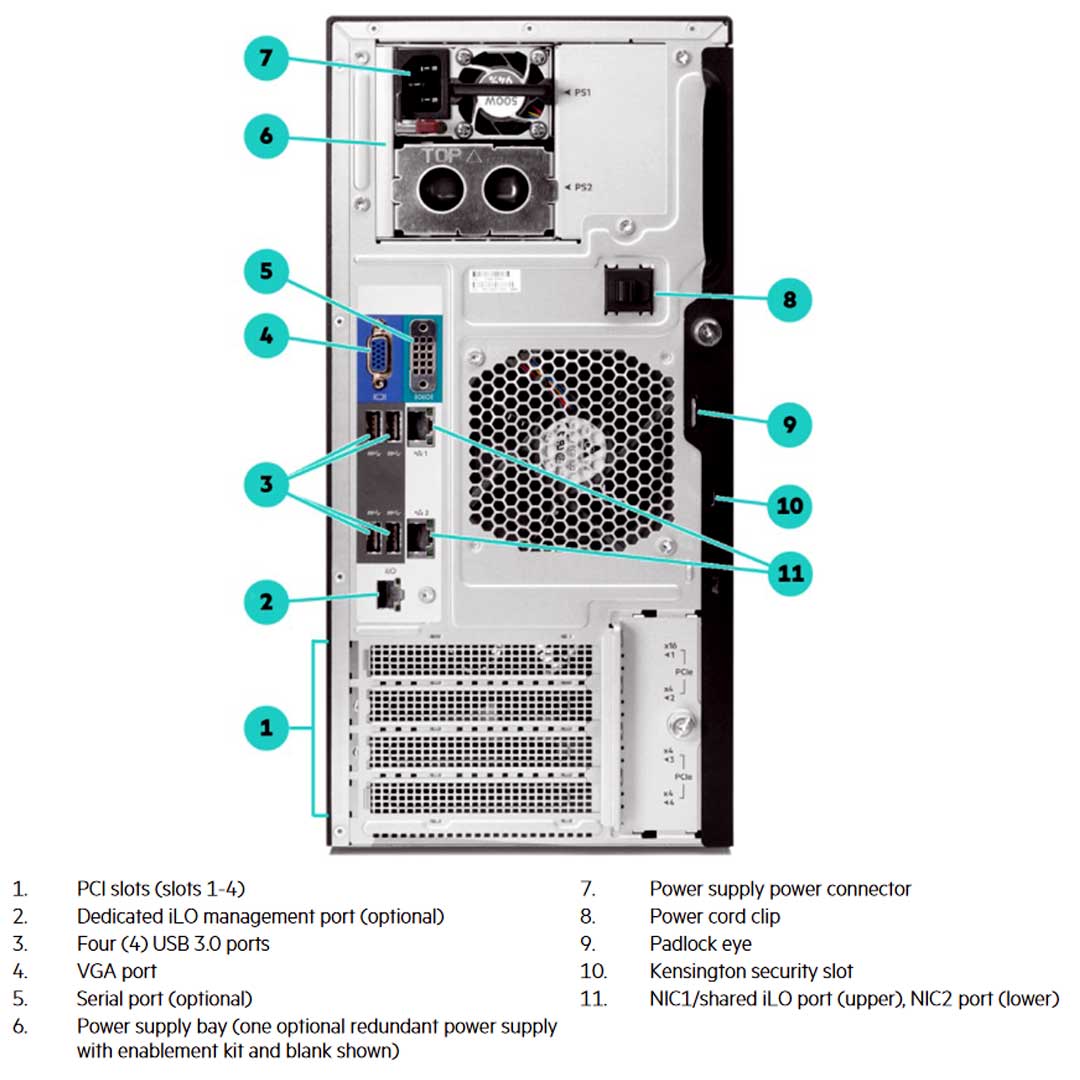

- Dedicated HPE iLO port and serial port kit
- NO GPU SUPPORT
The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen4, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
Chassis Options

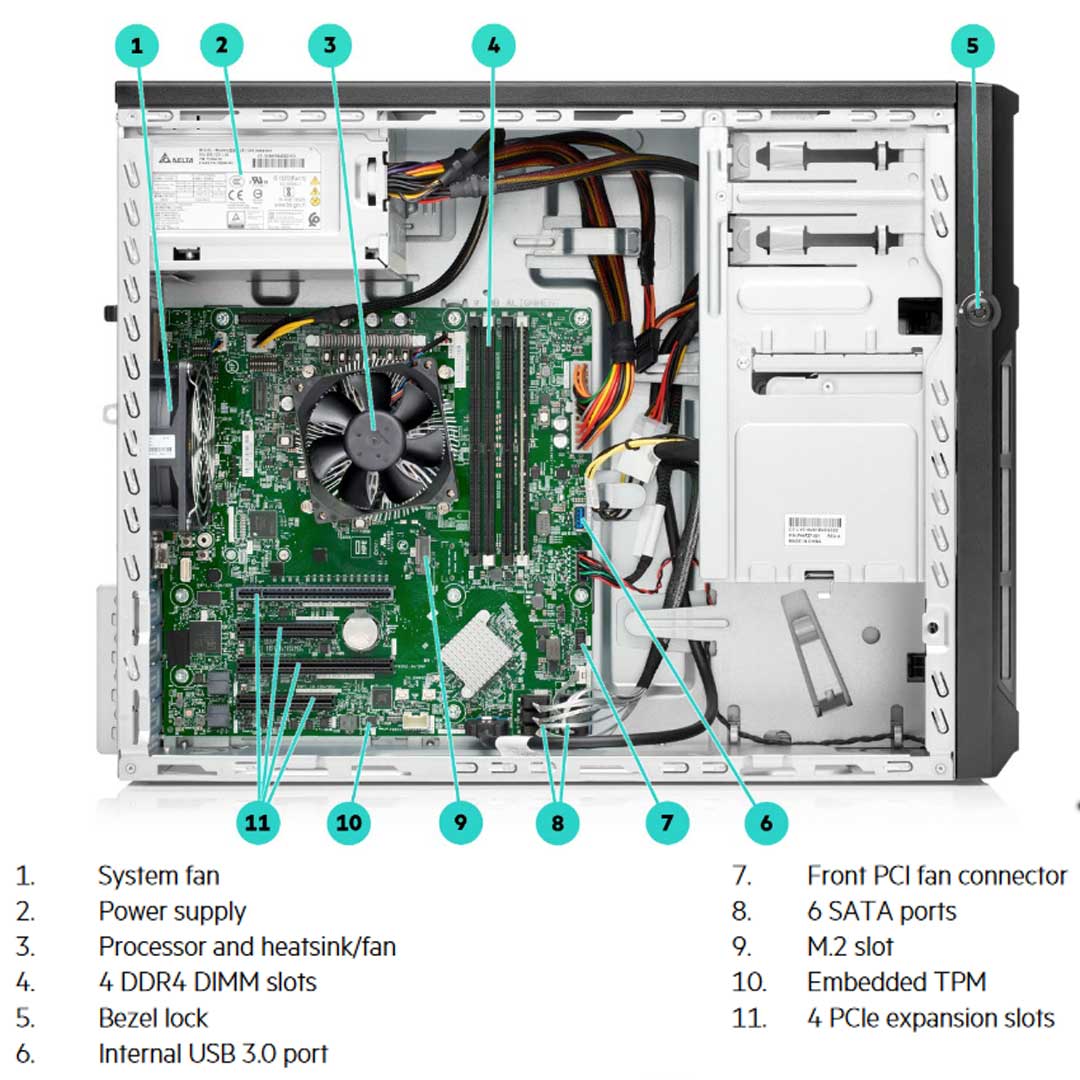

Each chassis comes with 4 PCIe Slots, and an embedded storage controller Intel VROC SATA (formerly known as Intel® RSTe). The VROC SATA comes with 4 SATA ports for drive bays, 2 SATA ports for media bays or HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and an additional 1 SATA via onboard M.2 slot. All the models also feature an embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter. The HPE ProLiant ML30 Gen10 Plus server offers the customer a dual-port NIC as standard with the option to upgrade with a variety of networking options.

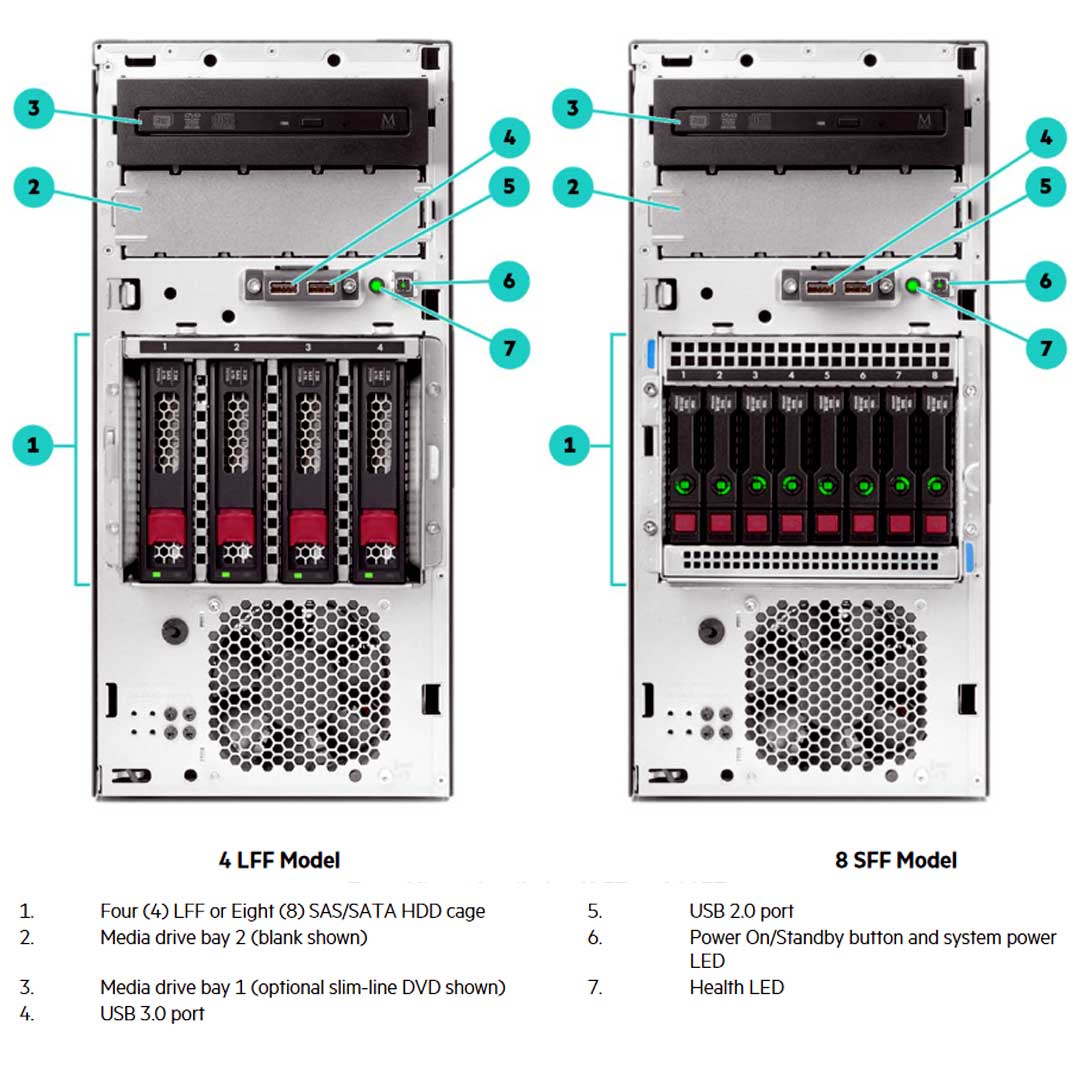

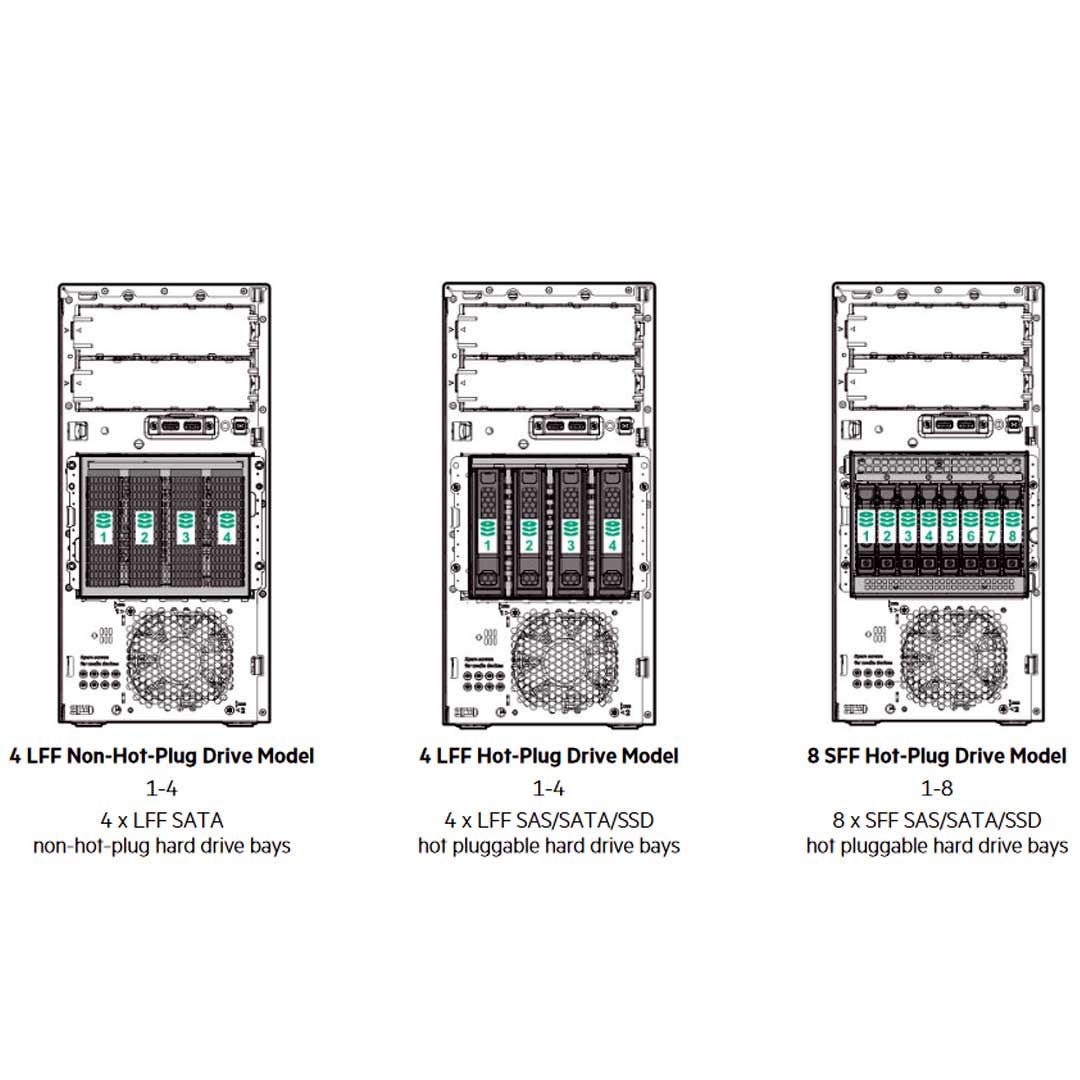

Chassis Options:
- 4 LFF Non-Hot-Plug SATA HDD
- 4 LFF Hot-Plug SAS/SATA HDD
- 8 SFF Hot-Plug SAS/SATA HDD
- *Notes: M.2 SSD is applicable to all models.
| CTO Server | HPE ProLiant ML30 Gen10 | ||
|---|---|---|---|
| Plus 4 LFF Non-Hot Plug Configure-to-order Server | Plus 4 LFF Hot Plug Configure-to-order Server | Plus 8 SFF Hot Plug Configure-to-order Server | |
| SKU Number | P44723-B21 | P44724-B21 | P44725-B21 |
| TAA SKU | P44723-B21#GTA | P44724-B21#GTA | P44725-B21#GTA |
| Processor Socket | 1 | ||
| Processor | Not included as standard | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded Intel VROC SATA software RAID | Embedded Intel VROC SATA software RAID; choice of HPE Smart Array controller | |
| PCIe | 1 PCIe 4.0 slots, 3 PCIe 3.0 slots | ||
| Drive Cage | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2/SATA slot | ||
| Network Controller | Embedded 1Gb 2-Port Ethernet Adapter, optional standup cards | ||
| Fans | 1 non-hot plug non-redundant system fan | ||
| Management | HPE ILO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE ILO Advanced, HPE ILO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) | ||
| USB | 2 front, 4 rear, 1 internal | ||
| Security | Embedded TPM | ||
*** Each server supports 1xM.2 NVMe SSD or 1xM.2 SSD Enablment Kit. ***
4 Non Hot-Plug LFF (P44723-B21)
Controller
Software RAID (Intel VROC)
Smart Array E208e-p
Smart Array P408e-p
Max Capacity16TB = 4x 4TB
4 Hot-Plug LFF (P44724-B21)
Controller
Software RAID (Intel VROC)
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Tri-Mode MR216i-p
Tri-Mode MR416i-p
Max Capacity72TB = 4x 18TB
8 Hot-Plug SFF (P44725-B21)
Controller
Software RAID (Intel VROC)
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Tri-Mode MR216i-p
Tri-Mode MR416i-p
Max Capacity61.44TB = 8x 7.68TB
Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) or the HPE Smart Hybrid Capacitor (P02377-B21) which is sold separately.
Tower-to-Rack Conversion
The HPE ML30 Gen10 Plus Tower server can easily be converted into a Rack server by simply adding the HPE ML Gen10 Tower to Rack Conversion Kit (874578-B21). This kit is everything you need to get “Sliding”. This rail kit comes with the rail tray that the server sits on top of and is mounted to from the back. The server tray is that actual piece mounted to the rails that slide out for easy access to the server.
We need more Power!
Flex Hot-Plug Power Supply Enablement Kit
To go from the 300W Non-Hot-Plug Power Supply Unit (PSU) (P21652-B21) to the Flex Slot Platinum 500W Power Supply Unit (PSU) (865408-B21). You’ll need the enablement cage (686665-001), the Flexible Slot power distribution board ( P48076-001 ), and the cable kit (P07485-001) . If you only install one of the Hot-Plug Redundant Power Supplies, then you’ll also need the Flexible Slot Power Supply Blank (775423-001) to keep the airflow optimal.
European Union (EU) Lot 9 regulation
Starting March 1st, 2020, only the 350W Gold-level PSU (power supply) and the 500W PSU meet the European Union (EU) Lot 9 regulation requirement for CE marking.
Do not order the Bronze-level 350W PSU (820303-B21) in countries that require CE marking, especially the EU countries.
How to Keep Cool?
The HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) is required with the following:
- M.2 SSD dedicated iLO module (P06687-B21)
- HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21)
- HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit (878783-B21)
- Select the 4 LFF Hot-Plug or the 8 SFF Hot-Plug Chassis
- Any PCI-e Cards
The HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) comes with the air Baffle (P07477-001) and the PCI fan (P06530-001).
Dimensions & Weight
Dimensions
- 14.50 (H) x 6.89 (W) x 18.70 (D) in
- 36.83 (H) x 17.50 (W) x 47.50 (D) cm
Weight
- Minimum: 22.1 lb / 10.1 kg
- Maximum: 38.7 lb / 17.6 kg
