SKU: DPE-M620-VRTX-Chassis

Dell PowerEdge M620 Blade Server Chassis VRTX (2x2.5")

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Half Height Blade Server

Processor | Max: 12 Cores

2 x Intel Xeon E5-2600 or E5-2600v2

Memory | Max: 768GB or 1.5TB

24x DDR3 RDIMM 1866Mhz or LRDIMM 1600Mhz
24 DIMMs is subject to change based on the Heat Sink installed.

Boot Options:

IDSDM
USB
vFlash

Storage | Max: 2.4TB

2 SFF SAS/SATA (HDD/SSD)

Storage Controllers:

S110 (SW RAID)
Mezzanine PERC H310, H710, H710p

PCIe Slots | Gen: 3.0

1 LOM for Fab A and
2 Mezzanine Slots for Fab B and C

iDRAC:

iDRAC7 with Lifecycle Controller

GPU:

None

Ideal for:

  • Database
  • Mail
  • Virtualization

This is one of the supported Blade servers, each Modular Enclosure is a separate CTO you must configure.

Supported M1000e and VRTX Architecture

An exceptionally feature-rich, two-socket blade server, the Dell PowerEdge M620 is designed for maximum performance combined with extreme density and power efficiency.

Designed for your taxing workloads, such as email, database and virtual environments, the Dell PowerEdge M620 blade server is an ideal blend of density, performance, efficiency and scalability. The M620 delivers unprecedented memory density and superb performance with no compromise on enterprise-class features.


Improve operational efficiency

The Dell OpenManage systems management portfolio includes Integrated Dell Remote Access Controller 7 (iDRAC7) with Lifecycle Controller. This embedded feature helps IT administrators manage Dell servers in physical, virtual, local, and remote environments, operating in-band or out-of-band, with or without a systems management software agent installed.

OpenManage iDRAC with Lifecycle Controller integrates and connects to leading third-party systems management solutions (such as those from Microsoft, VMware, and BMC Software), so users can maintain a single point of control and capitalize on an existing systems management investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring and maintaining Dell PowerEdge servers.


Accomplish more

Bring impressive new capabilities to your data center with the PowerEdge M620, which offers a memory capacity of up to 768GB of RAM along with scalable I/O capabilities. Powered by Intel Xeon E5-2600 or E5-2600 v2 processors and Dell’s unique Select Network Adapter, our flexible NIC technology, the M620 provides the performance you require and allows you to allocate your network throughput to match your application needs.

Designed for your hyper-dense environments

Dell’s exclusive failsafe virtualization technology provides redundant media for hypervisor failover to keep your critical virtual environments running. Your virtualization environments demand high memory capacity in order to maximize the number of virtual machines per server, and the PowerEdge M620 was designed with this in mind. If you are running high-performance computing (HPC) application clusters, the M620 provides you with outstanding computational density and powerful processing capability in a compact form factor.


The PowerEdge M-series blade portfolio

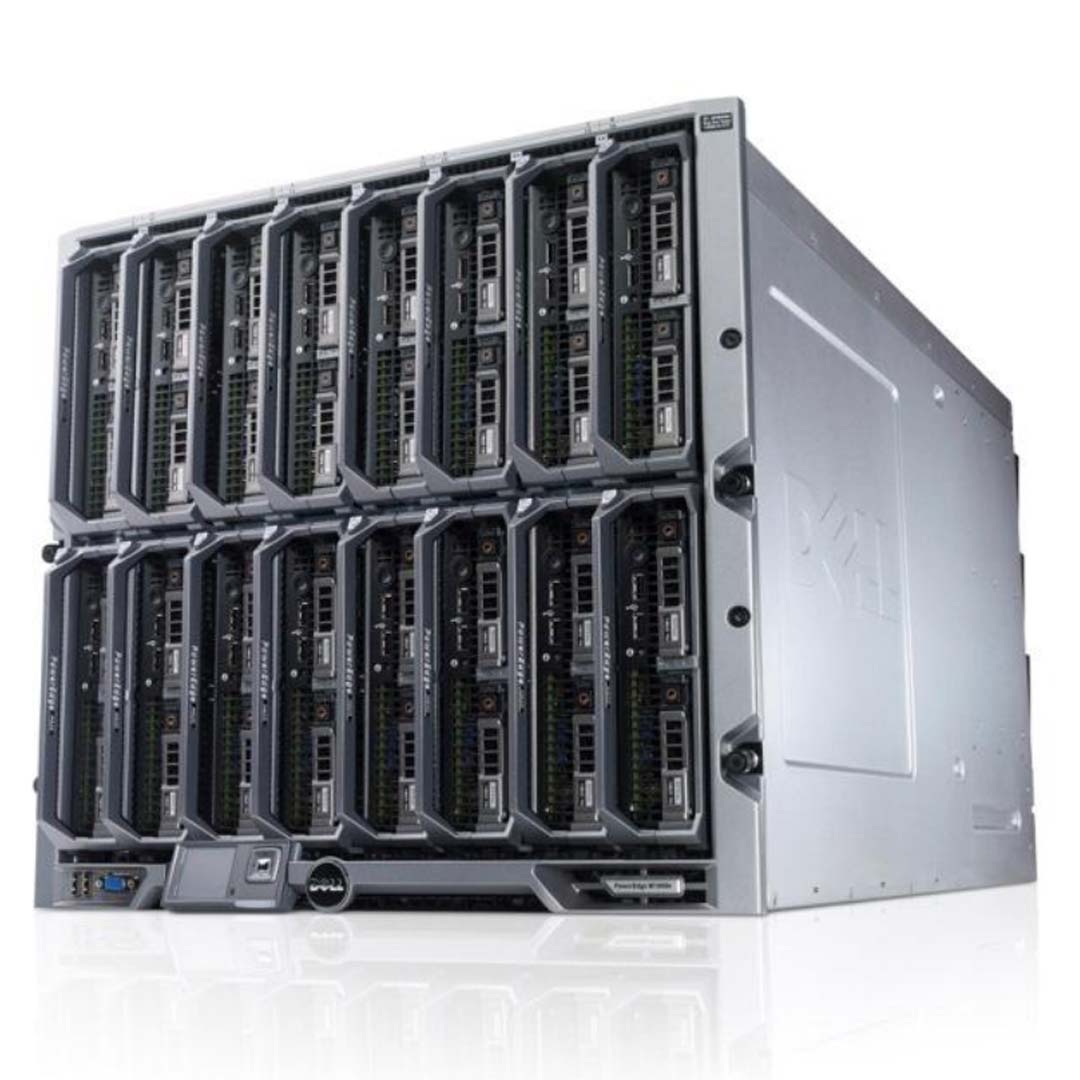

Implement the right combination of features and performance scalability with the PowerEdge M-series blade servers, which can handle tough workloads in a data center of any size. In addition to the world-class management features provided in all PowerEdge servers, the M620 also takes advantage of the capabilities of the Dell PowerEdge M1000e’s Chassis Management Controller (CMC). The CMC allows M-series blades to be managed individually or as groups, in single or multiple chassis, and within a data center or in multiple geographically dispersed locations around the globe without requiring an agent or additional hardware. PowerEdge M-series blade servers use the redundant power, cooling, and networking infrastructure provided by the M1000e blade enclosure, which is exceptionally easy to deploy and manage, and maximizes power and cooling efficiency.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

TECHNICAL SPECIFICATIONS FOR DELL POWEREDGE M620 BLADE SERVER
Form Factor; EnclosureHalf-Height Blade; Dell PowerEdge M1000e Blade Enclosure
ProcessorsIntel® Xeon E5-2600 and E5-2600 v2 Series Product Family Processors
Internal InterconnectIntel QuickPath Interconnect (QPI): 6.4GT/s, 7.2GT/s, 8.0GT/s
Cache2.5MB per core
Core Options: 4, 6, 8, 10, 12
MemoryUp to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1866MT/s
Up to 1.5TB (24 DIMM slots): 64GB DDR3 LRDIMM up to 1600MT/s (with Intel Xeon E5-2600 v2 series processors)
ChipsetIntel C602
VideoIntegrated Matrox® G200
Primary StorageHot-plug Hard Drive Options:
Up to 2 x 2.5" Express Flash PCIe SSD, SATA HDD/SSD, SAS HDD/SSD
Maximum Internal Storage:
Up to 3.6TB with 2 x 2.5" SAS (10K) 1.8TB Hard Drives

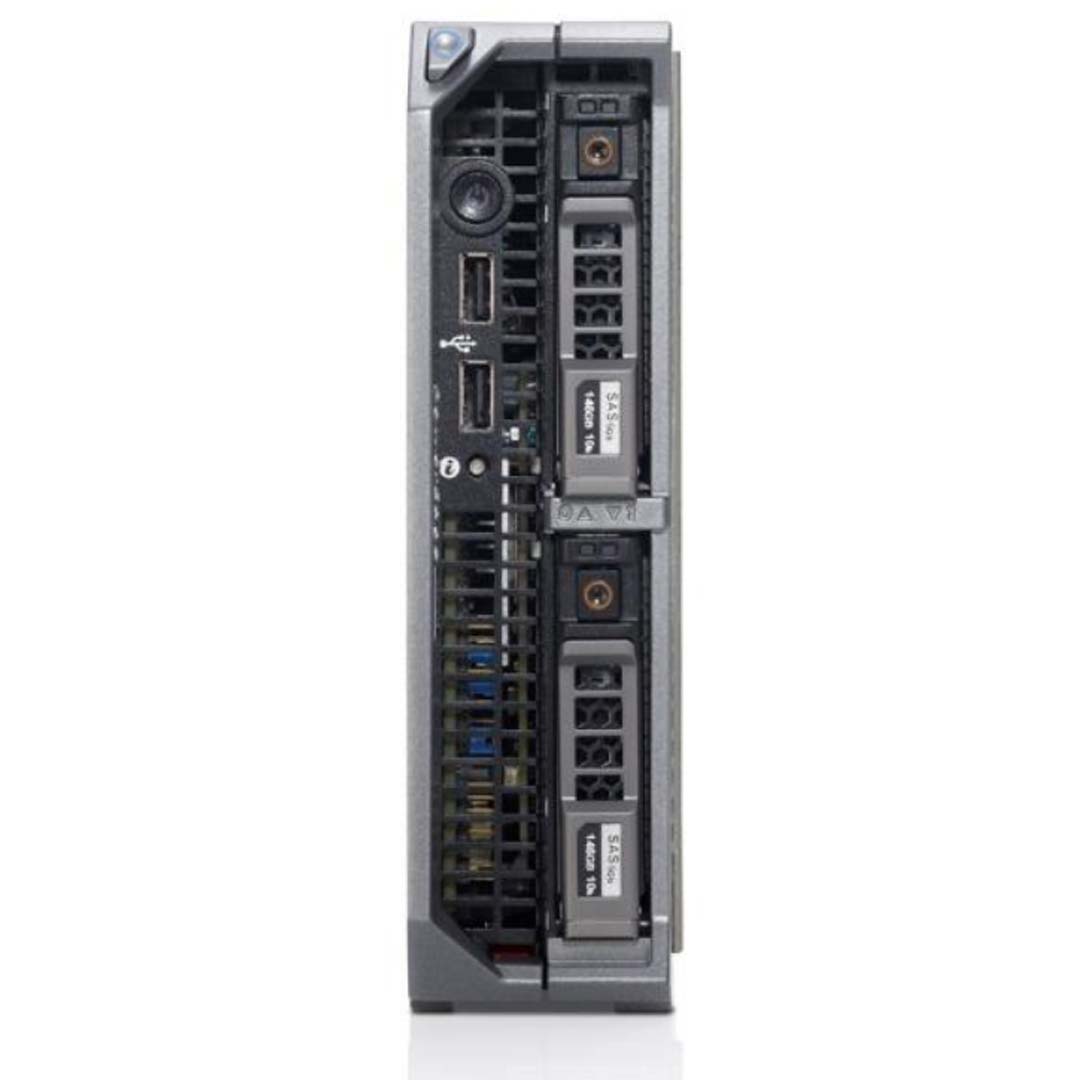

USB Ports2 in Front
1 Internal
RAID Controller OptionsInternal:
PERC S110 (software RAID)
PERC H310
PERC H710
PERC H710p
I/O OptionsDell Select Network Adapter (NDC) Options:
Broadcom® 57810S-K Dual-Port 10Gb KR Blade NDC
Broadcom 57840 Quad-Port KR Blade Converged NDC
Intel X520-K Dual Port 10Gb KR Blade NDC
QLogic® QMD8262-K Dual-Port 10Gb NDC

1Gb/10Gb Adapters:
Brocade® BR1741M-K Dual-Port 10Gb CNA
QLogic QME8262-K Dual-Port 10Gb KR CNA
Broadcom 57810S-K Dual-Port 10Gb KR
Intel Ethernet X520-K Dual-Port 10Gb
Intel I350 Quad-Port 1Gb
Broadcom 5719 Quad-Port 1Gb

Fibre Channel:
QLogic QME2662 (FC16)
Emulex LPm16002B-D (FC16)
QLogic QME2572 (FC8)
Emulex® LPe1205-M (FC8)

InfiniBand:
Mellanox® ConnectX®-3 Dual-Port FDR10
Mellanox ConnectX-3 Dual-Port FDR
Mellanox ConnectX-3 Dual-Port QDR
Mellanox ConnectX-3 Dual-Port 10GbE KR Blade
I/O SlotsFully populated mezzanine card slots and switch modules yield 3 redundant I/O Fabrics per blade
Power Supplies and FansSupplied by M1000e Blade Enclosure
Remote ManagementiDRAC7 with Lifecycle Controller for Blades (default)
iDRAC7 Enterprise with Lifecycle Controller (upgrade)
Systems ManagementIPMI 2.0 Compliant
Dell OpenManage™ Essentials
Dell OpenManage Power Center
Dell OpenManage Mobile

Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Operating SystemsMicrosoft Windows Server® 2012
Microsoft Windows Server 2012 R2 (includes Hyper-V®)
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V® v2)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®

Virtualization Options:
Citrix® XenServer®
VMware® vSphere® ESXi™
Red Hat Enterprise Virtualization®
Embedded HypervisorTwo internal SD cards dedicated for hypervisor
One SD card slot dedicated for vFlash media support

Spec Sheet 4

Feature PowerEdge M610 PowerEdge M710HD PowerEdge M620
Chassis; enclosure Half-height blade; PowerEdge M1000e Blade Enclosure Half-height blade; PowerEdge M1000e Blade Enclosure Half-height blade; PowerEdge M1000e Blade Enclosure
Processors Intel® Xeon® processors 5500 and 5600 series Intel Xeon processors 5500 and 5600 series Intel Xeon processor E5-2600 product family
Internal interconnect Intel QuickPath Interconnect Intel QuickPath Interconnect Intel QuickPath Interconnect
Memory 12 x DDR3 RDIMM and UDIMM 18 x DDR3 RDIMM and UDIMM 24 x DDR3 RDIMM, UDIMM, and LRDIMM
Hard drive bays (hot plug) 2 x 2.5” 2 x 2.5” 2 x 2.5”
Express Flash drives Not supported Not supported Up to 2
I/O slots 2 PCIe 2.0 x8 mezzanine card slots 2 PCIe 2.0 x8 mezzanine card slots 2 x PCIe 3.0 x8 mezzanine card slots
Optional SD port Yes Yes Yes (redundant hypervisor + vFlash media)
Systems management Lifecycle Controller 1.x, OpenManage Server Administrator (OMSA), RACADM Lifecycle Controller 1.x, OpenManage Server Administrator (OMSA), RACADM Lifecycle Controller 2.x, Agent-Free, OpenManage Server Administrator (OMSA), RACADM
Remote management iDRAC6 (Express or Enterprise) with Lifecycle Controller 1.x, Chassis Management Controller 3.x, Dell Management Console, IT Assistant, RACADM iDRAC6 (Express or Enterprise) with Lifecycle Controller 1.x, Chassis Management Controller 3.x, Dell Management Console, IT Assistant, RACADM iDRAC7 (Express for Blades or Enterprise) with Lifecycle Controller 2.x, Chassis Management Controller 4.x, OpenManage Essentials, Dell Management Console, IT Assistant, RACADM
