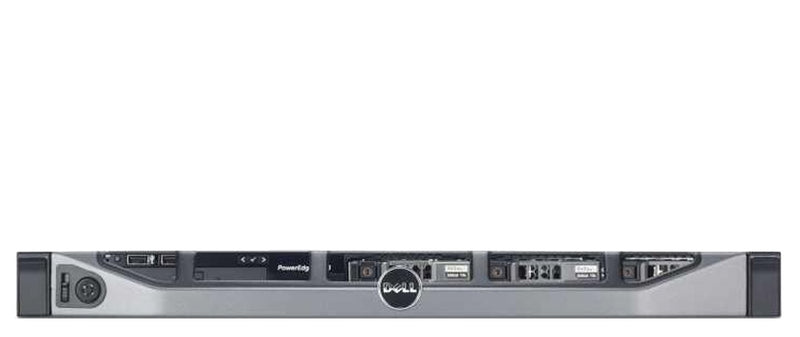

Dell PowerEdge R420

The Dell PowerEdge R420 is a 1U two-socket rack server that brings dual-processor power to space-limited racks at a value price. It runs up to two Intel Xeon E5-2400 or E5-2400 v2 processors with up to 10 cores each, 12 DDR3 DIMM slots for up to 384GB at 1600 MT/s, and up to eight 2.5" or four 3.5" drives. Two PCIe 3.0 slots, dual 1GbE, hot-plug redundant power and iDRAC7 complete the package. Fully configurable.

Looking to compare generations? See its Gen 13 successor, the Dell PowerEdge R430, or compare Gen 12 models: Dell PowerEdge R620 and Dell PowerEdge R320.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: Up to 2x Intel Xeon E5-2400/E5-2400 v2
  • Memory: 12x DDR3 DIMM slots, up to 384GB
  • Memory Speed: Up to 1600 MT/s
  • Storage: Up to 8x 2.5" or 4x 3.5" hot-plug, or 4x 3.5" cabled
  • Expansion: 2x PCIe 3.0 slots
  • GPU Support: Not listed by Dell
  • Networking: 2x 1GbE LOM
  • Management: iDRAC7 with Lifecycle Controller
  • Cooling: Air, up to 6 fans
  • Power: 550W cabled, or 350W/550W hot-plug redundant PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R420 →

Customize & Get Pricing

Configure your Dell PowerEdge R420 with the exact specs you need

Configure This Server

Dell PowerEdge R420 vs R430: Specs & Key Differences

Feature PowerEdge R420 PowerEdge R430
Processors Up to 2x Intel Xeon E5-2400/E5-2400 v2 (up to 10 cores) Up to 2x Intel Xeon E5-2600 v3/v4 (up to 20 cores)
Memory 12x DDR3 DIMM slots, up to 384GB 12x DDR4 DIMM slots, up to 384GB
Memory Speed Up to 1600 MT/s Up to 2400 MT/s
Storage Up to 8x 2.5" or 4x 3.5" Up to 10x 2.5", 8x 2.5" or 4x 3.5"
Storage Controllers PERC S110, H310, H710, H710P
External H810		 PERC S130, H330, H730, H730P
External H830
PCIe 2x PCIe 3.0 2x PCIe 3.0
Networking 2x 1GbE LOM 4x 1GbE LOM
Management iDRAC7 with Lifecycle Controller iDRAC8 with Lifecycle Controller
Power 550W cabled; 350W or 550W hot-plug 450W or 550W
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

Up to two Intel Xeon E5-2400 or E5-2400 v2 processors, with 4 to 10 cores per socket, linked by QPI on the Intel C602 chipset.

Twelve DDR3 DIMM sockets take registered or unbuffered modules, for up to 384GB at speeds up to 1600 MT/s.

Choose four 3.5-inch cabled bays, four 3.5-inch hot-plug bays (2.5-inch hybrid carriers available) or eight 2.5-inch hot-plug bays, with PERC S110, H310, H710 or H710P. Please specify your capacity needs when you submit your quote configuration.

Both are 1U dual-socket servers, but the R420 is the value model with E5-2400 processors, 12 DIMM slots and two PCIe slots. The R620 steps up to E5-2600 processors, 24 DIMM slots for 768GB, up to 10 drives and a choice of network daughter cards.

The Gen 13 R430 moves to Xeon E5-2600 v3/v4 processors with up to 20 cores and DDR4-2400 memory, adds a 10-drive 2.5-inch option and four 1GbE ports, and uses iDRAC8. Both keep 12 DIMM slots (384GB) and two PCIe 3.0 slots.
