EMC VNXe3300 Storage Processor Enclosure (SPE)

EMC VNXe3300 Disk Processor Enclosure (DPE)

SKU: VNXe3300

EMC VNXe3300 Disk Processor Enclosure (DPE)

Name: EMC VNXe3300 Disk Processor Enclosure (DPE)
Brand: EMC
SKU: VNXe3300
Availability: OutOfStock

EMC

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor: 3U
Chassis: 12 LFF / 25 SFF
Max Drives: 120 to 150 Disk Drives.
Drives Supported: The disk drives supported are Serial attached-SCSI (SAS), near-line SAS (NL-SAS), Flash, and Self-Encrypting Drives (SEDs) for SAS and NL-SAS.
You cannot mix non-SED and SED drives. Either all non-SED or all SED.
RAID: 5 / 6 / 10
Protocol: NAS / iSCSI
Networking: Gigabit Ethernet

Supported DAEs

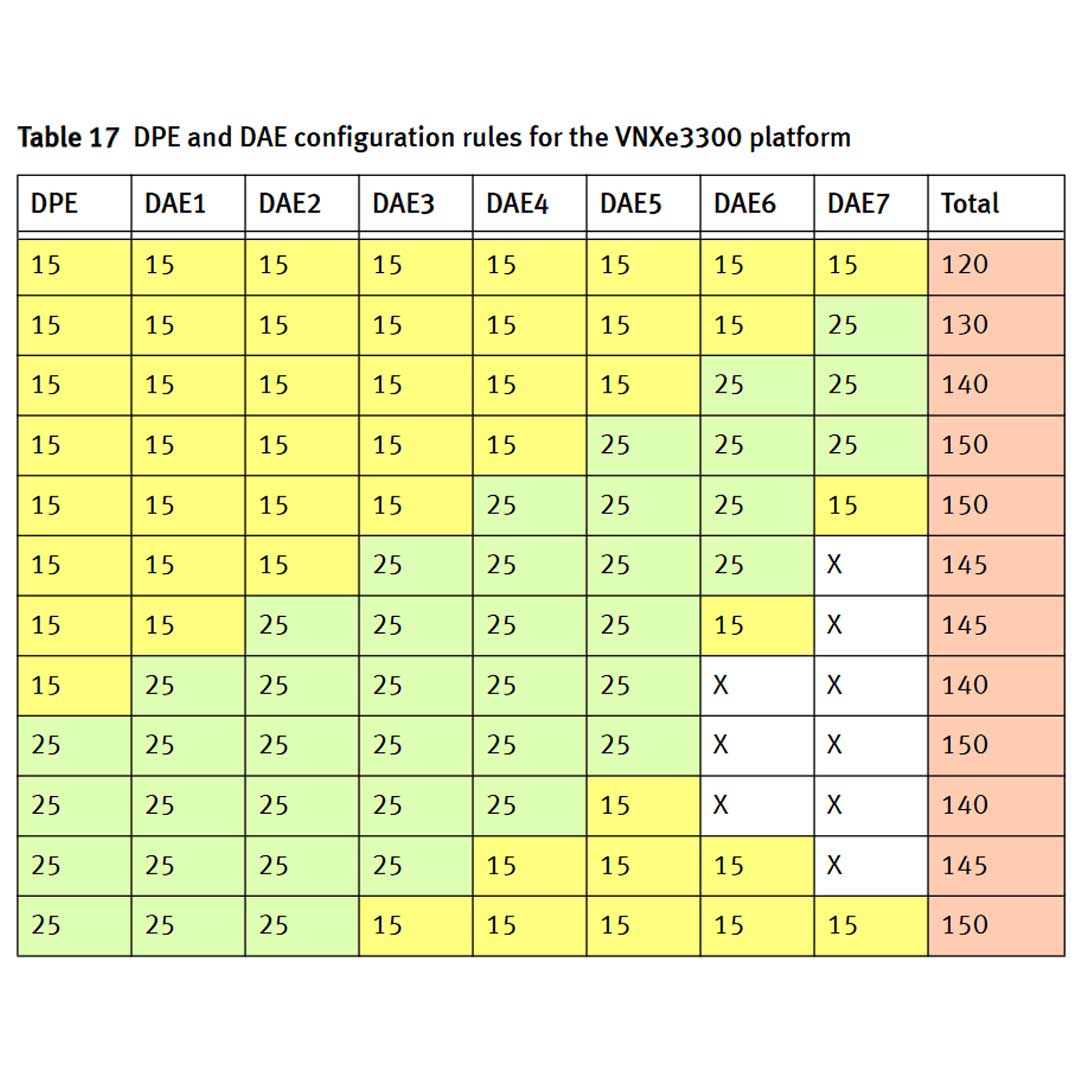

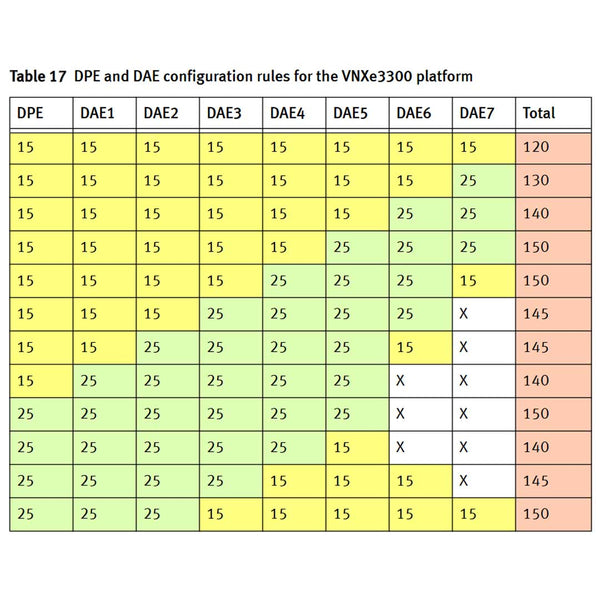

Either a 2U, 15 (3.5-inch) disk drive DAE (DAE6S) or a 2U, 25 (2.5-inch) disk drive DAE (DAE5S) is supported in several configurations. View the image above to see those configurations.

Disk Array Enclosure (DAE)
V31-DAE-R-15E | DAE6S - 3.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

V31-DAE-N-15E | DAE6S
- 3.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

V31-DAE-R-25E | DAE5S
- 2.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

V31-DAE-N-25E | DAE5S
- 2.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

VNXe3150 Storage Processor Enclosure (SPE) enables VNXe3150 customers to keep pace with their growing businesses by expanding their system storage capacity. The VNXe3150's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

The VNXe3300 system with built-in disk storage can be used with two controllers and supports multi-protocol IP connectivity for concurrent NAS and iSCSI SANs. Great for small to medium sized businesses, the VNXe3300 can easily expand to fit your storage needs by adding any required mix of performance SAS, NL-SAS or Flash drives to meet capacity and performance enterprise needs. The VNXe3300 supports iSCSI, CIFS and NFS.

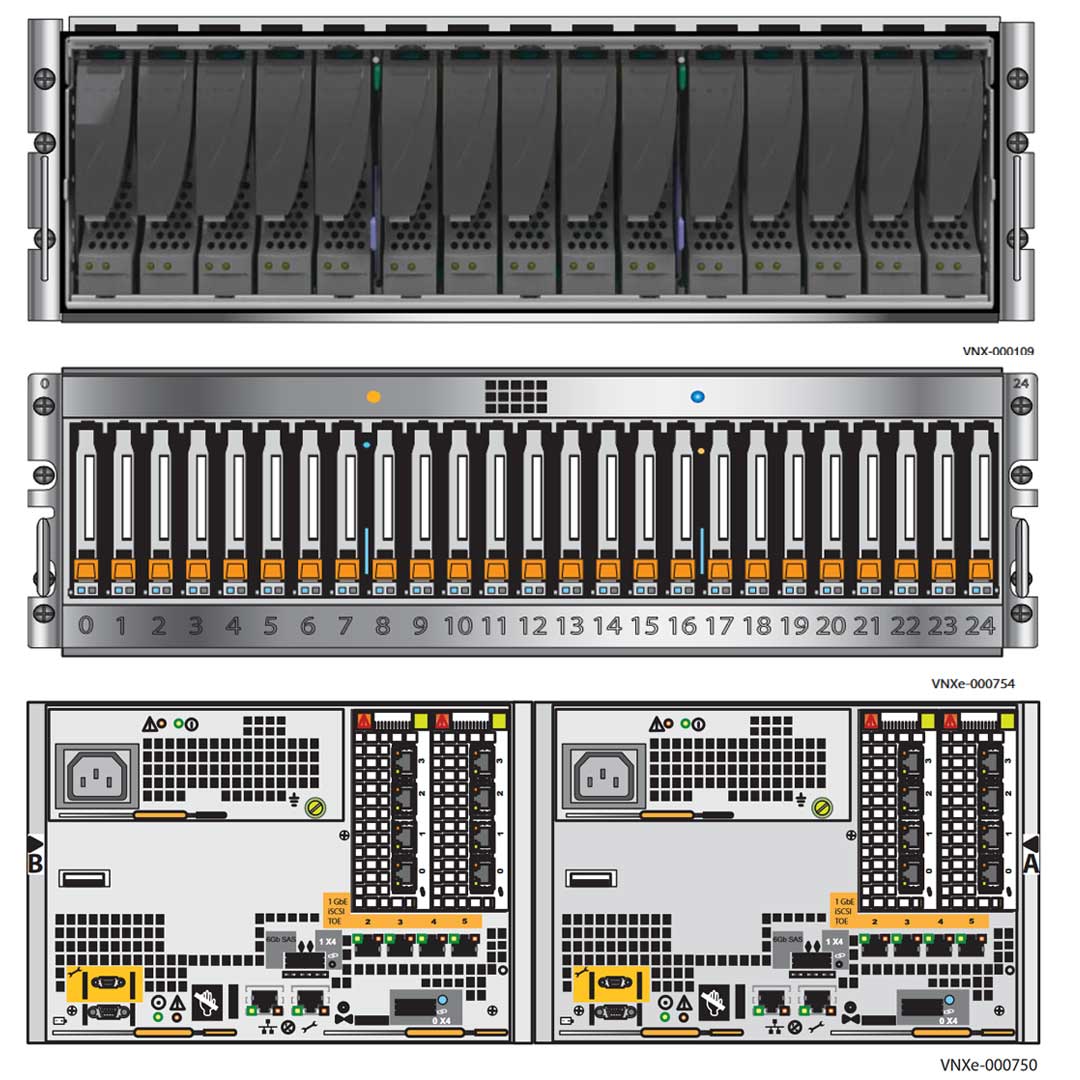

This EMC VNXe3300 is a bit different than the VNXe 3100 and 3150 DPEs. This 3U Disk Processor Enclosure (DPE) can handle more drives and has many more ports for networking abilities. The Storage Processors on the VNXe 3300 has a lot more power and 3 time the amount of RAM than the VNXe3100 SP’s.

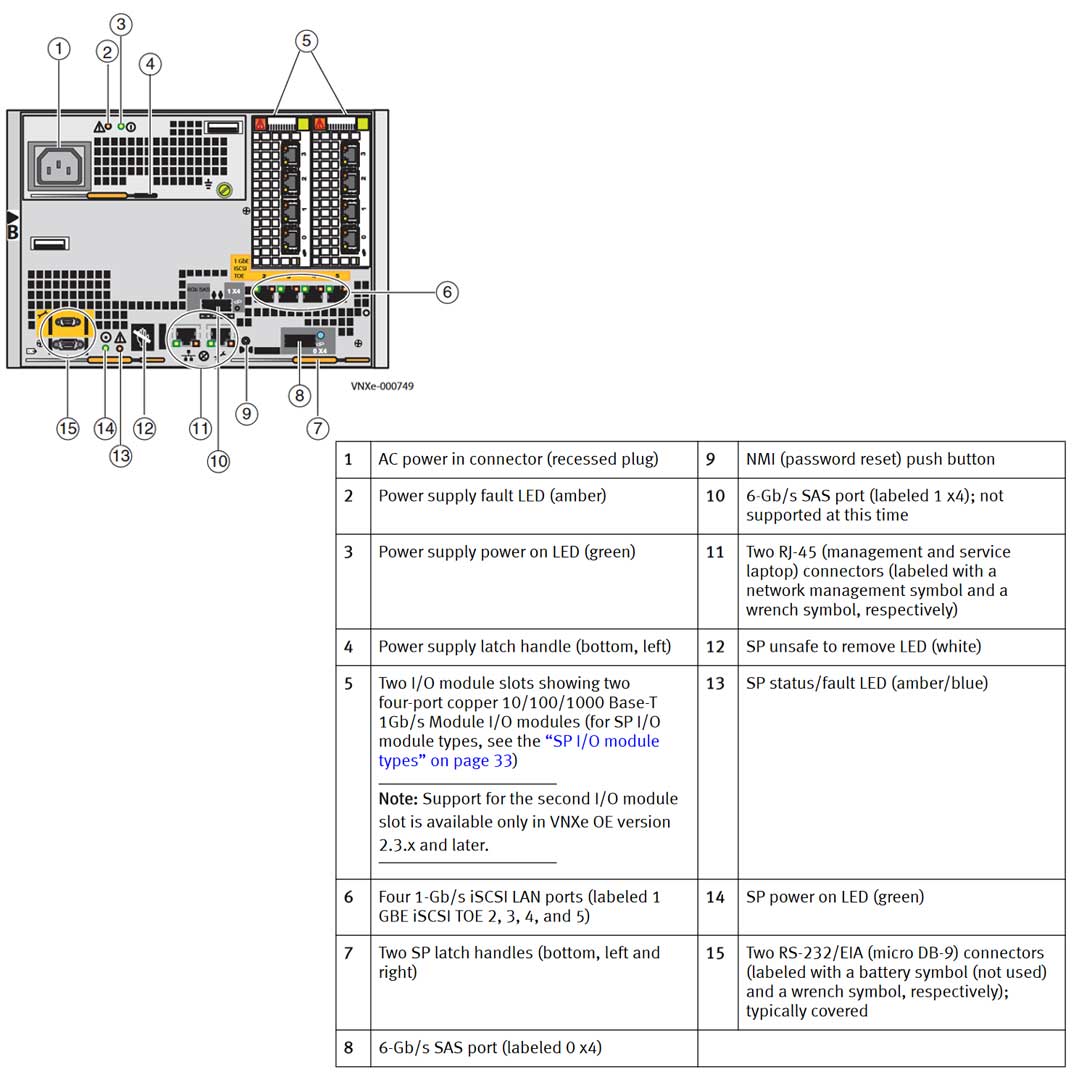

Storage Processor (SP)

A CPU module with an Intel Xeon Quad Core 2.13-GHz processor with three Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots supporting 12 GB of memory per SP

I/O Configurations:

Four-port 1-Gb/s (1000Base-T) copper iSCSI Ethernet (labeled 1 GbE on the latch handle)
Two-port 10-Gb/s optical iSCSI (labeled 10 GbE iSCSI on the latch handle)
Two-port 10-Gb/s RJ-45 Base-T (labeled 10 GbE Base-T on the latch handle)
Any combination of the above I/O modules is supported. However, both SPs must have the same I/O module configuration.

Spec Sheet 4

EMC VNXe3300 Technical Specifications

EMC VNXE3300 TECHNICAL SPECIFICATIONS
Form Factor	3U Rack
Storage Type	Unified
Maximum Raw Capacity	135TB
Dual Controllers (SPs)	Standard
Number of Drives (Min/Max)	6/150
Drive Enclosure Options	12x 3.5" SAS/Flash (2U) 25x 2.5" Flash/SAS Drives (2U)
Drive Options	3.5" Drive Enclosure (12 x 3.5") 300GB 15K SAS (V2-PS15-300) 300GB 10K SAS 600GB 15K SAS (V2-PS15-600) 600GB 10K SAS 900GB 10K SAS (V2-PS10-900) 1TB 7.2K NL-SAS (V2-PS07-010) 2TB 7.2K NL-SAS (V2-PS07-020) 3TB 7.2K NL-SAS (V2-PS07-030) 2.5" Drive Enclosure (25 x 2.5") 300GB 10K SAS 600GB 10K SAS 900GB 10K SAS SSD Enterprise Flash Drives (EFD) 100GB 6Gbps SAS 2.5" SSD 200GB 6Gbps SAS 2.5" SSD
CPU / Memory Per Controller	1x Xeon Quad Core / 12GB
Base 1Gbps IP Ports per Controller	4
Max Flex IO Modules per Controller	2
Management Ports	2x 10/100/1000 GbE
Interconnect	Four 6Gbps x 4 SAS Ports
RAID Options	1/0, 5, 6
System Limits and Support
Maximum Number of Supported LUNs	Up to 512
Maximum LUN Size	2TB
Maximum File System Size	16TB
Total Raw Capacity	135TB
Maximum File Systems	512
Copper 10/100/1000 BASET 1Gbps Module	NAS/iSCSI, 4 Ports per module
Optical 10Gbps Ethernet	NAS/iSCSI, 2 Ports per Module
Copper 10G BaseT Ethernet	NAS/iSCSI, 2 Ports per module
Compatible Disk Arrays	V31-DAE-R-15 V31-DAE-N-15 25-Bay 2.5" DAE
Chassis Part Number	100-562-503 DPE Chassis VNX 33/51/53/5500 15 Slot Chassis and Midplane
Host Connections	1Gb iSCSI, 10Gb iSCSI, 1GbE, 10GbE
Protocols Supported	Certified for Common Criteria EAL3+ CIFS (SMB 1 and SMB 2), NFSv2 and v3, iSCSI Network Lock Manager (NLM) v3, v4 Routing Information Protocol (RIP) v1-v2 Simple Network Management Protocol (SNMP) Network Data Management Protocol (NDMP) v1-v4 Address Resolution Protocol (ARP) Internet Control Message Protocl (ICMP) Simple Network Time PRotocol (SNTP) Lightweight Directory Access Protocol (LDAP)
Server Operating System Support	Microsoft Windows Server 2003 Microsoft Windows Server 2008 and Windows Server 2008 R2+ Microsoft Windows 7 and Vista Microsoft Hyper-V VMware® ESX® RedHat Enterprise Linux Novell Suse Enterprise Linux Solaris 10 x86 Solaris 10 Sparc HP-UX IBM AIX Citrix XenServer
ECS Warranty	1-Year Parts Replacement Warranty
