-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

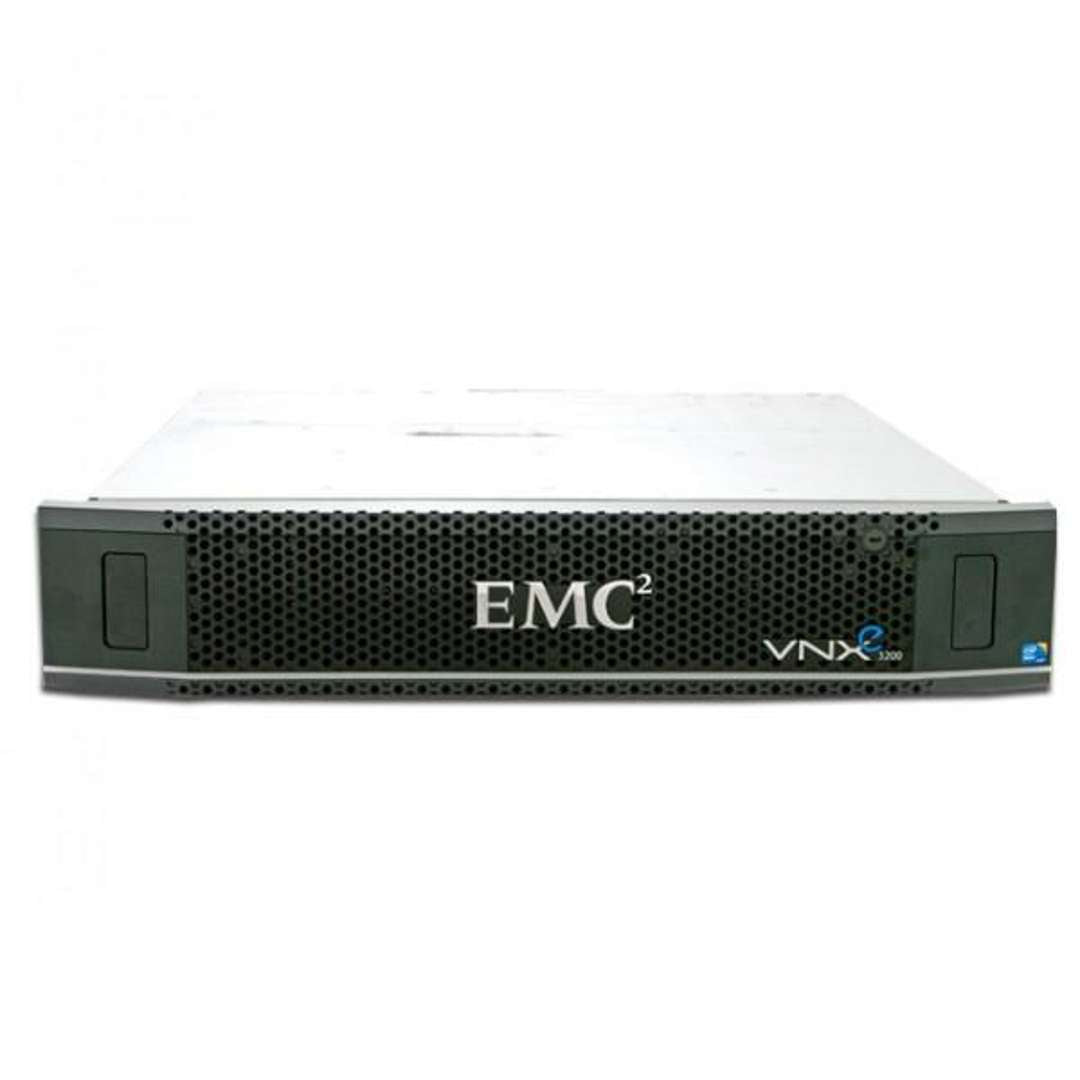

- Product Name: EMC VNXe3200 Disk Processor Enclosure (DPE)
- Form Factor: 2U

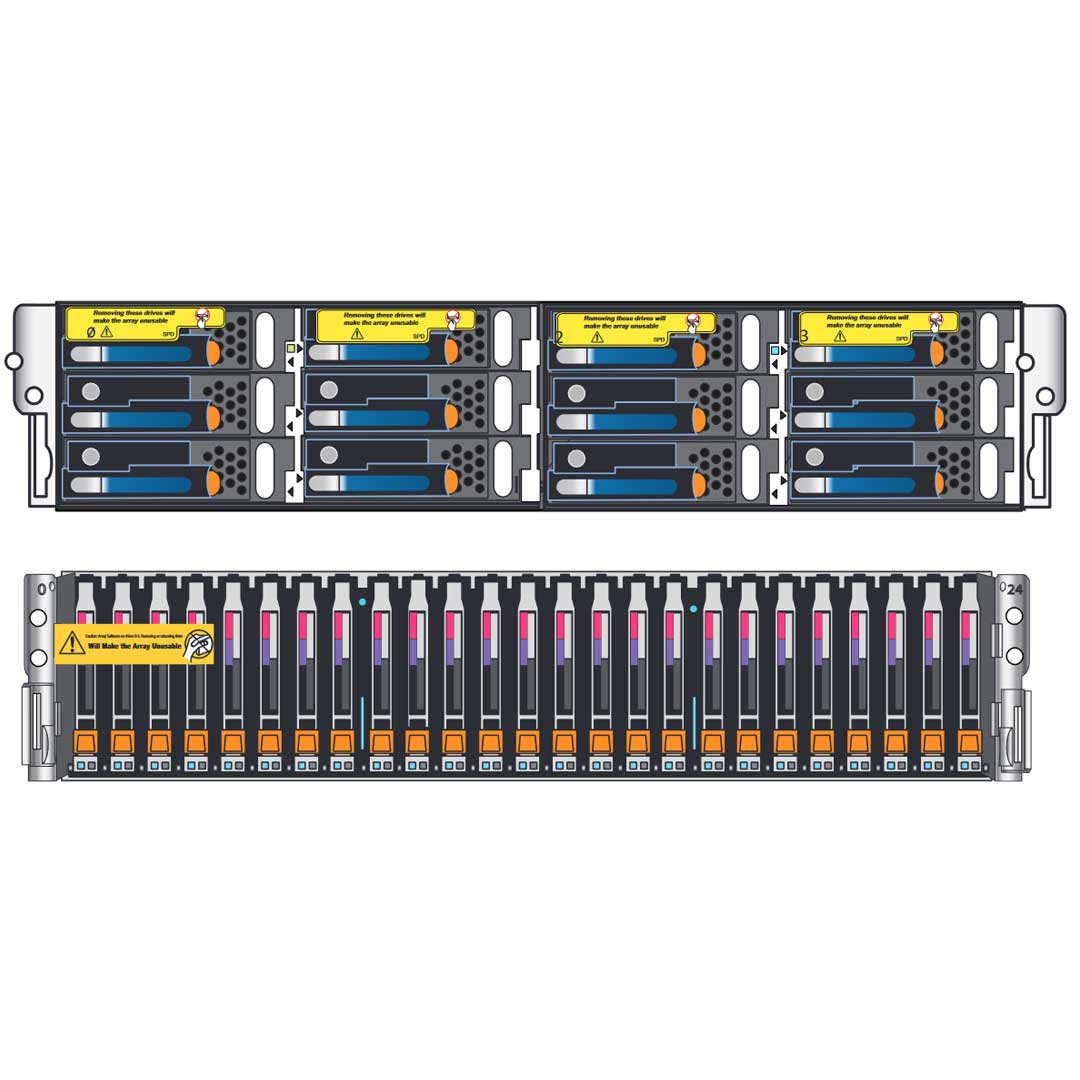

- Chassis Options: 12 LFF (3.5") or 25 SFF (2.5")

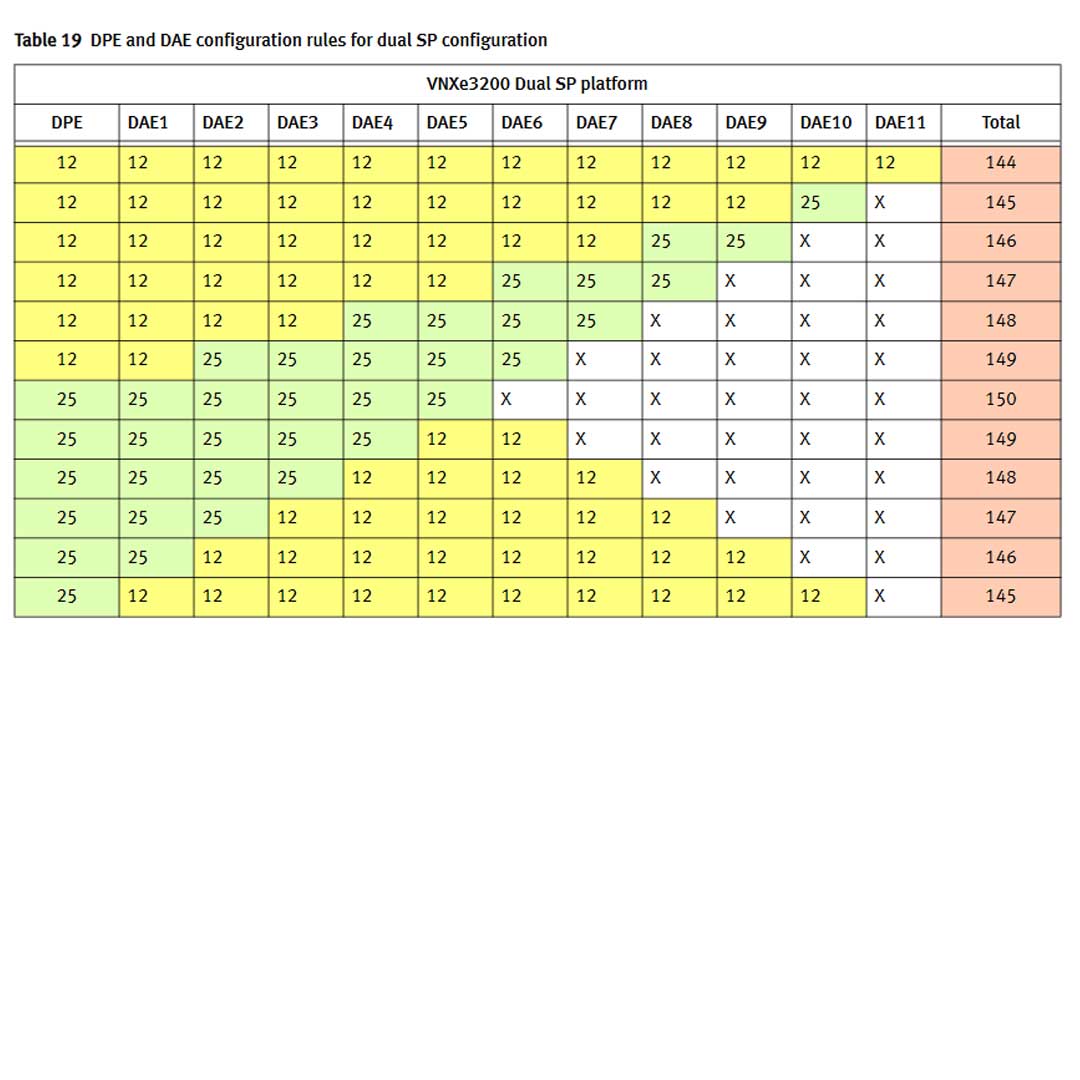

- Max Drives: 150 Disk Drives
- Drive Types: SAS, NL-SAS, SSD (EFD)
- Storage Processor: Intel Xeon Quad Core 2.2GHz, 48GB RAM (24GB per SP)

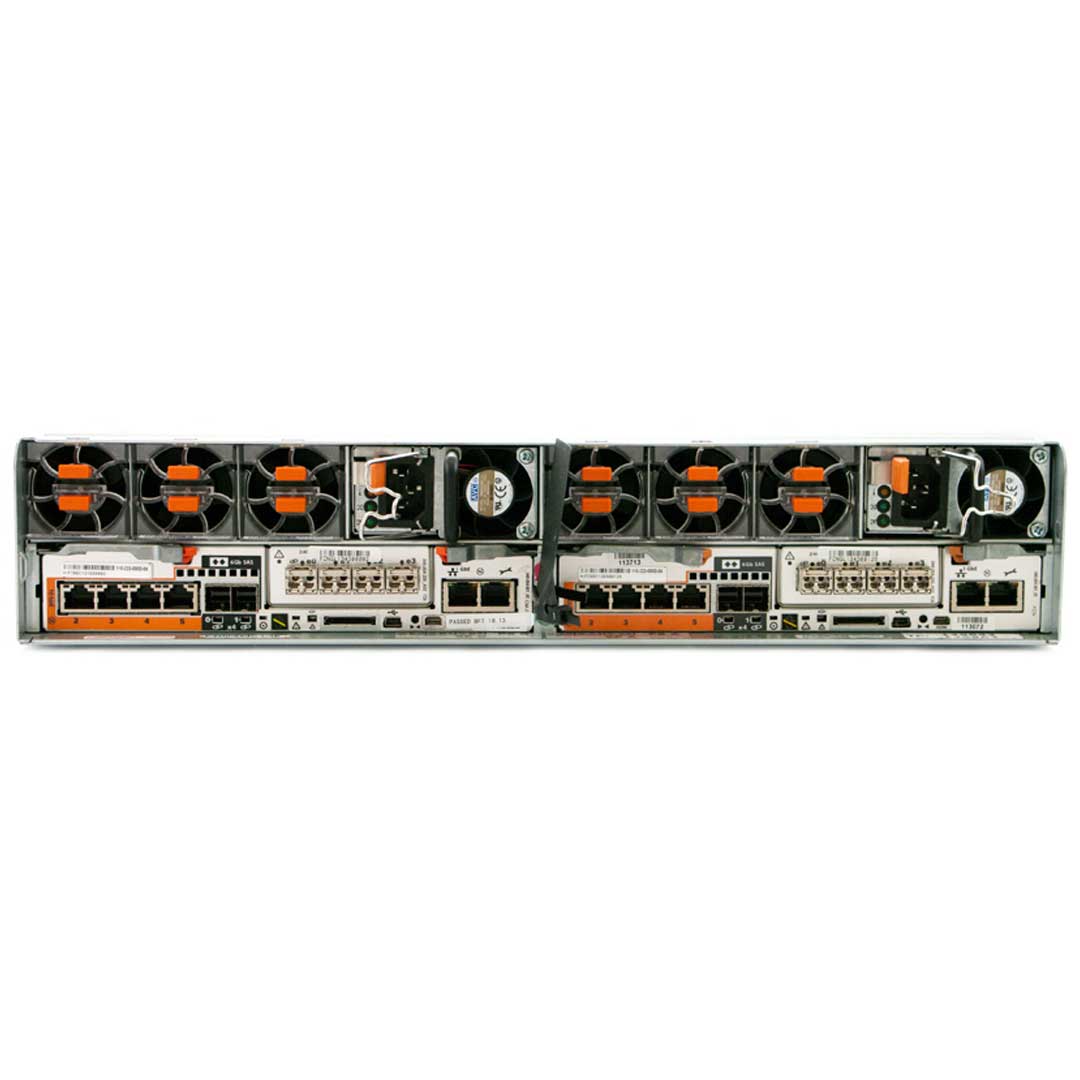

- I/O Personality Modules: 4-Port 1GbE, 4-Port 8Gb FC, 4-Port 10GbE Optical
- DAE Support: V32-DAE-12 (12x 3.5") or V32-DAE-25 (25x 2.5")
- Unified Protocols: SAN (Fibre Channel) + NAS (CIFS/NFS)
- Included Technologies: MCx, FAST Cache, FAST VP, Fibre Channel Support
Model Identifier:
- VNXe3200
The EMC VNXe3200 Disk Processor Enclosure (DPE) is a high-density, dual-controller 2U unified storage platform that supports both SAN and NAS operations. With scalability up to 150 drives, it allows flexible drive configurations using SAS, NL-SAS, and SSD technologies in either 12-bay LFF or 25-bay SFF enclosures.
Equipped with Intel Xeon Quad Core processors and 48GB total memory, the VNXe3200 supports advanced features like FAST Cache, FAST VP, and MCx multicore optimization. I/O modules are interchangeable but must be consistent across both SPs, with options including 1GbE, 8Gb FC, or 10GbE. The system is ideal for hybrid flash and all-flash environments requiring both high capacity and performance.
Spec Sheet 4
EMC VNXe3200 Technical Specifications
| EMC VNXE3200 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form Factor | 2U Rack |
| Storage Type | Unified |
| Maximum Raw Capacity (per controller) | 500TB |
| Max FAST Cache | 400GB |
| Number of Drives (Min/Max) | 6/150 |
| Drive Enclosure Options | 12x 3.5" SAS/Flash (2U) 25x 2.5" Flash/SAS Drives (2U) |
| Drive Options |
3.5" Drive Enclosure (12 x 3.5") 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 2.5" Drive Enclosure (25 x 2.5") 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS |
| CPU / Memory Per Controller | 1x 2.2GHz Xeon (Sandy Bridge) Quad Core Processor / 24GB per Controller |
| Base 10Gbps IP Ports per Controller (BASE-T) | 4 |
| Max Flex IO Modules per Controller | 1 |
| Management Ports | 2x 10/100/1000 GbE |
| Interconnect | Two 6Gbps x 4 SAS Ports |
| RAID Options | 1/0, 5, 6 |
| System Limits and Support | |
| Maximum Number of Supported LUNs | Up to 512 |
| Maximum LUN Size | 16TB |
| Maximum File System Size | 16TB |
| Total Raw Capacity | 500TB |
| Maximum File Systems | 500 |
| 1GbE | 4 Ports per module |
| 10GbE Optical | 4 Ports per Module |
| 8 Gbps Fibre Channel | 4 Ports per module |
| Compatible Disk Arrays | V2-DAE-12 V2-DAE-25 V31-DAE-N-15E V31-DAE-R-15E V31-DAE-N-25E V31-DAE-R-25E |
| Protocols Supported | CIFS (CMB 1, SMB 2 and SMB 3), NFSv3, iSCSI, Fibre Channel Network Lock Manager (NLM) v3, v4 Routing Information Protocol (RIP) v1-v2 Simple Network Management Protocol (SNMP) Network Data Management Protocol (NDMP) v1-v4 Address Resolution Protocol (ARP) Internet Control Message Protocol (ICMP) Simple Network Time Protocol (SNTP) Lightweight Directory Access Protocol (LDAP) |
| Server Operating System Support | Apple MAC OS 10.8 or higher Citrix XenServer 6.1 HP-UX IBM AIX IBM VIOS 2.2, 2.3 Microsoft Windows Server 2008 Windows Server 2008 R2+ Windows Server 2012 Windows Server 2012 R2 Microsoft Windows 7 Microsoft Windows 8 Microsoft Windows Vista Microsoft Hyper-V Novell Suse Enterprise Linux Oracle Linux RedHat Enterprise Linux Solaris 10 x86 Solaris 10 Sparc Solaris 11 and 11.1, SPARC and x86 VMware ESXi5.x |
| ECS Warranty | 1-Year Parts Replacement Warranty |
