NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)

NetApp FAS2750 2-port UTA2 Single Chassis HA Pair Filer Head (FAS2750-UTA2-2P-1C)

NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)

Price: Request a Quote

Brand:

NetApp

MPN:

FAS2750-UTA2-2P-1C

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)

Powered by NetApp® ONTAP® data management software, we can help you build a storage infrastructure that is simple, secure, and trusted. NetApp FAS Storage Arrays provides customers with a balance of performance and capacity.

The FAS2750 has two Controller Options, a UTA2 and a 10GBASE-T. Each controller comes with a different numbering of ports and protocols. All other aspects of this Filer are identical regarding supported drives, and capacity.

The FAS2750 configuration ships with a 1TB NVMe Flash Cache internal adapter configured on each node.
No upgrade of Flash Cache capacity is offered.

Model & Form Factor

Model: NetApp FAS2750 UTA2
Form Factor: 2U
PCIe Expansion Slots: None
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 3.42" (8.69 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
Chassis Weight: up to 60.8 lb (27.6 kg)

Controller Specs

Controllers: UTA2 Dual Controller (Metro Cluster)
Max Controllers: 2
PCI Slot (per): None
Ethernet Ports (per): 2 x SFP+ (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
SAS Ports (per): 2 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 12-core 1.50 Ghz
Memory (Single/8-Node MC): 32GB/256GB
NVME (Single/8-Node MC): 1024GB/8192GB
NVMEM (Single/8-Node MC): 4GB/32GB

Storage

Max Number of Internal Drives: 24
Max Number Drives (total): 288
Max Capacity: 4,396TB (4.39PB)
Max # of NL-SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SATA Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SSD Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Drive Interface: NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max Number of DS212C Shelves: 16 external
Max Number of DS224C Shelves: 4 internal + 8 external
Max Number of DS460C Shelves: 4 external

UTA2 ports

A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.

MetroCluster

A MetroCluster is a high-availability (HA) and disaster recovery (DR) solution from NetApp that provides synchronous data replication between two geographically separated sites. It ensures zero data loss and automatic failover in case of a site failure.

8-Node MetroCluster

An 8-node MetroCluster expands the architecture to four HA pairs (eight controllers total) across two sites, offering increased performance, scalability, and redundancy. This configuration is suited for large enterprises with high I/O workloads and critical applications that require greater throughput and storage capacity while maintaining zero data loss failover across sites.

FAS2750 Parts Lists

View Drives

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS2750

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS460C Shelves
144	24	144	144	144	144	9 external	5 external	1 internal + 5 external	5 external	5 external	2 external

Capacity Limits

Marketing Maximum Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
1963200	1963200	Detailed Matrix	8713663.2	8713663.2	N/A

Core Cluster Limits

Max SVM's - NAS - Node / HA Pair / Cluster	Max LIF's - NAS - Node / HA Pair / Cluster	Max Connections - NAS - Node / HA Pair(Non-Scalable)	Max Flexible Volumes - NAS - Aggregate (Single data Agg. per Node) / Aggregate (Multiple data Agg. per Node) / Node/ HA Pair / Cluster	Max Flexible Volumes with DPO - NAS - Node/ HA Pair / Cluster	Max Lock Manager Locked Objects - Node/HA Pair/Cluster	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies - SVM / Cluster	Max Auditing-Enabled SVMs - Cluster
N/A / N/A / 512	512 / 512 / 3072	100000 / 100000	N/A / N/A / 1000 / 2000 / 15000	1500 / 3000 / 12000	1200000 / 1200000 / 12288000	8	191488	150	256 / 1500	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max Infinite Volume Data Constituent Size	Max FlexGroup Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
Not Supported / Not Supported	8400 TiB	Not Supported		150 GiB [1]	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 12-core 1.50 Ghz	64 bit	1.50 Ghz	1	2	12	12	24

Memory

Detailed Memory Matrix	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
Platform Memory Specifications	1024 GB	2048 GB	4 GB	8 GB	32 GB	64 GB

Onboard Ports

Full Onboard Ports Matrix	Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
Onboard Ports & Cables	4 x SFP+ (10Gb)	-		-	4 x MiniSAS HD (12Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
2	3.35" (8.5 cm)	18.9" (48 cm)	17.6" (44.7 cm)	24.13" (61.3 cm)	19.02" (48.3 cm)	See Below

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	24.03" (61 cm)	6.03" (15.3 cm)	13" (33 cm)

Environmental Requirements

Operating Temp / Humidity / Altitude	Storage Temp / Humidity / Altitude	Transit Temp / Humidity / Altitude	Acoustic Noise - Sound Power / Pressure	Input Power Voltage
41 to 113 deg F - 5 to 45 deg C / 8 to 90 % / Up to 10000.0 ft - Up to 3048.0 m	-40 to 158 deg F - -40 to 70 deg C / 10 to 95 % / Up to 40000.0 ft - Up to 12192.0 m	-40 to 158 deg F - -40 to 70 deg C / 10 to 95 % / Up to 39989.8 ft - Up to 12192 m	6.9 bels / 51 dBA	100 to 120

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1	9.11.1RC1	9.11.1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware ReportBelow	11.15*	11.8*

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates ReportBelow	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies	Max Export Rules	Max NFSv4 Access Control Entries	Max Client Objects - Node / HA Pair	Max pNFS objects - Node / HA Pair
24000	200000	1024	10000 / 10000	524288 / 524288 / 1048576

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Snapshot - Volume / Node / HA Pair	Char's Snapshot	Hard links - File	inodes/files - Volume	qtrees - Volume / Node / HA Pair / Cluster	Concurrent DataMotion for Volumes ops - Node / HA Pair
800	100	16	1023 / 1023000 / 2046000	255	100000	2000000000	4995 / 100000 / 200000 / 400000	16 / 16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

SVMs - Node / HA Pair / Cluster	Flexible Vol - Node / HA Pair / Cluster	Flexible Vol with DPO - Node / HA Pair / Cluster	LUNs Vol - Node / HA Pair / Cluster	LUN mappings - Node / HA Pair / Cluster	LUN size (TiB) - LUN	Maximum FC queue depth available	SAN Hosts (ITNs) - Port / Node / HA Pair / Cluster	LIFS - iSCSI - Port / Portset / Node / HA Pair / Cluster	LIFS - FCP - Port / Portset / Node / HA Pair / Cluster	igroups - Node / HA Pair / Cluster	Initiators - igroup / Node / HA Pair / Cluster	Portsets - Node / HA Pair / Cluster	iSCSI sessions - Node / HA Pair / Cluster
125 / 250 / 1000	N/A / N/A / 1000 / 2000 / 12000	1500 / 3000 / 12000	1024 / 8192 / 16384 / 65536	8192 / 16384 / 65536	16	2048	512 / 4096 / 8192 / 32768	32 / 32 / 512 / 1024 / 4096	32 / 32 / 512 / 1024 / 4096	2048 / 4096 / 16384	256 / 2048 / 4096 / 16384	2048 / 4096 / 16384	4096 / 8192 / 32768

CIFS Cluster Limits - All Maximums

Connected shares - Node / HA Pair	Regular shares - Node / HA Pair / Cluster	Open files - Connection / Node / HA Pair	Local users - Cluster	Local groups - Cluster	Local group members - Cluster
Detailed Matrix / 800000	N/A / N/A / 60000	600000 / 600000 / 600000	5000	10000	30000

Data Protection Cluster Limits - All Maximums

NDMP Sessions - Node / HA Pair (Non-Scalable)	Data Protection Mirrors - Volume / Node / HA Pair / Cluster	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	Clusters that can be peered - Cluster	Volumes, SnapMirror relationship - FlexGroup / FlexGroup-Node /HA Pair / Cluster	SnapMirror Synchronous relationships - Volume / Node / HA Pair (Non-Scalable)	Flexible Volumes in SVM DR - SVM / HA Pair	SVM Disaster recovery - Cluster
36 / 36	1 / 1000 / 2000 / 15000	2	100	8	2	255	200 / 50 / 1000 / 6000	1 / 20 / 20	300 / 1000	128

NVMe/oF Cluster Limits - All Maximums

Storage virtual machines (SVMs), NVMe/oF - Cluster	Flexible volumes, NVMe/oF - Node / HA Pair / Cluster	Flexible volumes with DPO, NVMe/oF - Node / HA Pair / Cluster	Namespaces - Volume / Node / HA Pair / Cluster	Subsystems - SVM / Cluster	Namespace Mappings - Subsystem / Node / HA Pair / Cluster	Namespace Size	Hosts - Subsystem	LIFS, NVMe/oF - Port / SVM / Node / HA Pair / Cluster	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
32	1000 / 2000 / 12000	1500 / 3000 / 12000	1024 / 8192 / 16384 / 65536	512 / 512	1024 / 8192 / 16384 / 65536	16	64	16 / 8 / 32 / 32 / 32	2	128	1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes - Node / HA Pair	Constituent Volumes - Node / HA Pair	Volumes - Node / HA Pair	Origin ConstituentVolumes - Node / HA Pair
100	100 / 200	800 / 1600	100 / 200	800 / 1600

S3 Cluster Limits - All Maximums

Number of Buckets - Vserver / Cluster	Number of Objects - Bucket	Number of Users - Vserver / Cluster	Size of the Bucket (PB) - Vserver
12000 / 12000	400000000000	4000 / 96000	20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Consistency Groups and Parents - Cluster	Child Consistency Groups in a Parent - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
15000	15000	15000	5		80	80

Platform LED for FAS2750 2-port UTA2 Single Chassis HA Pair

LED Label	LED Name	Type	Status Indicator	Description

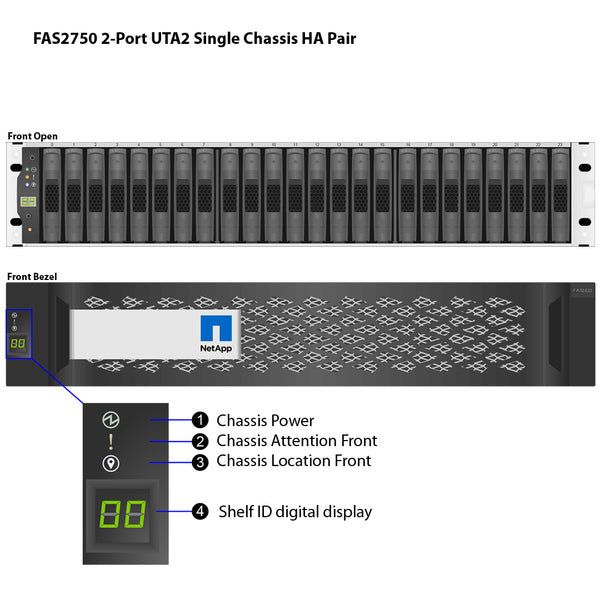

Front View
1	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
2	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
3	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating equipment
-	-	-	Off	The LED has not been manually activated to aid in physically locating equipment
4	Shelf ID Digital Display	-	Number Displayed	Digital Shelf ID

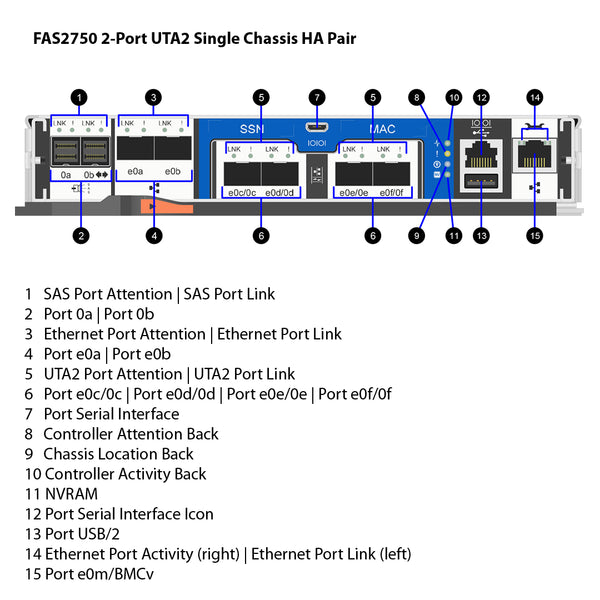

Back View
LED Label	LED Name	Type	Status Indicator	Description
-	0a Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
-	0b Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
-	e0a Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	e0b Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	e0c/0c Port UTA2 Config (Ethernet personality)	Attention	Off	Port is operating as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Yellow	Port requires attention
-	-	-	Off	No connection is established on the port.
-	e0c/0c Port UTA2 Config (FC personality)	Attention	Off	Port is operating as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Yellow	Port requires attention
-	-	-	Off	No connection is established on the port.
-	e0d/0d Port UTA2 Config (Ethernet personality)	Attention	Off	Port is operating as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Yellow	Port requires attention
-	-	-	Off	No connection is established on the port.
-	e0d/0d Port UTA2 Config (FC personality)	Attention	Off	Port is operating as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Yellow	Port requires attention
-	-	-	Off	No connection is established on the port.
-	e0m/BMC Ethernet On/Off	Port Activity	Blinking green	Traffic is present on the active link
-	-	-	Off	Off
-	-	Port Link	Solid green	On
-	-	-	Off	No link established

Supported Shelves Drives for FAS2750 2-Port UTA2 Single Chassis HA Pair

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
FAS2750A 2-port UTA2 Internal Drives
X319A	7.6TB	N/A	SSD	No	No	Yes	No	24	No
X341A-R6	900GB	10K	SAS	No	Yes	No	No	24	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	24	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	24	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	24	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	24	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	24	No
X386A [1]	960GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	24	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	24	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	24	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	24	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	24	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	24	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	24	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	24	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	24	No
X670A	15.3TB	N/A	SSD	No	No	Yes	No	24	No
DS212C with IOM12 / IOM12B / IOM12B / IOM12 shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	108	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	108	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	108	No
X315A-R6 [1] [2]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	108	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	108	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	108	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X339A	2TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	108	No
X364A	3.84TB	N/A	SSD	No	No	No	Yes	108	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	108	No
X374A	960GB	N/A	SSD	No	No	No	Yes	108	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X388A	16TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	108	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	108	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	108	No
X488A-R5	900GB	10K	SAS	No	Yes	No	No	108	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	108	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	108	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	108	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	108	No
DS224C with IOM12 / IOM12B / IOM12 / IOM12B shelf modules
X319A	7.6TB	N/A	SSD	No	No	Yes	No	120	No
X341A-R6	900GB	10K	SAS	No	Yes	No	No	120	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	120	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	120	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	120	No
X386A [1]	960GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	120	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	120	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	120	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	120	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	120	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	120	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	120	No
X670A	15.3TB	N/A	SSD	No	No	Yes	No	120	No
DS460C with IOM12 / IOM12B / IOM12B / IOM12 shelf modules
X379A	960GB	N/A	SSD	No	No	No	Yes	20	No
X375A	4TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X376A	8TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X377A	10TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X378A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X387A	16TB	7.2K	NL-SAS	No	Yes	No	No	120	No
DS2246 with IOM12 / IOM12B / IOM6 / IOM12 / IOM6 / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	No	120	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	120	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	120	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	120	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	120	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	120	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	120	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	120	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	120	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	120	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	120	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	120	No
DS4246 with IOM12 / IOM12B / IOM12B / IOM6 / IOM12 / IOM6 shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	120	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	120	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	120	No
X309A-R6 [1] [2]	3TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X315A-R6 [1] [2]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X316A-R6	6TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	120	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	120	No
X374A	960GB	N/A	SSD	No	No	No	Yes	120	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X441A-R5	100GB	N/A	SSD	No	No	No	No	120	No
X442A-R5 [4]	100GB	N/A	SSD	No	No	No	No	120	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	120	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	120	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	120	No
X488A-R5	900GB	10K	SAS	No	Yes	No	No	120	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	120	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	120	No
X577A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	120	No
DS4243 [3] with IOM12 / IOM6 shelf modules
X302A-R5	1TB	7.2K	SATA	No	No	No	No	120	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	120	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	120	No
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] In Flash Pool NSE SSD drives can only be used with NSE HDD drives.
[3] The DS4243 shelf requires an upgrade to IOM6 or IOM12 Expander Modules starting with ONTAP 9.4RC1 and FAS27x0.
[4] This drive does not support the sanitization feature.

Supported RAID Configurations - FAS2750 2-Port UTA2 Single Chassis HA Pair

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	15.3 TB	3	8	14
RAID-DP
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	10 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	15.3 TB	5	24	28
RAID-TEC
NL-SAS	0 TB	16 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	15.3 TB	7	25	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	15.3 TB	2	-	14
RAID-DP
NL-SAS	0 TB	5.999 TB	3[1]	-	20
NL-SAS	6 TB	16 TB	3[1]	-	14
SAS	0 TB	5.999 TB	3[1]	-	28
SATA	0 TB	5.999 TB	3[1]	-	20
SSD	0 TB	15.3 TB	3[1]	-	28
RAID-TEC
NL-SAS	0 TB	16 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	15.3 TB	7	-	29
Footnote:
1The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS2750 2-port UTA2 Single Chassis HA Pair

Priority	Category	Bus Type	Mktg Part No.	Description	Plug Type	Optical Module Included?	Supported Protocol(s)	Min ONTAP	Priority Slot Assignment
1	Performance Acceleration	M.2 PCIe	X3311A	-	111-03066	Flash Cache,1.0TB,NVMe	No	N/A	9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.

Supported Connections for FAS2750 2-port UTA2 Single Chassis HA Pair

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node

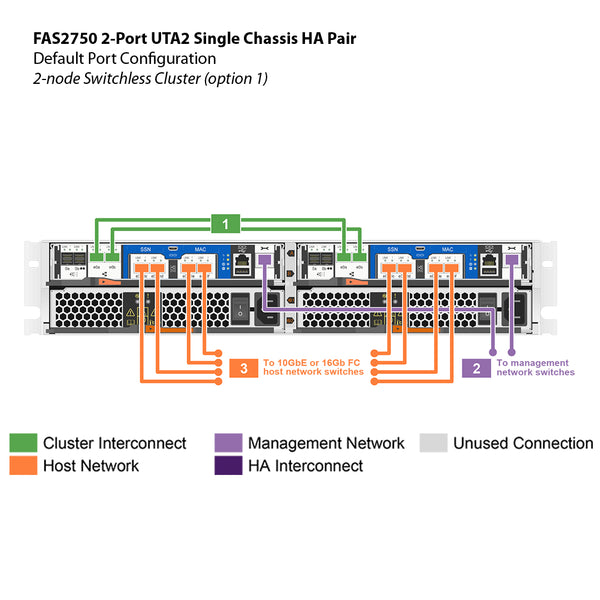

2-node Switchless Cluster (option 1)	Default	View Image Above	2	None

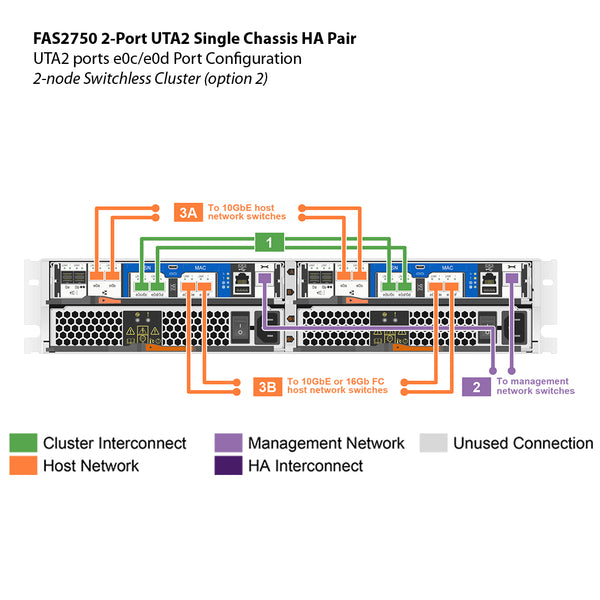

2-node Switchless Cluster (option 2)	UTA2 ports e0c/e0d	View Image Above	2	None

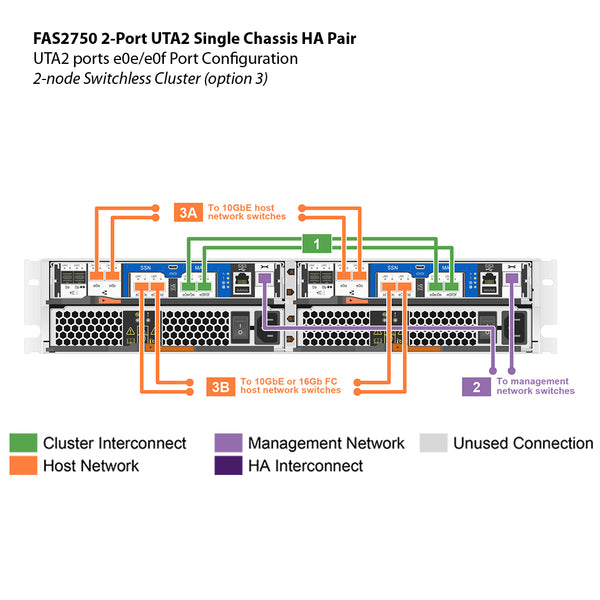

2-node Switchless Cluster (option 3)	UTA2 ports e0e/e0f	View Image Above	2	None

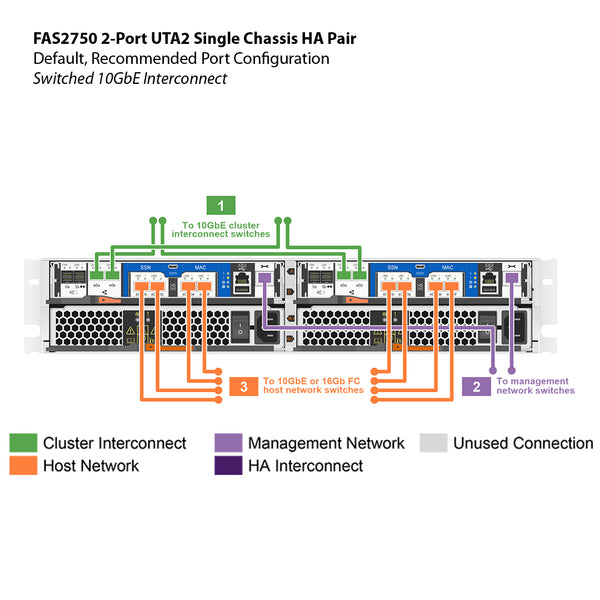

Switched 10GbE Interconnect	Default, Recommended	View Image Above	2	2

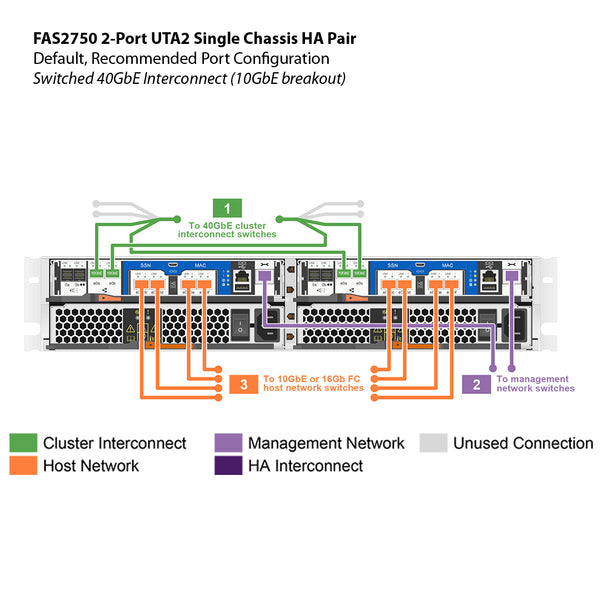

Switched 40GbE Interconnect (10GbE breakout)	Default, Recommended	View Image Above	2	1

Platform Mixing Rules - FAS2750 2-port UTA2 Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
FAS2720A 2-port UTA2	24 Nodes	12 Nodes	9.4RC1
FAS2720A UTA2	24 Nodes	12 Nodes	9.4RC1
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
FAS2750A 2-port UTA2	24 Nodes	12 Nodes	9.4RC1
FAS2750A UTA2	24 Nodes	12 Nodes	9.4RC1
FAS500fA	24 Nodes	12 Nodes	9.8RC1
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS9000A	24 Nodes	12 Nodes	9.4RC1
FAS9500A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.8RC1
AFF A250A 100V	24 Nodes	12 Nodes	9.8P4
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A700A	24 Nodes	12 Nodes	9.4RC1
AFF A800A	24 Nodes	12 Nodes	9.4RC1
AFF A900A	24 Nodes	12 Nodes	9.10.1
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
AFF C190A 2-port UTA2	24 Nodes	12 Nodes	9.6RC2
AFF C190A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS - Legacy EOA Configuration(s)
FAS8200A	24 Nodes	12 Nodes	9.4RC1
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
AFF A220A UTA2	24 Nodes	12 Nodes	9.4RC1
AFF A300A	24 Nodes	12 Nodes	9.4RC1
AFF A320A	24 Nodes	12 Nodes	9.6RC2
AFF A700s	24 Nodes	12 Nodes	9.4RC1
Footnote:
1Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS2750 2-port UTA2 Single Chassis HA Pair

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - FAS2750 2-port UTA2 Single Chassis HA Pair

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P6
ONTAP 9.9.1	9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P10, 9.9.1P9
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
EOS OS
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6P2, 9.6P1, 9.6, 9.6RC2, 9.6RC1	End of Full Support: 30-Jun-2022 End of Limited Support: 30-Jun-2024 End of Self-Service Support: 30-Jun-2027	9.6P18
ONTAP 9.5	9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14, 9.5P13, 9.5P12, 9.5P11, 9.5P10, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P3, 9.5P2, 9.5P1, 9.5, 9.5RC1	End of Full Support: 31-Jan-2022 End of Limited Support: 31-Jan-2024 End of Self-Service Support: 31-Jan-2027	9.5P19
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS2750 2-port UTA2 Single Chassis HA Pair

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C	IEC60320-C13 / IEC60320-C20	1.83 m	Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

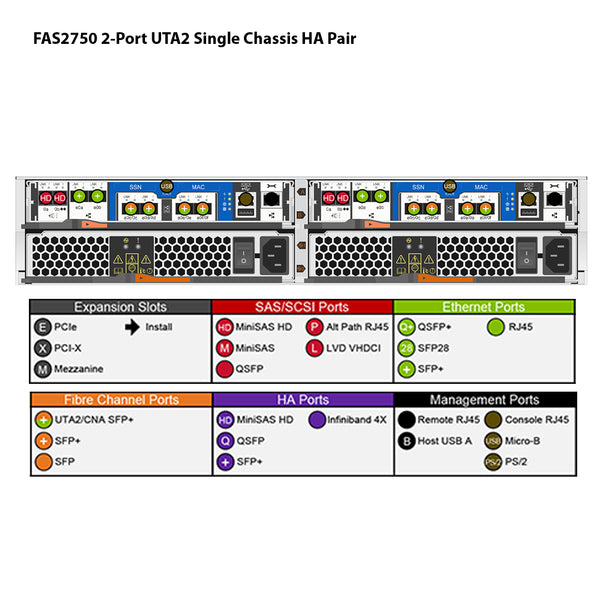

Onboard Ports Configuration: FAS2750 2-port UTA2 Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0b	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
e0a	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0b	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0c/0c [1]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0d/0d [1]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
Serial Interface	USB Serial Console	RS-232 115200bps	USB 2.0	USB 2.0 Micro-B
Serial Interface Icon	Serial Console	RS-232 115200bps	Serial Interface	RJ45
USB/2	Storage Host Port	USB 2.0	USB 2.0	USB Type A
Footnote:
1Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.

Supported Platform Configurations - FAS2750 2-port UTA2 Single Chassis HA Pair

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
FAS2750A 10GBASE-T	FAS2750 10GBASE-T Single Chassis HA Pair	CC	1	2	0	2	42.77 lb (19.4 kg)	9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS2750A 2-port UTA2	FAS2750A 2-port UTA2	CC	1	2	0	2	42.77 lb (19.4 kg)	9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS2750A UTA2	FAS2750 UTA2 Single Chassis HA Pair	CC	1	2	0	2	42.77 lb (19.4 kg)	9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
MetroCluster
FAS2750-4NMCIP 10GBASE-T	FAS2750 4-Node MetroCluster IP 10GBASE-T	CC-CC	2	2	0	4	42.77 lb (19.4 kg)	9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS2750-4NMCIP UTA2	FAS2750 4-Node Metro Cluster IP UTA2	CC-CC	2	2	0	4	42.77 lb (19.4 kg)	9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - FAS2750 2-port UTA2 Single Chassis HA Pair

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X3222A	R7,IC,SODIMM,16GB,x8,ECC,REG	107-00172	no	4	16	8	64

Supported Rail Kit for FAS2750 2-port UTA2 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6	111-00864	Kit,2-Post,Round-Hole
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS2720 10GBASE-T Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X3311A	111-03066	SUB ASSY,NVME,FLASH,1.0TB
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3152A	111-02499	ASSY,BATT,2CELL,HLDR,NV,FAS2650
Bezel
X80109A	111-02980	Bezel,FAS2750
Blank
X5055-R6	111-00812	BLANK,CHASSIS FILLER,REAR,DS2246,R6
Boot Media
X3320A	501-01119	DRIVE,SSD,128GB,mSATA
Cable Management Guide
X3322A	111-02809	SUB ASSY,SM,BKT,CBL MGMNT SET,FAS2650
Chassis
X5721A	111-02889	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS224C
Data Cable
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420	112-00508	Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66120-3	112-00545	Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C	112-00545	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C	112-00545	Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5	112-00546	Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C	112-00546	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C	112-00546	Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
Disk Drive Blank-Filler
X5054-R6	108-00224	BLANK,DSK DRV FILLER,DS2246,R6
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X309A-R6 [1]	108-00301	DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
X315A-R6 [1]	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X316A-R6	108-00389	Disk Drive,6TB 7.2k,DS4246,FAS2554
X317A [1]	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X319A	108-00687	SSD,7.6TB,12G,DS224C
X322A [1]	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X341A-R6	108-00430	DSK DRV,900GB,10K,12G,DS224C
X342A-R6	108-00432	DSK DRV,1.2TB,10K,12G,DS224C
X343A-R6	108-00433	DSK DRV,1.8TB,10K,12G,DS224C
X356A-R6	108-00468	SSD,3.8TB,DS2246,FAS2552
X357A	108-00572	SSD,3.8TB,12G,DS224C,W/MSW
X358A [1]	108-00575	SSD,3.8TB,12G,NSE,DS224C
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X365A-R6 [1]	108-00477	SSD,1.6TB,NSE,DS2246,FAS2552
X366A-R6 [1]	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X371A	108-00546	SSD,960GB,12G,DS224C,W/MSW
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X375A	108-00590	DSK DRV,4TB,7.2K,12G,DS460C
X376A	108-00591	DSK DRV,8TB,7.2K,12G,DS460C
X377A	108-00592	DSK DRV,10TB,7.2K,12G,DS460C
X378A [1]	108-00597	DSK DRV,10TB,7.2K,12G,NSE,DS460C
X379A	108-00598	SSD,960GB,12G,DS460C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X386A [1]	108-00806	SSD,960GB,12G,NSE,DS224C
X387A	108-00886	DSK DRV,16TB,7.2K,12G,DS460C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X416A-R5 [1]	108-00223	Disk Drive,600GB 10k,NSE,DS224x,FAS2240-2
X417A-R6 [1]	108-00246	DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2
X421A-R5	108-00220	Disk Drive,450GB 10k,DS224x,FAS2240-2
X422A-R5	108-00221	Disk Drive,600GB 10k,DS224x,2552/2240-2
X423A-R5	108-00222	DSK DRV,900GB,10K,DS2246,2552/2240-2,R5
X425A-R6	108-00321	DSK DRV,1.2TB,10K,DS2246,2552/2240-2
X426A-R6	108-00424	DSK DRV,1.8TB,10K,DS2246,2552/2240-2
X427A [1]	108-00476	DSK DRV,1.8TB,10k,NSE,DS2246,FAS2552
X427B-R6 [1]	108-00438	DSK DRV,1.8TB,10K,12G,NSE,DS224C
X438A-R6	108-00369	SSD,400GB,DS224x,FAS2552/2240-2
X439A-R6	108-00372	SSD,1.6TB,DS224x,FAS2552/2240-2
X440A-R6 [1]	108-00374	SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X440B-R6 [1]	108-00460	SSD,800GB,12G,NSE,DS224C
X441A-R5	108-00278	Solid State Drive,100GB,DS424x
X442A-R5 [2]	108-00249	Solid State Drive,100GB,3Gb,DS4243
X446B-R6	108-00323	SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X447A-R6	108-00260	SSD,800GB,DS224x,FAS2552/2240-2
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 [1]	108-00375	SSD,800GB,NSE,DS4246,FAS2554
X670A	108-00530	SSD,15.3TB,12G,DS224C
Memory Module
X3222A	107-00172	SODIMM,16GB,ECC,FAS2650
X3311A	111-03066	SUB ASSY,NVME,FLASH,1.0TB
Power Cord
X-50617-00		Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C		Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6		Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C		Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35		Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C		Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N		Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N		Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43		Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C		Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N		Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N		Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64		Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C		Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N		Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N		Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6		Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C		Jumper Crd,In-Cab,C13-C14,-C
X800B-R6		Power Cable,Continental Europe,R6
X800B-R6-C		Power Cable,Continental Europe,-C,R6
X800C-R6		Power Cable,UK and Ireland,R6
X800C-R6-C		Power Cable,UK and Ireland,-C,R6
X800D-R6		Power Cable,Japan,R6
X800D-R6-C		Power Cable,Japan,-C,R6
X800E-R6		Power Cable,North America,R6
X800E-R6-C		Power Cable,North America,-C,R6
X800F-R6		Power Cable,Australia/New Zealand,R6
X800F-R6-C		Power Cable,Australia/New Zealand,-C,R6
X800G-R6		Power Cable,Switzerland,R6
X800G-R6-C		Power Cable,Switzerland,-C,R6
X800H-R6		Power Cable,Argentina,R6
X800H-R6-C		Power Cable,Argentina,-C,R6
X800I-R6		Power Cable,China,R6
X800I-R6-C		Power Cable,China,-C,R6
X800J-R6		Power Cable,Denmark,R6
X800J-R6-C		Power Cable,Denmark,-C,R6
X800K-R6		Power Cable,India,South Africa,R6
X800K-R6-C		Power Cable,India,South Africa,-C,R6
X800L-R6		Power Cable,Israel,R6
X800L-R6-C		Power Cable,Israel,-C,R6
X800M-R6		Power Cable,Italy,R6
X800M-R6-C		Power Cable,Italy,-C,R6
X800N		POWER CABLE,INDIA BIS
X800N-C		Power Cable,India BIS,-C
X800P-R6		Power Cable,North America,250V,R6
X800P-R6-C		Power Cable,North America,250V,-C,R6
X800T-R6		Power Cable,Taiwan,BSMI,R6
X800T-R6-C		Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6		Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6		Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C		Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6		Power Cable,Japan,250V/15A
X800Y-R6-C		Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
Processor Controller Module (PCM)
X3218A	111-03965	Controller,No MEM,CNA,C190,FAS2700
X3218B	111-05221	Controller,No MEM,CNA2,C190,FAS2700
X3219A	111-04043	Controller,No MEM,RJ45,FAS2700
PSU
X5726A	114-00148	PSU,913W
Transceiver
X6567-R6	332-00378	SFP Optical 1GB Shortwave Multimode
X6567-R6-C	332-00378	SFP Optical 1GB Shortwave Multimode,-C
X6567-R6-N-C	332-00378	SFP Optical 1GB Shortwave Multimode,-C
X6568-R6	332-00374	SFP Copper 1GB RJ-45
X6568-R6-C	332-00374	SFP Copper 1GB RJ-45,-C
X6568-R6-N-C	332-00374	SFP Copper 1GB RJ-45,-C
X6588-R6	332-00278R6	SFP+Optical 8Gb Shortwave
X6588-R6-C	332-00278R6	SFP+Optical 8Gb Shortwave,-C
X6588-R6-N-C	332-00278R6	SFP+Optical 8Gb Shortwave,-C
X6589-N-C	332-00279R6	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6	SFP+ Optical 10Gb Shortwave,-C
X6596-R6	332-00331	SFP+ FC Optical 16Gb
X6596-R6-C	332-00331	SFP+ FC Optical 16Gb,-C
X6596-R6-N-C	332-00331	SFP+ FC Optical 16Gb,-C
X6599A-N-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6599A-R6	332-00363	SFP+ Optical 10Gb Shortwave
X6599A-R6-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] This drive does not support the sanitization feature.

Supported Firmware Matrix - FAS2750 2-port UTA2 Single Chassis HA Pair

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1	11.15*
ONTAP 9.11.1	9.11.1RC1	11.16, 11.15*
ONTAP 9.10.1	9.10.1P5-P6	11.16, 11.15*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1	11.16, 11.15, 11.13*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.9.1	9.9.1P10	11.16, 11.15*
ONTAP 9.9.1	9.9.1P8-P9, 9.9.1P7	11.16, 11.15, 11.13*
ONTAP 9.9.1	9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P13	11.16, 11.15*
ONTAP 9.8	9.8P11-P12	11.16, 11.15, 11.13*
ONTAP 9.8	9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14	11.16, 11.15, 11.13, 11.11*
ONTAP 9.7	9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15	11.16, 11.15, 11.13, 11.11*
ONTAP 9.6	9.6P13-P14, 9.6P12	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.6	9.6P10-P11	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.6	9.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.5	9.5P19, 9.5P18	11.16, 11.15, 11.13, 11.11*
ONTAP 9.5	9.5P17, 9.5P16, 9.5P15	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.5	9.5P14	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.5	9.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4*
ONTAP 9.4	9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1*
ONTAP 9.4	9.4, 9.4RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1, 11.2*
BMC
ONTAP 9.11.1	9.11.1, 9.11.1RC1	11.8*
ONTAP 9.10.1	9.10.1P5-P6	11.8*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	11.8, 11.7*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6	11.8, 11.7*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	11.8, 11.7, 11.6*
ONTAP 9.8	9.8P13	11.8*
ONTAP 9.8	9.8P11-P12, 9.8P10, 9.8P9, 9.8P8	11.8, 11.7*
ONTAP 9.8	9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3	11.8, 11.7, 11.6*
ONTAP 9.8	9.8P2, 9.8P1	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.8	9.8, 9.8RC1	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7	9.7P19, 9.7P17-P18	11.8, 11.7*
ONTAP 9.7	9.7P16, 9.7P15, 9.7P14, 9.7P13	11.8, 11.7, 11.6*
ONTAP 9.7	9.7P12, 9.7P11	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.7	9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7	9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6	9.6P18, 9.6P17	11.8, 11.7*
ONTAP 9.6	9.6P16, 9.6P15	11.8, 11.7, 11.6*
ONTAP 9.6	9.6P13-P14	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.6	9.6P12, 9.6P10-P11	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6	9.6P4, 9.6P3	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.6	9.6P2	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.6	9.6, 9.6P1, 9.6RC2, 9.6RC1	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1
ONTAP 9.5	9.5P19	11.8, 11.7*
ONTAP 9.5	9.5P18	11.8, 11.7, 11.6*
ONTAP 9.5	9.5P17, 9.5P16	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.5	9.5P15, 9.5P14	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.5	9.5P13, 9.5P12, 9.5P10-P11	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.5	9.5P9, 9.5P8, 9.5P7	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.5	9.5P6	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.5	9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.2*
ONTAP 9.4	9.4P8	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.4	9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3*
ONTAP 9.4	9.4P2	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2*
ONTAP 9.4	9.4P1, 9.4, 9.4RC1	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2, 11.1*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS2750 2-port UTA2 Single Chassis HA Pair

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
EMI and Safety certificates
Declaraion of Similarity NAJ-1502	Global	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 (FXN Taiwan) BIS	BIS - India	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 (Jabil Mexico) BIS	BIS - India	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 (Jabil Singapore) BIS	BIS - India	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 60950-CB	CB - International	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 62368-CB	CB - International	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 ACMA	ACMA - Australia, New Zealand	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 BSMI	BSMI - Taiwan	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 CSA	CSA - United States, Canada	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 DoC CE	CE - European Union DoC	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 IRAM	IRAM - Argentina	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 KC	KC - South Korea	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 Morocco	Morocco	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 NOM	NOM - Mexico	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 NRCS	NRCS - South Africa (Safety)	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 SONCAP	SONCAP - Nigeria	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 TBS	TBS - Tanzania	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 UKRSep	Global	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 VCCI	VCCI - Japan	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 FCC	FCC - United States	Platforms : E2812, FAS2620, FAS2720, SG5712
NAJ-1502 UKCA DOC	UKCA -United Kingdom	Platforms : E2812, FAS2620, FAS2720, SG5712
PSU 80+ Platinum Certificates
DCJ9133-01 Energy Star Report	Global	Platforms : AFF A220, AFF C190, ASA AFF A220, FAS2720, FAS2750
TDPS-900AB A Energy Star Report	Global	Platforms : AFF A220, AFF C190, ASA AFF A220, FAS2720, FAS2750
Voluntary Product Accessibility Template
VPAT - NetApp Accessibility Conformance Report - NetApp FAS2720	Global	Platforms : FAS2720

Size, Weight, Acoustic, Power FAS2750 2-port UTA2 Single Chassis HA Pair

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Embedded Drive Config (Empty)
FAS2750-100-C	FAS2750 2 PCM no drives	2	42.8 lb (19.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.72	4.16	266	407	908	1390
FAS2750-100-C	FAS2750 2 PCM no drives	2	42.8 lb (19.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.34	2.04	261	399	891	1362
Embedded Drive Config (Half)
FAS2750-101-C	FAS2750 2 PCM 12x900GB HDD	2	50.5 lb (22.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.95	5.39	387	528	1321	1803
FAS2750-101-C	FAS2750 2 PCM 12x900GB HDD	2	50.5 lb (22.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.94	2.65	380	518	1297	1768
FAS2750-103-C	FAS2750 2 PCM 12x1.2TB HDD	2	50.5 lb (22.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.8	5.24	372	513	1270	1751
FAS2750-103-C	FAS2750 2 PCM 12x1.2TB HDD	2	50.5 lb (22.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.87	2.57	365	503	1246	1717
FAS2750-105-C	FAS2750 2 PCM 12x1.8TB HDD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.76	5.2	368	509	1256	1738
FAS2750-105-C	FAS2750 2 PCM 12x1.8TB HDD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.85	2.55	361	499	1233	1704
FAS2750-105-C	FAS2750 2 PCM 12x1.8TB HDD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.76	5.2	368	509	1256	1738
FAS2750-105-C	FAS2750 2 PCM 12x1.8TB HDD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.85	2.55	361	499	1233	1704
FAS2750-107-C	FAS2750 2 PCM 12x1.8TB HDD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.76	5.2	368	509	1256	1738
FAS2750-107-C	FAS2750 2 PCM 12x1.8TB HDD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.85	2.55	361	499	1233	1704
FAS2750-107-C	FAS2750 2 PCM 12x1.8TB HDD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.76	5.2	368	509	1256	1738
FAS2750-107-C	FAS2750 2 PCM 12x1.8TB HDD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.85	2.55	361	499	1233	1704
FAS2750-109-C	FAS2750 2 PCM 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.24	4.67	317	457	1082	1560
FAS2750-109-C	FAS2750 2 PCM 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.59	2.29	311	448	1062	1529
FAS2750-111-C	FAS2750 2 PCM 12x3.8TB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.21	4.64	314	454	1072	1550
FAS2750-111-C	FAS2750 2 PCM 12x3.8TB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.28	308	445	1052	1519
FAS2750-111-C	FAS2750 2 PCM 12x3.8TB SSD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.21	4.64	314	454	1072	1550
FAS2750-111-C	FAS2750 2 PCM 12x3.8TB SSD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.28	308	445	1052	1519
FAS2750-113-C	FAS2750 2 PCM 12x3.8TB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.21	4.64	314	454	1072	1550
FAS2750-113-C	FAS2750 2 PCM 12x3.8TB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.28	308	445	1052	1519
FAS2750-113-C	FAS2750 2 PCM 12x3.8TB SSD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.21	4.64	314	454	1072	1550
FAS2750-113-C	FAS2750 2 PCM 12x3.8TB SSD NSE	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.28	308	445	1052	1519
FAS2750-115-C	FAS2750 2 PCM 12x7.6TB	2	48.7 lb (22.1 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.32	4.75	325	465	1110	1587
FAS2750-115-C	FAS2750 2 PCM 12x7.6TB	2	48.7 lb (22.1 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.63	2.33	319	456	1089	1557
FAS2750-117-C	FAS2750 2 PCM 12x15.3TB SSD	2	48.7 lb (22.1 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.34	4.78	327	468	1117	1598
FAS2750-117-C	FAS2750 2 PCM 12x15.3TB SSD	2	48.7 lb (22.1 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.64	2.35	321	459	1096	1567
FAS2750-127-C	FAS2750 2 PCM 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.24	4.67	317	457	1082	1560
FAS2750-127-C	FAS2750 2 PCM 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.59	2.29	311	448	1062	1529
Embedded Drive Config (Full)
FAS2750-102-C	FAS2750 2 PCM 24x900GB HDD	2	58.2 lb (26.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	5.19	6.62	508	648	1734	2212
FAS2750-102-C	FAS2750 2 PCM 24x900GB HDD	2	58.2 lb (26.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.55	3.25	498	636	1700	2171
FAS2750-104-C	FAS2750 2 PCM 24x1.2TB HDD	2	58.2 lb (26.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.87	6.31	477	618	1628	2110
FAS2750-104-C	FAS2750 2 PCM 24x1.2TB HDD	2	58.2 lb (26.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.39	3.1	468	606	1598	2069
FAS2750-106-C	FAS2750 2 PCM 24x1.8TB HDD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.8	6.23	470	610	1605	2082
FAS2750-106-C	FAS2750 2 PCM 24x1.8TB HDD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.36	3.06	461	598	1574	2041
FAS2750-106-C	FAS2750 2 PCM 24x1.8TB HDD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.8	6.23	470	610	1605	2082
FAS2750-106-C	FAS2750 2 PCM 24x1.8TB HDD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.36	3.06	461	598	1574	2041
FAS2750-108-C	FAS2750 2 PCM 24x1.8TB HDD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.8	6.23	470	610	1605	2082
FAS2750-108-C	FAS2750 2 PCM 24x1.8TB HDD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.36	3.06	461	598	1574	2041
FAS2750-108-C	FAS2750 2 PCM 24x1.8TB HDD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.8	6.23	470	610	1605	2082
FAS2750-108-C	FAS2750 2 PCM 24x1.8TB HDD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.36	3.06	461	598	1574	2041
FAS2750-110-C	FAS2750 2 PCM 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.75	5.18	367	507	1253	1731
FAS2750-110-C	FAS2750 2 PCM 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.84	2.54	360	497	1229	1697
FAS2750-112-C	FAS2750 2 PCM 24x3.8TB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.69	5.12	361	501	1233	1710
FAS2750-112-C	FAS2750 2 PCM 24x3.8TB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.81	2.51	354	491	1209	1676
FAS2750-112-C	FAS2750 2 PCM 24x3.8TB SSD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.69	5.12	361	501	1233	1710
FAS2750-112-C	FAS2750 2 PCM 24x3.8TB SSD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.81	2.51	354	491	1209	1676
FAS2750-114-C	FAS2750 2 PCM 24x3.8TB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.69	5.12	361	501	1233	1710
FAS2750-114-C	FAS2750 2 PCM 24x3.8TB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.81	2.51	354	491	1209	1676
FAS2750-114-C	FAS2750 2 PCM 24x3.8TB SSD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.69	5.12	361	501	1233	1710
FAS2750-114-C	FAS2750 2 PCM 24x3.8TB SSD NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.81	2.51	354	491	1209	1676
FAS2750-116-C	FAS2750 2 PCM 24x7.6TB	2	54.5 lb (24.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.91	5.35	383	524	1308	1789
FAS2750-116-C	FAS2750 2 PCM 24x7.6TB	2	54.5 lb (24.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.92	2.63	376	514	1284	1755
FAS2750-118-C	FAS2750 2 PCM 24x15.3TB SSD	2	54.5 lb (24.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.95	5.39	387	528	1321	1803
FAS2750-118-C	FAS2750 2 PCM 24x15.3TB SSD	2	54.5 lb (24.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.94	2.65	380	518	1297	1768
FAS2750-128-C	FAS2750 2 PCM 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.75	5.18	367	507	1253	1731
FAS2750-128-C	FAS2750 2 PCM 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.84	2.54	360	497	1229	1697
Embedded Drive Config (Mixed)
FAS2750-119-C	FAS2750 2 PCM 4x960GB, 20x900GB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.94	6.38	484	625	1652	2134
FAS2750-119-C	FAS2750 2 PCM 4x960GB, 20x900GB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.43	3.13	475	613	1622	2093
FAS2750-120-C	FAS2750 2 PCM 4x960GB, 20x1.2TB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.69	6.13	459	600	1567	2048
FAS2750-120-C	FAS2750 2 PCM 4x960GB, 20x1.2TB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.3	3	450	588	1536	2007
FAS2750-121-C	FAS2750 2 PCM 4x960GB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.62	6.06	452	593	1543	2024
FAS2750-121-C	FAS2750 2 PCM 4x960GB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.27	2.97	443	582	1512	1987
FAS2750-122-C	FAS2750 2 PCM 4x3.8TB, 20x900GB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.93	6.37	483	624	1649	2130
FAS2750-122-C	FAS2750 2 PCM 4x3.8TB, 20x900GB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.42	3.13	474	612	1618	2089
FAS2750-123-C	FAS2750 2 PCM 4x3.8TB, 20x1.2TB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.68	6.12	458	599	1564	2045
FAS2750-123-C	FAS2750 2 PCM 4x3.8TB, 20x1.2TB	2	58.6 lb (26.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.3	3	449	588	1533	2007
FAS2750-124-C	FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.61	6.05	451	592	1540	2021
FAS2750-124-C	FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.26	2.97	442	581	1509	1983
FAS2750-124-C	FAS2750 2 PCM 4x3.8TB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.61	6.05	451	592	1540	2021
FAS2750-124-C	FAS2750 2 PCM 4x3.8TB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.26	2.97	442	581	1509	1983
FAS2750-125-C	FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.61	6.05	451	592	1540	2021
FAS2750-125-C	FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.26	2.97	442	581	1509	1983
FAS2750-125-C	FAS2750 2 PCM 4x3.8TB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.61	6.05	451	592	1540	2021
FAS2750-125-C	FAS2750 2 PCM 4x3.8TB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.26	2.97	442	581	1509	1983
FAS2750-126-C	FAS2750 2 PCM 4x960GB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	4.62	6.06	452	593	1543	2024
FAS2750-126-C	FAS2750 2 PCM 4x960GB, 20x1.8TB	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	2.27	2.97	443	582	1512	1987

Category: 2u, drive-capacity-4-39pb, drive-count-144, drive-count-24, FAS2700, fas2750, netapp, protocol-ethernet, protocol-fibre-channel, protocol-sas, sff, speed-10gb, speed-12gb, speed-16gb

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

Leave a Message

NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits - All Maximums

Consistency Groups - All Maximums

Platform LED for FAS2750 2-port UTA2 Single Chassis HA Pair

Supported Shelves Drives for FAS2750 2-Port UTA2 Single Chassis HA Pair

Supported RAID Configurations - FAS2750 2-Port UTA2 Single Chassis HA Pair

Supported Adapter Cards - FAS2750 2-port UTA2 Single Chassis HA Pair

Supported Connections for FAS2750 2-port UTA2 Single Chassis HA Pair

Platform Mixing Rules - FAS2750 2-port UTA2 Single Chassis HA Pair

Product Standard Compliance - FAS2750 2-port UTA2 Single Chassis HA Pair

Supported OS Version - FAS2750 2-port UTA2 Single Chassis HA Pair

Supported Power Cords for FAS2750 2-port UTA2 Single Chassis HA Pair

Onboard Ports Configuration: FAS2750 2-port UTA2 Single Chassis HA Pair

Supported Platform Configurations - FAS2750 2-port UTA2 Single Chassis HA Pair

Platform Memory Specifications - FAS2750 2-port UTA2 Single Chassis HA Pair

Supported Rail Kit for FAS2750 2-port UTA2 Single Chassis HA Pair

Field Replacement Unit Parts - FAS2720 10GBASE-T Single Chassis HA Pair

Supported Firmware Matrix - FAS2750 2-port UTA2 Single Chassis HA Pair

Product Certificates - FAS2750 2-port UTA2 Single Chassis HA Pair

Size, Weight, Acoustic, Power FAS2750 2-port UTA2 Single Chassis HA Pair

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
