Name: NetApp FAS2750 10GBASE-T 8-Node Metro Cluster IP Filer Head (8Node-MC)
Brand: NetApp
SKU: FAS2750-10GBASE-T-8N-MC
Availability: InStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Powered by NetApp® ONTAP® data management software, we can help you build a storage infrastructure that is simple, secure, and trusted. NetApp FAS Storage Arrays provides customers with a balance of performance and capacity.

The FAS2750 has two Controller Options, a UTA2 and a 10GBASE-T. Each controller comes with a different numbering of ports and protocols. All other aspects of this Filer are identical regarding supported drives, and capacity.

The FAS2750 configuration ships with a 1TB NVMe Flash Cache internal adapter configured on each node.
No upgrade of Flash Cache capacity is offered.

Model & Form Factor

Model: NetApp FAS2750 10GBASE-T
Form Factor: 2U
PCIe Expansion Slots: None
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 3.42" (8.69 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
Chassis Weight: up to 60.8 lb (27.6 kg)

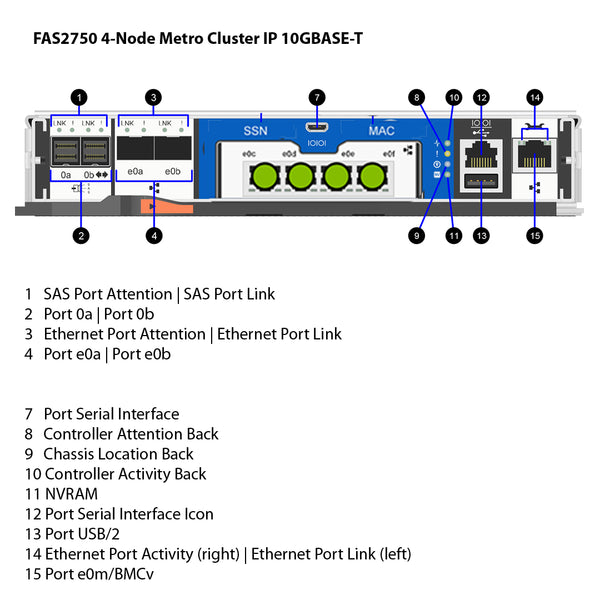

Controller Specs

Controllers: 10GBASE-T Dual Controller (Metro Cluster)
Max Controllers: 2
PCI Slot (per): None
Ethernet Ports (per): 4 x RJ45 (10Gb) + 2 x SFP+ (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): N/A
SAS Ports (per): 2 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 12-core 1.50 Ghz
Memory (Single/8-Node MC): 32GB/256GB
NVME (Single/8-Node MC): 1024GB/8192GB
NVMEM (Single/8-Node MC): 4GB/32GB

Storage

Max Number of Internal Drives: 24
Max Number Drives (total): 288
Max Capacity: 4,396TB (4.39PB)
Max # of NL-SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SATA Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Max # of SSD Drives: Cluster: 288; DR Group: 144; HA Pair: 72
Drive Interface: NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max Number of DS212C Shelves: 16 external
Max Number of DS224C Shelves: 4 internal + 8 external
Max Number of DS460C Shelves: 4 external

10GBASE-T

10GBASE-T is a high-speed Ethernet standard that delivers 10 Gigabits per second (10Gbps) over twisted-pair copper cables using RJ-45 connectors. It provides a cost-effective networking solution with support for distances up to 100 meters. While power consumption is generally higher than fiber-based solutions, advancements in technology continue to improve efficiency.

10G → Represents 10 Gigabit per second speed.
BASE → Indicates Baseband transmission (not broadband).
T → Denotes Twisted-pair copper cabling.

MetroCluster

A MetroCluster is a high-availability (HA) and disaster recovery (DR) solution from NetApp that provides synchronous data replication between two geographically separated sites. It ensures zero data loss and automatic failover in case of a site failure.

8-Node MetroCluster

An 8-node MetroCluster expands the architecture to four HA pairs (eight controllers total) across two sites, offering increased performance, scalability, and redundancy. This configuration is suited for large enterprises with high I/O workloads and critical applications that require greater throughput and storage capacity while maintaining zero data loss failover across sites.

FAS2750 Parts Lists
