-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- New HDD offering
- Double memory capacity with up to 24 DDR3 1600 MHz slots (up to 768GB)
- Corporate IT

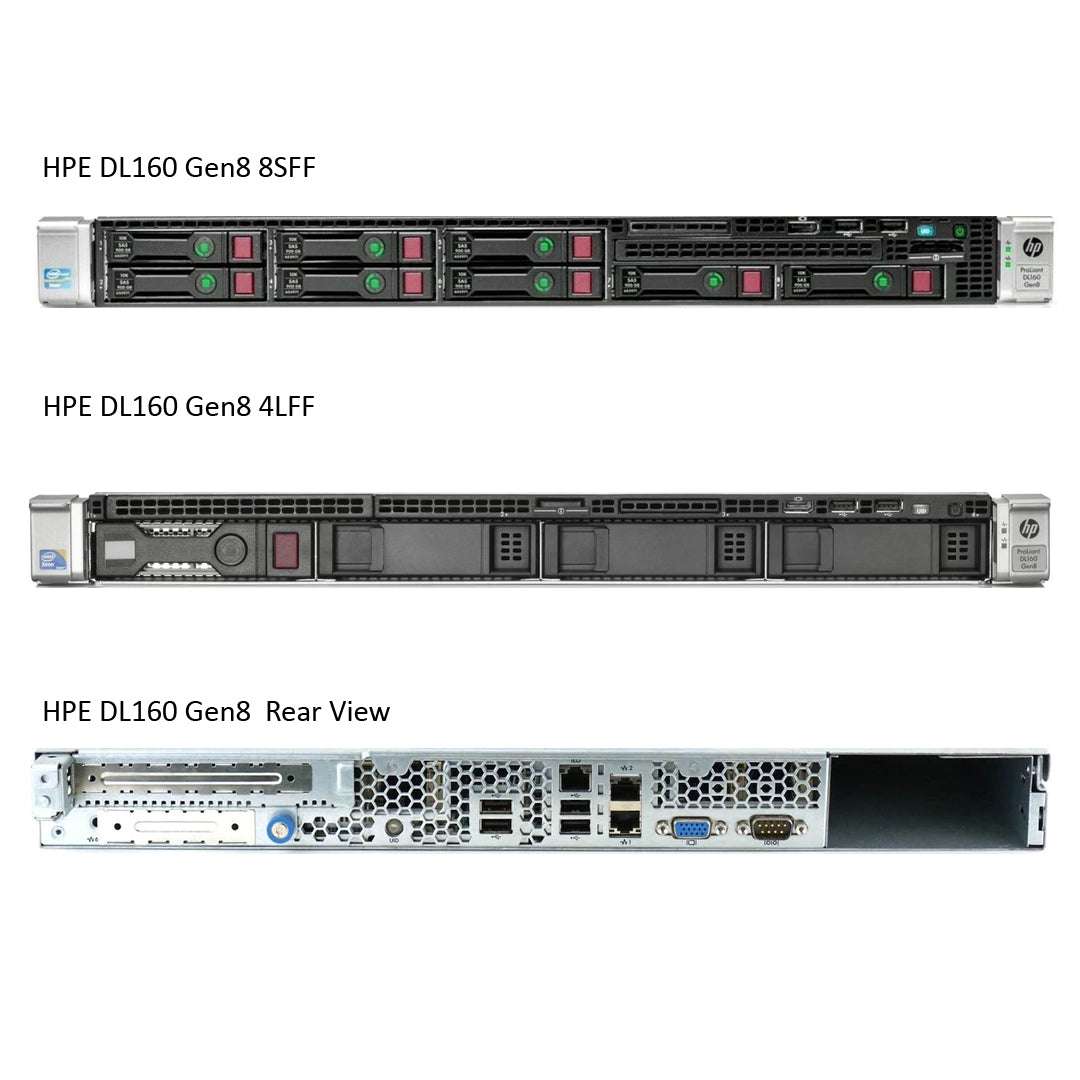

The HPE ProLiant DL160 Gen8 is a dual-socket, high-performance, dense rack server with enhanced manageability and scalability suited for High-Performance Computing (HPC) environments, web serving, and other hyperscale environments.
The refurbished HP ProLiant DL160 Gen8 Server High-performance computing with increased manageability in a dense 1U design. The HP ProLiant DL160 Gen8 is a dual-socket, high-performance, 1U rack server. With its enhanced manageability and scalability, it is perfectly suited for high-performance computing (HPC) environments, web serving, and other hyperscale environments.
HPE SmartMemory improves workload performance and power efficiency while preventing data loss and downtime with enhanced error handling. Support for RDIMMs and UDIMMs with up to 768GB max capacity .
HPE FlexibleLOM provides you additional choice of networking bandwidth and fabric so you can adapt to changing business needs.
HPE Smart Storage technology ensures fast communication with the drives, in addition to removing storage bottlenecks and turbo-charging data-intensive application performance to accelerate workloads.
Please Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
Product features
Feature | Description | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Processor (One of the following depending on the model) |
| |||||||||||||||||||||||||||
Cache memory (One of the following depending on the model) |
| |||||||||||||||||||||||||||
Chipset |
| |||||||||||||||||||||||||||
Upgradeability |
| |||||||||||||||||||||||||||
On system management chipset | HPE iLO (Firmware: HPE iLO 4) | |||||||||||||||||||||||||||
Memory protection |
| |||||||||||||||||||||||||||
Memory (One of the following depending on the model) |
| |||||||||||||||||||||||||||
Network controller | HPE NC361i Integrated Dual Port Gigabit Server Adapter | |||||||||||||||||||||||||||
Storage controller (One of the following depending on the model) |
| |||||||||||||||||||||||||||
Internal storage devices |
| |||||||||||||||||||||||||||
Maximum internal storage |
| |||||||||||||||||||||||||||
Interfaces |
| |||||||||||||||||||||||||||
Industry standard compliance |
| |||||||||||||||||||||||||||
Graphics | Integrated Matrox G200 video standard
| |||||||||||||||||||||||||||
System fans (One of the following depending on the model) |
| |||||||||||||||||||||||||||
Form factor (One of the following depending on the model) |
|
Software overview
Feature | Description |
|---|---|
Operating System (OS) and Virtualization Software support for ProLiant servers 1 |
|
NOTE: For more information, visit the Support Matrix for Certified and Supported ProLiant Servers for OS and Virtualization Software and the latest listing of software drivers available for the server. Click here to access Server operating system and virtualization solutions for HPE servers web site . | |
Specs 1
Physical specifications
Feature | Description |
|---|---|
Dimensions (H x W x D) (with bezel) |
|
Weight (approximate) |
|
Electrical specifications
Feature | Description |
|---|---|
Rated line voltage |
|
Rated input current |
|
Rated input frequency | 50 to 60 Hz |
Rated input power |
|
BTU rating (maximum) |
|
Rated steady-state power |
|
Maximum peak power |
|
Environmental specifications
Feature | Description |
|---|---|
System inlet temperature (operating) | 10° to 35°C (50° to 95°F), at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F). |
System inlet temperature (non-operating) | -30° to +60°C (-22° to +140°F). Maximum rate of change is 20°C/hr (36°F/hr). |
Relative humidity (operating) | 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing |
Relative humidity (non-operating) | 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing |
Altitude (operating) | 30480 m (10,000 ft) |
Altitude (non-operating) | 9144 m (30,000 ft) |
Acoustic noise | Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
|
Technical specifications
Feature | Description |
|---|---|
HP iLO 4 On System Management | |
Video support | 1920 x 1200 (16 b/p) DVR max resolution |
Driver support | HP ProLiant iLO 4 Management Controller Driver Package |
Memory | 16MB Flash; 256MB DDR 3 with ECC (112MB after ECC and video) |
Processor | Embedded ARM processor core operating at 400 MHz |
HP Dynamic Smart Array B120i Controller | |
SATA speed | 3 Gb/s |
Logical drives supported | Zero Memory, Up to 2 logical volumes (6 physical drives) |
RAID support |
|
Server interface | PCIe 2.0 |
HP Ethernet 1Gb 2-port 361i Adapter | |
Network interface | 10Base-T/100Base-TX/1000Base-TX |
Connector | RJ-45 |
Capability |
|
Data transfer method | PCI Express v 2.1, 5.0-GT/s and 2.5-GT/s bus speeds and supports for x1, x2, x4 links widths (Lanes) |
Safety certifications
Feature | Description |
|---|---|
FCC rating | Class A |
Normative standards | CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 |
