PEM830-12x1.8 | Refurbished Dell PowerEdge M830 Blade Server Chassis (12x1.8")

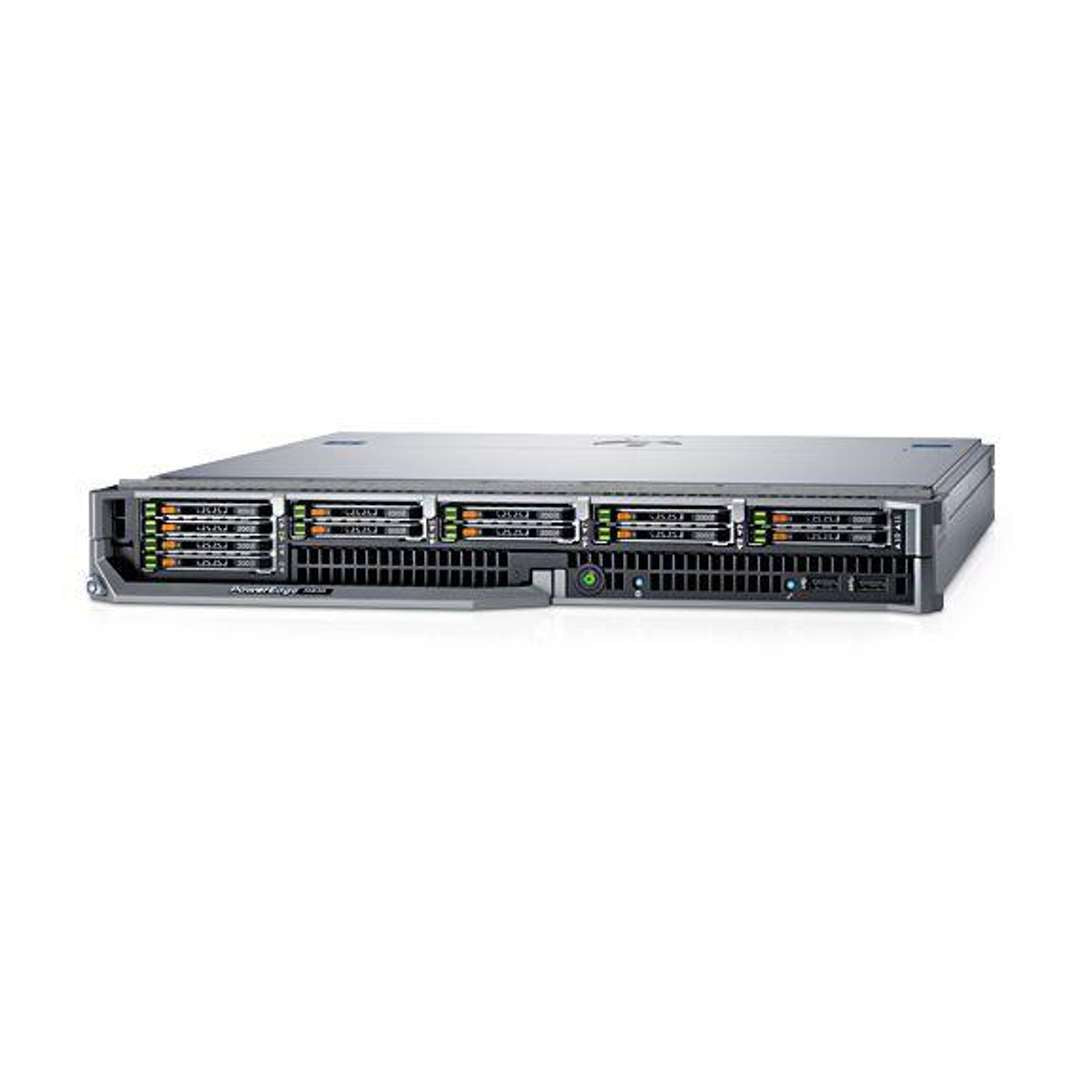

Dell PowerEdge M830 Blade Server Chassis M1000e (12x1.8")

SKU: DPE-M830-12x1.8-Chassis

Dell PowerEdge M830 Blade Server Chassis M1000e (12x1.8")

Name: Dell PowerEdge M830 Blade Server Chassis M1000e (12x1.8")
Brand: Dell
SKU: DPE-M830-12x1.8-Chassis
Price: 1500.0 USD
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,500.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Full Height - 8N M1000e | 2N VRTX

Processor | Max: 22 Cores

4 x Intel Xeon E5-2600v4

Memory | Max: 3TB

48 DDR4 RDIMM 2400Mhz

Storage | Max: N/A

12 x 1.8" SAS or
4 x SFF SAS/SATA/NVMe

Storage Controller

S130 (SW RAID)
PERC H330, PERC H730, PERC H730P

PCIe Slots:

4 x Mezzanine Slots,
2 x bNDC slots,
1 x IDSDM slot,
1 x rSPI Slot

iDRAC:

iDRAC8 Express with Lifecycle Controller (default)

Ideal for:

Database
Virtualization

This is one of the many supported Blade servers, each Blade/Modular Enclosure is a separate CTO you must configure.

Supported Dell M1000e & VRTX Modular Enclosure Architecture

Dell M1000e Blade Architecture

Dell VRTX Blade Architecture

The PowerEdge M830 is a 4-socket converged platform designed to boost application performance, consolidation, and time-to-value in datacenter or remote office applications by delivering vast amounts of compute, memory, and storage resources that are easy to deploy and manage.

Image of the VRTX and M1000e Modular Servers

Enhance IT workload performance

Up to 88 Intel processor cores and 48 DIMMS of DDR4 memory offer tremendous computational horsepower for heavy-use workloads in an exceptionally demanding database, technical computing and virtualized environments.

Power through compute-intensive workloads with 83 percent more processing cores per socket than previous-generation Intel processors.
Get results faster from memory-intensive workloads with DDR4 DIMMs offering 28 percent higher MT/s than DDR3.
Feed your IO-intensive workloads with up to 240Mbits of throughput using 24 x 10GbE ports connected to three redundant, low-latency fabrics.
Accelerate data-intensive workloads, such as OLAP and other business intelligence applications, using 12 in-chassis SSDs, with expansion options of up to 25 2.5” HDDs or 72TBs with 3.5” HDDs.

Expedite time to value

Reduce configuration, maintenance, imaging and deployment time and costs by standardizing on a single 4-socket E5-4600v4 platform in existing VRTX or M1000e blade server chassis for remote offices and data centers.

Protect software-defined compute, storage and networking with Dell EMC Fault Resilient Memory and redundant embedded hypervisor.
Automate operations with agent-free, 1-to-many systems management tools that pre-provision LAN and SAN resources and assist with BIOS, firmware and driver updates.
Enable zero-touch discovery and configuration with template-based provisioning.

Consolidate IT resources

Save expenses with physical and software-defined consolidation that optimizes application delivery using flexibly tailored IT. Meet business objectives by powering critical workloads with modular solutions designed specifically for data center and small-office environments:

Reduce infrastructure sprawl by consolidating management modules, switches, power and network cabling, disk enclosures, and feature-dense 4S servers into a single chassis.
Save floor space, power and cooling costs, and licensing fees by using core-dense M830s to create a software-defined environment from legacy infrastructure.
Utilize vast local SSD and memory resources to develop software-defined standalone edge networking and DAS storage with VMware VSAN and Virtual Distributed Switch technologies.

Storage Controllers | SAS Expander

Both the storage controller and expander use the same slot. These two cards can't be installed together. The Expander is only used when installing the 16x 1.8" Backplane.

Image of the Storage Controller of the Dell FC830 Blade Server Storage Controller

miniPERC H330
miniPERC H730
miniPERC H730p

Image of the SAS Expander in the Dell FC830 Blade Server SAS Expander

The SAS Expander is add to the system when the 1.8" Chassis or NVMe chassis is selected. This expander supplies extra PCI lanes for the NVMe drives in the front.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical specification
Form factor	Full-height blade with up to 8 nodes in a 10U M1000e chassis; up to two nodes in a VRTX chassis
Processor	Intel® Xeon® processor E5-4600 v4 product family
Processor sockets	4
Dimensions	H: 39.52 cm (15.56 in), W: 5.03 cm (1.98 in), D: 54.5 cm (21.45 in)
Cache	2.5MB per core; core options: 6, 10, 12, 14, 16, 18, 22
Chipset	Intel C610 series chipset
Memory	Up to 3TB (48 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
RAID controllers	Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Primary storage	Hot-plug hard drive options: PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 12 x 1.8" SSD, 4 x 2.5" SATA HDD/SSD or SAS HDD/SSD, 2 x 2.5" PCIe SSD and 2 x 2.5" SATA HDD/SSD or SAS HDD SSD
On-board network adapters	2 x PCIe 3.0 (x8) Dell Select Network Adapters Select Network Adapter options: Broadcom 5720 1GB Quad Port KR Blade Network Daughter Card Emulex OneConnect OCm14102B-N6-D 2-port 10GBE bNDC NIC Emulex OneConnect OCm14102B-U4-D 2-port 10GBE bNDC CNA Emulex OneConnect OCm14102-N6-D 2-port 10GBE KR NIC, Blade Network Daughter Card	Emulex OneConnect OCm14102-U4-D, Dual Port 10GBE, KR CNA Network Daughter Card Intel i350 Quad Port 1 Gigabit, KR Blade Network Daughter Card Intel Quad Port 10-Gigabit, KR Blade Network Daughter Card Intel x520-k Dual Port 10GB KR Blade Network Daughter Card Intel X710 Dual Port, 10GB KR Blade Network Daughter Card QLogic 57810-k Dual port 10GB KR CNA Blade Network Daughter Card QLogic 57840S 10GB Quad Port KR CNA Blade Network Daughter Card
I/O expansion options	Broadcom 5719 Quad port 1GBE Mezzanine Card Emulex LPE1205-M 8GBps Dual Port Fibre Channel I/O Mezzanine Card Emulex LPM16002 16GBps Dual Port Fibre Channel I/O Mezzanine Card Emulex OCm14104-U3-D, Dual Port 10GBE, KR Mezzanine Converged Network Adapter Emulex OneConnect OCm14102B-N5-D 2-port 10GBE Mezzanine NIC	Emulex OneConnect OCm14102B-U5-D 2-port 10GBE Mezzanine CNA Emulex OneConnect OCm14102-N5-D 2-port 10GBE Mezzanine NIC Intel i350 Quad Port 1GB Serdes Mezzanine Card Intel X520-x/k 10GB Dual Port I/O Mezzanine Card Mellanox Connect X3 FDR10 IB Mezzanine Card Mellanox ConnectX-3 Dual Port 10GB KR Mezzanine Card Mellanox ConnectX-3 Pro Dual Port 10 GBE KR Mezzanine Card Qlogic QME2572 8GBps Fibre Channel I/O Mezzanine Card QLogic QME2662 16GBps Fibre Channel I/O Mezzanine Card
Power supplies	Chassis level – M1000e 2700W Platinum and 3000W Titanium PSU options
Video card	Video Type: Integrated Integrated Matrox G200 with iDRAC8 Video Memory: 16 MB shared with iDRAC8 application memory
Systems management	Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller; iDRAC8 Express (default); iDRAC8 Enterprise (upgrade); 8GB vFlash media (upgrade); 16GB vFlash media (upgrade)	Dell OpenManage integrations: Dell OpenManage Integration Suite forMicrosoft® System Center; Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Connections: HP Operations Manager; IBM Tivoli® Netcool® and CA Network and Systems Management; Dell OpenManage Plug-in for Oracle® Database Manager
Operating system	Microsoft Windows Server® 2008/2012 R2 (with Hyper-V® enabled) Microsoft Windows Server 2012 (with Hyper-V enabled) Microsoft Windows Server 2008/2012 Datacenter (with Hyper-V enabled) Microsoft Windows Server 2008 R2 SP1 (with Hyper-V enabled) Microsoft Windows Server 2008 R2 SP2 x64/x86 (with Hyper-V enabled)	Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux Optional hypervisors: Citrix® XenServer®; VMware vSphere® ESXi™; For more information on the specific versions and additions, visit Dell.com/Ossupport
