Home / PCIe 4.0 / Dell Poweredge (G16) Riser 2A LP PCI-e 4.0 2x16 (R2A) | 3MPPM
SKU: 3MPPM

Dell Poweredge (G16) Riser 2A LP PCI-e 4.0 2x16 (R2A) | 3MPPM

Dell

| Riser Cards
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

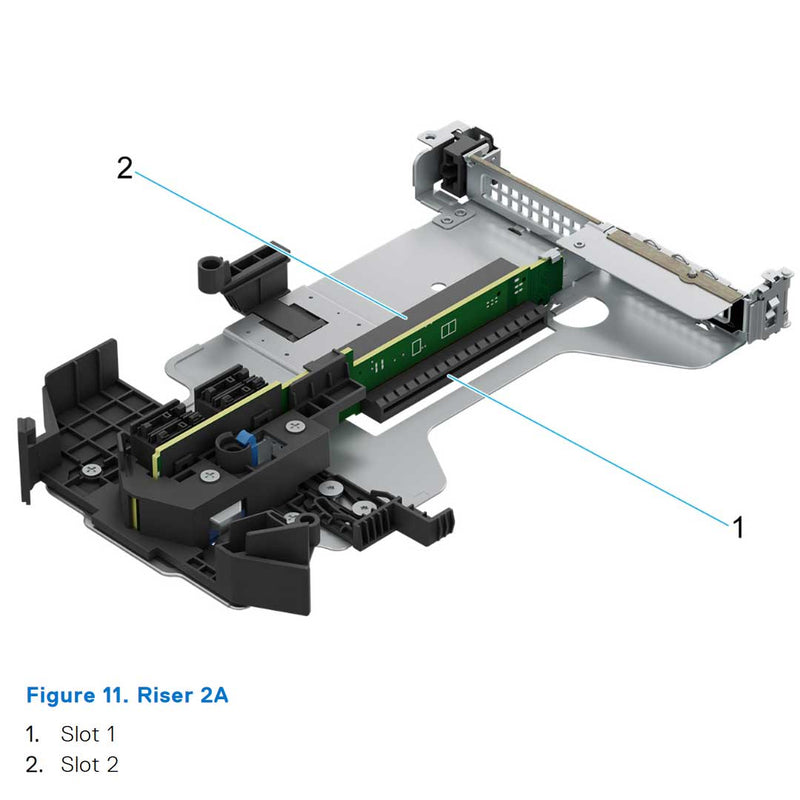

Riser Specs

Slot 1: LP Gen4 x16

Slot 2: LP Gen4 x16

Part Number:

  • 3MPPM
  • H6PP3
Dell R7615 Expansion Configurations supporting 16G Riser 2A
Dell PowerEdge R7615 Riser Config 1. R2a + R3a + R4p (HL)
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector PERC type supported Rear Storage Possible
Config 1. 2 x16 FH + 2 x8 LP R2A 3 Low Profile PCIe Gen4 x8 (x16 connector) Front PERC No
6 Low Profile PCIe Gen4 x8 (x16 connector) Front PERC No
R3A 5 Full Height PCIe Gen4 x16 (x16 connector) Front PERC No
R4P HL 7 Full Height PCIe Gen4 x16 (x16 connector) Front PERC No
Dell PowerEdge R7615 Riser Config 2. R1u + R2a + R3b + R4q
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 2. 6 x8 FH + 2 x8 LP R1U 1 Full Height PCIe Gen5 x8 (x16 connector)
2 Full Height PCIe Gen5 x8 (x16 connector)
R2A 3 Low Profile PCIe Gen4 x8 (x16 connector)
6 Low Profile PCIe Gen4 x8 (x16 connector)
R3B 4 Full Height PCIe Gen4 x8 (x16 connector)
5 Full Height PCIe Gen4 x8 (x16 connector)
R4Q 7 Full Height PCIe Gen5 x8 (x16 connector)
8 Full Height PCIe Gen5 x8 (x16 connector)
Dell PowerEdge R7615 Riser Config 8 R2a + R4a (HL)
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 8 R2a + R4a (HL) R2A 3 Low Profile PCIe Gen4 x8 (x16 connector)
6 Low Profile PCIe Gen4 x8 (x16 connector)
R4A 7 Full Height PCIe Gen4 x16 (x16 connector)
Dell PowerEdge R7615 Riser Config 9 R2a + R3a + R4p (HL)
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 9 R2a + R3a + R4p (HL) R2A 3 Low Profile PCIe Gen4 x8 (x16 connector)
6 Low Profile PCIe Gen4 x8 (x16 connector)
R3A HL 5 Full Height PCIe Gen4 x16 (x16 connector)
R4P HL 7 Full Height PCIe Gen5 x16 (x16 connector)
Compatible With:
  • Dell R660
  • Dell R6615
  • Dell R7615
  • Dell R7625
