Home / PCIe 4.0 / Dell Poweredge (G16) Riser 1U 2x8 PCI-e 4.0 (R1U) | 92FFD
SKU: 92FFD

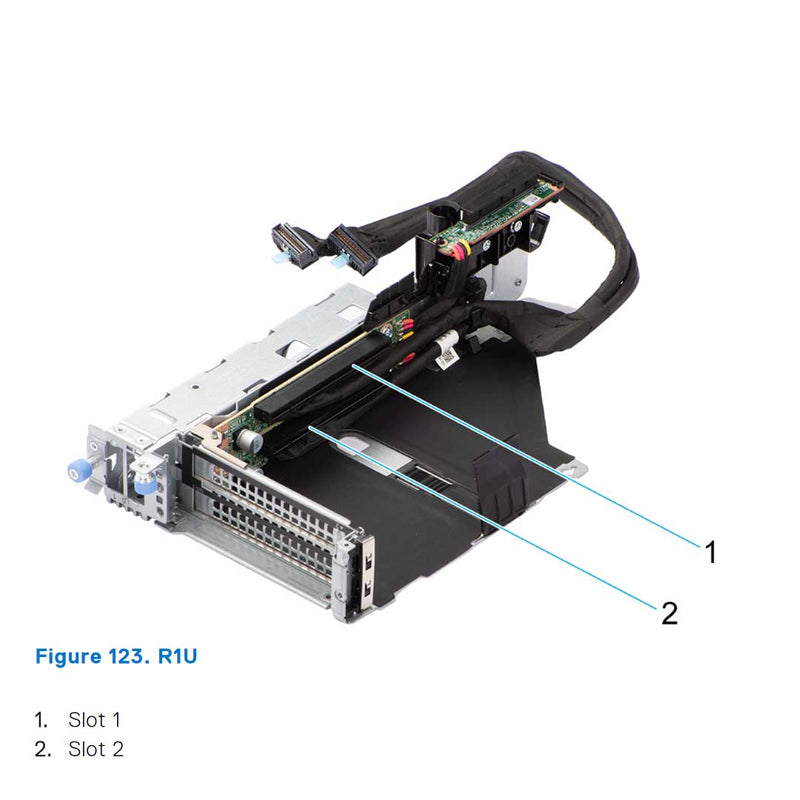

Dell Poweredge (G16) Riser 1U 2x8 PCI-e 4.0 (R1U) | 92FFD

Dell

| Riser Kit
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Slot 1: x8 (Gen 4)
Slot 2: x8 (Gen 4)

Dell R7615 Expansion Configurations

Below you will find all the configurations that support this riser. Please click to view any of the configurations or other risers associated with that configuration.

Dell PowerEdge R7615 Riser Config 2. R1u + R2a + R3b + R4q
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 2. 6 x8 FH + 2 x8 LP R1U 1 Full Height PCIe Gen5 x8 (x16 connector)
2 Full Height PCIe Gen5 x8 (x16 connector)
R2A 3 Low Profile PCIe Gen4 x8 (x16 connector)
6 Low Profile PCIe Gen4 x8 (x16 connector)
R3B 4 Full Height PCIe Gen4 x8 (x16 connector)
5 Full Height PCIe Gen4 x8 (x16 connector)
R4Q 7 Full Height PCIe Gen5 x8 (x16 connector)
8 Full Height PCIe Gen5 x8 (x16 connector)
Dell PowerEdge R7615 Riser Config 7 R1u + R2t + R4q
Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 7 R1u + R2t + R4q R1U 1 Full Height PCIe Gen5 x8 (x16 connector)
2 Full Height PCIe Gen5 x8 (x16 connector)
R2T 3 Low Profile PCIe Gen4 x16 (x16 connector)
6 Low Profile PCIe Gen4 x16 (x16 connector)
R4Q 7 Full Height PCIe Gen5 x8 (x16 connector)
8 Full Height PCIe Gen5 x8 (x16 connector)

Dell PowerEdge R7615 Riser Config 10 R1u + R3b + R4q (HL)

Configurations Expansion card risers PCIe Slots Form factor Slot's electrical bandwidth/ physical connector
Config 10 R1u + R3b + R4q (HL) R1U 1 Full Height PCIe Gen5 x8 (x16 connector)
2 Full Height PCIe Gen5 x8 (x16 connector)
R3B 4 Full Height PCIe Gen4 x8 (x16 connector)
5 Full Height PCIe Gen4 x8 (x16 connector)
R4Q 7 Full Height PCIe Gen5 x8 (x16 connector)
8 Full Height PCIe Gen5 x8 (x16 connector)
Compatible With:
  • Dell R6615
  • Dell R7615

(Click to View)
