Home / 8TB / Dell Poweredge R760Xa Rack Server Chassis (8X 2.5") | R6JXM
SKU: R6JXM

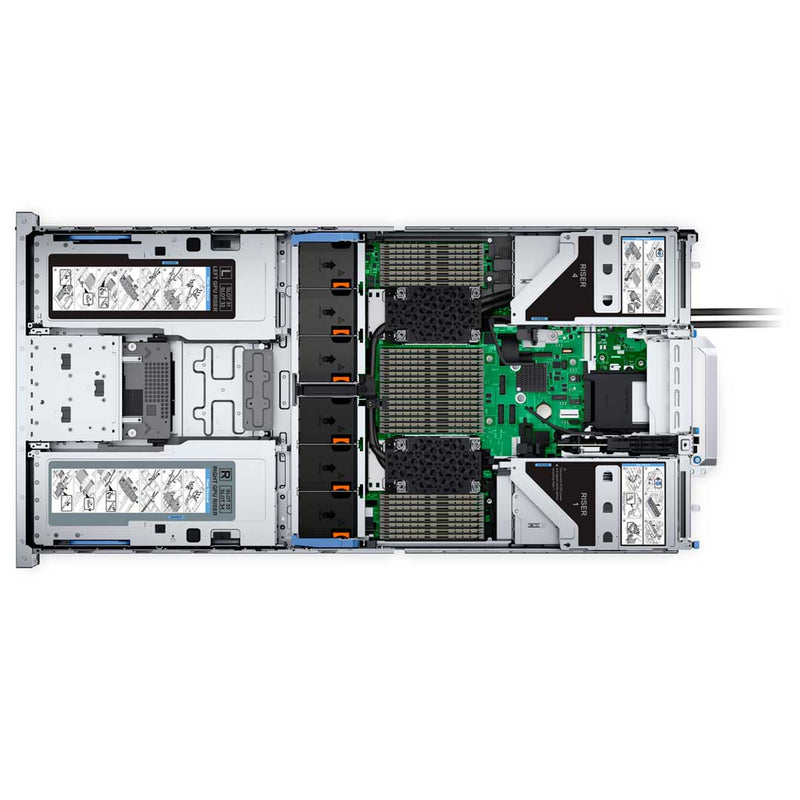

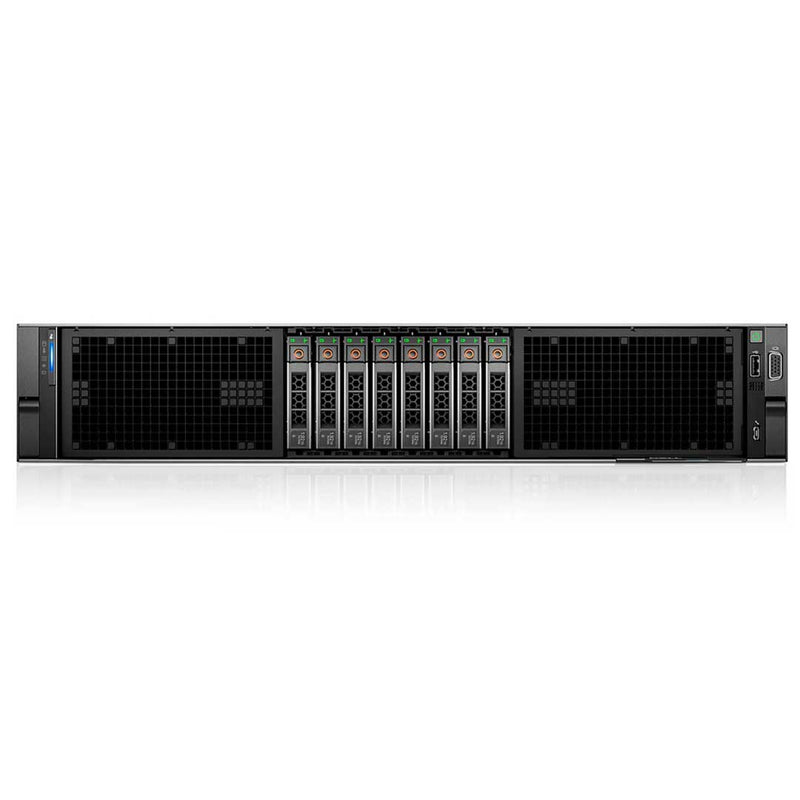

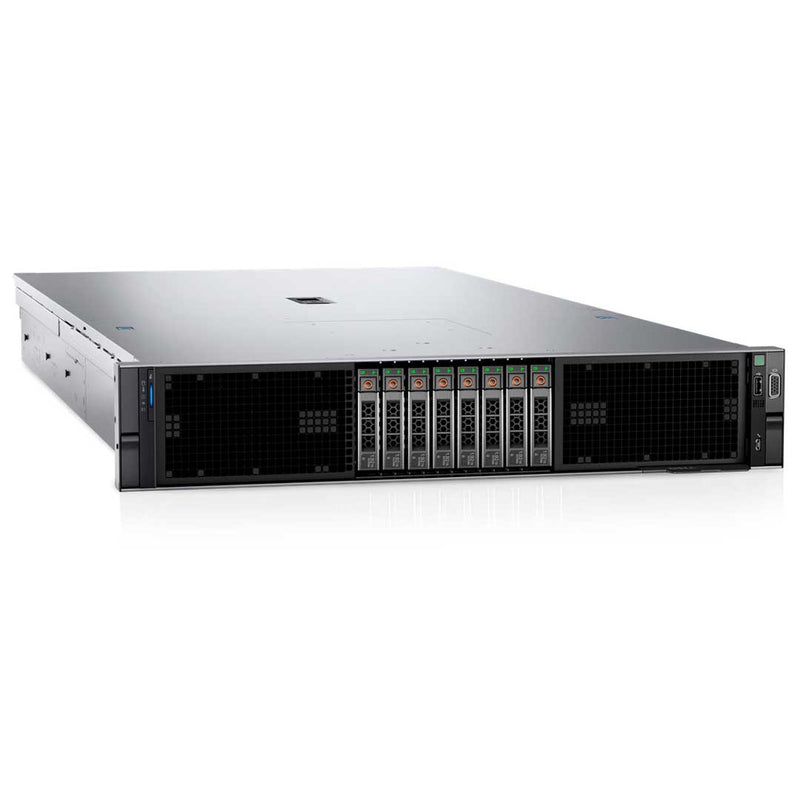

Dell Poweredge R760Xa Rack Server Chassis (8X 2.5") | R6JXM

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 56 Cores

2x Gen 4 Intel Xeon Scalable

Memory Max: 8TB

32 ECC DDR5 RDIMM 4800Mhz

Storage Max: 122.88TB

Front bays:
Up to 8 x 2.5-inch SAS/SATA/NVMe, Max: 122.88 TB
Rear bays:
Not supported

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (fPERC)

S160 (SATA/NVMe SW RAID)
H355i, H755, H755N, H965i, HBA355i, H355e, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options Max Speed: 4x 25GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to twelve PCIe slots (x16 connector)
4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

GPU:

Up to 4 x 350 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Other Versions

Ideal for:

  • Artificial Intelligence (AI)
  • Deep Learning
  • Machine Learning (ML)
  • Virtual Desktop Interface (VDI)
  • Virtualization
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical Specifications
ProcessorUp to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology
Memory• 32 DDR5 DIMM slot, supports RDIMM 8 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage controllers• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB
• External HBA (non-RAID): HBA355e, H965e
• Software RAID: S160
Drive BaysFront bays:
• Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
• Up to 6 x 2.5-inch NVMe, max 92.16 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
Power Supplies• 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
Cooling Options• Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans• Standard (STD) fan
• Up to six hot plug fans
Dimensions• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 946.73 mm (37.27 inches) - without bezel
• Depth – 932.89 mm (36.73 inches) - with bezel
Form Factor2U rack server
Embedded Management• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
BezelOptional LCD bezel or security bezel
OpenManage Software• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
MobilityOpenManage Mobile
OpenManage Integrations• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1GbE LOM card (optional)
Network Options1 x OCP card 3.0 (optional)
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU OptionsUp to 4 x 350 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards
PortsFront Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA		Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
• 1 x USB 3.0 (optional)
PCIeUp to twelve PCIe slots (x16 connector)
• 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
• 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW
Operating System and Hypervisors• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Spec Sheet 4

Features PowerEdge R760xa PowerEdge R750xa
Processors Two 4th Gen Intel® Xeon® Scalable Processors Two 3 rd Generation Intel Xeon Scalable processors
CPU interconnect Intel Ultra Path Interconnect (UPI) Intel Ultra Path Interconnect (UPI)
Memory ● 32 x DDR5 RDIMM
● Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)		 ● 32 x DDR4 RDIMM, LRDIMM
● 16 x PMem ( Intel Optane Persistent Memory 200 Series)
Storage Controllers ● PERC 11: H755, H755N, H355
● PERC 12: H965i, H965e
● HBA 11: HBA355i, HBA355e
● BOSS-N1
● Software RAID: S160		 Adapters: HBA355I, HBA355E, H345, H355, H745,
H755, H755N, H840
BOSS S2
BOSS S1
Software RAID: S150
Drive Bays Front bays:
● Up to 8 x 2.5-inch NVMe or SAS/SATA SSD max 122.88 TB
● Up to 6 x E3.S Gen5 NVMe max 46.08 TB		 Front bays:
● Up to 8 x 2.5 inches SAS/SATA SSD or NVMe
Power Supplies ● AC (Platinum): 2400 W
● AC (Titanium): 2800 W
● DC (Mixed Mode): 2400 W, 2800 W		 ● AC (Platinum): 1400 W, 2400 W
● AC (Titanium): 1800 W, 2800 W
● DC (Mixed Mode): 1400 W, 1800 W, 2400 W, 2800 W
Cooling Options ● Air Cooling
● Optional Direct Liquid Cooling (DLC) for CPUs only
NOTE: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.		 ● Air Cooling
Fans Standard (STD) fan Up to eight hot plug fans
Up to six hot swap fans
Dimension Height: 86.8 mm (3.41 inches) Height: 86.8 mm (3.41 inches)
Width: 482 mm (18.97 inches) Width: 482.0 mm (18.97 inches)
Depth: 946.73 mm (37.27 inches) with bezel Depth: 908.64 mm (35.77 inches) with bezel
932.89 mm (36.73 inches) without bezel 894.8 mm (35.22 inches) without bezel
Form Factor 2U rack server 2U rack server
Embedded Management ● iDRAC9
● iDRAC Direct
● iDRAC RESTful with Redfish
● iDRAC Service Manual
● Quick Sync 2 wireless module 		● iDRAC9
● iDRAC Direct
● iDRAC Service Module
● Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel Optional LCD bezel or security bezel
OpenManage Software ● CloudIQ for PowerEdge plug in
● OpenManage Enterprise
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin		 ● OpenManage Enterprise
● OpenManage Power Center
Mobility OpenManage Mobile OpenManage Mobile
Integrations and Connections OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager		 OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● Red Hat Ansible Modules
● VMware vCenter		 ● IBM Tivoli Netcool/ OMNIbus
● IBM Tivoli Network Manager IP Edition
● Micro Focus Operations Manager
● Nagios Core
● Nagios XI
Security ● Cryptographically signed firmware
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
● Secured Component Verification (Hardware integrity check)
● Data at Rest Encryption (SEDs with local or external key mgmt)		 ● Cryptographically signed firmware
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 1.2/2.0 (optional)
Embedded NIC 2 x 1 GbE LOM (optional) 2 x 10 GbE
Networking Options OCP x8 (optional) Mezz 3.0
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.		 -
GPU Options Up to 4 x double wide 350 W, or 12 x single wide 75 W accelerators Up to 4 x double wide 300 W or 8 x single wide 150 W accelerators
Ports Front Ports
● 1 x USB 2.0
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x VGA		 Rear Ports
● 1 x USB 2.0
● 1 x iDRAC Direct ethernet port
● 1 x USB 3.0
● 1 x Serial port (optional)
● 1 x VGA		 Front Ports
● 1 x USB 2.0
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x VGA		 Rear Ports
● 1 x USB 2.0
● 1 x USB 3.0
Internal Port (optional): 1 x USB 3.0 Internal Port (optional): 1 x USB 3.0
PCIe Up to 4 x PCIe SW Gen5 slots (Rear)+ Up to 8 x PCIe SW Gen5 slots (Front),
Or Up to 4 x PCIe DW Gen5 slots (Front)		 8 x PCIe Gen 3 slots (4 x 8)
8 x Gen 3 slots (4 x 16)
Operating System and Hypervisors ● Canonical Ubuntu Server LTS
● Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi		 ● Canonical Ubuntu Server LTS
● Citrix Hypervisor
● Windows Server LTSC with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
