Current Configuration
(List below serves as quick links to each section)
Server Chassis
Processors
Bezel
Memory
HDD (3.5") Drives
HDD (2.5") Drives
SSD (2.5") Drives
Boot Optimized Storage Subsystem (BOSS):
RAID Controllers
Internal Dual SD Module (IDSDM)
Optical drive
Trusted Platform Module (TPM)
iDRAC9
Power Supply Units (PSU)
Select Warranty
Quick Specs
Form Factor:
Tower server
Processor | Max: N/A1x Intel E-2200, Core i3, or Celeron
Memory | Max: 64GB4 DDR4 UDIMM 2666Mhz
Storage | Max: N/A8 LFF Hot-Swap Drives
(also supports 2.5” HDD in 3.5” hybrid drive carrier)
Boot Optimized Server Storage (BOSS)
IDSDM
USB
S140 (SW RAID)
PERC H730P, H330, HBA330 (non-RAID), 12Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots: 41x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL
Not Supported
Ideal for:
Develop your business with the PowerEdge T340 tower server. It is a reliable, easy to manage, and scalable one-socket server. The PowerEdge T340 helps you share and connect quickly across your organization to drive business results.
Operate reliably and scale without limits
The PowerEdge T340 is your reliable server that allows you to collaborate and grow as you scale.
- Drive your business forward with improved performance due to 100% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.
- Scale with 17% more storage capacity.
- Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
- Get set up as much as 66% faster with our ProDeploy suite of services.
Intuitive systems management with intelligent automation
PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box, delivering smart automation of routine tasks. The T340 is easily managed which frees up time for work priorities.
- Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
- Easily manage multiple remote servers via the intuitive general user interface with iDRAC9 Group Manager or upgrade to OpenManage Enterprise.
- Conveniently receive data alert notifications and access hardware remotely anywhere with OpenManage Mobile.
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.
Connect and manage your growing business
The Dell EMC PowerEdge T340 enables you to grow through collaboration. Grow without limits* with this reliable and easy to manage server.
The T340 enables you to address common business workloads in your office and across remote offices.
Operate reliably
The Dell EMC PowerEdge T340 operates reliably so you don’t have to slow down when connecting and managing your growing business.
- Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
- Save time and IT effort resolving server hardware issues with ProSupport Plus and SupportAssist.
- Help prevent downtime and protect your data from malicious changes with iDRAC9 Enterprise Server Lockdown mode.
- Save your data automatically with reliable software RAID.
Cooling & Fans

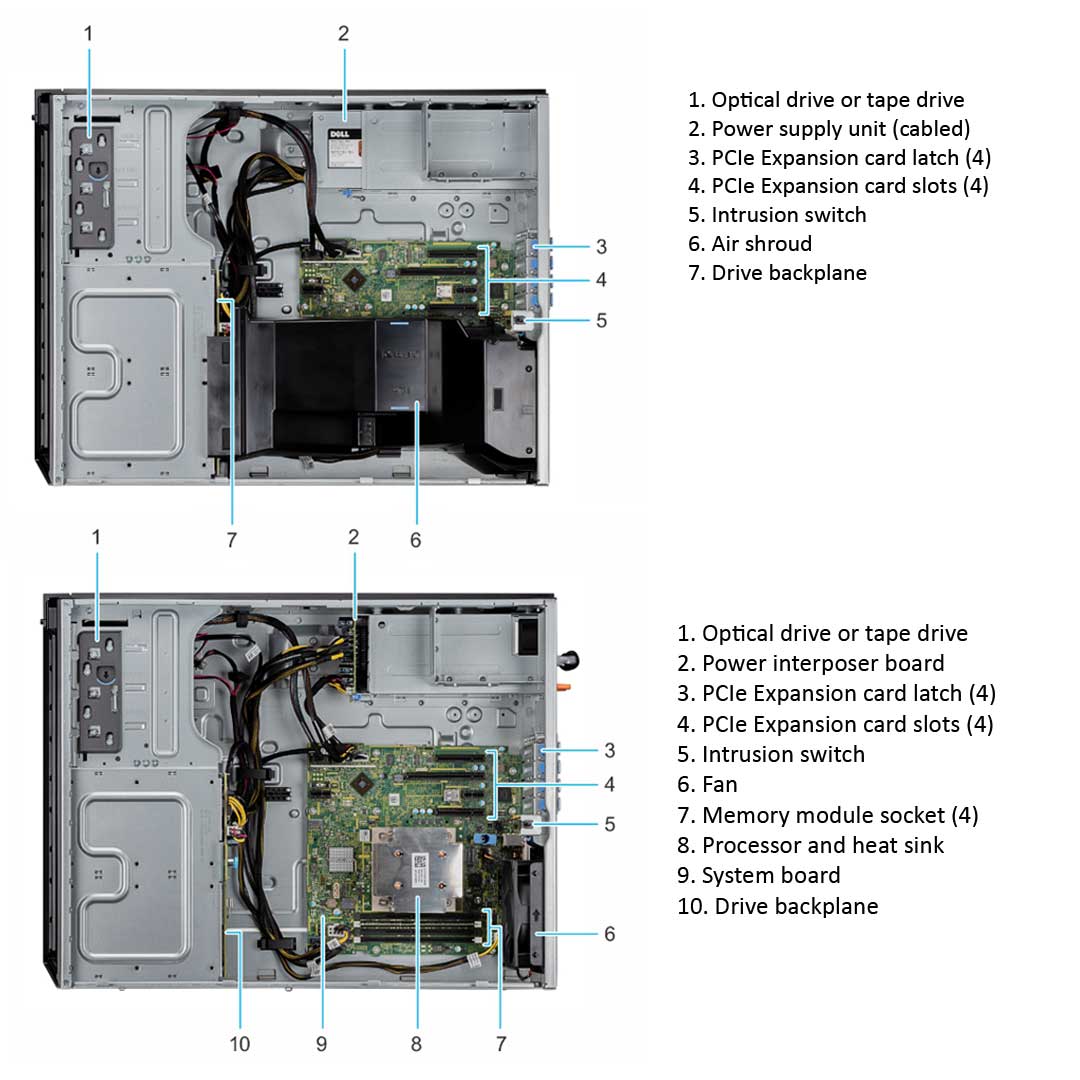

With only 1 CPU there is not much as far as cooling. The CPU has a heat sink along with a large fan in the rear of the system. There are no other options of configurations for the heat-sink and fan assembly.
Memory
4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC
| DIMM Type | DIMM Ranking | Capacity | DIMM Rated voltage | 1 DIMM per channel | 2 DIMMs per channel |
|---|---|---|---|---|---|
| UDIMM | 1R/2R | 8GB, and 16GB | DDR4 (1.2V) | 2666 | 2666 |
PCIe Configurations
| PCI Slot | Mechanical | Electrical | Height | Length |
|---|---|---|---|---|
| 1 | PCIe x 8 | PCIe x 8 Gen 3 | Full Height | Half Length |
| 2 | PCIe x 16 | PCIe x 8 Gen 3 | Full Height | Half Length |
| 3 | PCIe x 1 | PCIe x 1 Gen 3 | Full Height | Half Length |
| 4 | PCIe x 8 | PCIe x 4 Gen 3 | Full Height | Half Length |
Networking Options

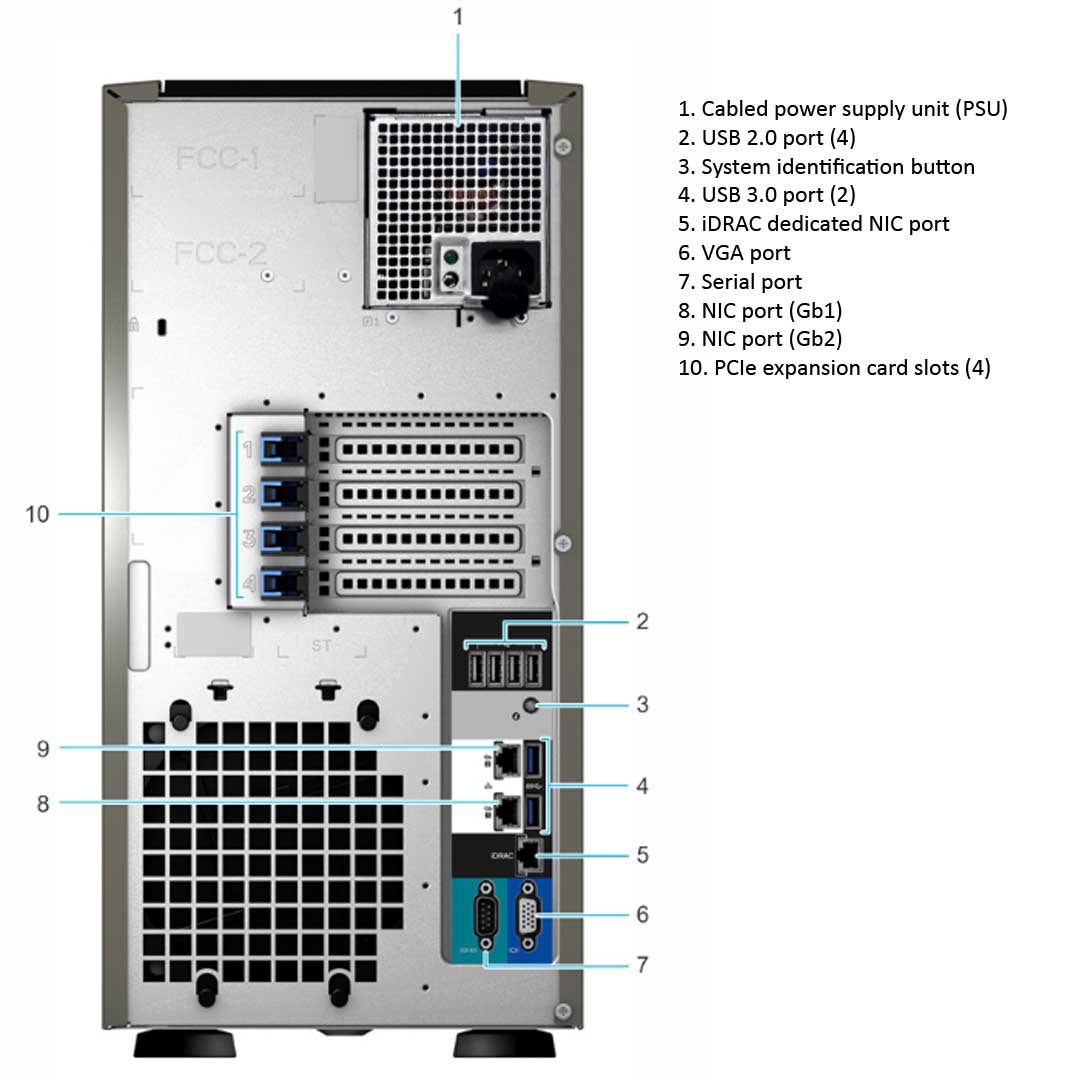

The Dell PowerEdge T340 has a networking LOM card installed on the system board that supports up to 2x 1GbE. You can install more networking adapters in the following PCIe slots above. Please look at the rear diagram image of the server to know where everything is located.
Storage Controllers
The Dell EMC PowerEdge T340 system supports S140 Software RAID, and H330, H730P RAID controllers.
The PowerEdgeT340 systems supports HBA330 for Non-RAID (passthrough) configuration.
Power & Dimensions
Power Supply Units (PSU)
- 350W AC 2U Cable Bronze
- 495W AC 1U Redundant Platinum
Dimensions
- Chassis height: 430.3mm (16.94 in)
- Chassis width: 218mm (8.58 in)
- Chassis depth: 603 mm (23.7 in)
- Note: These metrics do not include PSU handle, bezel, or tower foot
- Chassis weight: 26 kg (55.67 lb.)
