Quick Specs
Form Factor:
4U rack server
Processor | Max: N/A2x or 4x Intel E7-4800 v4 or E7-8800 v4
Memory | Max: 12TB96 DDR4 RDIMM, LRDIMM 2400Mhz
Storage | Max: N/A24 SFF SAS/NL-SAS/SATA (HDD/SSD)
Up to 8 NVMe supported
None
Boot Options:USB
IDSDM (Virtualized Platforms only)
Up to 10 PCIe slots
8 PCIe 3.0
+ 1 RAID slot
+ 1 NDC slot
iDRAC8 Express with Lifecycle Controller
LOM / rNDC:4 x 1GbE LOM
RAID controllers: (Supports Dual Controllers)PERC H330, H730P, H830, 12Gbps SAS HBA
Other Versions
- Dell PowerEdge R920
- Dell PowerEdge R930
- Dell PowerEdge R940
- Dell PowerEdge R940xa
- Dell PowerEdge R960
(Click to View)
Ideal for:
- Database
- High-Performance Computing (HPC)
- Retail Servers
(Click to View)

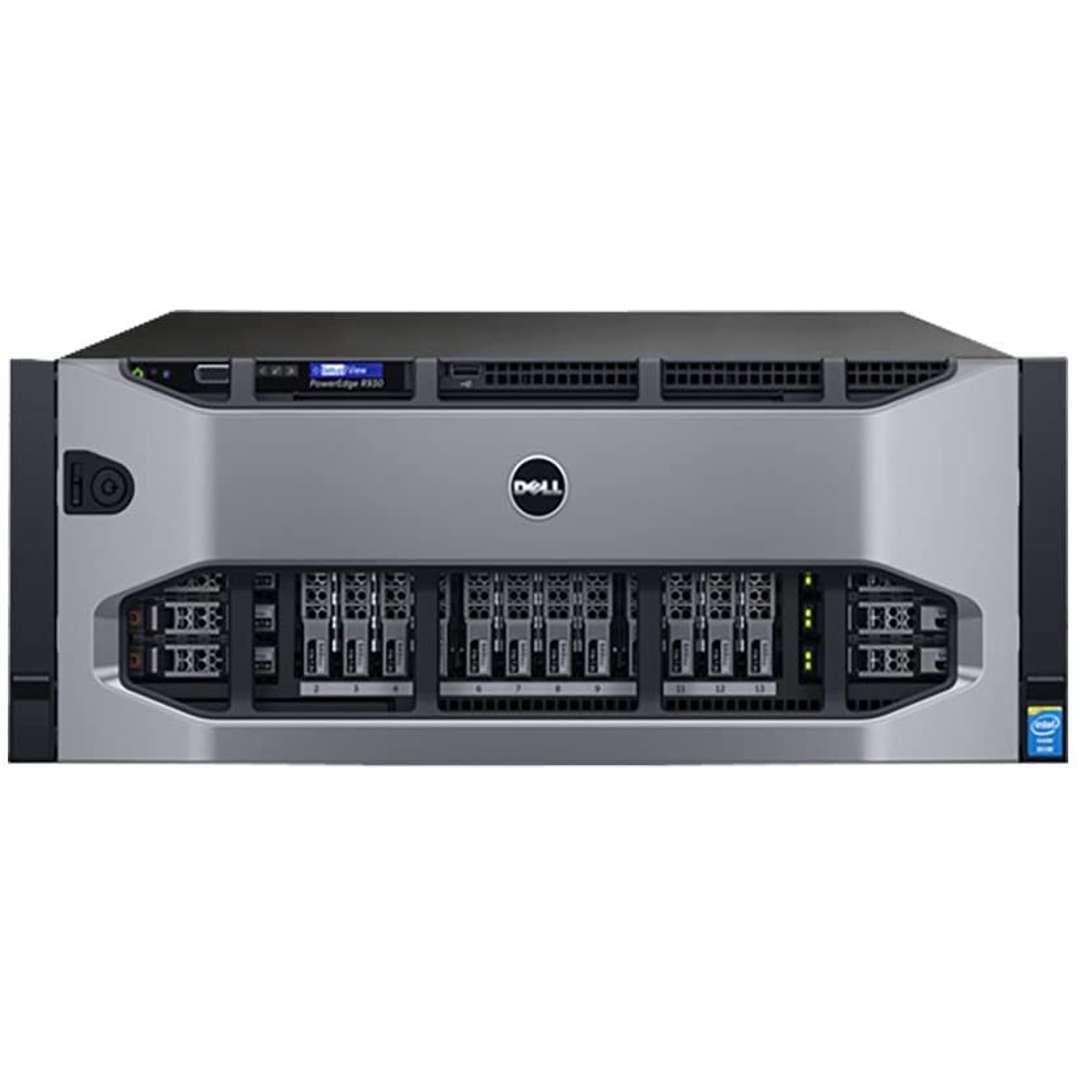

The Dell EMC PowerEdge R930 rack server is a powerhouse designed to meet the most demanding enterprise applications. With industry-leading internal storage and memory scalability, it optimizes application performance and accelerates enterprise applications. The R930 is the ideal foundation for in-memory databases, OLTP, OLAP, CRM, ERP, Unix to Linux migrations, and more.
Scalable performance
Featuring the latest Intel Xeon E7-8800 v4 and E7-4800 v4 processors, the R930 is highly scalable, with up to 96 DIMMs DDR4 memory, up to 10 PCIe 3.0 slots, and support for up to (2) PERCs and (2) SAS NDC on a 24 Bay Chassis. It can accommodate up to (24) 2.5" drives or up to (16) 2.5" drives with (8) PCI Express NVMe storage, making it highly adaptable to any workload.
Accelerate applications
With all 96 processing cores available, the R930 can access up to 12TB (with 64GB DIMMs) DDR4 memory and optimize performance across compute, memory, and I/O with up to eight PCIe SSDs. It offers built-in Intel E7 RAS features to protect mission-critical and data-intensive applications. The R930 is also designed for scalability and speed, flexibly scaling to meet virtually any challenge.
The R930 can accelerate large applications such as ERP, CRM, and business intelligence with the capacity to quickly respond to business growth demands. It can consolidate multiple corporate-wide applications to a single server and enable faster access to critical business-application data with in-memory database capability. The R930 can also efficiently support SAN environments with Dell Fluid Cache for SAN in combination with up to eight Express Flash SSDs, making it highly adaptable to any workload.

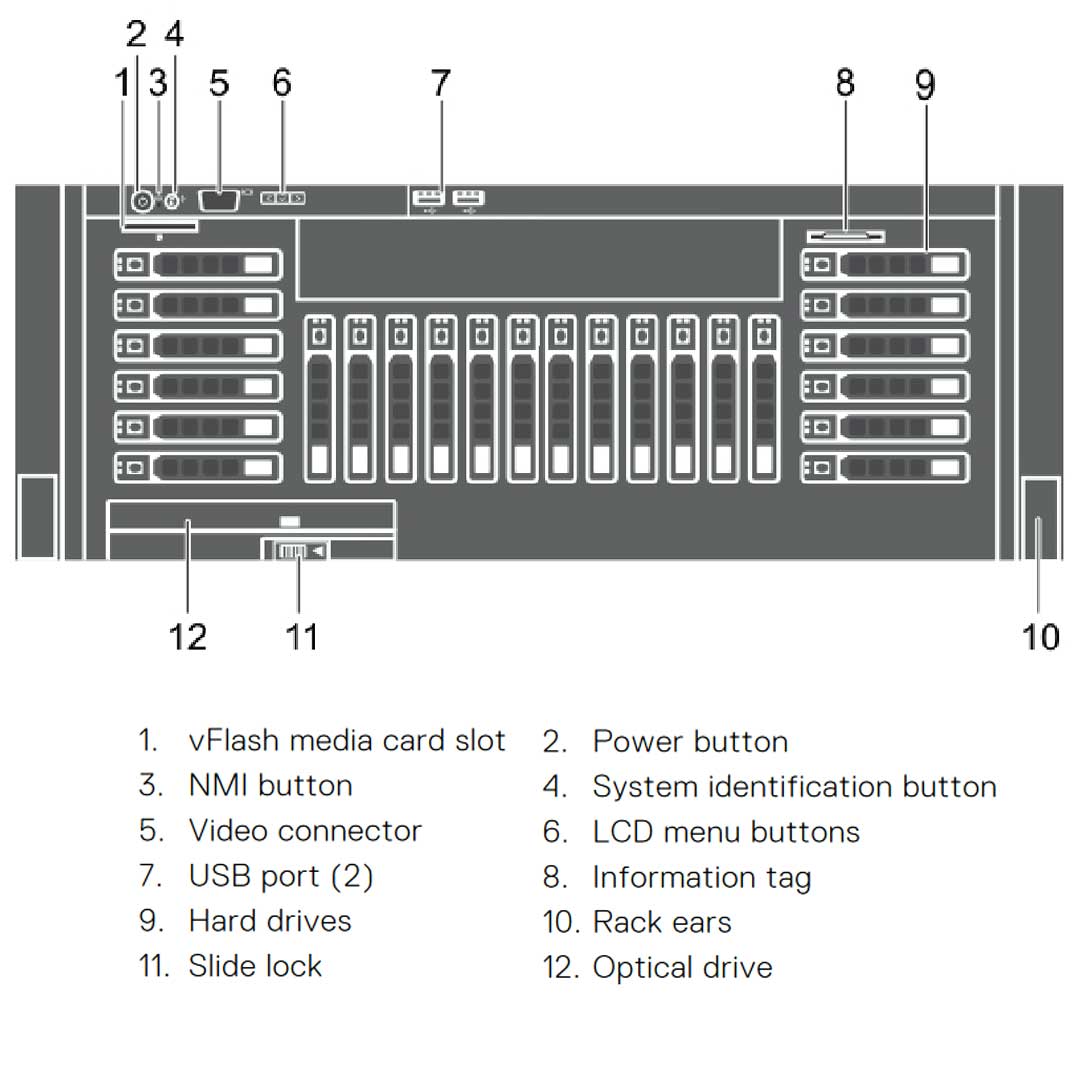

Configuration Options
- Supports up to (2) PERCs and (2) SAS NDC on a 24 Bay Chassis

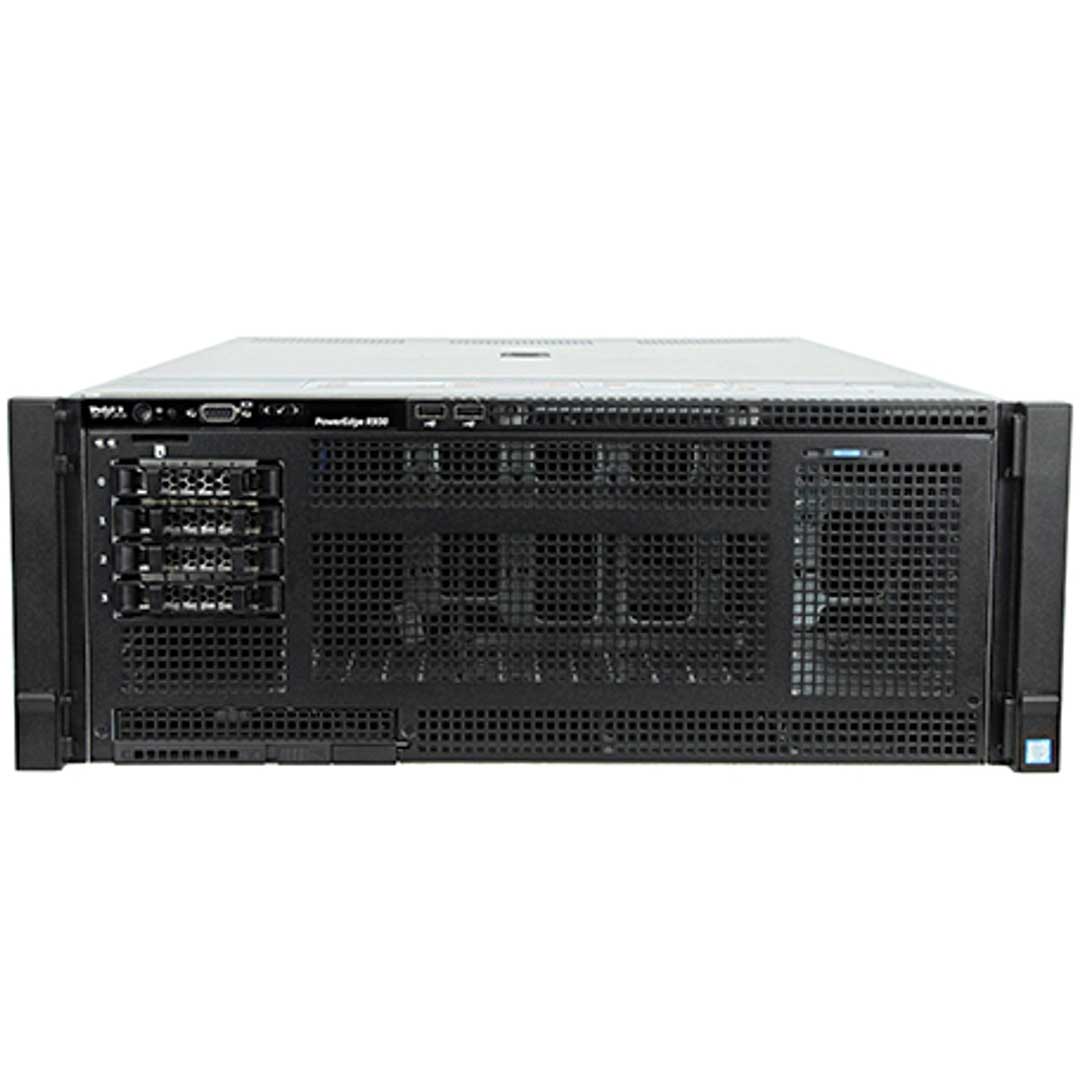

- Up to (4) 2.5" Drives

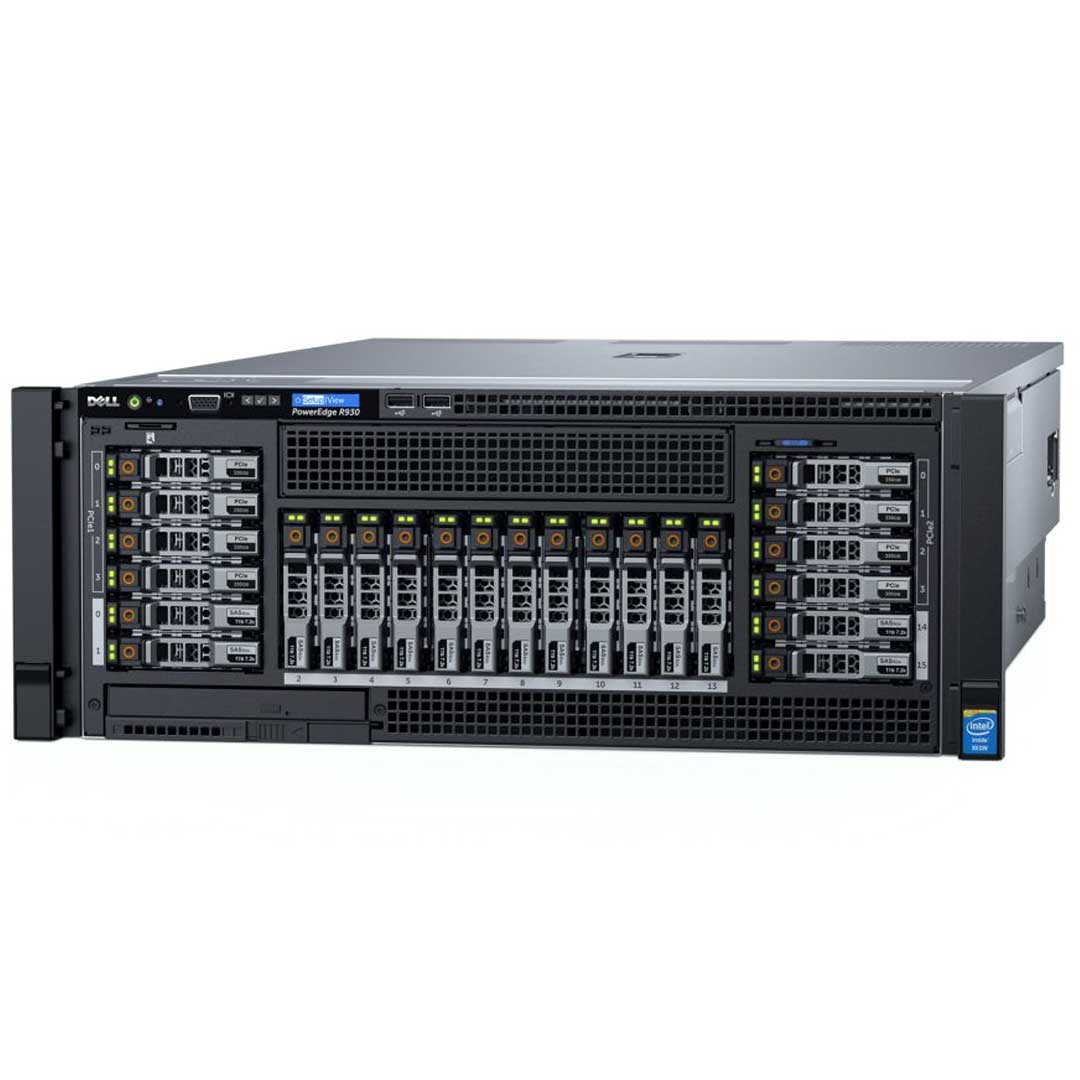

- Up to (24) 2.5" Drives
- Up to (16) 2.5" Drives + (8) PCI Express NVMe Storage
Expander Configurations:
Unified Mode:
A 24 Bay chassis with 1 PERC 9 and 1 SAS Expander Daughter Card.
Performance Mode / Split Mode :
A 24 Bay Chassis with 2 PERC's and 2 SAS Expander Daughter Cards. The hard drives are located in hard drive slots 0 through 11 (bay 1) and 12 through 23 (bay 2).

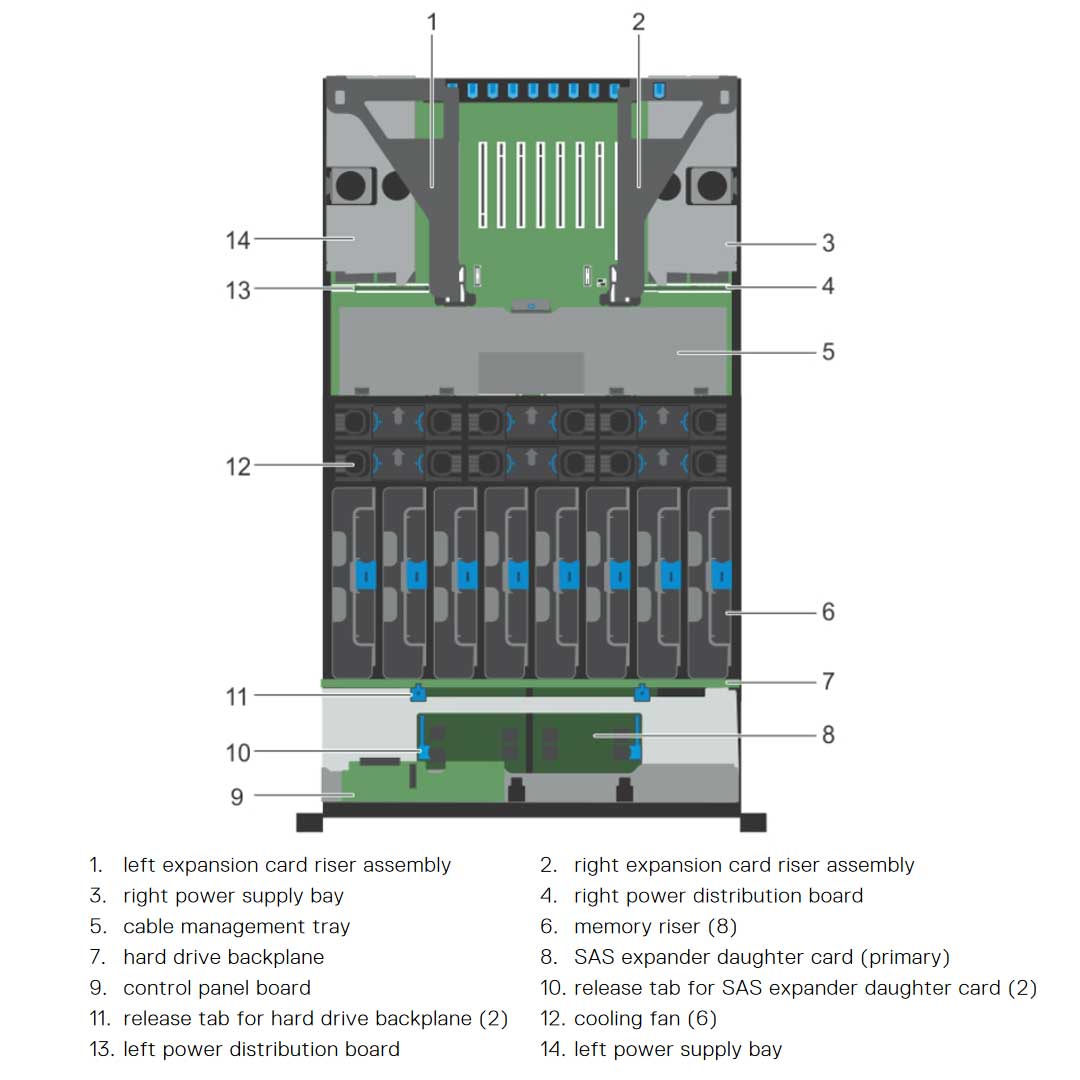

Memory Options
RDIMMs and LRDIMMs cannot be mixed. All DIMMS will be installed in a DIMM Riser cage and placed in the Riser/Fan cage. There are a total of 8 DIMM Risers for a total of 96 DIMMs per server with a 4 socket connection. If there are any empty DIMM Risers a blank must fill its spot.
| Memory module sockets | Memory capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|
| Ninety-six 240-pin sockets | 64 GB quad rank (LRDIMMs) 4 GB or 8GB single rank (RDIMMs) 8 GB, 16 GB, or 32 GB dual rank (RDIMMs) |
192 GB with dual processor with 4 memory risers 384 GB with quad processor with 8 memory risers |
3.07 TB with dual processor with 4 memory risers 6.14 TB with quad processor with 8 memory risers |

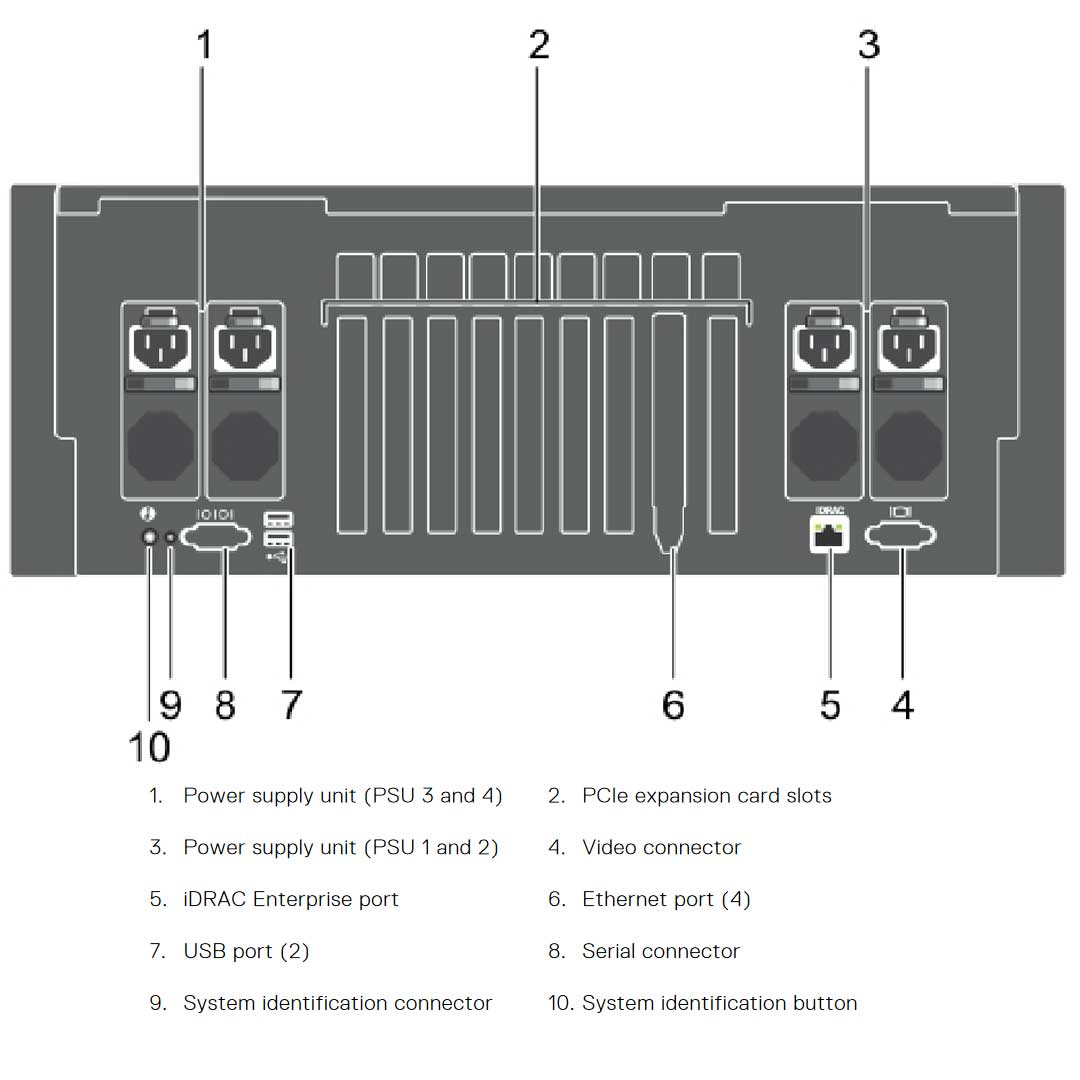

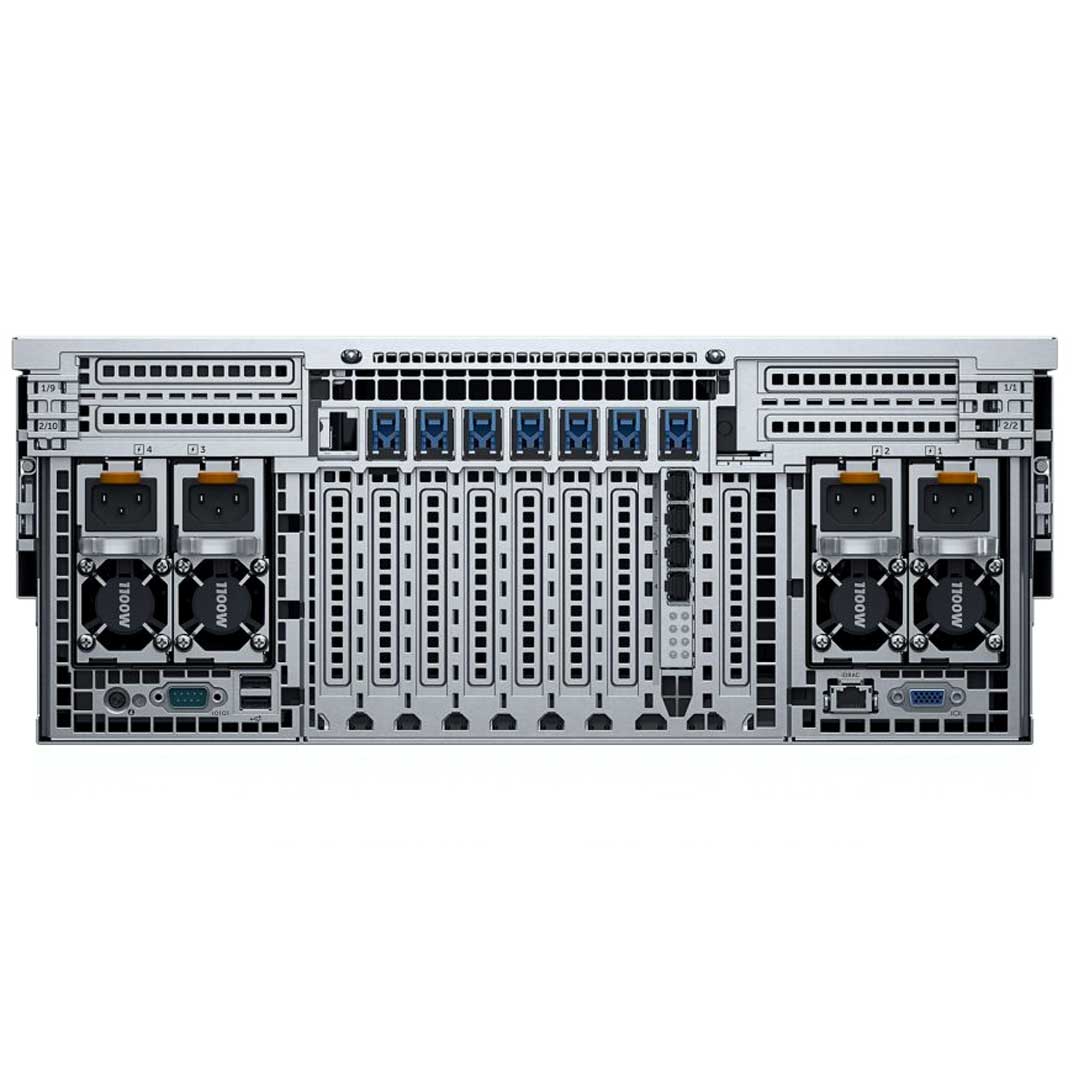

PCIe Options
The R930 Dell Rack Server has 10 PCIe 3.0 expansion card slots that include one dedicated slot for PERC 9 storage card and one dedicated riser-slot for Network Daughter Card (NDC). There are also two Other dedicated Slots for the Optional Left and Right Riser which provide 2 PCIe slots each. Please read the manual below for more detailed information.
| Riser | PCIe slot | Processor connection | Height | Length | Link width | Slot width |
|---|---|---|---|---|---|---|
| 1 | Processor 1 | Full Height | Half Length | x8 | x24 | |
| 2 (optional) | 1/1 | Processor 1 | Full Height | Full Length | x4 | x8 |
| NOTE: If the optional riser 2 is installed as the left I/O riser | ||||||
| 1 (NDC riser) | 2 | Processor 1 | Full Height | Half Length | x8 | x16 - reversed |
| 2/2 | Processor 1 | Full Height | Half Length | x4 | x8 | |
| 3 | Processor 1 | Full Height | Half Length | x8 | x16 | |
| 4 | Processor 2 | Full Height | Half Length | x16 | x16 | |
| 5 | Processor 2 | Full Height | Half Length | x16 | x16 | |
| 6 | Processor 3 | Full Height | Half Length | x16 | x16 | |
| 7 | Processor 3 | Full Height | Half Length | x16 | x16 | |
| 8 | Processor 4 | Full Height | Half Length | x16 | x16 | |
| 9 | Processor 4 | Full Height | Half Length | x16 | x24 | |
| 1/9 | Processor 4 | Full Height | Full Length | x8 | x16 | |
| NOTE: If the optional riser 3 is installed as the right I/O riser | ||||||
| 2/10 | Processor 4 | Full Height | Half Length | x8 | x16 | |
| Do not install a full-height expansion card on PCIe slot 2/10. | ||||||
| The expansion cards are not hot-swappable. Ensure the AC power supply unit is removed before installing the expansion cards. | ||||||
Networking Options
The Network Daughter Card (NDC) contains the complete Network Interface Card (NIC) subsystem, it replaces the traditional LAN-on-Motherboard (LOM) design with the flexible new features, network types, speed and easy to upgrade from 1G to 10G LAN speeds.
NDC riser is installed on a dedicated PCIe slot 2 on the system board. It provides the following interfaces from the system board:
- PCIe x8 Gen3 link
- PCIe x2 Gen2 link
- Network Controller Sideband Interface (NC-SI)
- I-two-C (I2C)
- Power on and grounding
- Miscellaneous control signals
Storage Controller Options
Storage Controller
The following PERCs are supported in the Dell PowerEdge R930 Rack Server. The system supports Dual PERCs when expanding to 24 drives.
- Internal controllers: PERC H330, PERC H730P
- External HBAs (RAID): PERC H830
- External HBAs (non-RAID): 12Gbps SAS HBA
SAS Expander
The system's storage uses SAS expander daughter card to facilitate:
- Transition of SAS technology from 6 Gbps to 12 Gbps
- Maximize the hard disk drive space
- Provide the configuration flexibility and cabling and signaling issues of the system
The SAS expander daughter card tray supports up to two daughter cards (depending on the system configuration).
Power & Dimension
Power
Your system supports up to four 750 W or four 1100 W AC power supply units (PSUs) that are connected to the system power distribution boards.
- 750W Platinum PSU
- 1100W Platinum + PSU
Dimensions
- Length: 802.3mm (31.58")
- Width: 482.4mm (18.99")
- Height: 172.6mm (6.8")
- Weight: 59kg (130.07 lb)
