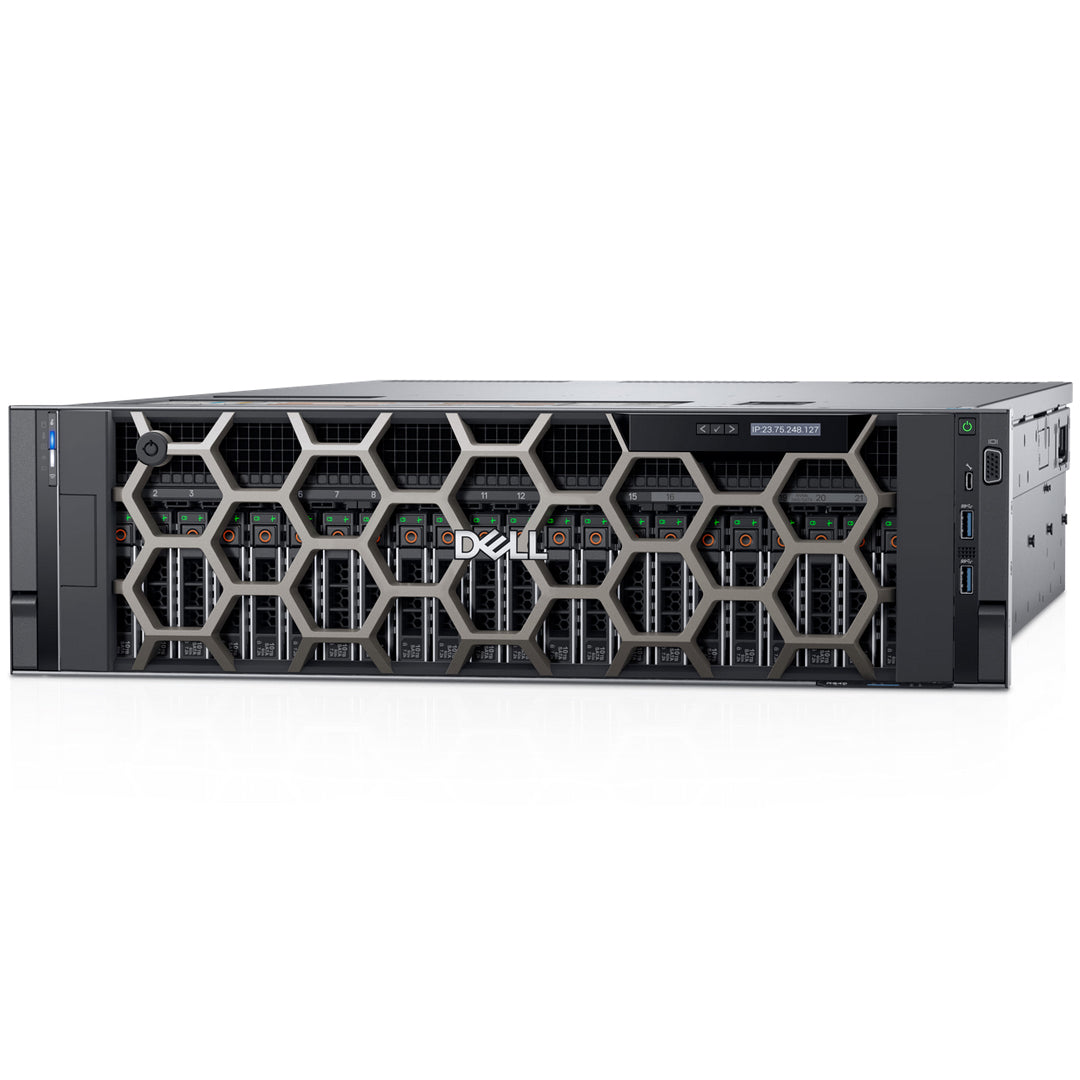

Dell PowerEdge R940 Rack Server Chassis (8x2.5")

SKU: DPE-R940-8x2.5-Chassis

Dell PowerEdge R940 Rack Server Chassis (8x2.5")

Name: Dell PowerEdge R940 Rack Server Chassis (8x2.5")
Brand: Dell CTO
SKU: DPE-R940-8x2.5-Chassis
Price: 3162.5 USD
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$3,162.50

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	Technical specification
Processor	Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
Memory	48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max Up to 12 NVDIMM, 384GB Max Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM) Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
Drive bays	Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 184.32TB
Power supplies	Gold:1100W - 48VDC Platinum 1100W, 1600W, 2000W, 2400W Hot plug power supplies with full redundancy option 8 hot plugs fans with full redundancy
Dimensions	Form factor: Rack (3U) Height: 130.3mm (5.13”) Width: 434mm (17.08”) Depth: 784.2mm (30.8”) Weight: 49.9kg (110lbs.) *Dimensions do not include bezel
Embedded management	IPMI 2.0 compliant iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish Quick Sync 2 wireless module (optional)
Bezel	Optional LCD bezel or security bezel
OpenManage Software	OpenManage Enterprise OpenManage Mobile OpenManage Power Center
Integrations and connections	Integrations: Microsoft System Center VMware vCenter BMC Truesight Red Hat Ansible Modules	Connections: IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager i (OMi) Nagios® Core Nagios® XI
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Secure Root of Trust Secure Boot Secure Erase System Lockdown (requires iDRAC Enterprise or Datacenter)

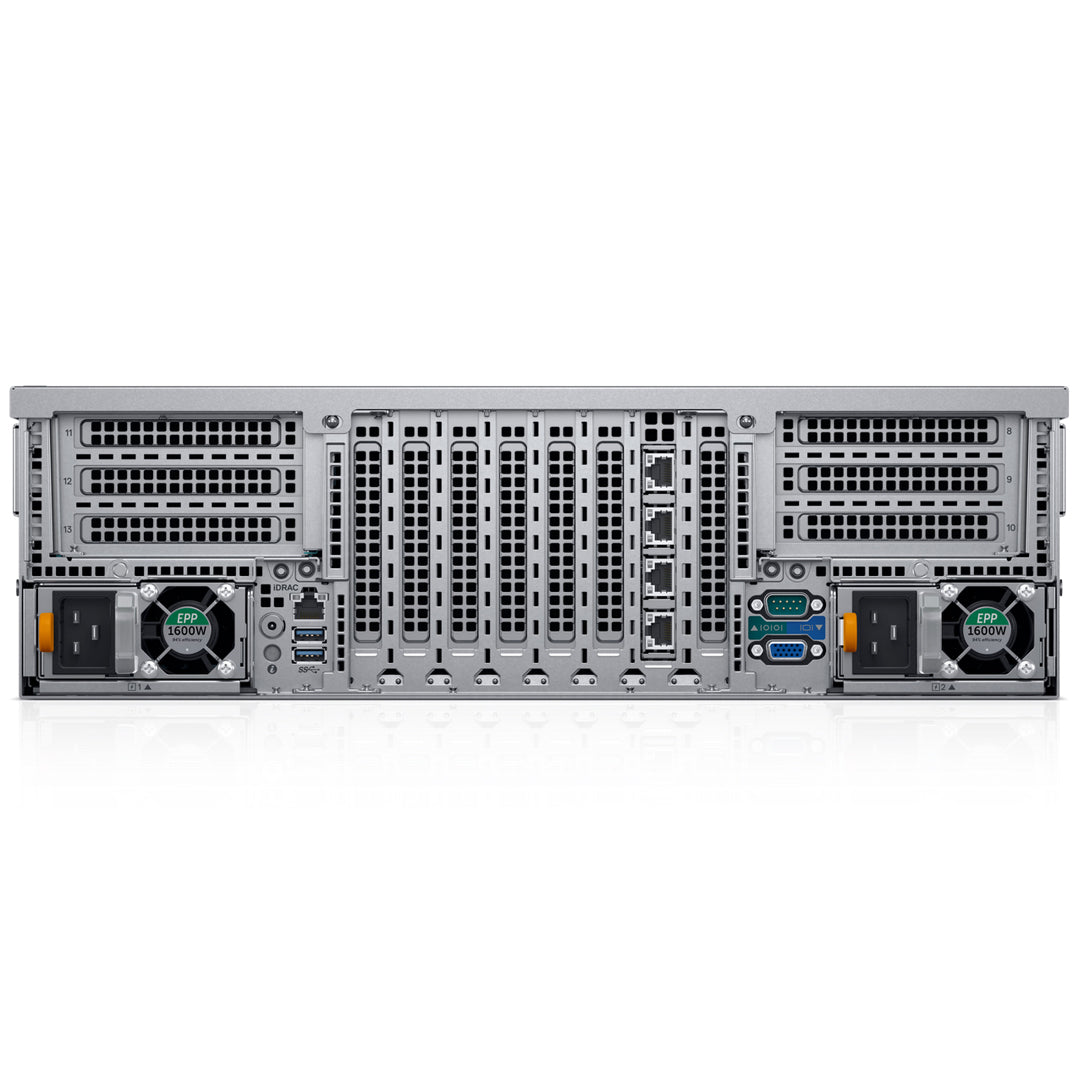

I/O & Ports	Network daughter card options: 4 x 1GbE 4 x 10GbE 2 x 10GbE + 2 x 1GbE 2 x 25GbE Front Ports: 2 x USB 3.0 1 x VGA 1 x Dedicated iDRAC Direct USB	Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA Video card: 2 x VGA PCIe: Up to 13 x Gen3 slots, (3 x8 + 10 x16)
Supported operating systems	Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi
