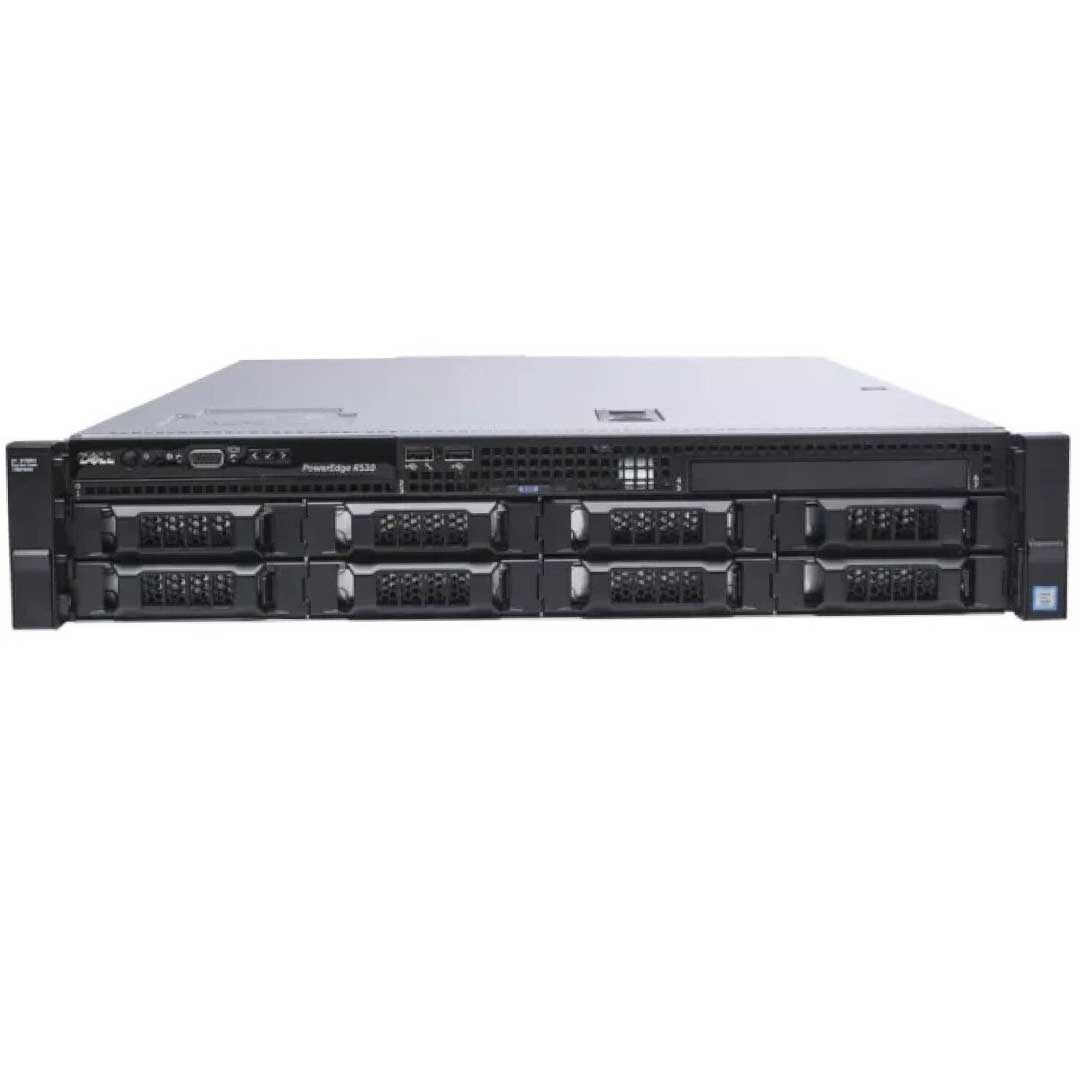

Dell PowerEdge R730 Rack Server Chassis (8x3.5") R730-8Bay

Dell PowerEdge R730 Rack Server Chassis (8x3.5") R730-8Bay-diagram

PER730-8x3.5 | Refurbished Dell PowerEdge R730 Rack Server Chassis (8x3.5")

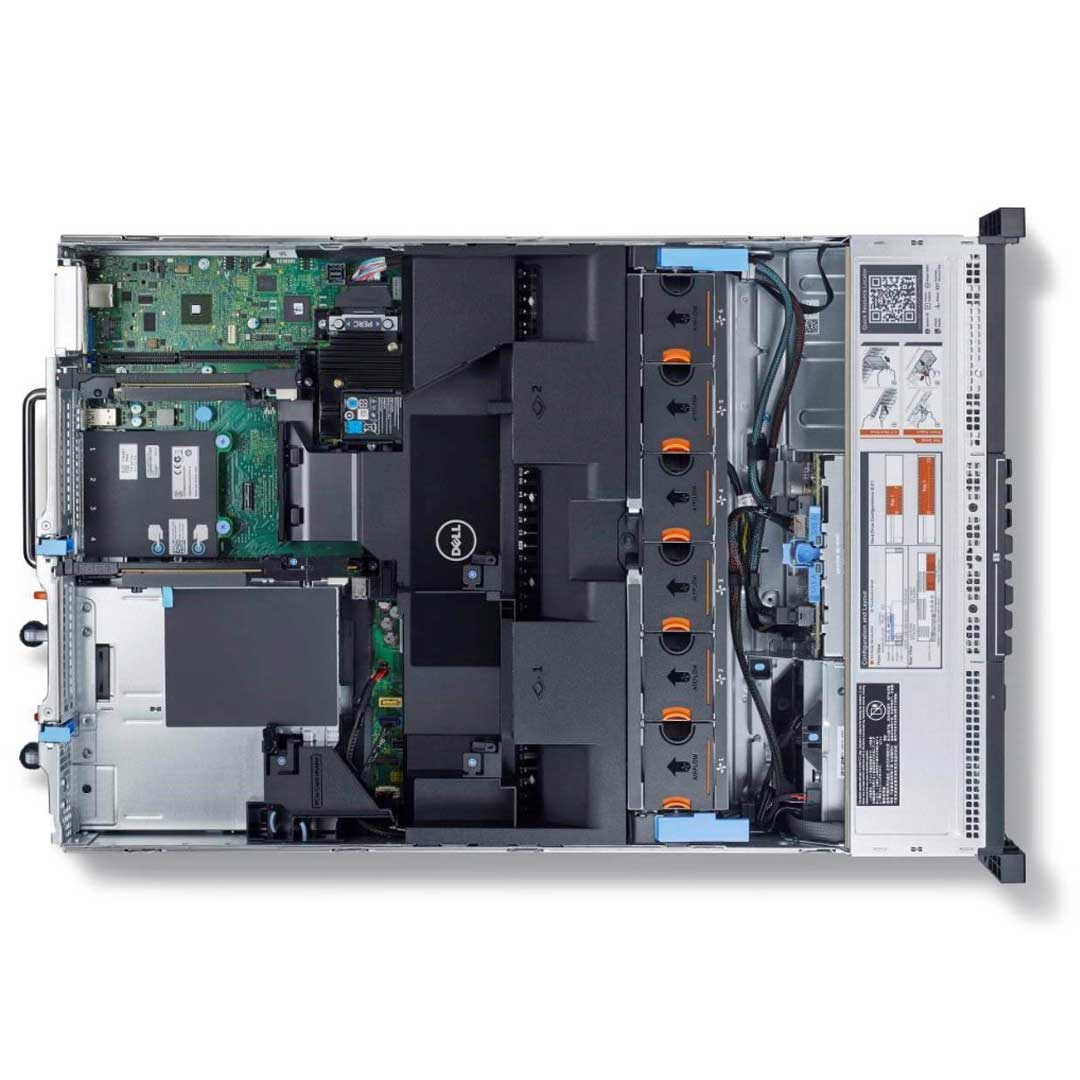

Dell PowerEdge R730 Rack Server Chassis (8x3.5") R730-internal

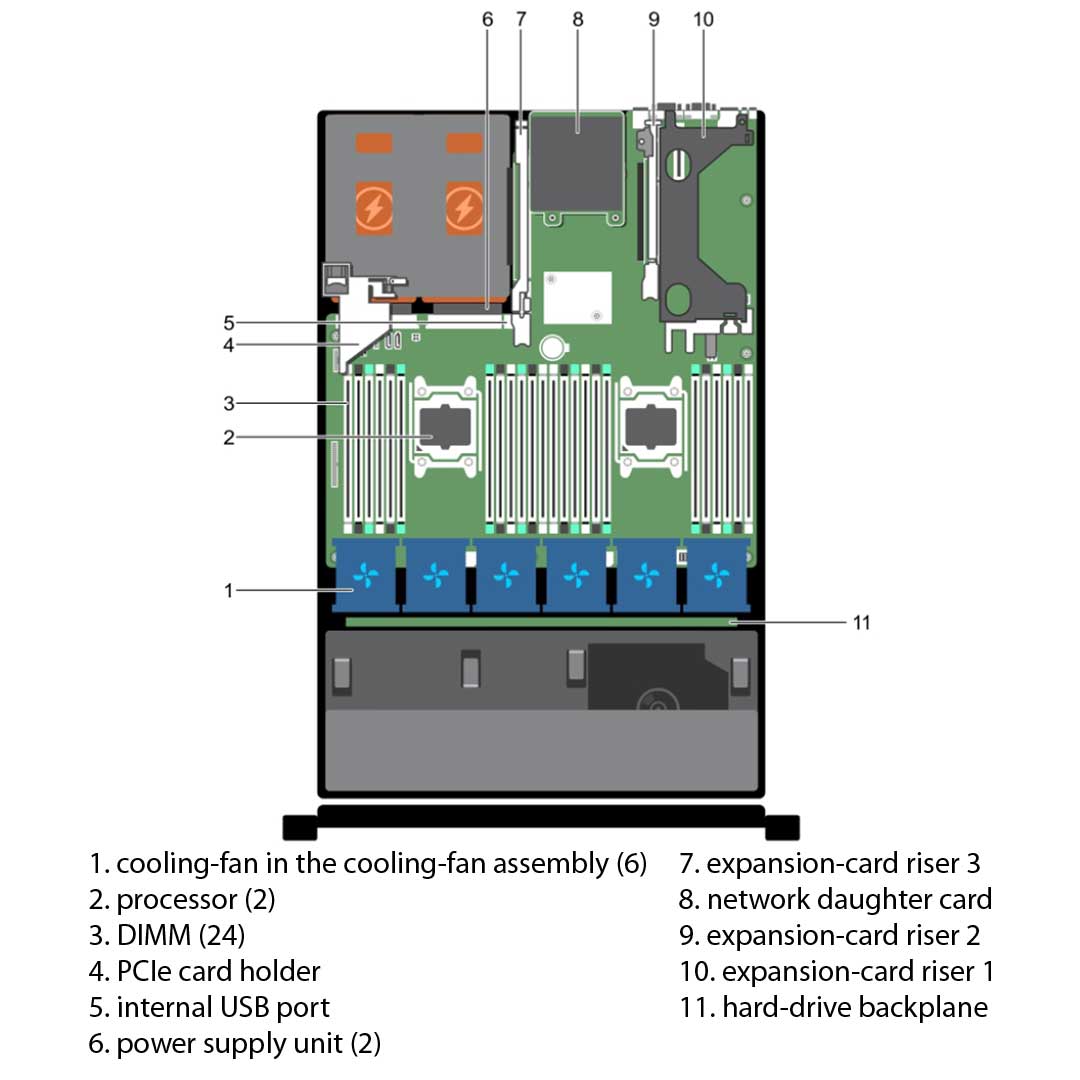

Dell PowerEdge R730 Rack Server Chassis (8x3.5") R730-internal-diagram

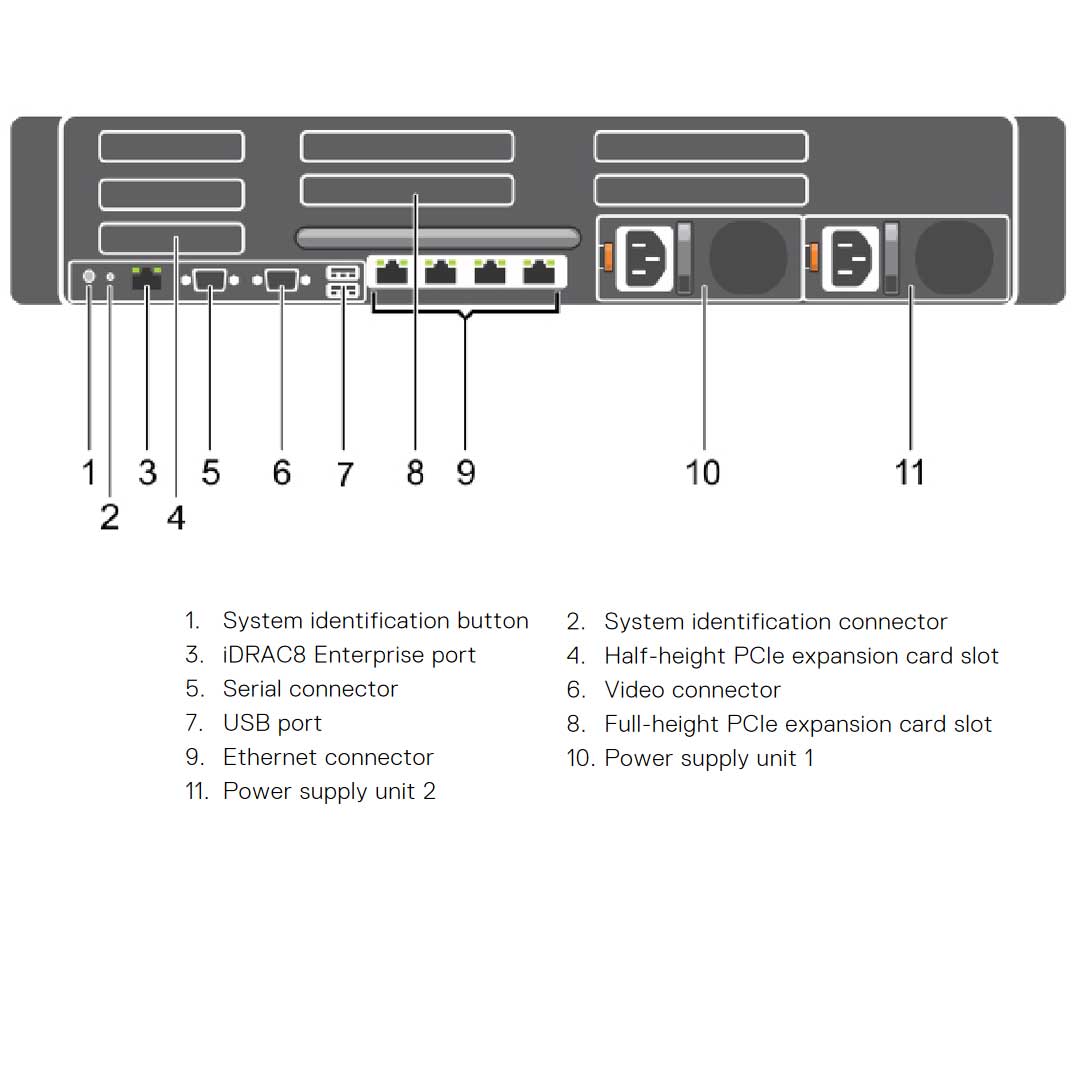

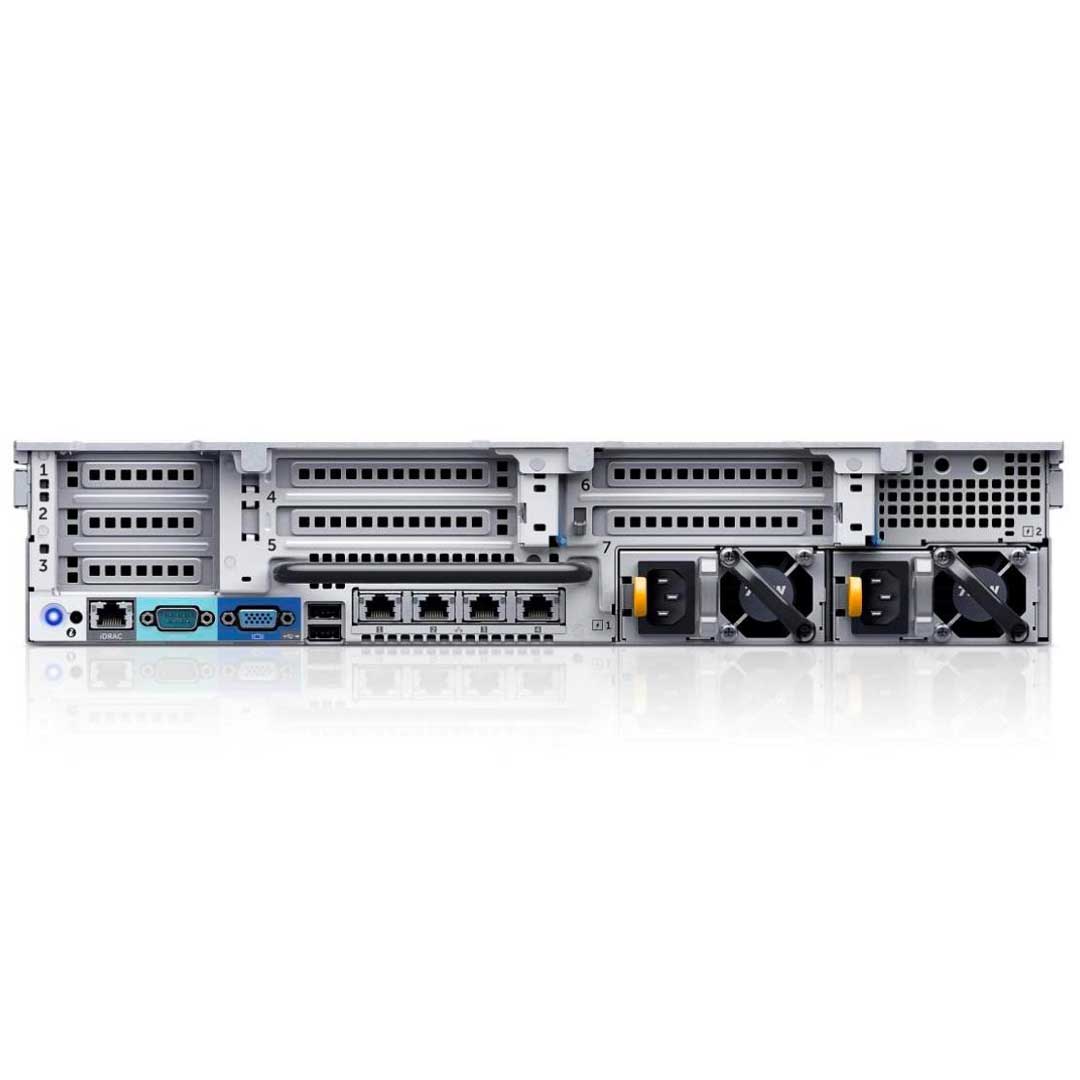

Dell PowerEdge R730 Rack Server Chassis (8x3.5") R730-rear

SKU: DPE-R730-8x3.5-Chassis

Dell PowerEdge R730 Rack Server Chassis (8x3.5")

Name: Dell PowerEdge R730 Rack Server Chassis (8x3.5")
Brand: Dell CTO
SKU: DPE-R730-8x3.5-Chassis
Price: 330.0 USD
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$330.00

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge R730 Technical Specification
Form factor	2U rack server
Dimensions and weight	H: 8.73 cm (3.44 in) W: 44.40 cm (17.49 in) D: 68.40 cm (26.92 in)
Processor	Intel® Xeon® processor E5-2600 v4 product family
Processor sockets	2
Cache	2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 22
Chipset	Intel C610 series chipset
Memory	Up to 3TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s
I/O slots	Up to 7 x PCIe 3.0 plus dedicated PERC slot
RAID controllers	Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA
Drive bays	Internal hard drive bay and hot-plug backplane: Up to 16 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA Up to 8 x 3.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Maximum internal storage	HDD: SAS, SATA, nearline SAS SSD: SAS, SATA 16 x 2.5" – up to 29TB via 1.8TB hot-plug SAS hard drives 8 x 3.5" – up to 64TB via 8TB hot-plug NL SAS hard drives
Embedded NIC	4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC
Power supplies	Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply;
Availability	ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, tool-less chassis, support for high availability clustering and virtualization, proactive systems management alerts, iDRAC8 with Lifecycle Controller
Remote management	iDRAC8 with Lifecycle Controller iDRAC8 Express (default) iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade) 16GB vFlash media (upgrade)
Systems management	IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management Dell OpenManage Plug-in for Oracle® Database Manager Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft® System Center Dell OpenManage Integration for VMware® vCenter™
Optional supported hypervisors	Citrix® XenServer, VMware vSphere® ESXi®
Operating system	Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V) Microsoft Windows HPC Server 2008 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux
Rack support	ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Spec Sheet 4

Feature	PowerEdge R720/R720xd	PowerEdge R730/R730xd
Chassis	2U rack	2U rack
Processors	Intel Xeon processor E5-2600 v2 product family	Intel Xeon processor E5-2600 v3 product family
Internal interconnect	Intel QuickPath Interconnect (QPI)	Intel QPI
Memory	24 x DDR3 RDIMM, UDIMM, and LRDIMM Up to 768GB	24 x DDR4 RDIMM and LRDIMM Up to 768GB
Disk drives	R720: Up to 16 x 2.5“ or 8 x 3.5” 6Gb SAS, 3Gb SATA R720xd: Up to 26 x 2.5” SAS SSD, SATA SSD, SAS, NLSAS, SATA, SAS 512n or 12 x 3.5” SAS, NL-SAS, SATA + 2 x 2.5” drives	R730: Up to 16 x 2.5” HDD: SAS, SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA Up to 8 x 3.5” HDD: SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA R730xd: Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA, up to 4 NVMe Express Flash PCIe Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, NL-SAS; SSD: 12Gb SAS, 6Gb SATA
RAID controller	PERC S110 (software RAID), H310, H710, H710P, H810 (external); support for 2 internal RAID controllers	PERC S130 (software RAID), H330, H730, H730P, H830 (external); support for 2 internal RAID controllers
PCI slots	Max 7 + 1 x PCIe 3.0/6 + 1 x PCIe 3.0	Max 7 + 1 x PCIe 3.0/6 + 1 x PCIe 3.0 option to eliminate Riser 1
Embedded NICs	Select Network Adapter NDC 4 x 1GbE, 2 x 10GbE	Select Network Adapter NDC 4 x 1GbE, 2 x 10GbE, 4 x 10GbE
USB	USB 2.0	USB 3.0 (back and internal ports only)
Power supplies	Hot-plug, redundant power supply units: >95W AC, 750W AC, 750W AC/DC mixed mode, 1100W AC, 1100W DC	Hot-plug, redundant power supply units: 495W AC, 750W AC, 750W AC/DC mixed mode2, 1100W AC, 1100W DC
Power efficiency 80 PLUS® certification	Titanium and Platinum	Titanium and Platinum
Dell OpenManage Systems Management	OpenManage Essentials Dell Management Console IT Assistant OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option)	OpenManage Essentials Dell Management Console OMSA Agent OpenManage Power Center (requires iDRAC8 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC8 Express with Lifecycle Controller (standard option)
Internal GPU	2 x 300W (double-wide) or 4 x 150W (single-wide) Not supported on R720xd	2 x 300W (double-wide) or 4 x 150W (single-wide) Not supported on R730xd
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant PSUs IDSDM support	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant PSUs IDSDM support (next generation)

Dell PowerEdge R730 Rack Server Chassis (8x3.5")

Looking to Customize?

Base Standard Capabilities

Spec Sheet 4
