Base Standard Capabilities
| Feature | PowerEdge R630 Technical Specification | |
|---|---|---|
| Form factor | 2U rack server | |
| Dimensions and weight | 24 x 1.8" and 10 x 2.5" drive configuration:

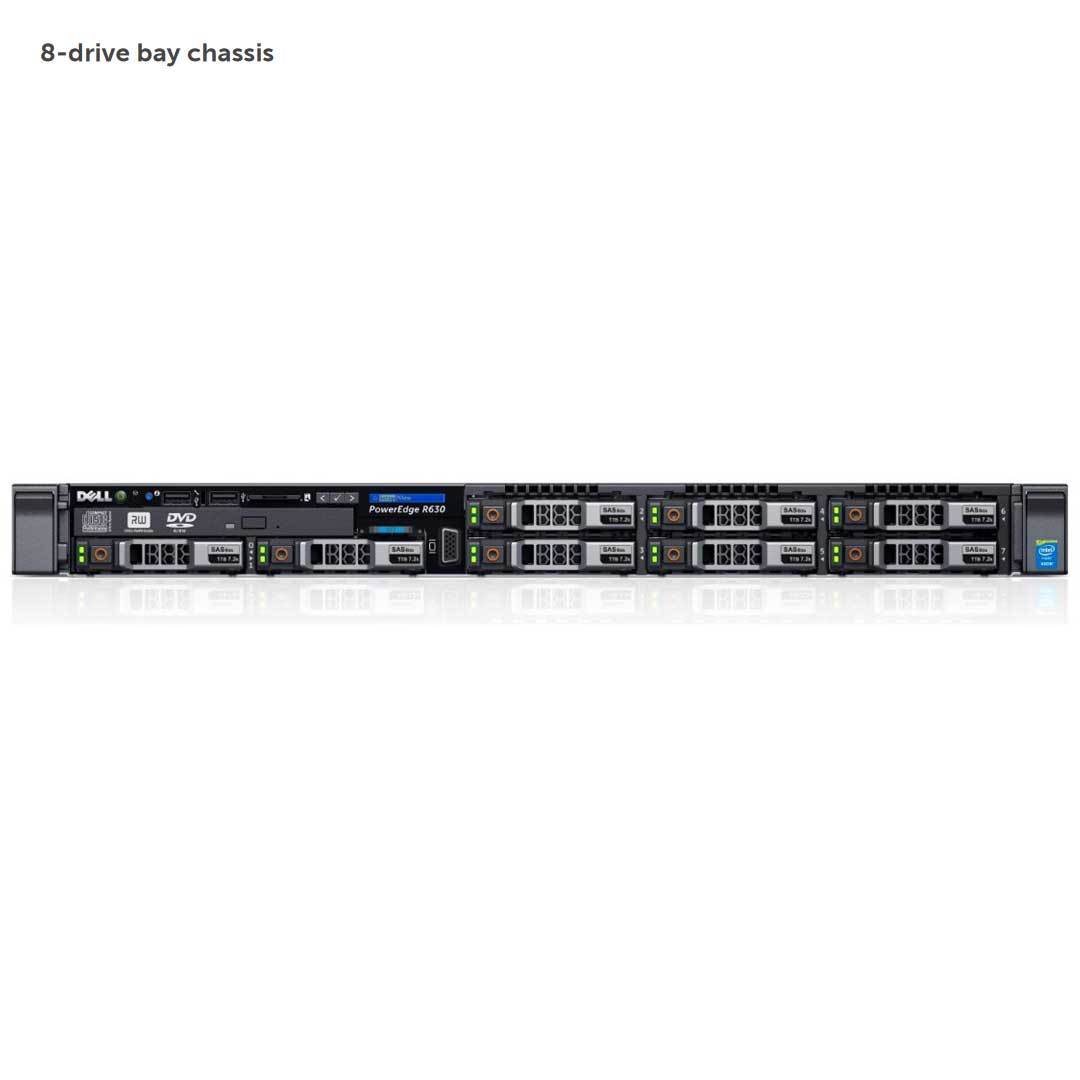

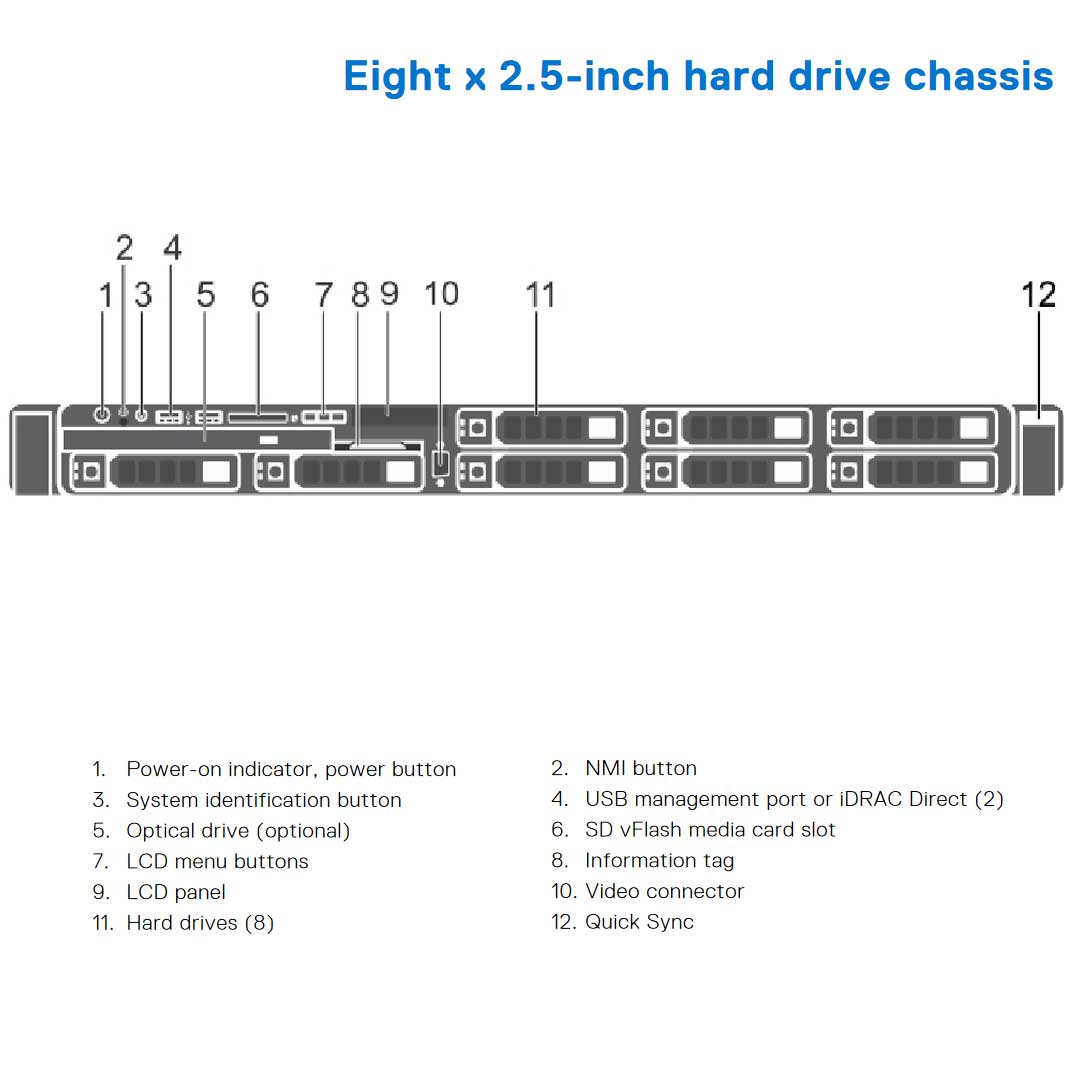

| 8 x 2.5" drive configuration:
|
| Processor | Intel® Xeon® processor E5-2600 v4 product family | |
| Processor sockets | 2 | |
| Cache | 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22 | |
| Chipset | Intel C610 series chipset | |
| Memory | Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s | |
| I/O slots | Up to 3 x PCIe 3.0 slots plus dedicated PERC slot | |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA | |
| Drive bays | Internal hard drive bay and hot-plug backplane:
| |
| Maximum internal storage | HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe
| |
| Embedded NIC | 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb | |
| Power supplies | Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W | |
| Availability | ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, support for high availability clustering and virtualization, proactive systems management alerts | |
| Management | Systems management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade), iDRAC Quick Sync | Dell OpenManage Connections:
|
| Optional supported hypervisors | Citrix® XenServer, VMware vSphere® ESXi® | |
| Operating system | Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V) Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux | |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. | |
Compare Servers
| Feature | PowerEdge R620 | PowerEdge R630 |
|---|---|---|
| Chassis | 1U rack | 1U rack |
| Processors | Intel Xeon processor E5-2600 and E5-2600 v2 product family | Intel Xeon processor E5-2600 v3 product family |
| Internal interconnect | Intel QuickPath Interconnect | Intel QuickPath Interconnect |
| Memory | 24 x DDR3 RDIMM, UDIMM, and LRDIMM Up to 1.5TB | 24 x DDR4 RDIMM and LRDIMM Up to 768GB |
| Disk drives | 2.5” 6Gb/s SAS, 3Gb/s SATA | 2.5”, 1.8” 12Gb/s SAS, 6Gb/s SATA |
| RAID controller | PERC S110, H310, H710, H710P, H810 (external) | PERC S130, H330, H730, H730P, H810/H830 (external) |
| Express Flash PCIe SSDs | Up to 2 | Up to 4 |
| PCI slots | 3 PCIe 3.0 | 3 PCIe 3.0 (option to eliminate Riser 1) |
| Embedded NICs | Select Network Adapter: 4 x 1GbE, 2 x 10GbE | Select Network Adapter: 4 x 1GbE, 2 x 10GbE, 4 x 10GbE |
| Power supplies | Hot-plug, redundant power supply units: 495W AC, 750W AC, 750W AC mixed mode, 1100W AC, 1100W DC | Hot-plug, redundant power supply units: 495W AC, 750W AC, 750W AC mixed mode2 , 1100W AC, 1100W DC |
| USB | USB 2.0 | USB 3.0 (back and internal ports only) |
| Dell OpenManage Systems Management | OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option) | OpenManage Essentials Dell Management Console OMSA Agent OpenManage Power Center (requires iDRAC8 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC8 Express with Lifecycle Controller (standard option) |
| Support for internal GPU | Yes (available through CFI or field upgrade only) | Not supported |
| Power efficiency | Titanium, Platinum+, Platinum | Titanium, Platinum+, Platinum |
| Availability | Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal dual SD module support | Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal dual SD module support (next generation) |
