-*Image may differ from actaul product

HPE ProLiant ML350 Tower Server (G9) CTO

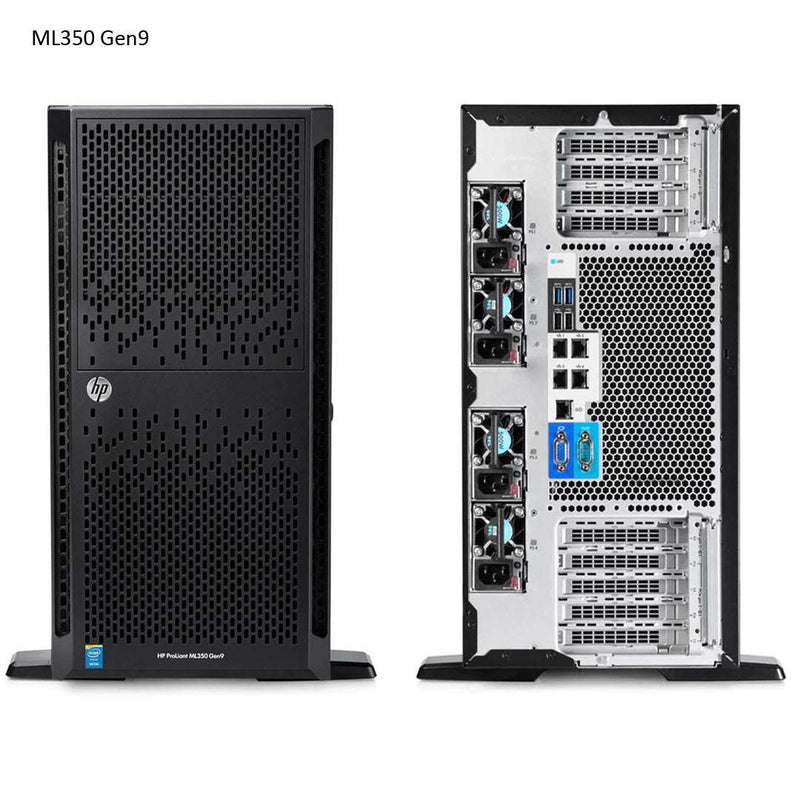

Refurbished HPE ProLiant ML350 Gen9 CTO Rack Tower Server

HPE ProLiant ML350 Tower Server (G9) CTO

Price: Configure for Price

Brand:

HPE

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML350 Gen9

Processor: Gen9 supports Intel Xeon E5-2600 v3/v4 with up to 22 cores, compared to E5-2600 v2 with a maximum of 12 cores in Gen8.
Memory: Gen9 supports DDR4 memory (up to 768GB, expandable to 3TB) with 24 DIMM slots, whereas Gen8 supports DDR3 (up to 384GB) with fewer DIMM slots.
Storage: Gen9 adds support for NVMe drives and increased capacity with up to 48 SFF or 24 LFF drives, surpassing Gen8’s more limited storage options.
Power Efficiency: Gen9 introduces Flex Slot Power Supplies, offering higher efficiency and a smaller footprint compared to Gen8.
Management: Gen9 uses iLO 4 for enhanced remote management, security, and diagnostics, compared to iLO 3 on Gen8.
Expansion: Gen9 provides up to 9 PCIe 3.0 slots, supporting better scalability and network options compared to Gen8's PCIe 2.0 slots.

Other Versions:

HPE ProLiant ML10 | G9
HPE ProLiant ML30 | G9 | G10 | G10+
HPE ProLiant ML110 | G9 | G10
HPE ProLiant ML150 | G9
HPE ProLiant ML350 | G9 | G10

(Click to View)

Ideal for:

Cloud Servers
Corporate IT
Database

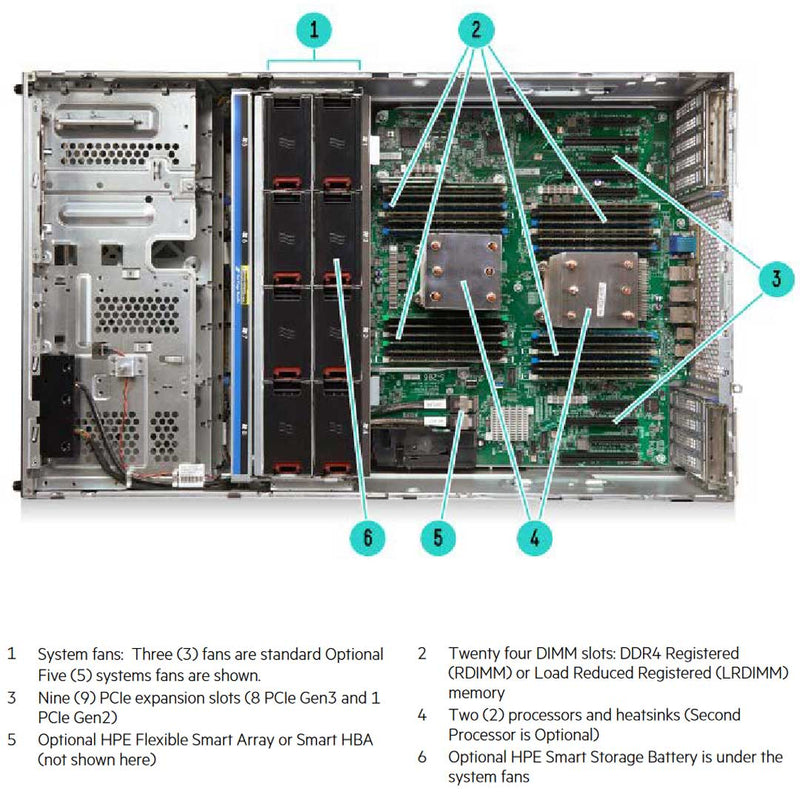

The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

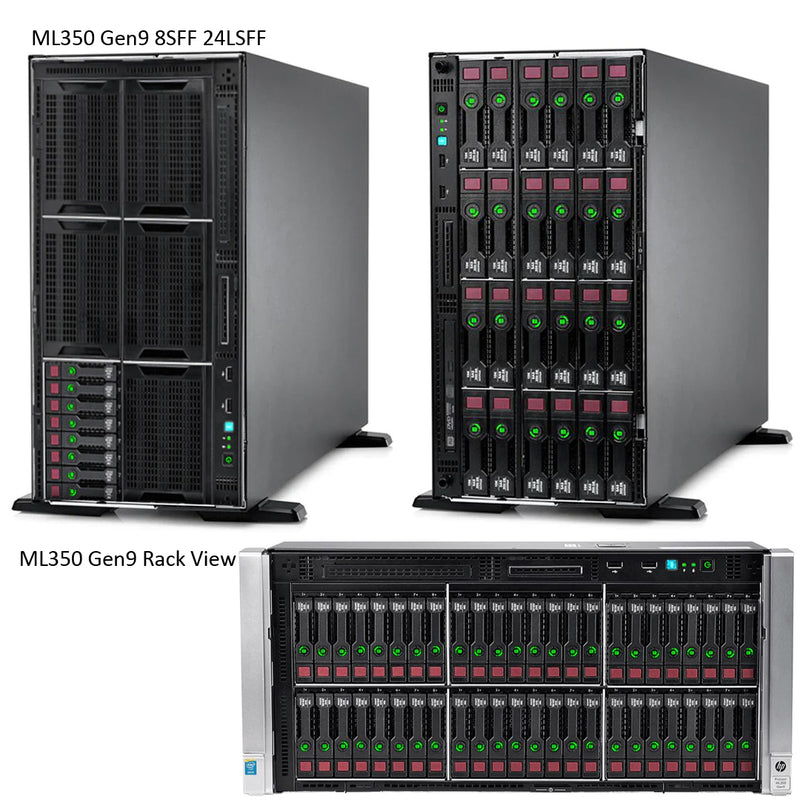

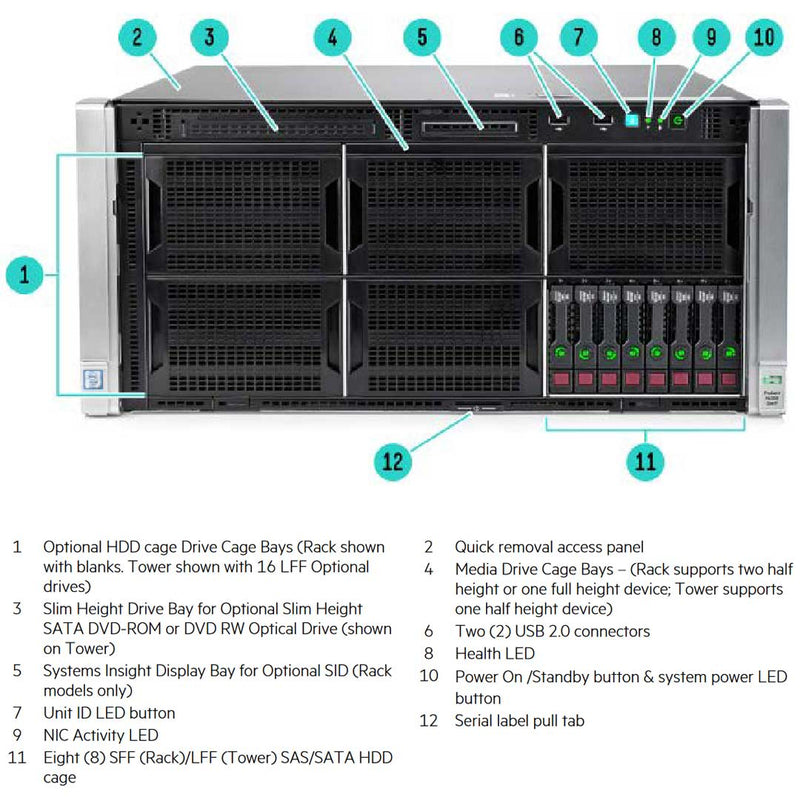

Chassis Options

CTO Server [Chassis]	HPE ProLiant ML350 Gen9 Hot Plug 8SFF Configure-to-order Rack Server	HPE ProLiant ML350 Gen9 Hot Plug 8SFF Configure-to-order Tower Server	HPE ProLiant ML350 Gen9 Hot Plug 8LFF Configure-to-order Tower Server
SKU Number	754534-B21	754536-B21	754537-B21
Processor	2 (optional) x HPE Smart Socket Guide
DIMM Slots	24 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i
PCIe	9 Standard (8 FH/FL, 1 FH/HL)
Drive Cage - included	8SFF Hot Plug		8LFF Hot Plug
Network Controller	HPE Embedded 1Gb Ethernet 4-port 331i Adapter
Fans	3 hot swap fans, non-redundant
USB	2 front, 2 internal, 4 rear

Processors | (2) Intel E5-2600 v3 & v4

1 Socket to 2 Socket Configurations.

The big difference between a 1-socket and 2-socket configuration is cooling. In a 1 Socket configuration, there are 3 fans and 1 blank in the Fan cage. This system allows redundant fan configuration for better airflow. The Fan cage can hold 8 fans for a redundant 2-socket configuration. To install the redundant fans you’ll need the HP ML350 Gen9 Redundant Fan Kit (725878-B21). This kit consists of four system fans and two PCIe air baffles. View the images above for fan numbering and placement.

HPE ProLiant ML350 Gen9 CTO Tower / Rack Server Fans

Configuration	Fan 1	Fan 2	Fan 3	Fan 4	Fan 5	Fan 6	Fan 7	Fan 8
Single processor – Non-Redundant	Fan blank	Fan	Fan	Fan	Empty	Empty	Empty	Empty
Dual processor – Non-Redundant	Fan	Fan	Fan	Fan	Empty	Empty	Empty	Empty
Single processor – Redundant	Fan blank	Fan	Fan	Fan	Empty	Fan	Fan	Fan
Dual processor – Redundant	Fan	Fan	Fan	Fan	Fan	Fan	Fan	Fan

Memory

E5-2600v3 Processors

DIMM Slots Available 24
Maximum Capacity (LRDIMM) 1.5TB (24 x 64GB LRDIMM)
Maximum Capacity (RDIMM) 768GB (24 x 32GB RDIMM)
Mixing of 2133 and 2400MHz memory is not supported.

E5-2600v4 Processors

DIMM Slots Available 24
Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM)
Maximum Capacity (RDIMM) 768GB (24 x 32GB RDIMM)
Mixing of 2133 and 2400MHz memory is not supported.

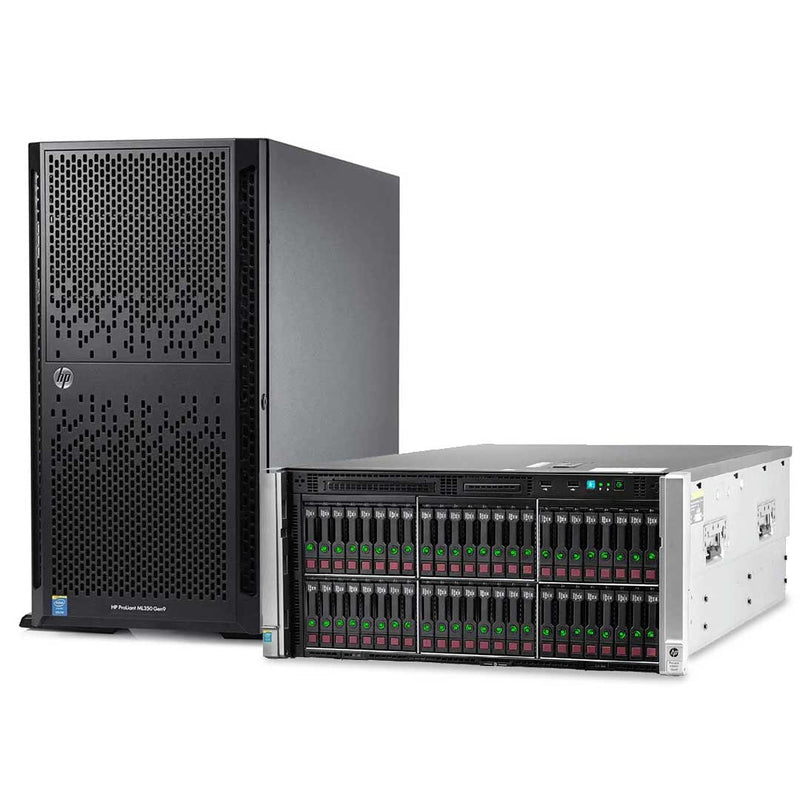

Tower-to-Rack Conversion

Converting the Tower to a Rack server is somewhat straightforward for detailed information please read the Tech Manual below. Below is a list of parts that are needed for the rack conversion to go over well.

HP Security Bezel Kit - 660584-B21
HP ML350 Gen9 Tower to Rack Conversion Kit - 726567-B21
- 5U rail kit,
- Cable management arm (CMA)
- Rack enablement kit (rack ear, rack handle, SID blank etc)

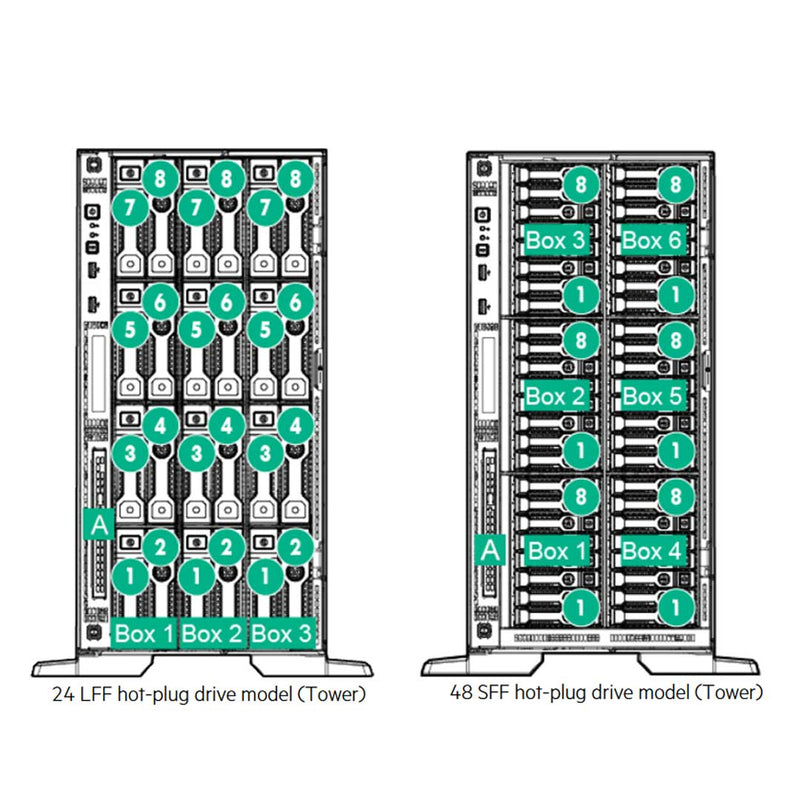

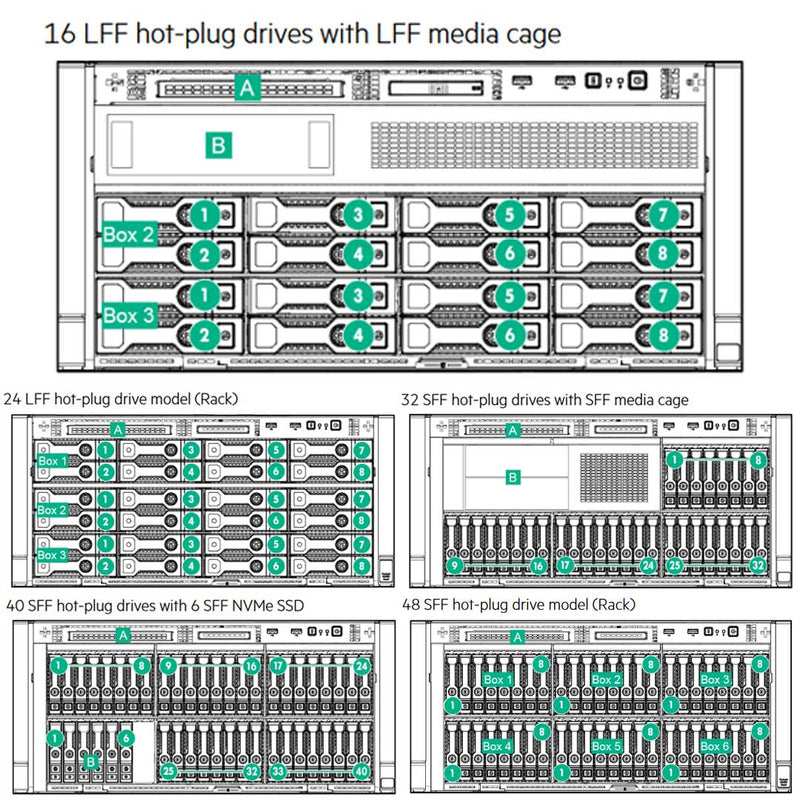

Drives | 48 SFF or 24 LFF

Drive capacities:

Hot Plug LFF SAS 288TB 24 x 12TB
Hot Plug LFF SATA 288TB 24 x 12TB
Hot Plug LFF SAS SSD 38.4TB 24 x 1.6TB
Hot Plug LFF SATA SSD 92.16TB 24 x 3.84TB
Hot Plug SFF SAS 96TB 48 x 2TB
Hot Plug SFF SATA 96TB 48 x 2TB
Hot Plug SFF SAS SSD 184.32TB 48 x 3.84TB
Hot Plug SFF SATA SSD 184.32TB 48 x 3.84TB
Hot Plug SFF NVMe PCIe SSD 7.2TB 6 x 1.2TB

Drive Support (NVMe)

This ML350 Tower Server can handle either LFF or SFF, SAS, or SATA Drives. You can’t mix LFF and SFF but you can mix SAS and SATA. If RAID is installed the SAS drives will be the only drives in the RAID. This System can also hold up to 6 NVMe SSD drives only on the SFF Chassis. You will need to install the HP ML350 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit (726551-B21). Which comes with the Drive Cage and Express Bay Bridge card.

Drive Upgrade Options

Each chassis comes with 1 Drive cage installed, for extra drive cages you will need to install the following. If you have the LFF Chassis, you’ll need the HP ML350 Gen9 8LFF Hot Plug Drive Cage Kit (726547-B21 ). If you have the SFF Chassis, you’ll need the HP ML350 Gen9 8SFF Hard Drive Cage Kit (778157-B21). If you do not fill the entire drive cage, you’ll need Blanks to keep the airflow correct. Here we have the HPE Large Form Factor Hard Drive Blank Kit (666986-B21 ) and the HPE Small Form Factor Hard Drive Blank Kit (666987-B21 ).

M.2 Boot Option

Inside the ML350 Tower Server, you have the option to place the HPE Universal SATA HHHL M.2 Kit (878783-B21) in PCI-e Slot 1. The M.2 SSD ML-DL Enablement Kit can be used to build RAID 0, 1 by using the B140i controller. Unless you have the P440ar or H240ar installed then the enablement kit cannot support RAID nor can the B140i controller be used.

Let’s talk SAS | 8, 24, or 48

There are a few ways to add SAS drives to the system. It depends on the amount of SAS drives you need.

8 SAS Drives

I recommend the Flexible Smart Array Controller (AROC) cards. The HPE Flexible Smart Array P440ar/2GB FBWC (726736-B21) and the HPE H240ar Smart Host Bus Adapter (726757-B21) are both installed directly on the system board, saving PCIe slots. Alternatively, you can use the HPE Smart Array P440/4GB FBWC (726821-B21), but it will occupy one PCIe slot.

24 SAS Drives

I recommend the HPE 12Gb SAS Expander Card (769635-B21). This card must be paired with an HPE Smart Array P440 or P840 Controller or an H240 Host Bus Adapter. It is not compatible with H240ar or P440ar Flexible Smart Array Controller (AROC) cards. The kit includes two cables: one for connecting the Smart Array controller or HBA to the SAS Expander and another for connecting the Expander to the HDD backplane.

48 SAS Drives

I recommend the HPE ML350 Gen9 2nd SAS Expander Card (811216-B21), which works alongside the ML350 Gen9 SAS Expander Kit (769635-B21). This configuration also requires 2 CPUs, a redundant PSU kit (802988-B21), and the HPE Smart Array P840/4GB FBWC 12Gb 2-ports Internal SAS Controller (761874-B21) for optimal performance.

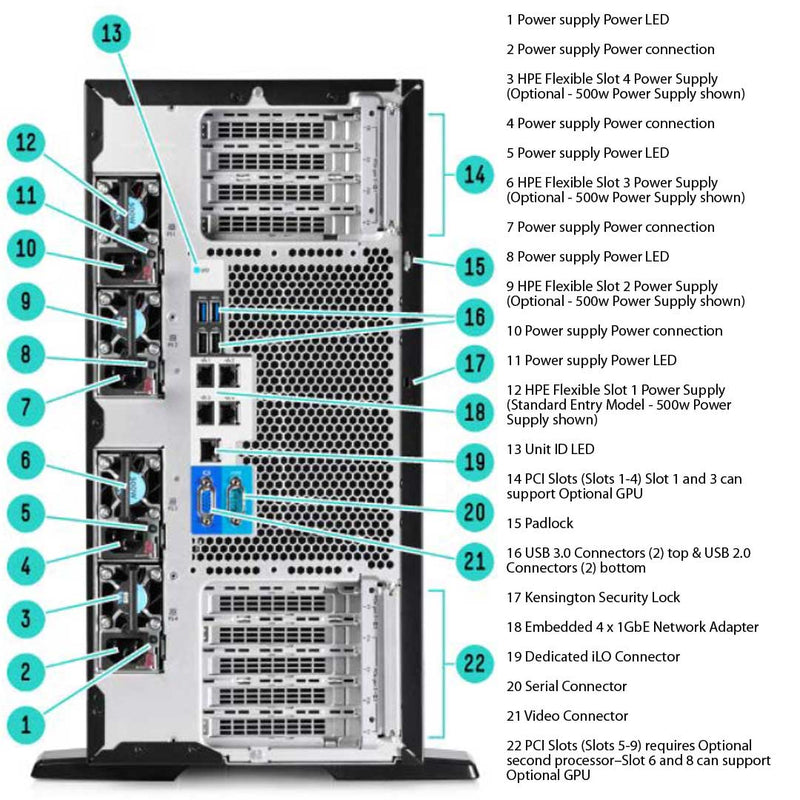

Expansion Slots (9)

Nine total expansion slots.
Three PCIe 3.0 x16 (x16 speed); One PCIe 3.0 x16 (x8 speed); Four PCIe 3.0 x8 (x4 speed); One PCIe 2.0 x8 (x4 speed).

For all 9 PCIe slots to work you'll need to install a second processor. Keep in mind you'll need the redundant fan kit. Please read the manual when installing a GPU or any Smart Array. The manual has many rules, requirements, and limitations.

Expansion Slots #	Technology	Bus Width	Connector Width	Bus Number	Form Factor	Notes
9	PCIe 3.0	x4	x8	-	Full-height, full-length slot	For processor 2
8	PCIe 3.0	x16	x16	-	Full-height, full-length slot	For processor 2
7	PCIe 3.0	x4	x8	-	Full-height, full-length slot	For processor 2
6	PCIe 3.0	x16	x16	-	Full-height, full-length slot	For processor 2
5	PCIe 2.0	x4	x8	0	Full-height, half-length slot	For processor 2
4	PCIe 3.0	x4	x8	0	Full-height, full-length slot	For processor 1
3	PCIe 3.0	x16	x16	0	Full-height, full-length slot	For processor 1
2	PCIe 3.0	x4	x8	0	Full-height, full-length slot	For processor 1
1	PCIe 3.0	x8	x16	0	Full-height, full-length slot	For processor 1

HPE Computation and Graphics Accelerators

One Graphic Card Support Kit - (726565-B21) is required for each computation or graphics accelerator except for K2200 or M2000. Below is the list of GPU’s, you can have up to 4.

HP AMD FirePro W7100 Accelerator Kit (J0H10A)
NVIDIA Tesla K40C 12GB Computational Accelerator (753960-B21). If this is selected you will need the redundant PSU kit ( 725870 -B21 ) with at least 3 800W PSU’s.

The following are only allowed on the E5-2600v4 Processors.

HPE NVIDIA Quadro M4000 Graphics Accelerator (M9X58A)
HP NVIDIA Quadro M5000 Graphics Accelerator (M9R60A)
HPE NVIDIA Quadro M2000 Graphics Accelerator (P8Y48A)
HPE NVIDIA Quadro P2000 Graphics Accelerator (Q0V77A)
HPE NVIDIA Quadro P4000 Graphics Accelerator (Q0V78A)

NOTE:

If more than two Double Wide Graphics options are selected, then HPE ML350 Gen9 X4 RPS Enablement Kit must be selected in order to get the third and fourth supporting power connectors to supply power to the GPU cards.

Flex Power Supply Unit (PSU) Support

By deafult the hpe ml350 gen 9 is setup to support 2 psu. When you install certain itmes the Power will need to be upgraded. When upgrading the Power Supply Units, please look at the rules below or in the manual.

4 PSUs Kit

HP ML350 Gen9 X4 Redundant Power Supply Enablement (RPS) FIO Kit (725870 -B21).

This kit does not support the 500W Power Supply.
Required with Two Double Wide Graphics
Required with NVIDIA Tesla K40C 12GB Card (753960-B21)
Required with HP ML350 Gen9 2nd Expander Card (811216-B21)

Feature	Description
OS and virtualization software support for ProLiant servers	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix XenServer ClearOS
NOTE: ClearOS allows the user to build a fully functional server that is just right for the user at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download. For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for server.

Specification	Description
Tower dimensions	46.4 x 21.9 x 76.9 cm (18.27 x 8.62 x 30.28 in)
Rack dimensions	21.8 x 44.5 x 74.6 cm (8.58 x 17.51 x 29.37 in)
Tower weight	Minimum: 30 kg (66.14 lb) Maximum: 55 kg (121.30 lb)
Rack weight	Minimum: 26 kg (57.3 lb) Maximum: 51 kg (112.4 lb)

Specification	Description
Range line voltage	100 to 120 V ac 200 to 240 V ac
Maximum BTU rating	For 800 W Power Supply: 3207 BTU/hr (at 100 V ac), 3071 BTU/hr (at 200 V ac), 3112 BTU/hr (at 240 V ac) for China Only For 500 W Power Supply: 1979 BTU/hr (at 100 V ac), 1911 BTU/hr (at 200 V ac), 1965 BTU/hr (at 240 V ac) for China Only
Rated Steady- State power	For 800 W Power Supply: 800 W (at 100 V ac), 800 W (at 240 V ac), 800W (at 240 V ac) input for China only For 500 W Power Supply: 500 W (at 100 V ac), 500 W (at 240 V ac), 500W (at 240 V ac) input for China only
Maximum peak power	For 800 W Power Supply: 800 W (at 100 to 127 V ac), 800 W (at 200 to 240 1V ac), 800W (at 240 V ac) input for China only For 500 W Power Supply: 500 W (at 100 to 127 V ac), 500 W (at 200 to 240 V ac), 500W (at 240 V ac) input for China only

Specification	Description
Operating temperature	10° to 35°C (50° to 95°F)
Non-operating temperature	-30° to 60°C (-22° to 140°F)
Operating relative humidity	8% to 90%
Non-operating relative humidity	5% to 95%, non-condensing
Operating altitude	3050 m (10,000 ft)
Non-operating altitude	9144 m (30,000 ft)

Specification	Description
FCC Rating	Class A
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES- 003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000- 3-3; EN 60950-1; IEC 60950-1
