Quick Specs
Form Factor:
Full Height - 8N M1000e | 2N VRTX
Processor | Max: 22 Cores4 x Intel Xeon E5-2600v4
Memory | Max: 3TB48 DDR4 RDIMM 2400Mhz
Storage | Max: N/A12 x 1.8" SAS or

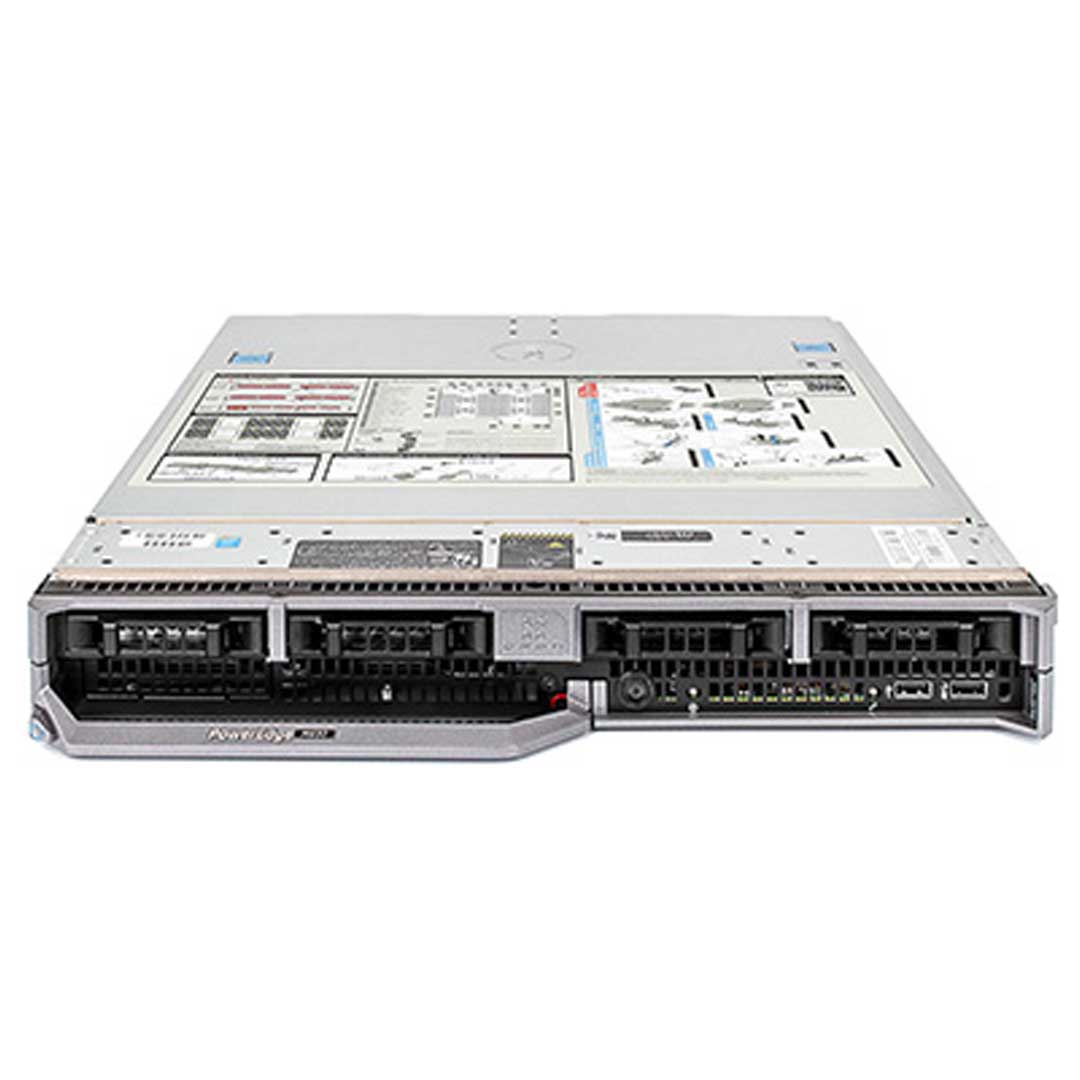

4 x SFF SAS/SATA/NVMe
S130 (SW RAID)
PERC H330, PERC H730, PERC H730P
4 x Mezzanine Slots,
2 x bNDC slots,
1 x IDSDM slot,
1 x rSPI Slot
iDRAC8 Express with Lifecycle Controller (default)
Ideal for:
- Database
- Virtualization
This is one of the many supported Blade servers, each Blade/Modular Enclosure is a separate CTO you must configure.
Supported Dell M1000e & VRTX Modular Enclosure Architecture
Dell M1000e Blade Architecture
- Dell PowerEdge M1000e CTO Blade Enclosure
- Dell PowerEdge M420 CTO Blade Server
- Dell PowerEdge M520 CTO Blade Server
- Dell PowerEdge M620 CTO Blade Server
- Dell PowerEdge M630 CTO Blade Server
- Dell PowerEdge M640 CTO Blade Server
- Dell PowerEdge M710 CTO Blade Server
- Dell PowerEdge M710HD CTO Blade Server
- Dell PowerEdge M820 CTO Blade Server
- Dell PowerEdge M830 CTO Blade Server

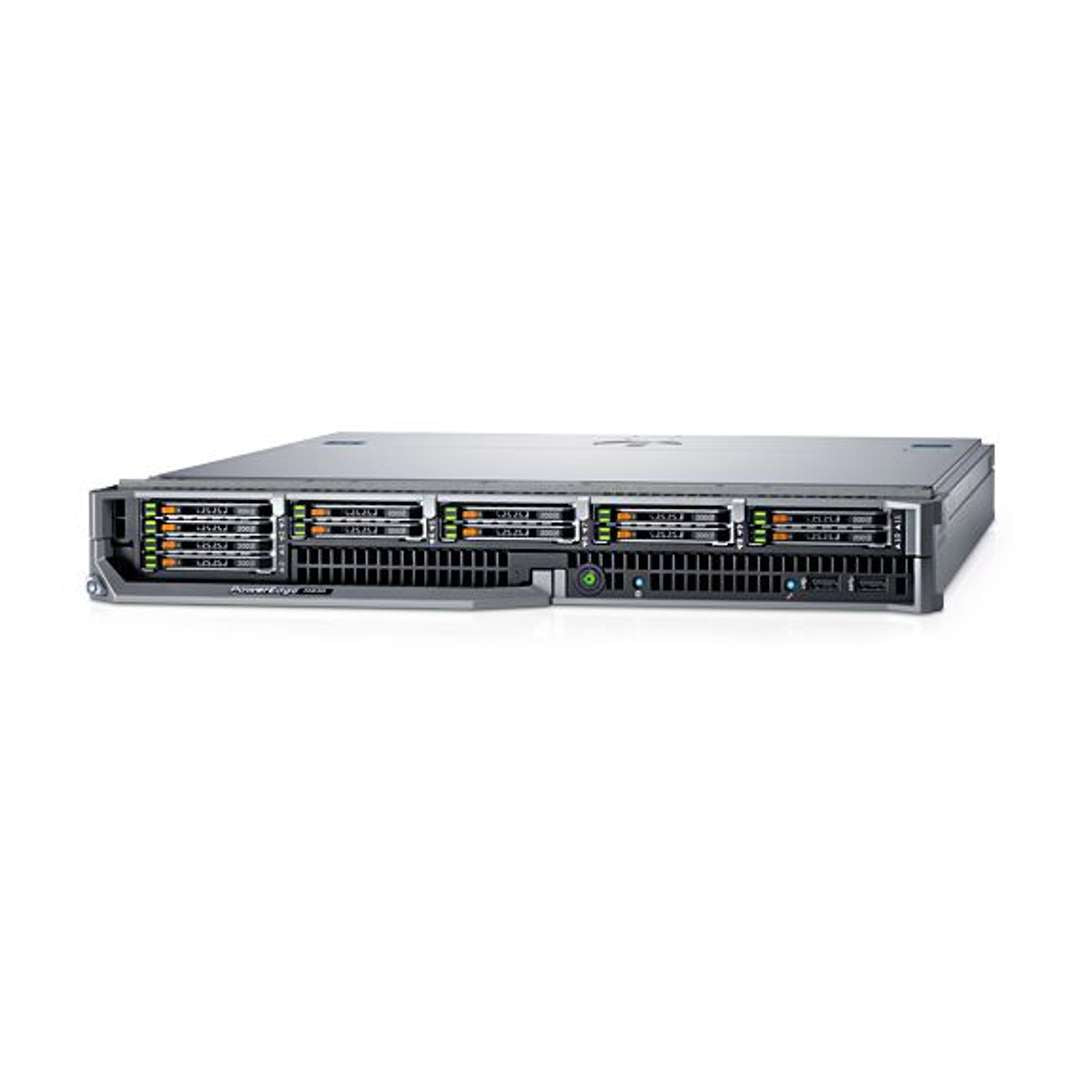

The PowerEdge M830 is a 4-socket converged platform designed to boost application performance, consolidation, and time-to-value in datacenter or remote office applications by delivering vast amounts of compute, memory, and storage resources that are easy to deploy and manage.
Enhance IT workload performance

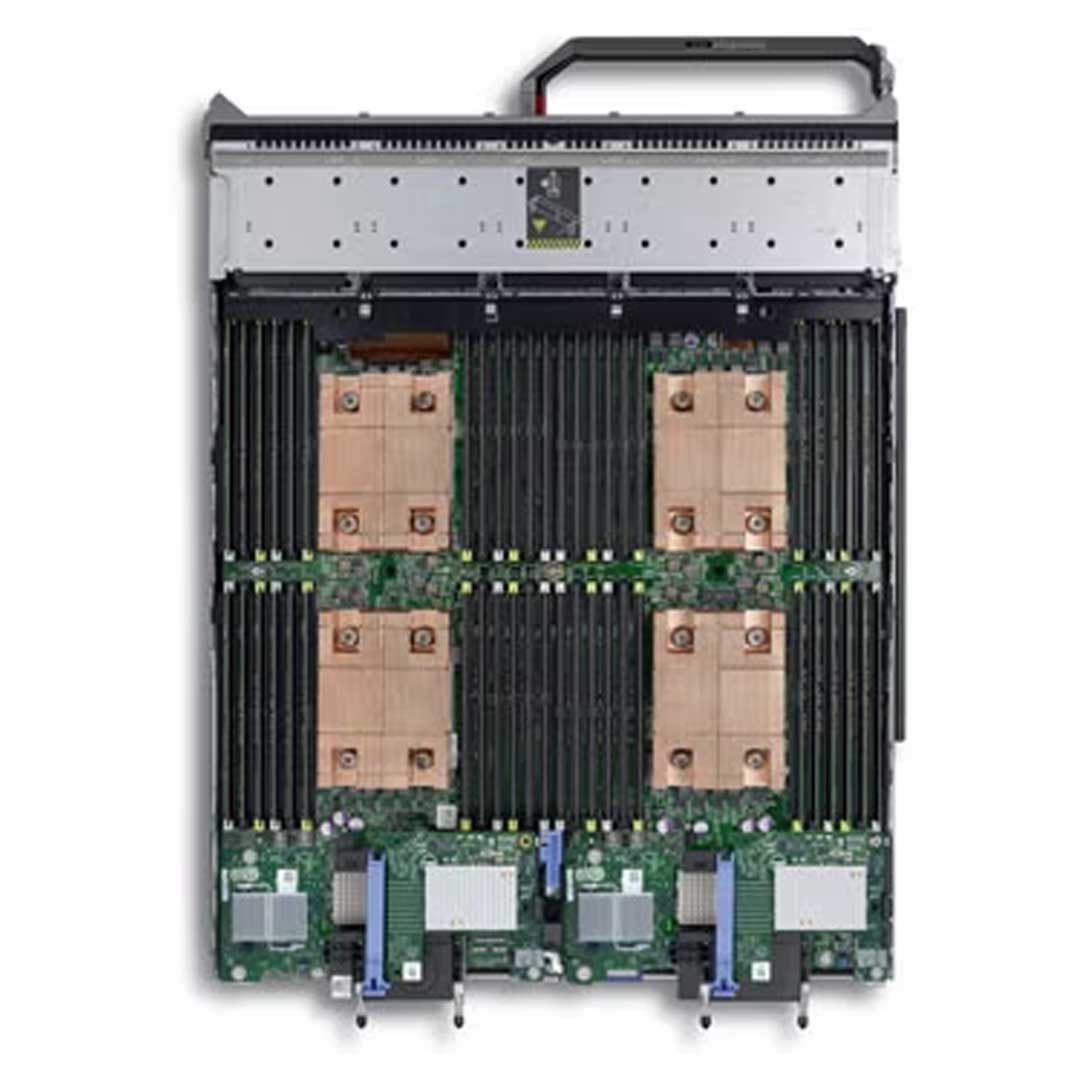

Up to 88 Intel processor cores and 48 DIMMS of DDR4 memory offer tremendous computational horsepower for heavy-use workloads in an exceptionally demanding database, technical computing and virtualized environments.
- Power through compute-intensive workloads with 83 percent more processing cores per socket than previous-generation Intel processors.
- Get results faster from memory-intensive workloads with DDR4 DIMMs offering 28 percent higher MT/s than DDR3.
- Feed your IO-intensive workloads with up to 240Mbits of throughput using 24 x 10GbE ports connected to three redundant, low-latency fabrics.
- Accelerate data-intensive workloads, such as OLAP and other business intelligence applications, using 12 in-chassis SSDs, with expansion options of up to 25 2.5” HDDs or 72TBs with 3.5” HDDs.
Expedite time to value
Reduce configuration, maintenance, imaging and deployment time and costs by standardizing on a single 4-socket E5-4600v4 platform in existing VRTX or M1000e blade server chassis for remote offices and data centers.
- Protect software-defined compute, storage and networking with Dell EMC Fault Resilient Memory and redundant embedded hypervisor.
- Automate operations with agent-free, 1-to-many systems management tools that pre-provision LAN and SAN resources and assist with BIOS, firmware and driver updates.
- Enable zero-touch discovery and configuration with template-based provisioning.
Consolidate IT resources
Save expenses with physical and software-defined consolidation that optimizes application delivery using flexibly tailored IT. Meet business objectives by powering critical workloads with modular solutions designed specifically for data center and small-office environments:
- Reduce infrastructure sprawl by consolidating management modules, switches, power and network cabling, disk enclosures, and feature-dense 4S servers into a single chassis.
- Save floor space, power and cooling costs, and licensing fees by using core-dense M830s to create a software-defined environment from legacy infrastructure.
- Utilize vast local SSD and memory resources to develop software-defined standalone edge networking and DAS storage with VMware VSAN and Virtual Distributed Switch technologies.
Storage Controllers | SAS Expander
Both the storage controller and expander use the same slot. These two cards can't be installed together. The Expander is only used when installing the 16x 1.8" Backplane.
Storage Controller
- miniPERC H330
- miniPERC H730
- miniPERC H730p
SAS Expander
The SAS Expander is add to the system when the 1.8" Chassis or NVMe chassis is selected. This expander supplies extra PCI lanes for the NVMe drives in the front.
