What's New for DL380 Gen10
- Increased Single-Width GPU Density with up to 7 NVIDIA T4 in a 2U, standard length, rackmount server.
- HPE DL38x Gen10 x16/x16/x16 Primary (P14374-B21) and Secondary (P14373-B21) Risers support up to (7) NVIDIA T4 16GB ; or up to (6) NVIDIA T4 16GB balanced across both processors with additional options for PCIe card expansion.
- Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
- Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
- HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
- iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.

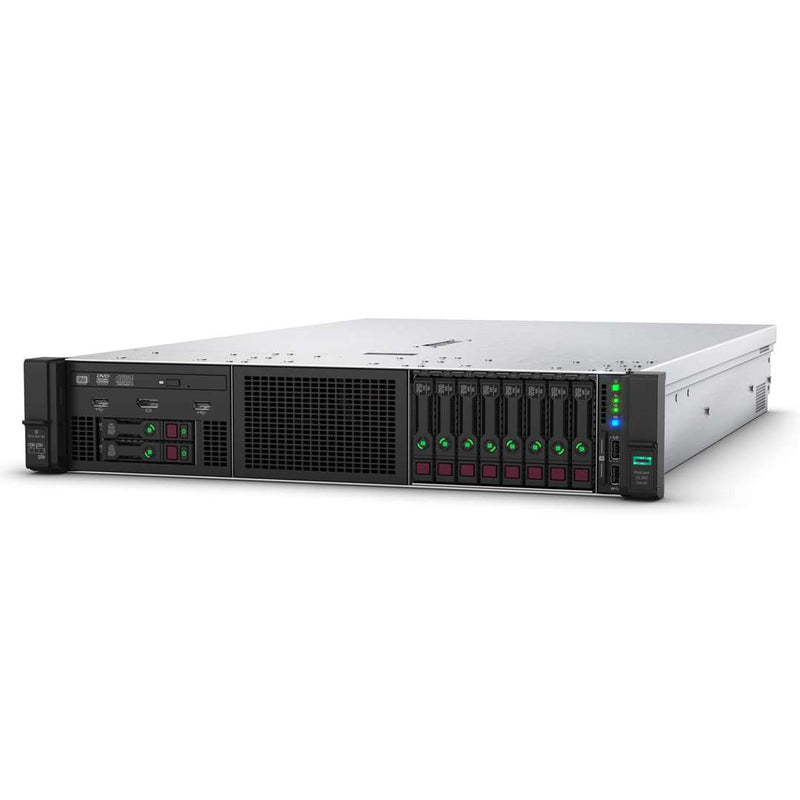

The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB.
- HPE ProLiant DL380 Gen9
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL380 Gen10 Plus
- HPE ProLiant DL380 Gen11 8 LFF
- HPE ProLiant DL380 Gen11 12 LFF
- HPE ProLiant DL380 Gen11 8 SFF
- HPE ProLiant DL380 Gen11 24 SFF
- HPE ProLiant DL380 Gen11 12 EDSFF
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Point-of-Sale (POS)
- Retail Servers
- Virtual Desktop Interface (VDI)
- Virtualization
It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
Flexible Design Making Your Investment Expand As Your Business Needs Grow
The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.
HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.
Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.
Chassis Configurations - EmeddedLOM
| CTO Server [Chassis] | HPE ProLiant DL380 Gen10 8LFF CTO Server | HPE ProLiant DL380 Gen10 12LFF CTO Server | HPE ProLiant DL380 Gen10 8SFF CTO Server | HPE ProLiant DL380 Gen10 24SFF CTO Server | HPE DL380 Gen10 8SFF BC CTO Server |
|---|---|---|---|---|---|
| SKU Number | 868706-B21 | 868705-B21 | 868703-B21 | 868704-B21 | P56970-B21 |
| Processor | Not included as standard | ||||
| DIMM Slots | 24-DIMM slots | ||||
| Storage Controller | Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller | ||||
| PCIe | Three standard in primary riser (with dual M.2 support) | ||||
| Drive Cage - included | 8 LFF | 12 LFF | 8 SFF | 24 SFF | 8 SFF |
| Network Controller | HPE 1Gb Ethernet 4 - Port 331i Adapter plus optional HPE FlexibleLOM or stand up card | ||||
| Fans | 6-Standard | 6-Performance | 4-Standard | 6-Performance | 4-Standard |
| USB | 1x 3.0 standard plus iLo front service port | None as standard | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLO front service port |
Chassis Configurations - Network Choice (NC)
| CTO Server [Chassis] | HPE ProLiant DL380 Gen10 8LFF NC CTO Server | HPE ProLiant DL380 Gen10 12LFF NC CTO Server | HPE ProLiant DL380 Gen10 8SFF NC CTO Server | HPE ProLiant DL380 Gen10 24SFF NC CTO Server | HPE ProLiant DL380 Gen10 8SFF NC BC CTO Server |
|---|---|---|---|---|---|
| SKU Number | P19717-B21 | P19718-B21 | P19720-B21 | P19719-B21 | P56969-B21 |
| Processor | Not included as standard | ||||
| DIMM Slots | 24-DIMM slots | ||||
| Storage Controller | Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller | ||||
| PCIe | Three standard in primary riser (with dual M.2 support) | ||||
| Drive Cage - included | 8 LFF | 12 LFF | 8 SFF | 24 SFF | 8 SFF |
| Network Controller |
Choice of either HPE FlexibleLOM or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Note: No embedded networking, requires selection of a FlexibleLOM adapter |
||||
| Fans | 6-Standard | 6-Performance | 4-Standard | 6-Performance | >4-Standard |
| USB | 1x 3.0 standard plus iLo front service port | None as standard | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLO front service port |
