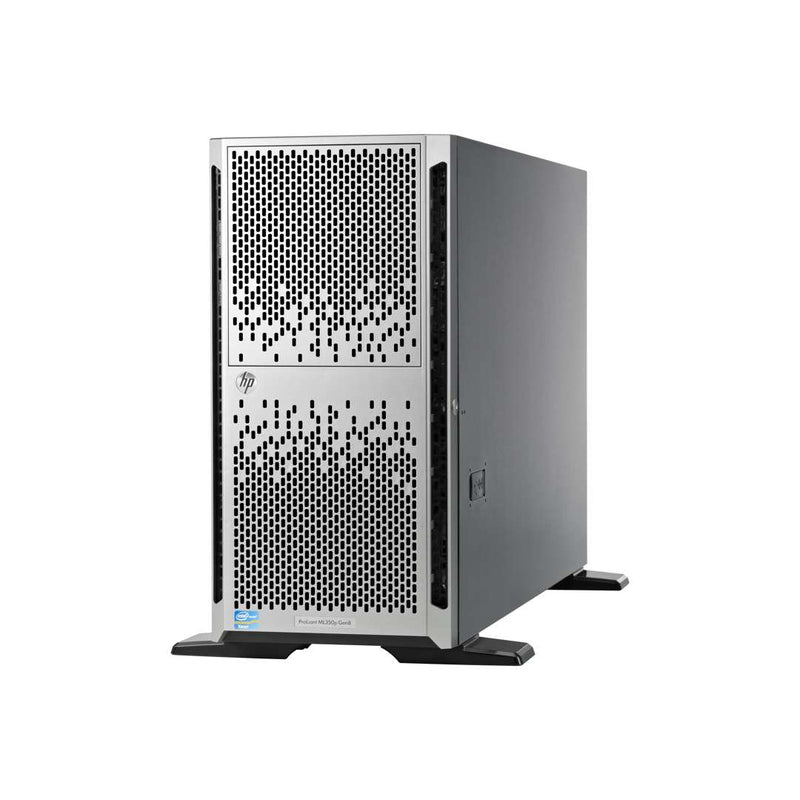

HPE ProLiant ML350p Tower Server (G8) CTO
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- Increased performance of up to 35% at the same or lower power levels with the new Intel® Xeon® E5-2600 v2 processors
- HP SmartMemory for 16.6% better memory performance. HP SmartMemory at 1866MHz @2 DPC vs. 1600MHz @2 DPC
- GPU support to boost performance in graphic and VDI applications for financial services, education, scientific research, and medical imaging
- Latest HP Smart Array Controllers designed to maximize data availability, performance and capacity
- Up to 4x workload performance with HP SmartCache, a controller-based caching solution that caches hot data onto lower latency SSDs.
The refurbished HPE ProLiant ML350p Gen8 Server series is the latest generation of the best-selling ProLiant ML servers delivering best-in-class performance, availability and maximum expandability for enterprise data centers, remote branch offices and growing businesses. Incorporating key HP technologies from the HP ProActive Insight architecture, the ML350p Gen8 provides innovations in memory, server management, firmware management and server storage. It combines these innovations with the latest Intel Xeon processors for a system with unsurpassed flexibility and performance.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
Up to 2 processors supported. Mixing different processor models is not supported. ML350p Gen8 sandy bridge processors need to purchase Heatsink lever upgrade kit 749245-B21 when plan to upgrade to Ivy bridge processor.
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. For maximum speed on some memory options on 16 DIMM slots may be populated.
- Max (LRIDMM) 768GB (24x 32GB LRDIMM @1866MHz)
- Max (RDIMM) 384GB (24x 16GB RDIMM @1866MHz)
- Max (UDIMM) 128GB (16x 8GB UDIMM @1866MHz)
Mixing of SFF and LFF drive cages is not allowed. Additional Hot Plug Drive Cages require a separate Smart Array controller for each drive cage. HP recommends the HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller (P/N 631670-B21). Expander HDD Cage Kit allows up to 18 LFF / 24 SFF HDDs managed under one single controller. The controller must have a minimum of 512MB FBWC module installed.
- HP 2nd Media Bay Cage Kit 661618-B21
- HP 5U 6 LFF Drive Cage Kit 659485-B21
- HP 5U 8 SFF Drive Cage Kit 659484-B21
- HP 5U 6 LFF Expander Hard Drive Cage Kit 661717-B21
- HP 5U 8 SFF Expander Hard Drive Cage Kit 661714-B21
- HP Small Form Factor Hard Drive Blank Kit 666987-B21
- HP Large Form Factor Hard Drive Blank Kit 666986-B21
| Maximum Internal Storage | Capacity | Drive Configuration |
|---|---|---|
| Hot Plug LFF SAS | 72TB | 18 x 4TB |
| Hot Plug LFF SATA | 72TB | 18 x 4TB |
| Hot Plug SFF SAS | 28.8TB | 24 x 1.2TB |
| Hot Plug SFF SATA | 24TB | 24 x 1TB |
| Hot Plug SFF SATA SSD | 9.6TB | 24 x 400GB |
| Hot Plug SFF SAS SSD | 19.2TB | 24 x 800GB |
| Hot Plug LFF SATA SSD | 7.2TB | 18 x 400GB |
Default Network: 1GbE Quad Port 331i Adapter
Default Storage Controller: Smart Array P420i Controller
Additional Hot Plug Drive Cages require a separate Smart Array controller for each drive cage. HP recommends the HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller (P/N 631670-B21). Expander HDD Cage Kit allows up to 18 LFF / 24 SFF HDDs managed under one single controller. The controller must have a minimum of 512MB FBWC module installed.
Nine total expansion slots. Three PCIe 3.0 x16 (x16 speed); One PCIe 3.0 x16 (x8 speed); Four PCIe 3.0 x8 (x4 speed); One PCIe 2.0 x8 (x4 speed).
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor | Notes |
|---|---|---|---|---|---|---|
| 9 | PCIe 3.0 | x4 | x8 | 32 | Full Length/Full Height | For processor 2 |
| 8 | PCIe 3.0 | x16 | x16 | 32 | Full Length/Full Height | For processor 2 |
| 7 | PCIe 3.0 | x4 | x8 | 32 | Full Length/Full Height | For processor 2 |
| 6 | PCIe 3.0 | x16 | x16 | 32 | Full Length/Full Height | For processor 2 |
| 5 | PCIe 2.0 | x4 | x8 | 0 | Half Length/Full Height | For processor 2 |
| 4 | PCIe 3.0 | x4 | x8 | 0 | Full Length/Full Height | For processor 1 |
| 3 | PCIe 3.0 | x16 | x16 | 0 | Full Length/Full Height | For processor 1 |
| 2 | PCIe 3.0 | x4 | x8 | 0 | Full Length/Full Height | For processor 1 |
| 1 | PCIe 3.0 | x8 | x16 | 0 | Full Length/Full Height | For processor 1 |
The ML350p Gen8 supports up to 3 graphic cards. HP Graphic Card Support Kit (660582-B21) will be required per Graphic Card HP 3rd Graphic Card Power Cable FIO Kit (700835-B21) will be an additional request for the 3rd graphics card support.
2 PSUsThe first two bays can take any type of PSU. Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.
4 PSUsThis kit Requires the selection of either 2 x 1200W power supply kits (656364-B21) or 4 x 1200w power supply kits (656364-B21).
Tower
- Inches: 18.19 x 8.58 x 29.13 in
- Centimeter: 46.2 x 21.8 x 74.0 cm
Rack
- Inches: 8.58 x 19.0 x 28.83 in
- Centimeter: 21.8 x 48.26 x 73.22cm
Tower
- Max: 114.84 lb (52.09 kg)
- Min: 70.33 lb (31.9 kg)
Rack
- Max: 110.36 lb (50.06 kg)
- Min: 60.91 lb (27.63 kg)
