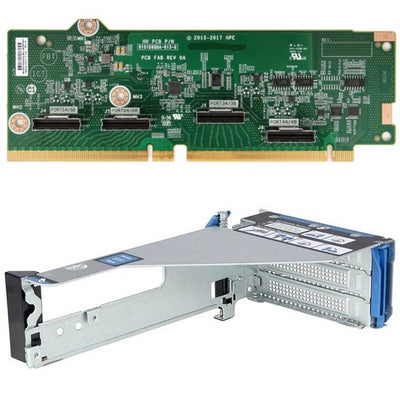

HPE DL38X (G10) Primary 4P 8XNVMe Slim SAS FIO Riser | 867807-B21
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
875091-001 - 4P slim SAS NVMe primary riser cable, box 3 cable kit
784629-001 - Mini-SAS cable kit (Includes six cables) - For connecting between the 8-bay and 2-bay small form factor (SFF) hard drive cages and the H240 host bus adapter or the P440ar controller board
875056-001 - PCI riser cage
875087-001 - PCI riser Quad Slim SAS board
DL380 Gen10 Notes:
Riser supporting up to 8 NVMe drives in Primary location. All PCIe lanes dedicated to NVMe; no additional
slots available for expansion via stand-up cards in the Primary riser location.
Replaces the default Primary riser
This is a factory integrated only option.
This can be connected to an 8SFF NVMe drive cage in box 3.
To achieve max 20 NVMe support, connect 4 NVMe drives to the tertiary riser.
DL385 Gen10 Notes:
− Riser supporting up to 8 NVMe drives in Primary location.
− This can be connected to an 8SFF NVMe drive cage in box 3.
− To achieve max 24 NVMe support, connect 8 NVMe drives to both the primary and secondary risers, 4
NVMe drives to the tertiary riser, and 4 NVMe drives the the on board connectors.
- HPE DL380
- HPE DL385
- HPE Proliant DL380
