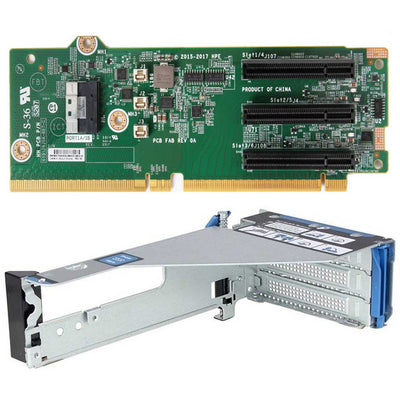

HPE DL38X (G10) Primary/Secondary x8/X8/X8 1P 2XNVMe SlimSAS Riser | 867806-B21
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
875056-001 - PCI riser cage
875086-001 - PCI riser 3 x8/x1 Slim SAS board
DL380 Gen10 Notes:
Slot 1 (Top slot) or 2 (Middle Slot) or 3 (Bottom slot) available in Secondary riser location with support for 2 NVMe drives
Supports Full Height and half-length cards.
Bus width x8, x8, x8 Connector Width x8, x8, x8.
If this option is selected and the Premium 2SFF HDD Kit (826687-B21) has also been ordered, then the 2SFF NVMe Instruction Spec (878189-B21) MUST be selected; does not apply to 8LFF server model
If this option is selected and HPE DL38X Gen10 Premium 6SFF SAS/SATA + 2SFF NVMe Bay Kit (826690-B21) has also been ordered, then the 6+2 NVMe Instruction Spec (878192-B21) MUST be selected.
DL385 Gen10 Notes:
− Supports NVMe drives in Primary or Secondary location.
− Supports Full Height and half-length cards.
− Bus width x8 , x8 , x8 Connector Width x8 , x8 , x8 .
- HPE DL380
- HPE DL385
- HPE Proliant DL380
(Click to View)
