NetApp FAS8300 Dual Controller Ethernet Bundle Filer Head (HA)
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

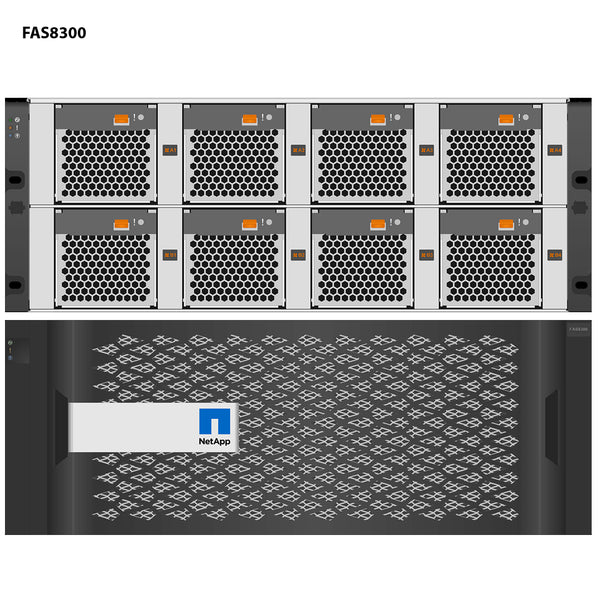

The NetApp FAS8300 is a high-performance storage system designed for enterprise environments requiring high availability and scalability. It features a single-chassis design with dual controllers in an HA (high availability) configuration, providing 256GB of memory and two 64-bit, 16-core processors running at 1.70 GHz. With a total rack height of 4U, the system supports up to 720 drives and a maximum storage capacity of 15PB, making it a powerful solution for large-scale data storage.

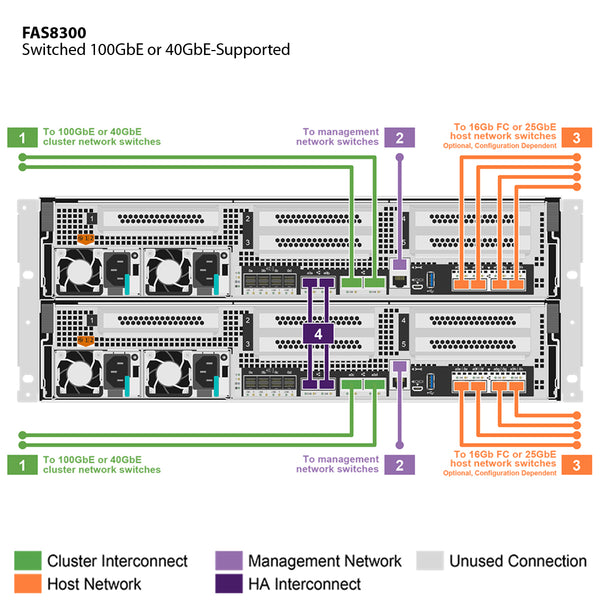

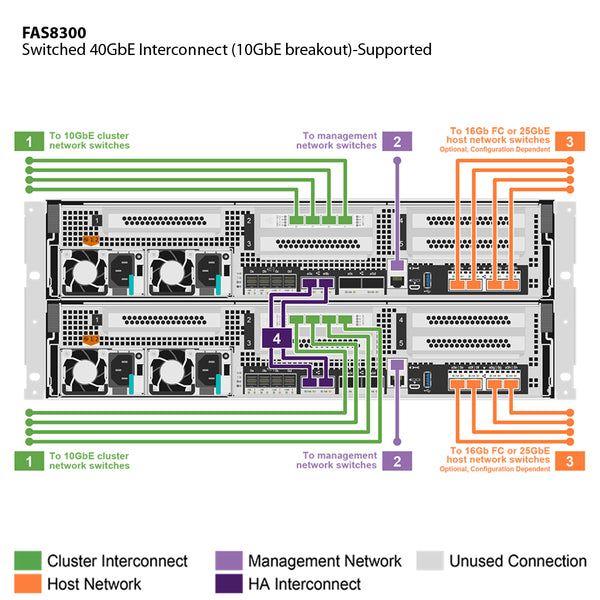

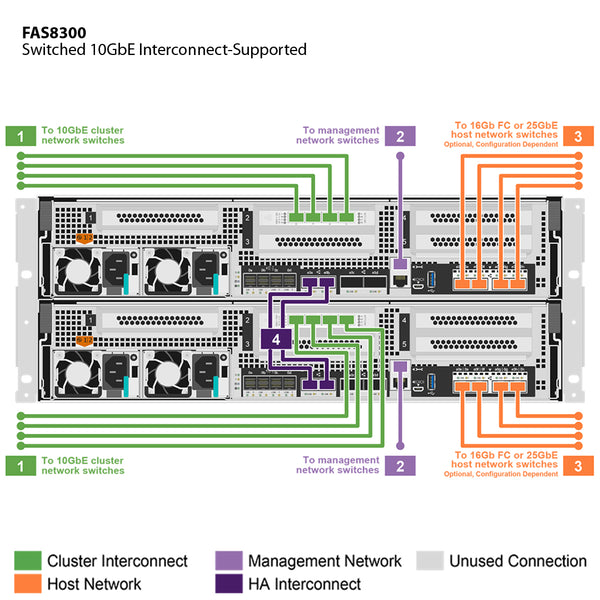

For connectivity, the FAS8300 is equipped with eight QSFP28 ports (40Gb), eight SFP28 ports (25Gb), and eight MiniSAS HD ports (12Gb) for high-speed storage expansion. The system also includes four M.2 PCIe slots and ten PCIe slots for additional expansion. Remote management capabilities are integrated for streamlined operations. Compatible disk shelves include DS212C, DS224C, and DS460C, offering flexible storage configurations to meet enterprise needs.
The chassis measures 6.89 inches in height, 17.6 inches in width, and 34.72 inches in depth, with a maximum weight of 108.5 lbs. The system supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for advanced data protection. With dual controllers, the FAS8300 provides continuous availability, ensuring uninterrupted data access for critical business applications. Its powerful hardware and flexible expansion options make it a reliable choice for modern enterprise storage requirements.
- Model: NetApp FAS8300
- Chassis: Single Chassis
- Total Rack Height: 4U

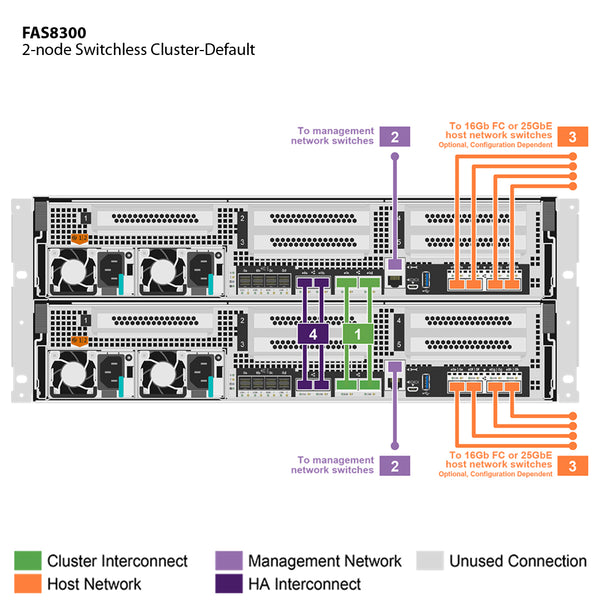

- Controllers: Dual Controller (HA)
- Memory: 256GB
- Processor Model: 4x 64-bit 10-core 2.20 Ghz
- Ethernet Ports: 8 x SFP28 (25Gb)
- SAS Ports: 8 x MiniSAS HD (12Gb)

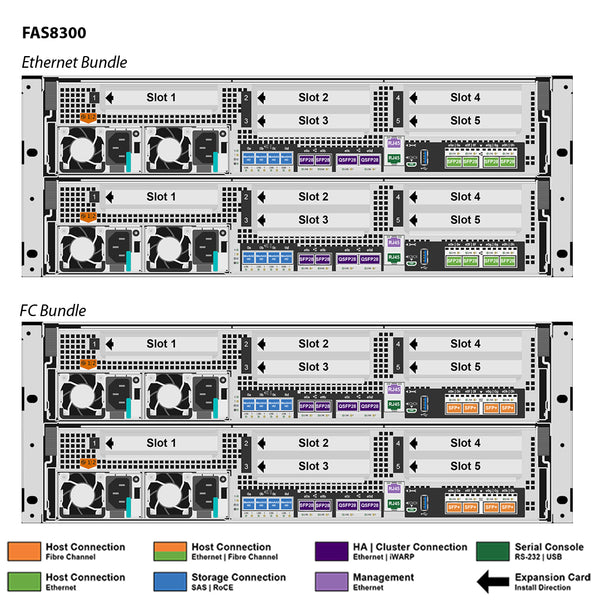

- PCIe Expansion Slots: 4 x M.2 PCIe (internal) + 10 x PCIe
- Max Drives (total): 720
- Max Capacity: 15,000TB (15PB)
- Disk Shelves: DS212C, DS224C, DS460C
- Filer Heads: N/A
- Chassis Rack Height: 4U
- Chassis Heights: 6.89" (17.5 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 34.72" (88.2 cm)
- Chassis Weight: up to 108.5 lb (49.2 kg)

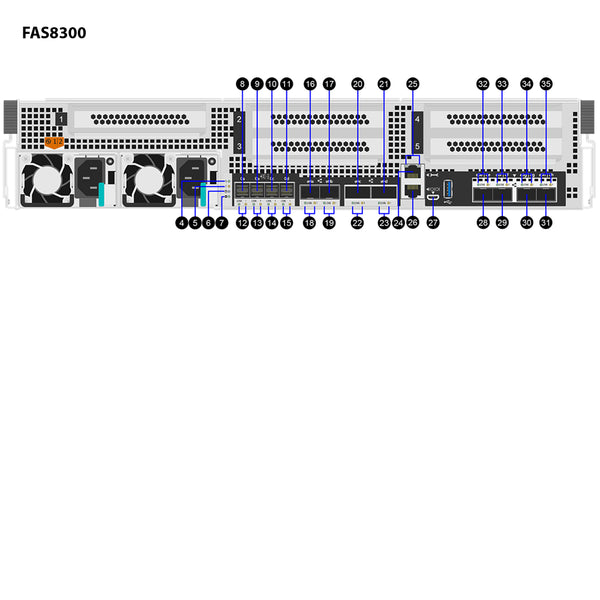

Controller Specs
- Max Controllers: 2 (Per Chassis)
- PCI Slot (per): 4 x M.2 PCIe (internal) + 10 x PCIe
- Ethernet Ports (per): 4 x QSFP28 (40Gb) + 4 x SFP28 (25Gb)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): N/A
- SAS Ports (per): 4 x MiniSAS HD (12Gb)
- Remote Management: Yes
- Processor Model (per): 2x 64-bit 10-core 2.20 Ghz
- Memory (Single/HA): 128GB/256GB
- NVRAM (Single/HA): 16GB/32GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 720
- Max Capacity: 15,000TB (15PB)
- Max # of MSATA Drives: 720
- Max # of SATA Drives: 720
- Max # of NL-SAS Drives: 720
- Max # of SAS Drives: 720
- Max # of SSD Drives: 480
- Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max # of DS212C Shelves: 60 external
- Max # of DS224C Shelves: 30 external
- Max # of DS460C Shelves: 12 external
