Specs
Quick Specs
2U rack server
Storage | Max: 12024 SFF SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to 2
Cache Per Controller:4GB or 8GB

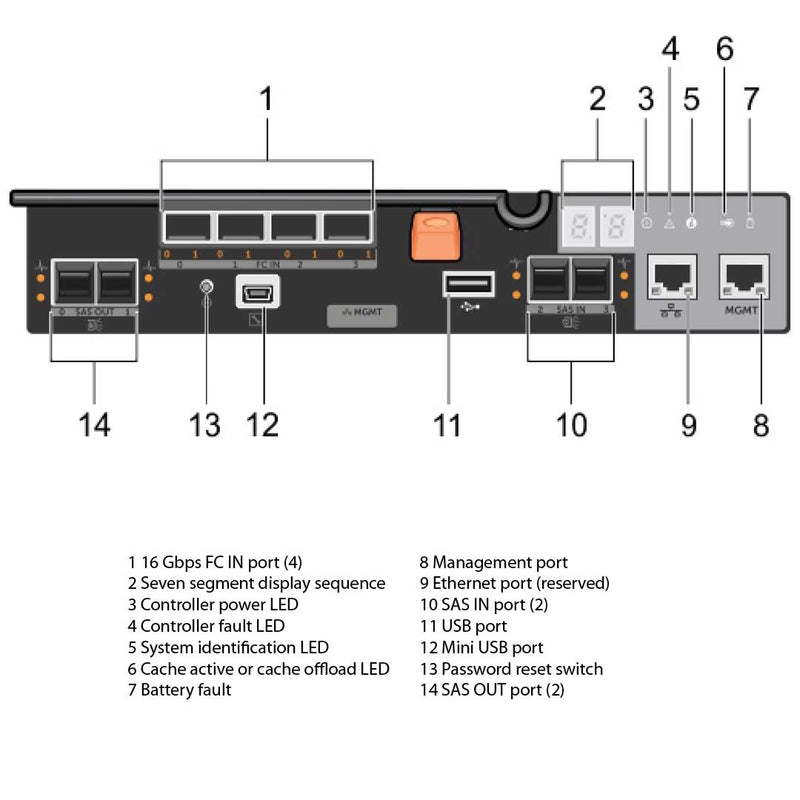

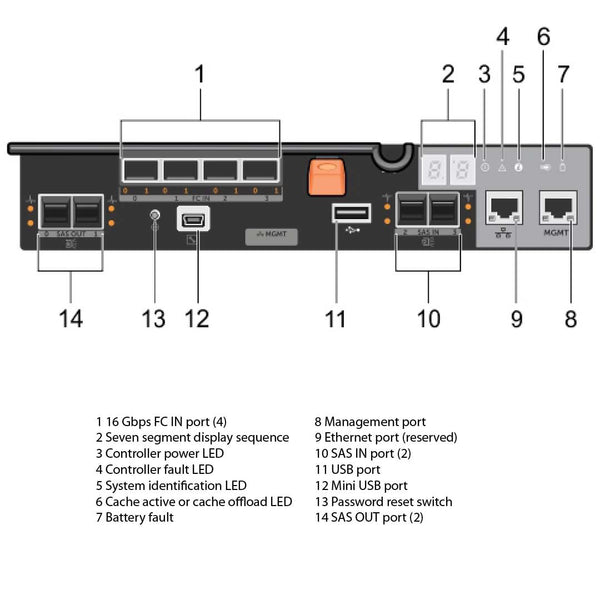

Ports Per Controller:- Four x4 16Gb FC SFP &
Two 12Gb SAS Host Connectivity - Two 12Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Single or Dual Controller Models:
Support up to 64 servers
Expansion Storage:Scale up to 120 (192 disks with premium feature kit) total drives using MD1200 and/or MD1220 expansion enclosures

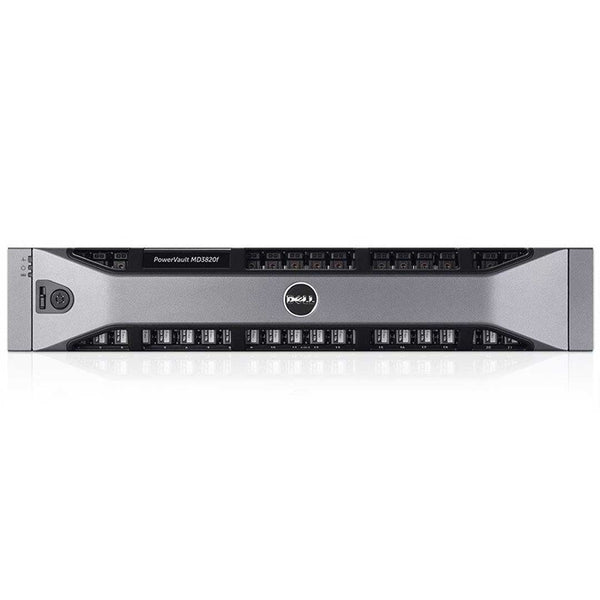

The Dell PowerVault MD3820f is a powerful storage system that can support up to 24 2.5" HDD/SSD and up to 32 servers directly connected per controller (maximum 64 hosts). You can maximize performance with 16Gb Fibre Channel (FC), 4GB, or 8GB cache per controller, and SSD support. Single and dual controller models are available, with a maximum of 16GB (8GB per controller).
Keeping pace with the latest technology
With four 16Gb Fibre Channel ports per controller, you can enjoy high-speed connectivity and improved performance with double the existing bandwidth. The MD3 series also offers 8GB cache on dual controller options in Fibre Channel, providing up to 16GB total cache per array. You get high availability and high performance without sacrificing ease of use, which is synonymous with the PowerVault MD family.
The Dell PowerVault MD3 series lets you mix and match drives to create a tiered storage environment that meets your specific requirements. You can scale up to 120 drives with MD1200 and/or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.
With dimensions of 68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) and a weight of 9.3kg (64.59 lb)), the Dell PowerVault MD3800f is compact and easy to manage. With the ability to reduce the effort required to store and manage your data, this storage solution is an excellent choice for businesses of all sizes. The 12-drive form factors can scale up to 120 drives when attached to the PowerVault MD1200 or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Feature | Dell PowerVault MD3800 Series | ||
|---|---|---|---|
| Feature | MD3 SAS | MD3 10GBASE-T | MD3 Fibre Channel |
| Number of drives/form factor |
|
|
|
| Drive types | SAS, NL-SAS, SSD, SED | ||
| 3.5” drive options | SAS 15K RPM: 300GB, 450GB, 600GB NL-SAS 7.2K RPM: 500GB, 1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB SAS 10K RPM: 600GB SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers) |
||
| 2.5” drive options | SAS 15K RPM: 146GB, 300GB, 600GB NL-SAS 10K RPM: 146GB, 300GB, 600GB, 900GB, 1.2TB, 1.8TB SAS 10K RPM: 500GB, 1TB, 2TB SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) |
||
| Expansion Capabilities | Up to 192 drives using MD1200 and/or MD1220 expansion enclosures: MD3820f/MD3800f/MD3820i/MD3800i/MD3420/MD3400 Up to 180 drives using MD3060e dense enclosures: MD3860f/MD3860i/MD3460 |
||
| Connection | 4 x 12Gb SAS | 2 x 10GBASE-T iSCSI and 2 x 12Gb SAS ports per controller |
4 x 16Gb Fibre Channel and 2 x 12Gb SAS ports per controller |
| Host connectivity | Single controller: supports up to 4 servers directly connected; Dual controller: supports up to 8 servers directly connected in a non-HA configuration or 4 servers in a HA configuration |
Single or Dual controllers support up to 64 servers on 12-drive and 24-drive 2U arrays Dual controllers on dense 60-drive 4U arrays Single controller: 2GB, 4GB cache Dual controller: 2GB, 4GB. 8GB cache |
|
| RAID Levels | Support for RAID levels 0, 1, 10, 5, 6; Up to 180/1924 physical disks per group in RAID 0, 10; Up to 30 physical disks per group in RAID 5, 6; Up to 512 virtual disks; DDP |
||
| Dynamic Disk Pools | DDP available on all models, separate or parallel to traditional RAID | ||
| OS support | Microsoft® Windows®, VMware®, Microsoft Hyper-V®, Red Hat® and SUSE® | ||
| Optional premium features | |||
| Snapshots | Up to 128 snapshots per virtual disk and 512 per system (optional on all models) | ||
| Snapshots plus VDC | 511 VDCs in sum but maximum 8 simultaneous VDCs on the array (optional on all models) | ||
| HPT | Standard on MD3860f, MD3860i, MD3460 | ||
| Remote Replication | Asynchronous and synchronous remote replication | ||
| Array Management | Modular Disk Storage Manager | ||
| Physical dimensions | |||
| Height x width x depth | MD3800f/MD3800i/MD3400i: 8.68 cm (3.42”) x 44.63 cm (17.57”) x 56.1 cm (22.09”) MD3820f/MD3820i/MD3420: 8.68 cm (3.42”) x 44.63 cm (17.57”) x 50.8 cm (20”) MD3860f/MD3860i/MD3460/MD3060e: 17.78 cm (7.0”) x 48.26 cm (19.0”) x 82.55 cm (32.5”) |
||
| Maximum weight | MD3800f/MD3800i/MD3400: 29.3kg (64.59 lb) MD3820f/MD3820i/MD3420: 24.2kg (53.35 lb) MD3860f/MD3860i/MD3460/MD3060e: 105.24kg (232 lb) |
||
| Rails | MD3 2U versions support Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks | ||
| Environment | |||
| Power | Wattage: MD3 2U versions support DC power supply MD3 2U models — AC: 600W peak output; DC: 700W MD3 dense models — AC: 1755W |
||
| Heat dissipation (max) | MD3 2U models: 2047 BTU/hr — MD3 dense models: 5988 BTU/hr | ||
| Voltage | MD3 2U models: 100V to 240V AC; 48V DC — MD3 dense models: 220V AC, auto ranging | ||
| Frequency range | 50/60Hz | ||
| Temperature | Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour MD3 2U models support Fresh Air cooling, up to 35°C |
||
| Relative humidity | Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour | ||
| Altitude | MD3 2U models: Operating: -16 m to 3048 m (-50 ft to 10,000 ft) (For altitudes above 2950 ft, the maximum operating temperature is derated 1°F/550 ft) MD3 dense models: Operating: -30.5 m to 3000 m (-100 ft to 9,840 ft) (For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft) |
||
| OEM-ready version available on certain models | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. | ||
