Quick Specs
Half Height 10U/16N M1000e | 10U/4N VRTX
Processor | Max: 44 Cores2 x Intel Xeon E5-2600v4
Memory | Max: 1.5TB24 DDR4 RDIMM 2400Mhz
Boot Options:IDSDM
Internal USB
vFlash with iDRAC8 Enterprise
2x 2.5" SAS/SATA/NVMe or
4x 1.8" SFF SAS/SATA/NVMe
PERC S130 (SW RAID)
PERC H330, PERC H730P, and PERC H730
1 LOM, 2 Mezzanine Slots
GPU:None
Ideal for:
- High-Performance Computing (HPC)
This is one of the supported Blade servers, each Modular Enclosure is a separate CTO you must configure.
Dell M1000e Blade Architecture
- Dell PowerEdge M1000e CTO Blade Enclosure
- Dell PowerEdge M420 CTO Blade Server
- Dell PowerEdge M520 CTO Blade Server
- Dell PowerEdge M620 CTO Blade Server
- Dell PowerEdge M630 CTO Blade Server
- Dell PowerEdge M640 CTO Blade Server
- Dell PowerEdge M710 CTO Blade Server
- Dell PowerEdge M710HD CTO Blade Server
- Dell PowerEdge M820 CTO Blade Server
- Dell PowerEdge M830 CTO Blade Server

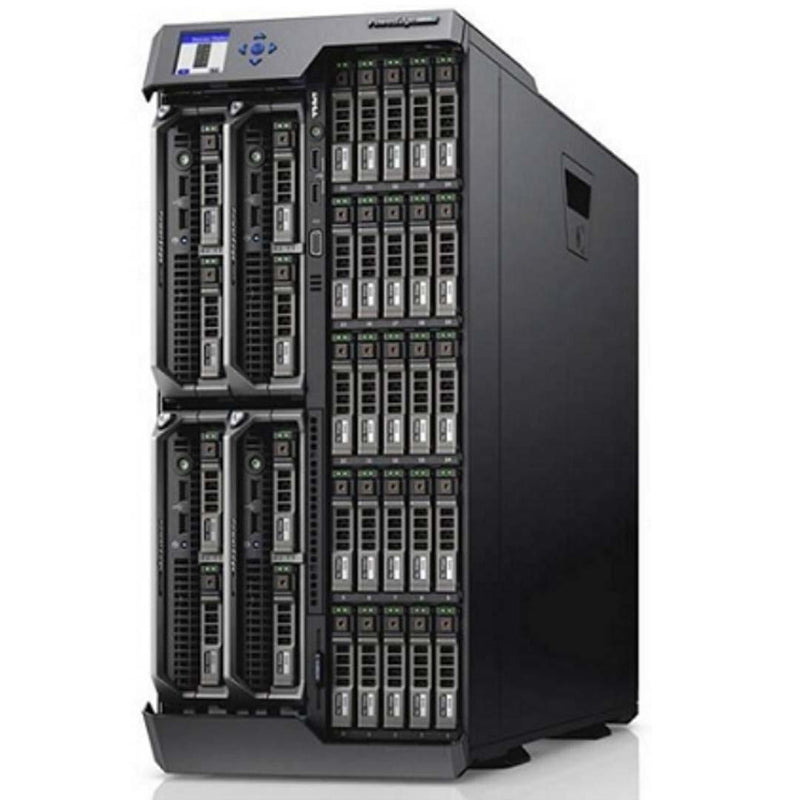

Deliver the compute power your demanding applications require with the flexible PowerEdge M630 blade server, a member of the 13th generation of PowerEdge servers. Designed for the PowerEdge M1000e blade server chassis and the PowerEdge VRTX modular infrastructure, the M630 offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices.
Deliver more, larger and higher-performing virtual machines with help from more cores (up to 44 with two processors) and up to 28 percent greater memory bandwidth than previous generations. The Intel Xeon processor E5-2600 v4 product family offers the processing cycles and threads to help increase virtualization performance.
Unleash the workload capacity of your modular compute nodes with up to four 1.8" SSDs of local storage — twice the number of flash drives per blade than previous generations.
Meet your growing IT demands with ample room for memory expansion in the server's 24 DIMM slots. Extreme memory density and high-bandwidth DDR4 memory makes the M630 ideal for high-end research and development as well as high-performance computing (HPC). Versatile memory configurations support a wide range of virtualization options and budget requirements.

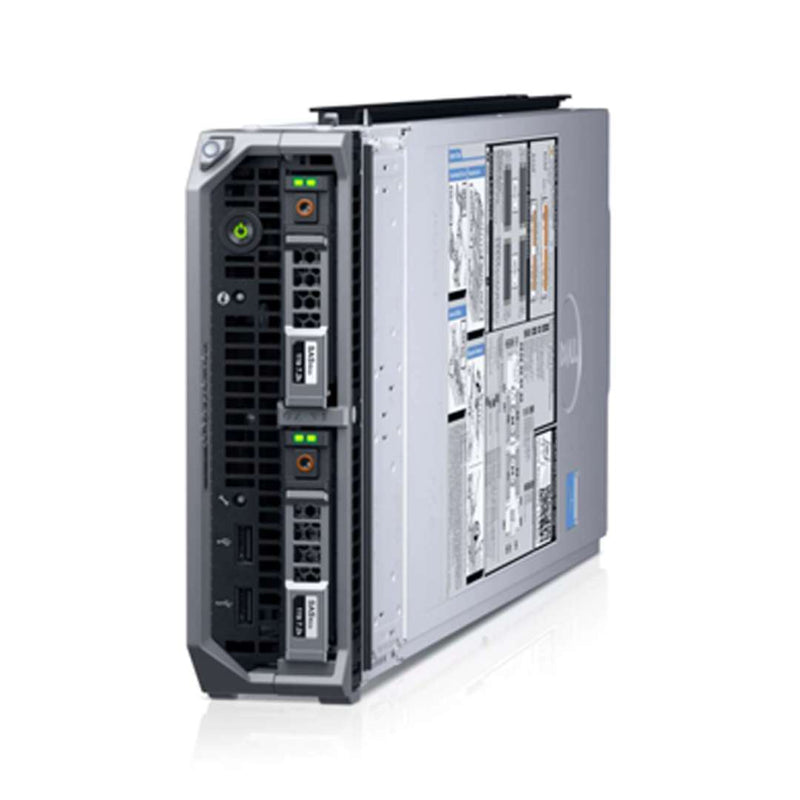

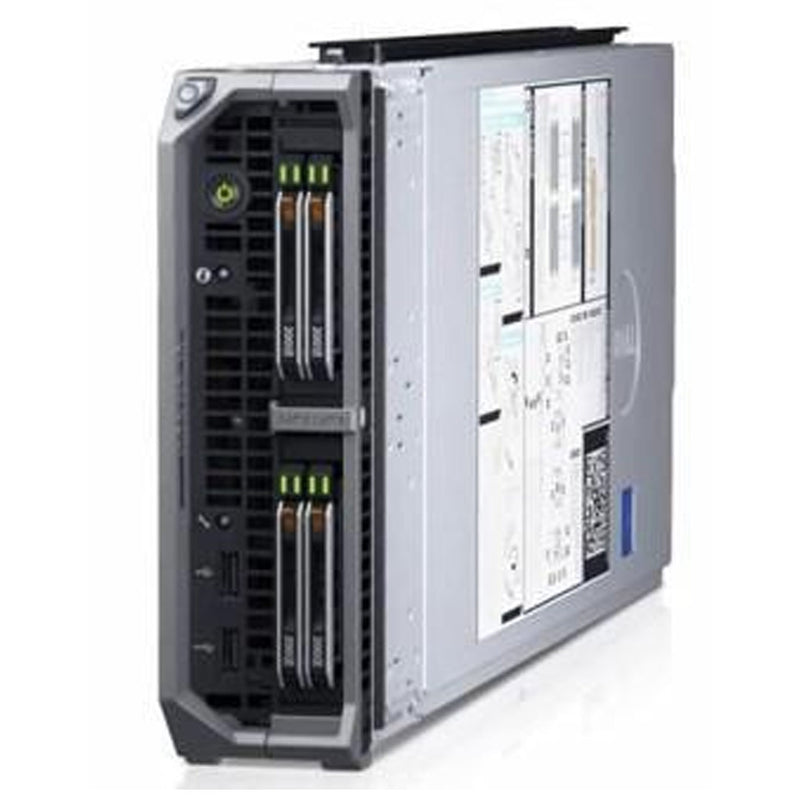

M630 ( 2 x 2.5-inch ) ( 4 x 1.8-inch )
The M630 provides the flexibility to optimize in-server storage and IO performance, allowing you to tailor your servers to your workloads today and adapt as your needs change over time.
The optional 12Gb PowerEdge RAID Controller (PERC) offers double the throughput and cache of previous generations and can deliver a significant IO boost for applications. And with up to two Express Flash PCIe SSDs, the M630 can support even the most IOPs-hungry applications like business decision support or real-time data analytics.

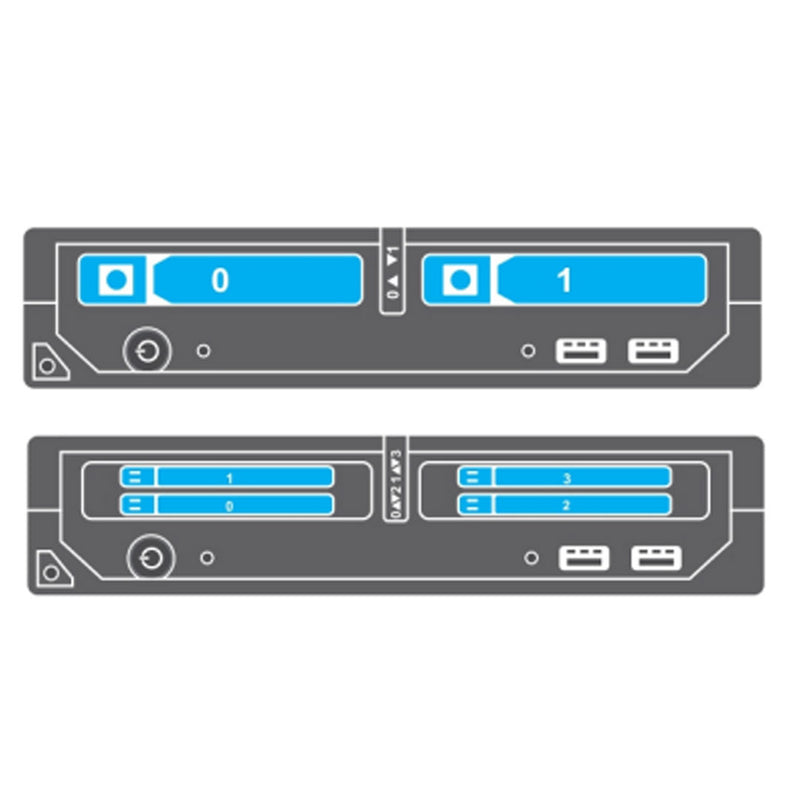

With a range of drive options to choose from, it's easy to configure your in-server storage to meet your needs. The M630 supports up to 4 x 1.8" SSDs or up to 2 x 2.5" HDDs or Express Flash PCIe SSDs.
nable rapid access to the storage resources your server or cloud requires — NAS or SAN — with Dell EMC Select Network Adapters. These modular NIC options offer your choice of fabric, speed and vendor, allowing you to pinpoint workload bandwidth requirements.
For processors of 105 W, 120 W, or 135 W, use heat sinks of 68 mm width.CAUTION: For processors of 135 W (four cores, six cores, or eight cores) or 145 W, use heat sinks of 86 mmwidth.NOTE: Mixing processors of different wattages is not supported.
- Depth: 544.3 mm (21.42")
- Height: 50.3 mm (1.98")
- Width: 192.3 mm (7.57")
- Weight: 6.8 kg (14.99 lb)
| Memory module sockets | Memory capacity | Minimum RAM | Maximum RAM | Speed |
|---|---|---|---|---|
| PowerEdge M630 | 64 GB quad rank (LRDIMMs) | 4 GB with single processor |
|
2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs |
| 32 GB quad rank (LRDIMMs) | 2133 MT/s, or 1866 MT/s,, DDR4 DIMMs | |||
| 4 GB, 8 GB, 16 GB or 32 GB single rank (RDIMMs) | 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs | |||
| 8 GB, 16 GB and 32 GB dual rank (RDIMMs) | 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs |

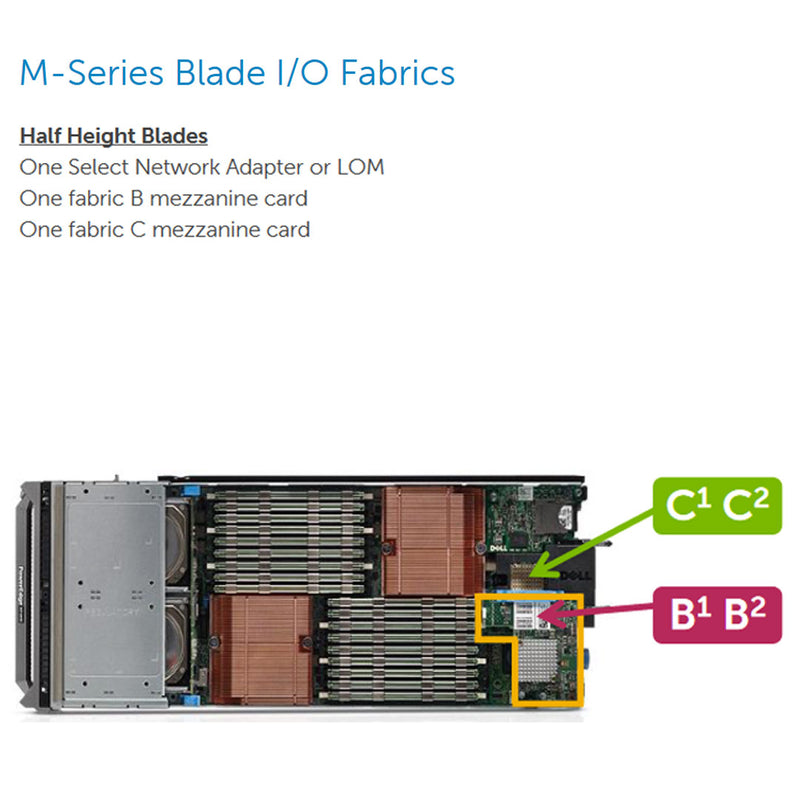

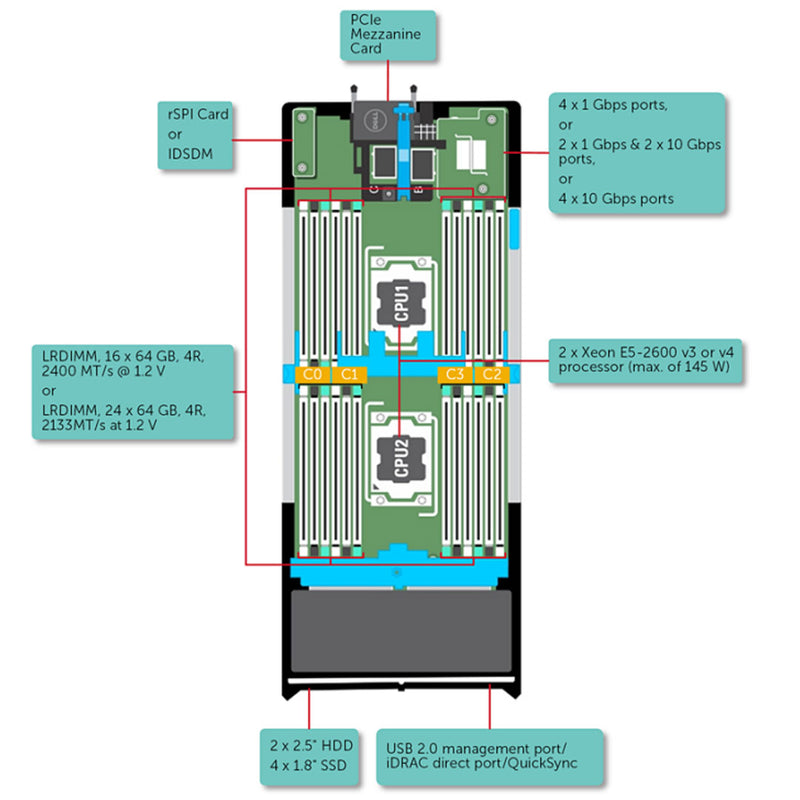

- Mezzanine card slot C supports Fabric C. This card must match the fabric type of I/O modules installed in I/O module baysC1 and C2.
- Mezzanine card slot B supports Fabric B. This card must match the fabric type of I/O modules installed in I/O module baysB1 and B2.
The Network Daughter Card (NDC) is a small, removable mezzanine card. The NDC provides you with a flexibility of choosingdifferent network connectivity option, for example—4 x 1GbE, 2 x 10GbE or 2 x Converged Network Adapter.
The Internal Dual SD Module (IDSDM) card provides two SD card slots and a USB interface dedicated for the embedded hypervisor. This card offers the following features:
- Dual card operation—maintains a mirrored configuration by using SD cards in both slots and provides redundancy.
- Single card operation—single card operation is supported, but without redundancy.
vFlash SD
The vFlash SD card is positioned under the bNDC in the rear of the system. This is supported with the upgraded iDRAC8 Enterprise.
