Dell PowerEdge C4140 Rack Server Chassis PCI-e GPU's

SKU: DPE-C4140-CHASSIS-PCIE

Dell PowerEdge C4140 PCIe GPU Rack Server Chassis

Name: Dell PowerEdge C4140 PCIe GPU Rack Server Chassis
Brand: Dell
SKU: DPE-C4140-CHASSIS-PCIE
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

1U rack server

Processor | Max: 24 Cores

2x 1st or 2nd Generation Intel Xeon Scalable

Memory | Max: 1.5TB

24 DDR4 RDIMM/LRDIMM 2933Mhz

Storage:

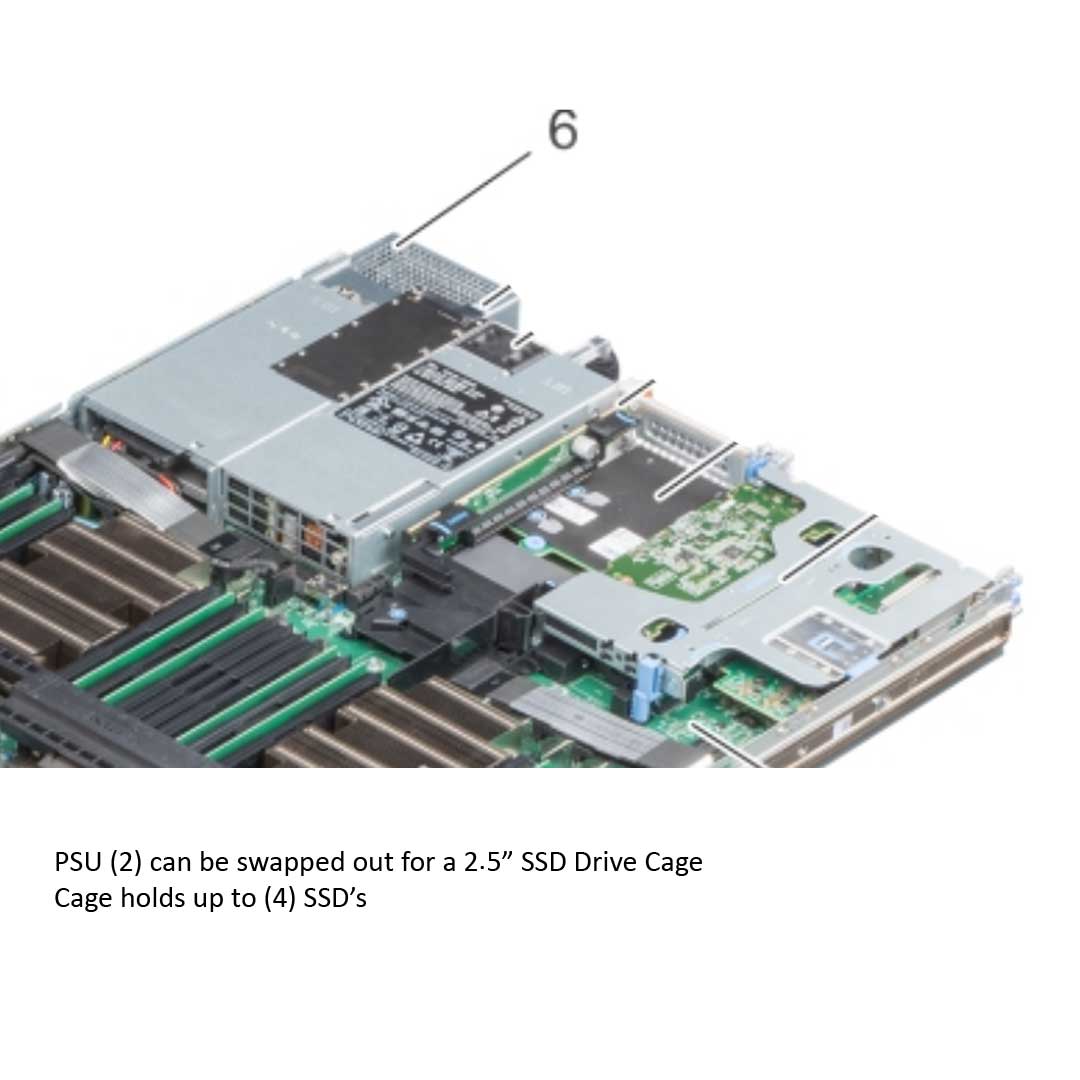

Optional - instead of second PSU with up to 2x 2.5" SSD
System supports up to 2x PCIe SSD AIC

Controllers:

PERC H840, 12 Gbps SAS HBA

Boot Options:

vFlash
vFlash + IDSDM
BOSS-S1 (Required)

Rear Storage:

None

PCIe Slots:

3x PCIe 3.0
PCIe Slot 2 is for the BOSS Card

iDRAC:

iDRAC9 with Lifecycle Controller

GPU:

Four (4) SMX2 NVLink or PCIe GPU slots

Other Versions:

Ideal for:

Big Data Analytics
Artificial Intelligence (AI)
Machine Learning (ML)
Deep Learning (DL)
High-Performance Computing

The PowerEdge C4140 is an accelerator-optimized, 1U rack server designed for most demanding workloads. It is ideal for cognitive workloads such as artificial intelligence, machine learning, deep learning and for technical computing in industry verticals such as financial services, life sciences, High-Performance Computing (HPC), and oil and gas exploration

Artificial Intelligence focused, ultra-dense, 4 GPU, 2 socket, 1U rack server

The C4140 is the industry’s leading accelerator-optimized, ultra-dense server platform. It handles the most demanding cognitive and technical computing workloads. The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology. Dell EMC offers pre-configured Ready Bundles for Machine Learning and Deep Learning applications and empowers enterprises to easily adopt and quickly deploy their Cognitive and HPC solutions using Dell EMC PowerEdge C4140. For low latency, high-performance applications such as Machine Learning, Deep Learning or Financial, the Dell EMC PowerEdge C4140 is the right fit.

Innovative management with intelligent automation

The Dell EMC OpenManage systems management portfolio enables peak efficiency for PowerEdge servers, through intelligent, automated management of routine IT tasks. Combined with the unique, agent-free management capabilities of the embedded iDRAC9 with Lifecycle Controller, the C4140 is effortlessly managed, freeing up your time for high profile projects.

Increase IT data protection and integrity with the embedded security features of iDRAC9.
Improve IT productivity and agility with OpenManage Essentials: from bare-metal deployment to ongoing maintenance, and enforcement of IT policies within production environments.

Increase performance with flexible accelerator technology

The PowerEdge C4140 is an incredibly dense rack server designed to handle the most demanding technical computing workloads in financial services, life sciences, machine and deep learning, oil and gas exploration, and high-performance computing (HPC).

Features the latest generation of Intel® Xeon® Scalable Processors at 165W thermal design power (TDP).
The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology.
Supports up to 300W per accelerator card.

Designed for the most demanding cognitive and technical computing.

Give challenging cognitive computing workloads what they need with this high-density, accelerator-optimized server. The PowerEdge C4140 provides maximum density and outstanding thermal efficiency for scale-out performance. Speed up your applications with four GPUs/FPGAs in a 1U, 2-socket package.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge C4140 Technical specification
Processor	Two Intel® Xeon® Scalable processors, up to 20 cores per processor
Memory	Up to 24 DDR4 DIMMs in total; Supports RDIMM /LRDIMM speeds up to 2666, 1.5 TB Max ECC Registered DDR4
Storage controllers	IDSDM or Internal M.2 Boot Module (2 x M.2) -120G or 240G (mirrored configuration)
Power supplies	2000W, 2400W hot-plug, Redundant power supply unit (PSU)
Accelerators	NVIDIA® Tesla® P40, P100 12GB PCIe, P100 16GB PCIe and NVLinkTM, V100 16GB PCIe and NVLink GPUs
Network daughter cards and Optional adapters	Support for the following Network Daughter Cards: Intel® 10 GbE (2 + 2) Base-T Intel® 10 GbE (2 + 2) SFP+ Support for the following PCIE N/W adapters: Mellanox ConnectX®-4 Single Port VPI QSFP28 EDR LP PCIe Adapter Mellanox ConnectX®-4 Dual Port VPI QSFP28 EDR LP PCIe Adapter	Intel Omni-Path Single Port Host Fabric Adapter 100 Series LP PCIe Adapter Intel 2x 10GbE adapter Intel 2x 25GbE adapter Support for 2x NVMe/PCIE SSD AIC in rear slots: 1.6/3.2/6.4TB
Dimensions	4.28 cm (1.69 in), W: 43.4 cm (17.09 in), D: 92.62 cm (36.46 in) Max weight: 24 kg (52.91 lb)
Embedded / At-Server	iDRAC9 with Lifecycle Controller
Consoles	OpenManage Enterprise OpenManage Essentials	OpenManage Server Administrator OpenManage Power Center
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust	Secure Boot System Lockdown System Erase
O & Ports	Four (4) Double Wide accelerator Gen3 x16 PCIe slots Two (2) low profile Gen3 x16 PCIe slots Front ports: Power button, System ID / Status LED, Health Status LED Rear ports: 2 USB 3.0 Port and iDRAC ethernet port
Supported operating systems	Canonical® Ubuntu® Server LTS 16.04.3 Red Hat® Enterprise Linux 7.4 SUSE® Linux Enterprise Server 12 SP3®	For specifications and interoperability details, see Dell.com/OSsupport.
Recommended support and services	Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit dell.com/itlifecycleservices.
Dell Financial Services	Deliver results with easy financing. Explore financial options that move at the speed of business. For more information, visit https://www.emc.com/products/how-to-buy/global-financial-services/index.htm.*

Spec Sheet 4

Feature	C4130	C4140
CPU	Up to 2x Intel Broadwell (Support up to 2x 145 W processors with ambient restrictions)	2x Intel Purley socket P (Support for up to 2x 150 W processor)
Front Side Bus	Intel QuickPath Interconnect (QPi)	Intel Ultra Path Interconnect (UPI, 11.2 GT/s)
Memory	DDR4 up to 16x RDIMMs (256 GB)	• DDR4 up to 24x RDIMMs • RDIMM - 8 GB, 16 GB, 32 GB • LRDIMM 64 GB
Storage controller	• Hardware RAID: PERC9 in a standard slot - select adapters • Chipset SATA software RAID	• PCIe M.2 boot module • Optional chipset SATA software RAID
Storage	• Internal: IDSDM, Optional drive carrier instead of second power supply with up to 4x 2.5-inch drive. • Rear: 2x 1.8 inch SSD • Bandwidth: 12Gb/6Gbn SAS HP hard drive	• Internal: IDSDM or Internal M.2 boot module (2x M.2) for boot • Optional carrier instead of second PSU with up to 2 x 2.5 inch SSD
NDC/LOM	• No NDC is supported. • 2x 1Gbe LOM (Intel®)	Intel NDC: 10 GbE (2+2) BT or SFP+ (2+2) or x550 10GBASE-T
Max PCIe slots	• 4 x 300 W DW/FH/10.5 inch with custom brackets • SXM2 form factor with NVLINK interconnect	• 4 x 300 W DW/FH/10.5 inch PCIe with custom brackets • SXM2 form factor w/NVLINK interconnect
Accelerators or GPUs	• 4 x 300 W DW/FH/10.5 inch with custom brackets • SXM2 form factor with NVLINK interconnect	• 4 x 300 W DW/FH/10.5 inch PCIe with custom brackets • SXM2 form factor w/NVLINK interconnect
Internal 96-lane PCIe Gen3 Switch	• Configurations B, G, and K use PCIe switch. • Configurations C and M do not.	• Support for PCIe Configuration B, C, and G • Support for NVLink Configuration K and M
System Management	• Base: IDRAC 8 Express with Lifecycle configuration options • Upsell: Enterprise edition • No front USB or Dell Quick Sync 1.0 (NFC)	• iDRAC9 with Lifecycle Controller • Upsell: Enterprise edition • No front USB or Dell Quick Sync 2.0
Standard Rear ports	• Dedicated iDRAC • Serial port • Video port • 2 x USB 3.0 • 2 x 1G LOM	• Dedicated iDRAC • RJ45 • Serial port • Video port • 2 x USB 3.0
Dimensions	Height: 1U; Depth: 35 inches	Height: 1U; Depth: 35 inches
