Home / HDD / Dell PERC 9 H330 12Gb SAS Mini Mono RAID Controller | 9JXVW
SKU: 9JXVW

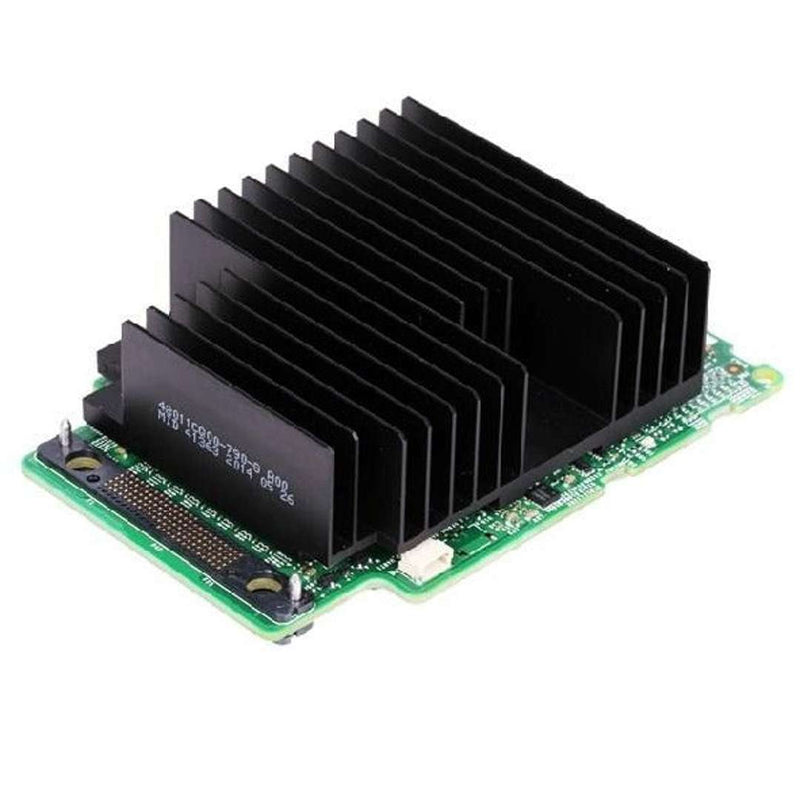

Dell PERC 9 H330 12Gb SAS Mini Mono RAID Controller | 9JXVW

Dell

| Adapter
$95.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

  • Models: H330 Mini Mono
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SATA
  • PCI Support: PCI-e 3.0
  • SAS Connectors: 2x4 External
  • Cache Memory: No Cache
  • Write Back Cache: No Cache
  • RAID Levels: 0, 1, 5, 10, 50
  • Max Drive Support: 16 RAID, 32 Non-RAID
  • RAID Support: Hardware

Part Numbers:

  • Mini Mono: 9JXVW
  • Mini Mono: GDJ3J
  • Mini Mono (v2): 7G4YN
  • Mini Mono (v2): FG0JC
  • Mini Mono (v2): TD1CR
  • LP: K6V6W
  • LP: 6H1G0
  • LP: CG2YM
  • FH: 4Y5H1
The Dell PERC 9 H330 12Gb SAS Mini Mono RAID Controller provides a versatile RAID solution for internal storage and tape devices. Supporting both 12Gb/s SAS and 6Gb/s SATA drives, this controller offers flexible connectivity through dual 2x4 external SAS ports with PCIe 3.0 interface compatibility.
Designed for general-purpose use, the H330 Mini Mono supports RAID levels 0, 1, 5, 10, and 50 with hardware RAID reliability. It accommodates up to 16 drives in RAID configurations and up to 32 drives in non-RAID setups, making it ideal for a wide range of storage environments within Dell PowerEdge systems.
Compatible With:
  • Dell FC630
  • Dell FC830
  • Dell R430
  • Dell R530
  • Dell R630
  • Dell R640
  • Dell R6415
  • Dell R6515
  • Dell R730
  • Dell R730xd
  • Dell R740
  • Dell R7415
  • Dell R7515
  • Dell T140

(Click to View)

Base Standard Capabilities

Table 1. PERC cards The table below lists and describes the different PERC cards that comprise the PERC 9 series and their specifications.
FeaturePERC H330PERC H730PERC H730PPERC H730P MXPERC H830PERC FD33xD/FD33xS
RAID Levels0, 1, 5, 10, 500, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 600, 1, 5, 6, 10, 50, 60
Enclosures per portNot applicableNot applicableNot applicableNot applicable8 (4 per port)Not applicable
ProcessorDell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipsetDell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipsetDell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipsetDell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipsetDell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipsetDell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset
Battery Backup UnitNoYesYesYesYesYes
Non-Volatile cacheNoneYesYesYesYesYes
Cache policyNo1 GB DDR3 1333 Mhz cache2 GB DDR3 1866 Mhz cache2 GB DDR3 1866 Mhz cache2 GB DDR3 1866 Mhz cache2 GB DDR3 1866 Mhz cache

NOTE: H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended.
Cache function

Write Through and No Read Ahead

Write Back, Write Through, No Read Ahead, and Read AheadWrite Back, Write Through, No Read Ahead, and Read AheadWrite Back, Write Through, No Read Ahead, and Read AheadWrite Back, Write Through, No Read Ahead, and Read AheadWrite Back, Write Through, No Read Ahead, and Read Ahead
Maximum number of virtual disks1664646424064
Maximum number of virtual disks per disk group161616161616
Hot swap devices supportedYesYesYesYesYesYes
Hardware XOR EngineNoYesYesYesYesYes
Online capacity expansionYesYesYesYesYesYes
Dedicated and global hot spareYesYesYesYesYesYes
Drives Types3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS6 Gbps SAS, and 12 Gbps SAS3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
PCIe SupportGen 3Gen 3Gen 3Gen 3Gen 3Gen 3
Non-RAID or pass through modeYesYesYesYesYesYes
Queue Depth895928928928928928

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H830 Adapter 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware
H730P Adapter FH - X4TTX 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Adapter LP - J14DC
H730P Adapter No Bracket - C9Y6K
H730P MX 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 - Hardware
H730P Mini Mono 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Mini Blade - 3X31R 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Mini Blade - GD07N
H730P Mini Blade - YRPP6
H730 Adapter FH 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Adapter LP
H730 Adapter No Bracket
H730 Mini Mono 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Mini Blade 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 1x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H330 Adapter FH 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 16 RAID, 32 Non-RAID Hardware
H330 Adapter LP
H330 Mini Mono 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 16 RAID, 32 Non-RAID Hardware
H330 Mini Blade 12 Gb/s SAS
6 Gb/s SATA		 PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 8 Hardware
S130 Software RAID 6 Gb/s SATA N/A N/A No Cache No Cache 0,1,5,10 10 Software - Windows and Linux
12 Gbps SAS Ext. HBA FH 12 Gb/s SAS PCI-e 3.0 2x4 External No Cache No Cache No RAID Pass-Thru Only 255 No RAID Pass-Thru Only
12 Gbps SAS Ext. HBA LP
More HBA Gen 9 Controllers
  FD33XD
Dual HBA
(Split Host)		 FD33XD
Dual HBA
(Dual Host)		 FD33XD
Dual PERC
(Split Host)		 FD33XD
Dual PERC
(Dual Host)		 FD33XS
Single HBA
(Joined Mode)		 FD33XS
Single PERC
(Joined Mode)		 HBA330 + 12Gb SAS
HBA		 HBA330 MX
12Gb SAS
Non-RAID
