SKU: DPR-7610-6X2.5

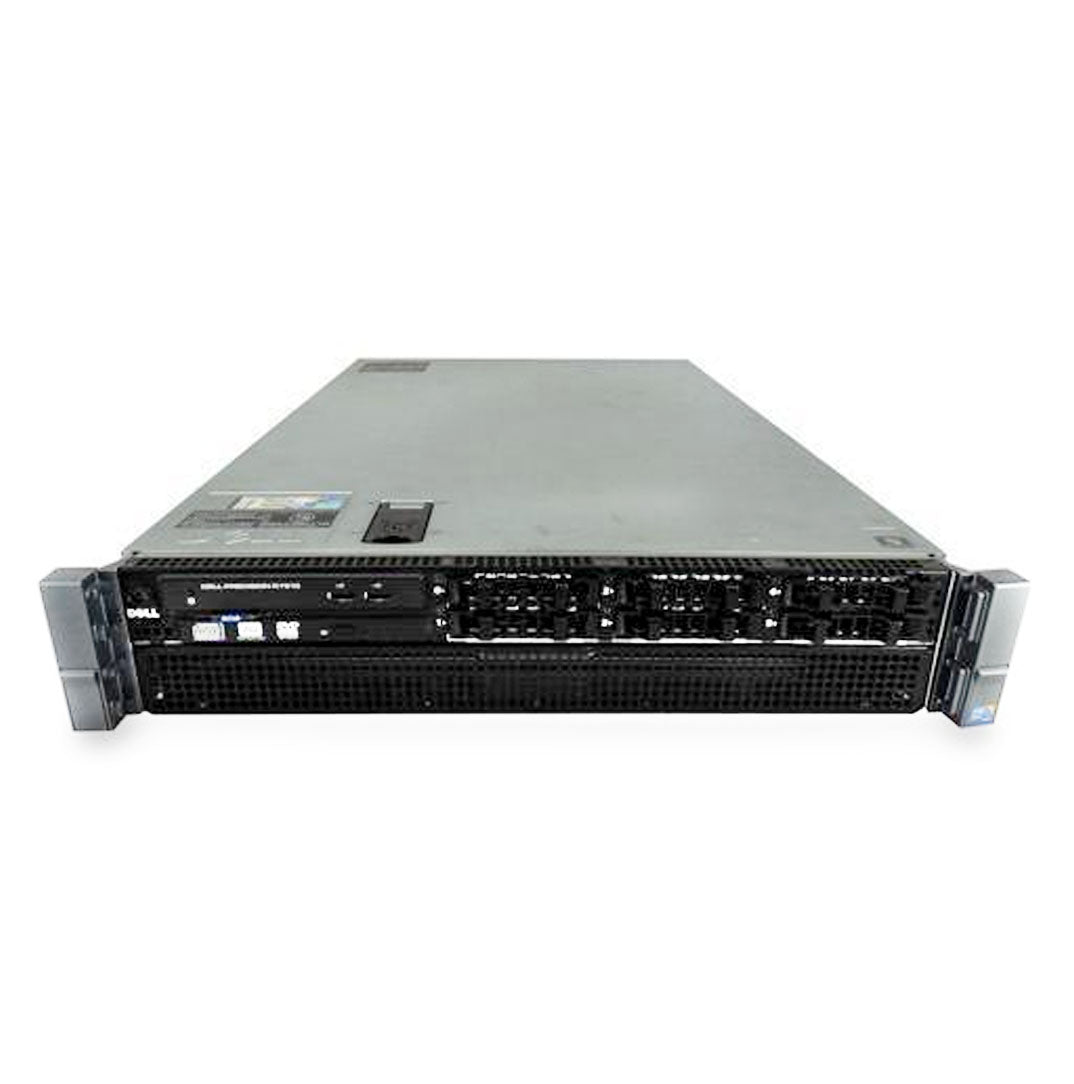

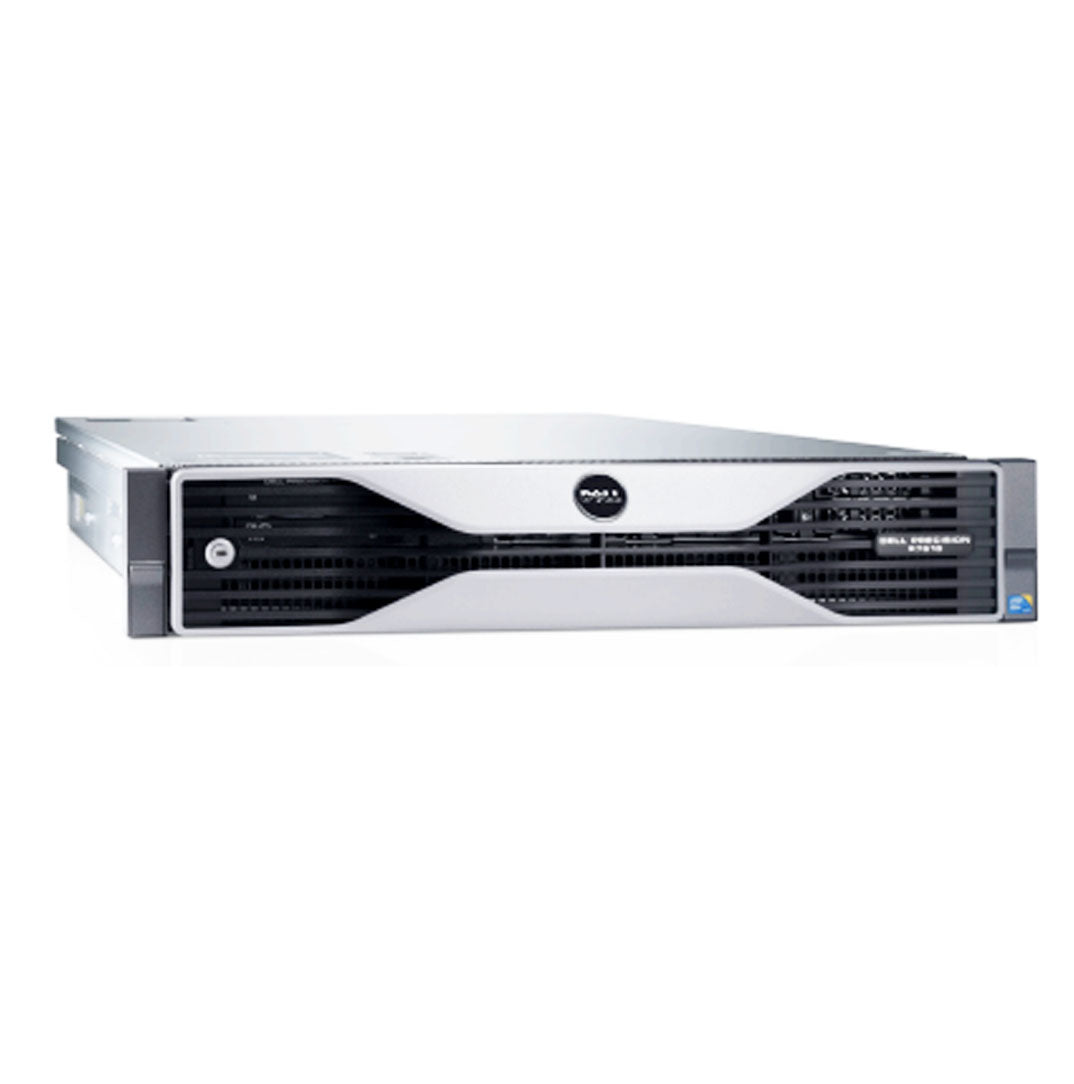

Dell Precision R7610 6x2.5" Rack Server

Name: Dell Precision R7610 6x2.5" Rack Server
Brand: Dell
SKU: DPR-7610-6X2.5
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Type: Rack Workstation
Model: Precision R7610
Form Factor: 2U Rackmount
Processor: Up to 2x Intel Xeon E5-2600 v2
Memory: Up to 512GB ECC RDIMM, 16 DIMM slots
Graphics: Up to 4 PCIe x16 cards, up to 675W combined
GPU: Supports NVIDIA Quadro, AMD FirePro, NVIDIA Tesla
Storage: Up to 6 x 2.5" SATA/SAS/SSD/PCIe SSD
RAID: Integrated LSI 2308 RAID 0,1,10; Optional LSI 9271-8i RAID 0,1,5,10
Power Supply: 1100W or 1400W redundant, hot-swappable
Ports: 7 x USB 2.0, 2 x USB 3.0 (optional), audio in/out, serial, 2 x RJ45
Dimensions: 3.40" x 17.35" x 29.67" (31.21" with bezel)
Expansion: Up to 6 bays, 6 PCIe slots, optional legacy PCI

Part Number:

R7610 6x2.5"

The Dell Precision R7610 is a rack-mounted powerhouse designed to bring the performance of Dell's most powerful workstations into secure, centralized data center environments. It's ideal for high-security locations, remote deployments, and temperature- or noise-sensitive workspaces, offering the flexibility of both one-to-one and virtualized multi-user scenarios.

With support for dual Intel Xeon processors, massive memory capacity, and multiple professional graphics options, the R7610 offers exceptional scalability and power. Its 2U rack chassis supports six 2.5" drives and offers advanced remote access, storage flexibility, and security features, making it a premier solution for performance-intensive workloads in demanding enterprise settings.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

View Parts!

Spec Sheet 4

Dell Precision R7610 Rack Workstation Technical Specifications
Processors	One or two; Intel® Xeon® processor E5-2600 v2 family with up to twelve cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New Instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology
Operating System	Windows® 8 Ultimate (64-Bit); Genuine Windows® 7 Ultimate 32-Bit; Genuine Windows® 7 Ultimate 64-Bit; Genuine Windows® 7 Professional 32-Bit; Genuine Windows® 7 Professional 64-Bit; Red Hat® Enterprise Linux® WS v.6.4 EM64T (also certified to run Red Hat Enterprise Linux Version 5.8 64-Bit); Ubuntu 12.04 LINUX (China only)
Chipset	Intel C602J
Memory	Up to 512GB 1600MHz ECC RDIMM memory; 16 DIMM slots (8 per processor)
Graphics	Support for up to four PCIe® x16 cards up to 675W (total for graphics):
	High End 3D NVIDIA Quadro K6000 NVIDIA Quadro K5000	Mid-range 3D AMD FirePro W5000 NVIDIA Quadro K4000 NVIDIA Quadro K2000	Entry 3D NVIDIA Quadro K600	Professional 2D AMD FirePro 2270 NVIDIA Quadro NVS 510 NVIDIA Quadro NVS 310
GPU	One or two NVIDIA Tesla® K20C GPGPUs – Supports NVIDIA Maximus™ technology
Virtualization	Workstation virtualization for up to four users via GPU pass-through on select configurations with certified hypervisors
Storage Options	Up to six 2.5” SATA or SAS drives:
	SATA 7200RPM Up to 10TB	SAS 10K RPM Up to 900GB	SAS 15K RPM Up to 300GB	SSD / PCIe SSD SSD: Up to 512GB Micron P320h 350GB
Intel CAS-W – Caching Acceleration Software for Workstations: requires 128GB SSD + standard storage hard drive
Storage Controller	Integrated: LSI 2308 6Gb/s SATA, SAS controller (RAID 0, 1, 10); Optional: LSI 9271-8i 6Gb/s SATA, SAS controller with 1GB cache (RAID 0, 1, 5, 10)
Communications	Integrated: Intel 82579 Gigabit Ethernet; Optional: Intel X520-T2 10GbE (PCIe)
Remote Access	Optional Tera2 dual display PCoIP PCIe host card (for Wyse P25 zero client)
Audio	Integrated Realtek ALC269Q High Definition Audio
Standard Ports	Location
	Front 2x USB 2.0 System ID Button/LED	Internal 1x USB 2.0	Rear 4x USB 2.0 2x USB 3.0 (optional) Audio out/in Serial RJ45 System ID Button/LED
2U Rack Chassis	HxWxD: 3.40" x 17.35" x 29.67" (31.21" with bezel) Bays: Six external 2.5” bays; one 5.25” slimline optical bay Slots: Up to five PCIe full length/full-height Outer Riser: 1x PCIe x16 (wired x16), 1x PCIe x16 (wired x4) Center Riser (choose one): • 1x PCIe x16, 1x PCIe x8 (default, CPU not required) • 1x PCIe x16 (2nd CPU required), 1x legacy 32-bit PCI Power Supply: One or two hot-pluggable 90% efficient units – 1100W or 1400W (220V)
Monitors	Dell UltraSharp (21.5"–30") with PremierColor; Dell Professional (17"–24")
Keyboard	Dell Smartcard Keyboard; Dell Business Multimedia Keyboard
Mouse	Dell USB Optical Mouse; Dell USB 6-Button Mouse
Speakers	Dell 2.0 and 2.1 stereo speakers; Dell sound bar (select displays)
Optical Drive	Tray load DVD-ROM; DVD+/-RW; Blu-ray™
Security Options	TPM 1.2; Intrusion switch; BIOS Password; I/O Interface Security Kensington lock slot; Padlock ring; Bezel lock; Lockable PSU Dell Data Protection (DDP): Security Tools, Protected Workspace, Encryption
