Home / Dell Server Equipment and more. / Dell PowerEdge R640

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

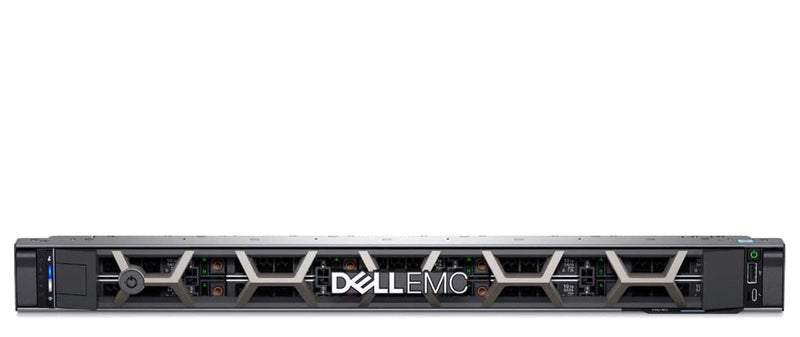

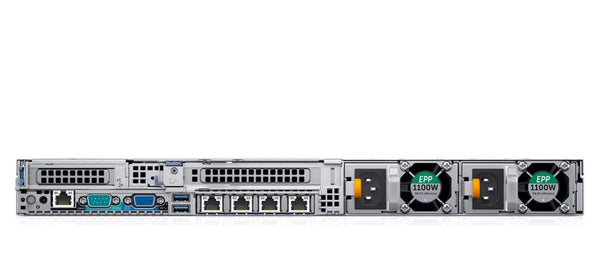

Dell PowerEdge R640

The Dell PowerEdge R640 is a dual-socket 1U rack server built for dense scale-out data center computing, running up to two 2nd Gen Intel Xeon Scalable processors with up to 28 cores each. It offers 24 DDR4 DIMM slots (up to 3TB at up to 2933 MT/s, with up to 12 Intel Optane PMem or NVDIMM), three PCIe Gen3 x16 slots, up to three single-width GPUs such as the NVIDIA T4, and up to 10x 2.5" drives (up to 10 NVMe) or 4x 3.5" drives. Managed by iDRAC9, it suits virtualization, VSAN ready nodes and NVMe cache-heavy applications. Fully configurable.

Looking to compare generations? See the Gen 15 Dell PowerEdge R650 and Gen 16 Dell PowerEdge R660, or compare the Gen 14 Dell PowerEdge R740.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: Up to 2x 2nd Gen Intel Xeon Scalable
  • Memory: 24x DDR4 DIMM slots, up to 3TB
  • Memory Speed: Up to 2933 MT/s
  • Storage: Up to 10x 2.5" or 4x 3.5"
  • Expansion: 3x PCIe Gen3 x16 slots
  • GPU Support: Up to 3x single-width (NVIDIA T4)
  • Networking: rNDC: 4x 1GbE, 4x 10GbE or 2x 25GbE
  • Management: iDRAC9
  • Cooling: Air, up to 8 hot-plug fans
  • Power: Redundant PSUs, 495W to 1600W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R640 →

Customize & Get Pricing

Configure your Dell PowerEdge R640 with the exact specs you need

Configure This Server

Dell PowerEdge R640 vs R650: Specs & Key Differences

Feature PowerEdge R640 PowerEdge R650
Processors Up to 2x 2nd Gen Intel Xeon Scalable (up to 28 cores) Up to 2x 3rd Gen Intel Xeon Scalable (up to 40 cores)
Memory 24x DDR4 DIMM slots, up to 3TB
Up to 2933 MT/s		 32x DDR4 DIMM slots, up to 8TB (LRDIMM)
Up to 3200 MT/s
PCIe 3x PCIe Gen3 x16 slots Up to 3x PCIe Gen4 slots
GPU Support Up to 3x SW (NVIDIA T4) Up to 3x 75W SW
Storage Up to 10x 2.5" (up to 10 NVMe) or 4x 3.5"
Rear 2x 2.5"		 Up to 10x 2.5" or 4x 3.5"
Rear 2x 2.5"
Networking rNDC: 4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE or 2x 25GbE 2x 1GbE LOM + 1x OCP 3.0
Management iDRAC9 iDRAC9
Cooling Air Air or optional processor DLC
Power 495W to 1600W 800W to 1400W
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

Dell's spec sheet lists up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor. Tell us your core count and clock speed needs and we will configure the R640 to match.

It has 24 DDR4 DIMM slots supporting RDIMM and LRDIMM at up to 2933 MT/s, for up to 3TB. Up to 12 slots can hold NVDIMMs (192GB max) or Intel Optane persistent memory (6.14TB max, or 7.68TB with PMem plus LRDIMM). Only registered ECC DDR4 DIMMs are supported.

Front options are up to 10x 2.5-inch SAS/SATA drives with up to 8 NVMe SSDs, up to 10x NVMe drives, or up to 4x 3.5-inch SAS/SATA drives. Up to two rear 2.5-inch drives can be added, and BOSS provides mirrored M.2 boot. Please specify your capacity needs when you submit your quote configuration.

Yes. It supports up to three single-width GPUs, such as the NVIDIA T4, or up to one FPGA, in its three PCIe Gen3 x16 slots.

The R650 moves from 2nd Gen to 3rd Gen Xeon Scalable processors (up to 40 cores vs 28), from 24 to 32 DIMM slots at 3200 MT/s, from PCIe Gen3 to Gen4, and from rNDC networking to 2x 1GbE LOM plus OCP 3.0, and adds optional processor liquid cooling. The R640 remains a cost-effective 1U option with the same 10x 2.5-inch or 4x 3.5-inch front bays.
