Quick Specs
- Type: System Board / Motherboard
- Form Factor: 2U Rack Server
- Processor Support: Up to 2x Intel Xeon E5-2600 v3/v4 (max 22 cores per CPU)
- Memory Support: 24 DDR4 ECC RDIMM/LRDIMM slots, up to 3TB at 2400MHz
- Storage Options: Up to 8x 3.5", 8x 2.5", or 16x 2.5" SAS/SATA drives (no Express Flash support)
- RAID Controller Support: S130, H330, H730, H730P, H830, 12Gbps SAS HBA
- Embedded NIC: 4 x 1GbE or 2 x 10+2GbE or 4 x 10GbE NDC
- Remote Management: iDRAC8 Express with Lifecycle Controller
- PCIe Slots: Up to 7 x PCIe Gen 3.0 + dedicated PERC slot
- GPU Support: 2 x 300W (double-wide) or 4 x 150W (single-wide)
Part Number:
- 599V5
- 72T6D

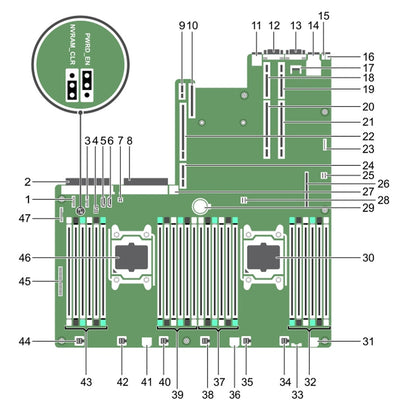

The Dell PowerEdge R730/XD System Board | 599V5 powers one of Dell’s most versatile and high-performance 2U rack servers. With dual Intel Xeon E5-2600 v3 or v4 processors and up to 3TB of DDR4 memory across 24 DIMM slots, it’s built for heavy-duty virtualization, databases, and enterprise workloads.
Designed for flexibility and scale, it supports a wide range of storage layouts, powerful RAID controllers, and multiple GPU options. Integrated iDRAC8 with Lifecycle Controller ensures full-featured remote management, while its robust PCIe layout supports both full- and half-height expansion cards for maximum adaptability.
Compatible With:
- Dell R730
- Dell R730xd
(Click to View)
