R750 Riser Config 7
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Riser Config Specs
| Config No. | Expansion card risers | PCIe Slots | Controlling Processor | PERC type supported | Rear storage possible | Height | Length | Slot width |
|---|---|---|---|---|---|---|---|---|
| Config7. 2x FH, 2x LP and R1 R3 paddle cards |

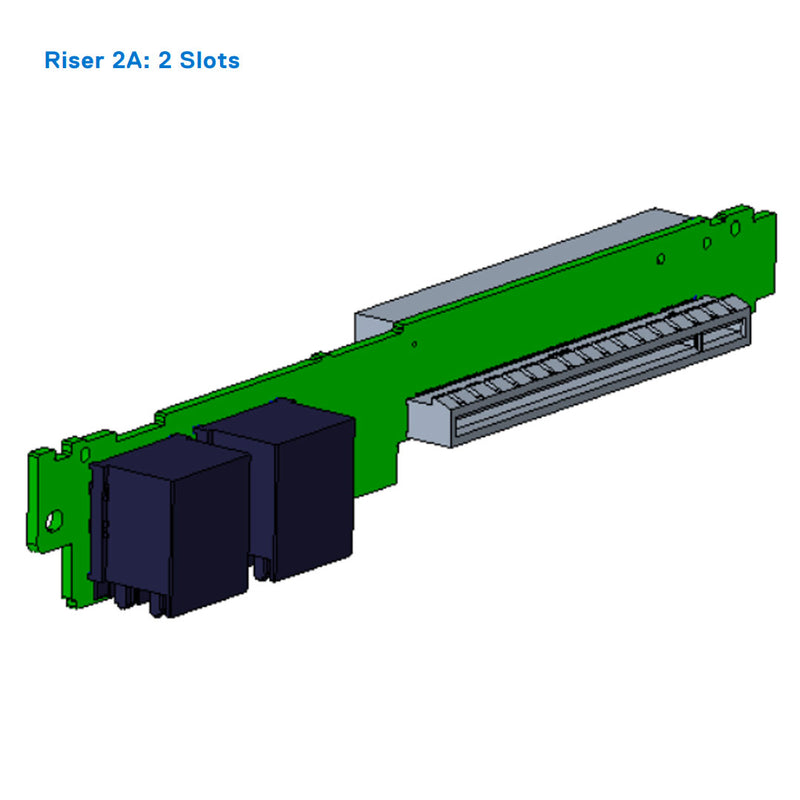

R2a | 3 and 6 | Processor 1 and 2 | No | No | Low profile | Half length | x16 + x16 |

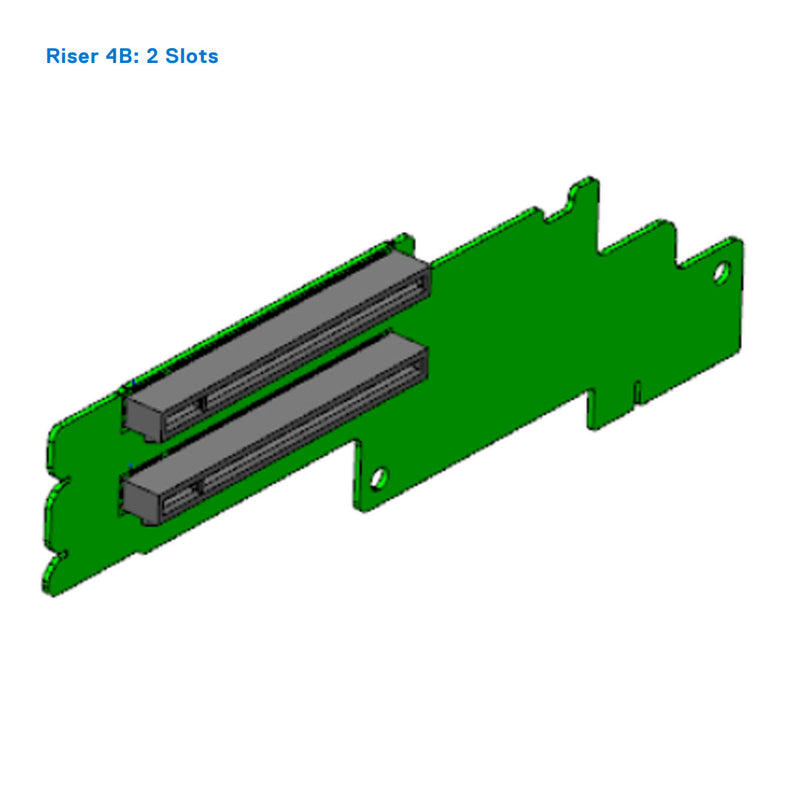

| R4b | 7 and 8 | Processor 2 | No | No | Full height | Half length | x8 + x8 | |

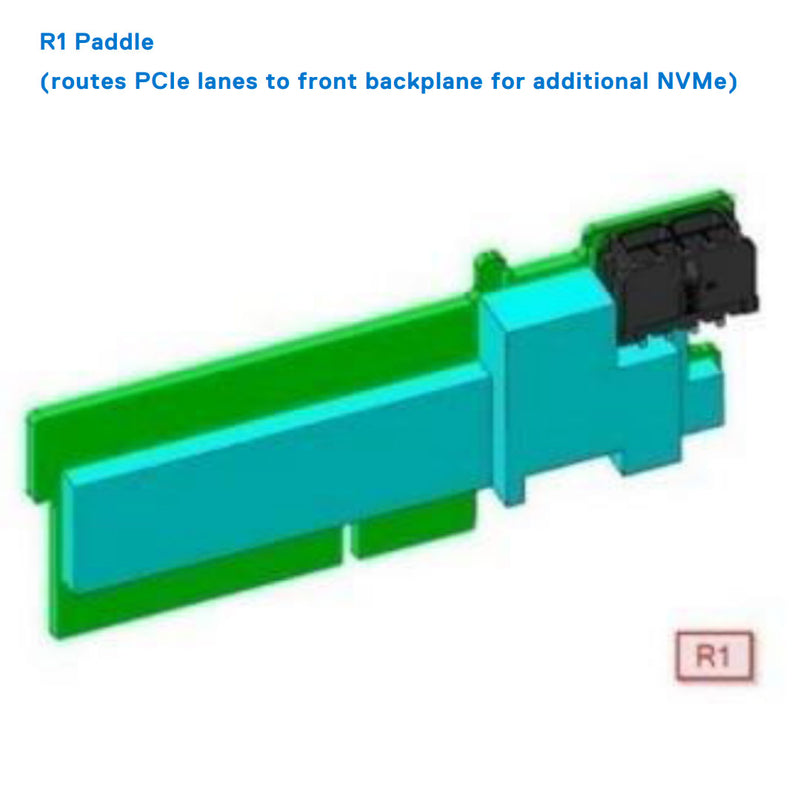

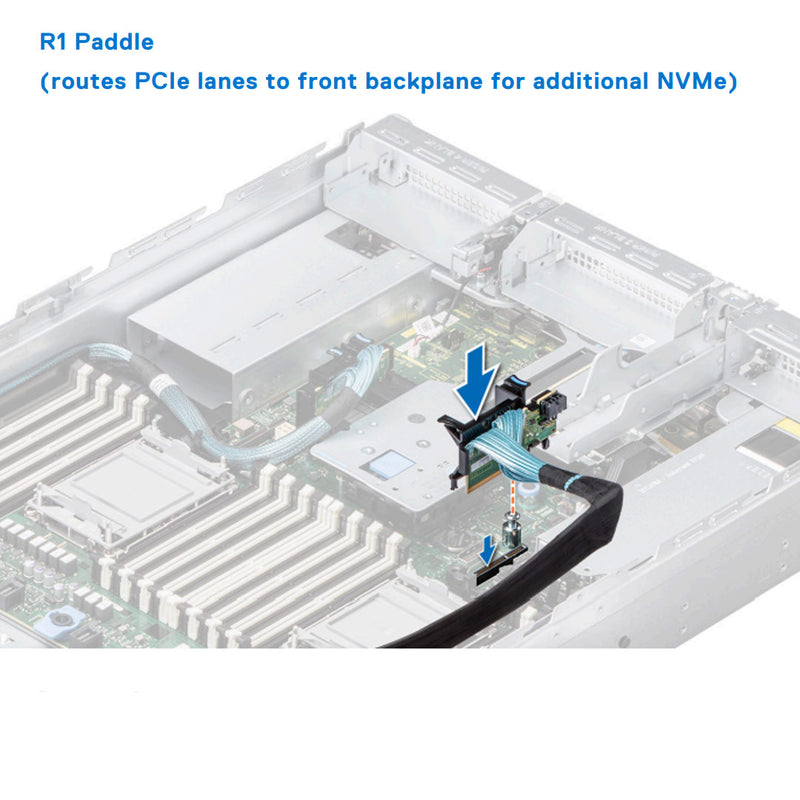

| R1-Paddle for XA cable | NA | NA | No | No | NA | NA | NA | |

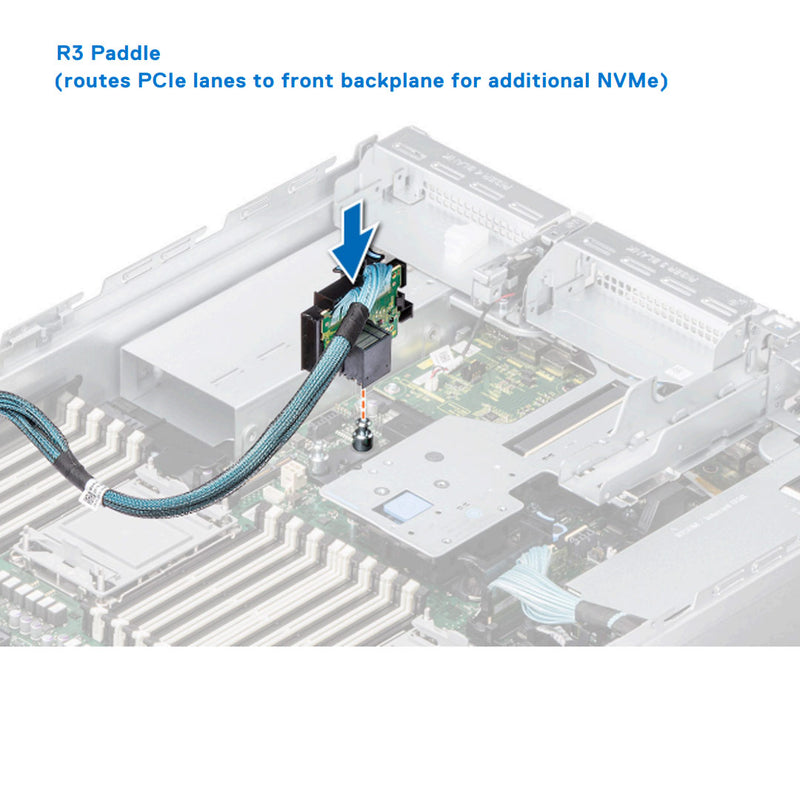

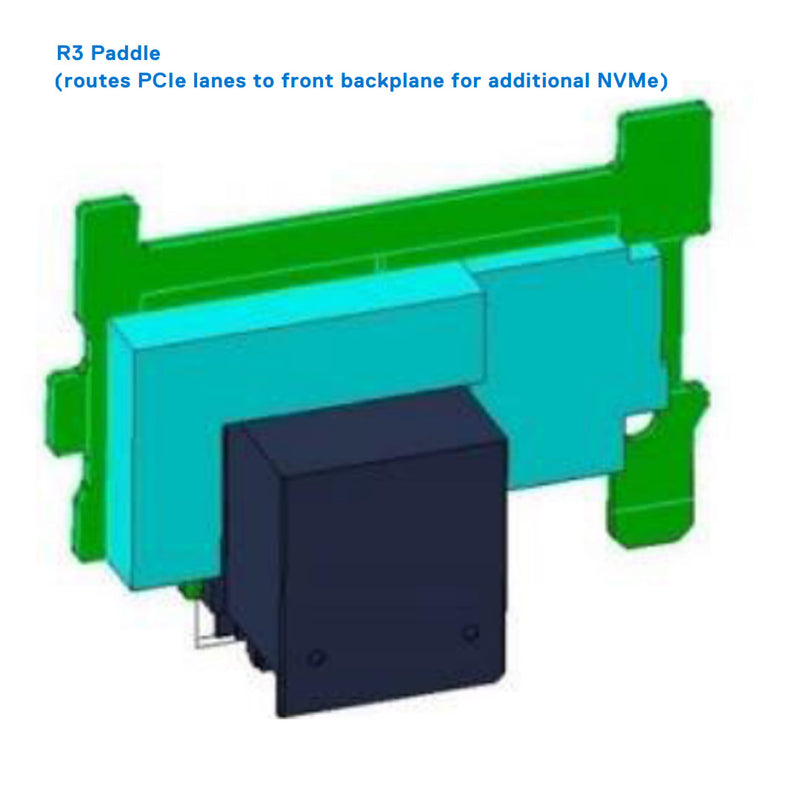

| R3-Paddle for XA cable | NA | NA | No | No | NA | NA | NA | |
| NOTE: R1 and R3 paddle cards are supported on 16 x 2.5-inch NVMe direct-attach configuration only. | ||||||||
Compatible With:
- Dell R750
