R750 Riser Config 6
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Riser Config Specs
| Config No. | Expansion card risers | PCIe Slots | Controlling Processor | PERC type supported | Rear storage possible | Height | Length | Slot width |
|---|---|---|---|---|---|---|---|---|
| Config6. 4x FH and 2x LP |

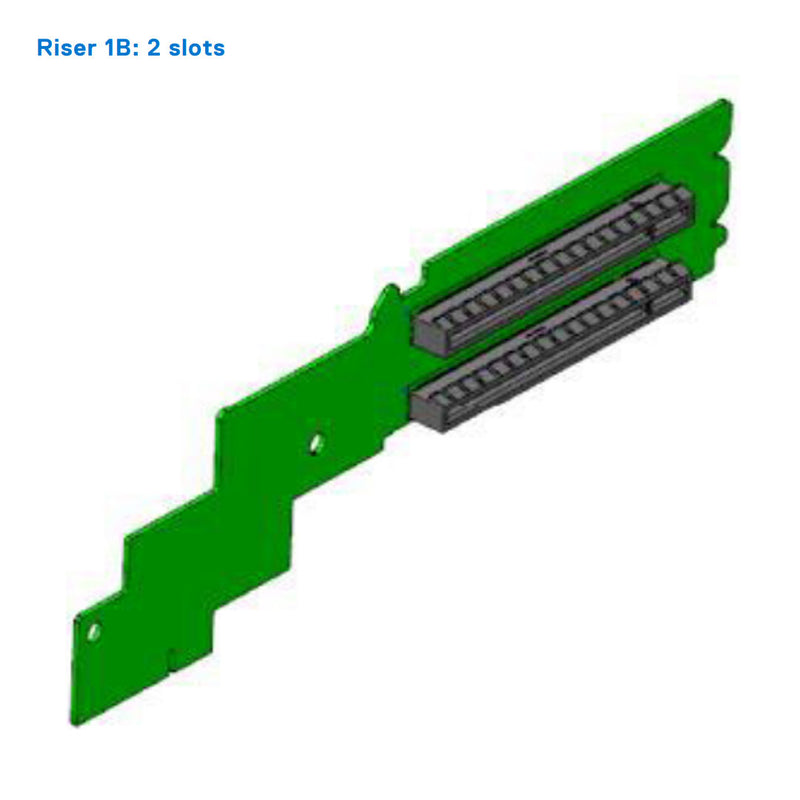

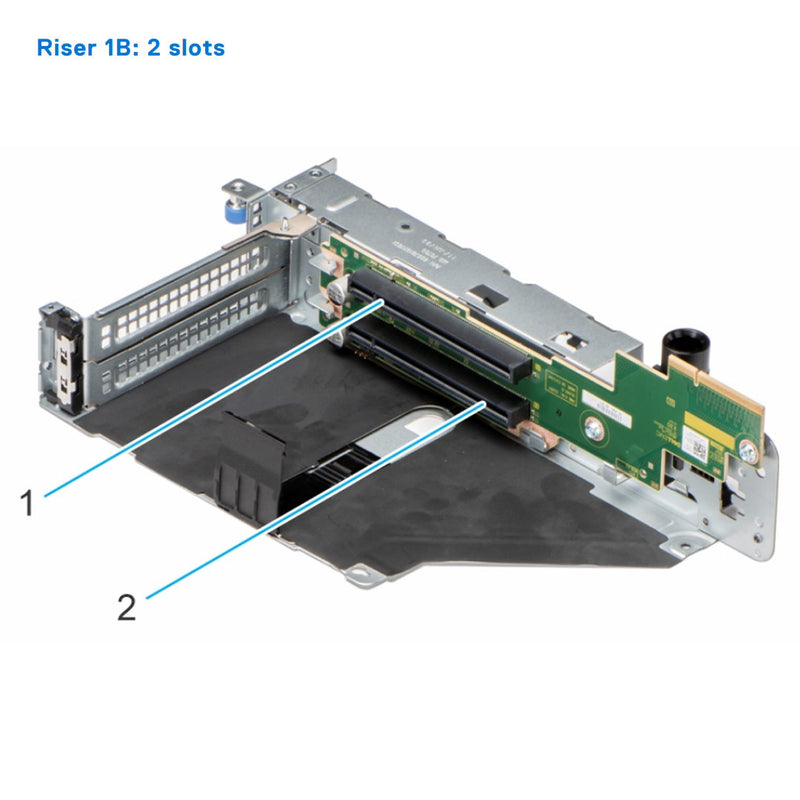

R1b | 1 and 2 | Processor 1 | fPERC / Adapter | Yes | Full height | Half length | x8 + x8 |

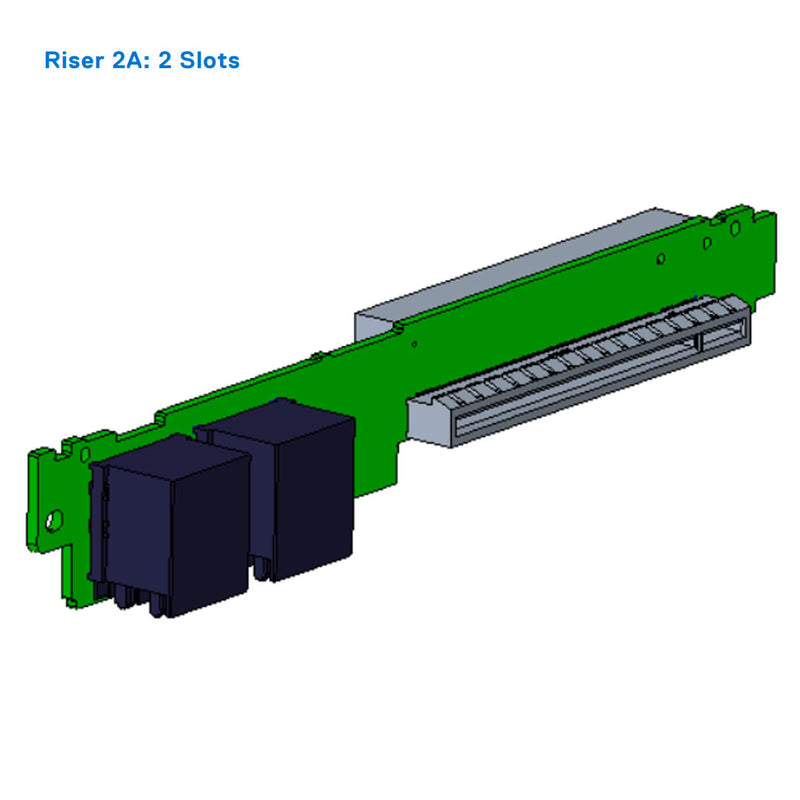

| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | Yes | Low profile | Half length | x16 + x16 | |

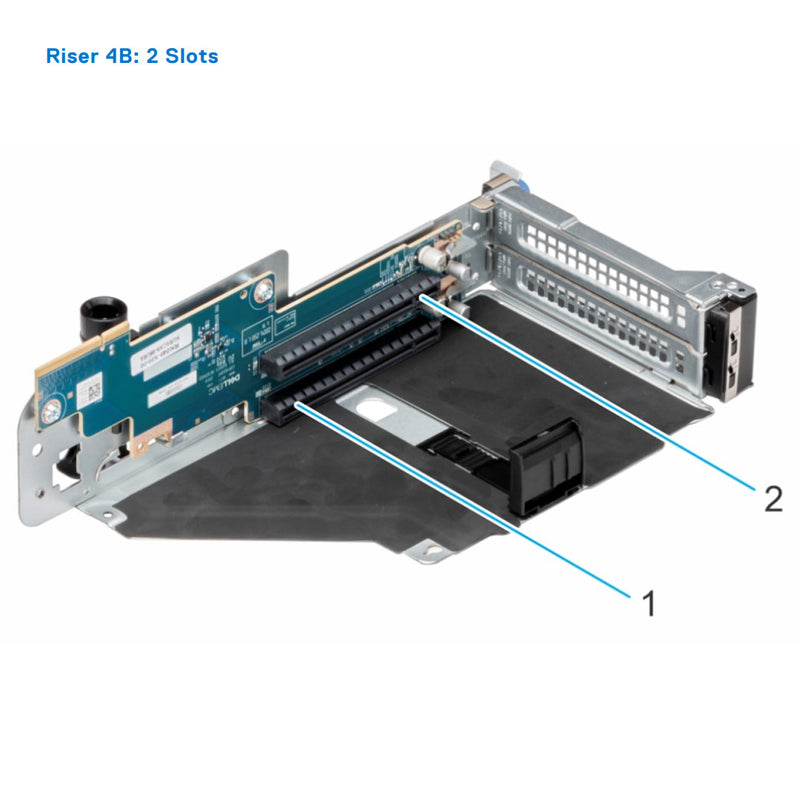

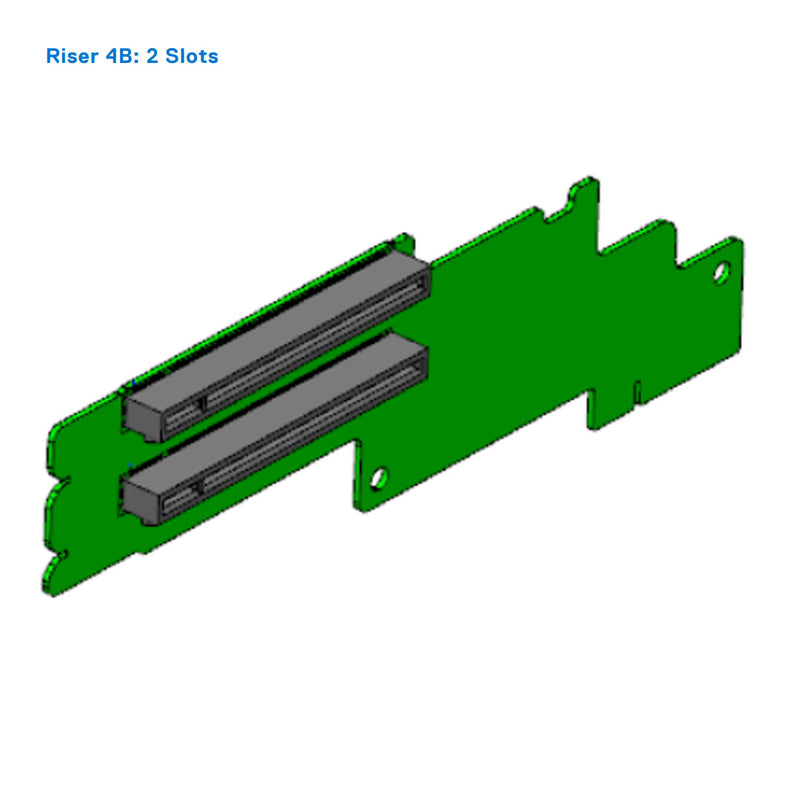

| R4b | 7 and 8 | Processor 2 | fPERC / Adapter | Yes | Full height | Half length | x8 + x8 |
Compatible With:
- Dell R750
(Click to View)
