Specs
Quick Specs
Half Height 10U/16N M1000e | 10U/4N VRTX
Processor | Max: 44 Cores2 x Intel Xeon E5-2600v4
Memory | Max: 1.5TB24 DDR4 RDIMM 2400Mhz
Boot Options:IDSDM
Internal USB
vFlash with iDRAC8 Enterprise
4x 1.8" SFF SAS/SATA/NVMe
Storage Controllers PERC S130 (SW RAID)
PERC H330, PERC H730P, and PERC H730
1 LOM, 2 Mezzanine Slots
GPU:None
Ideal for:
- High-Performance Computing (HPC)
This is one of the supported Blade servers, each Modular Enclosure is a separate CTO you must configure.
Dell M1000e Blade Architecture
- Dell PowerEdge M1000e CTO Blade Enclosure
- Dell PowerEdge M420 CTO Blade Server
- Dell PowerEdge M520 CTO Blade Server
- Dell PowerEdge M620 CTO Blade Server
- Dell PowerEdge M630 CTO Blade Server
- Dell PowerEdge M640 CTO Blade Server
- Dell PowerEdge M710 CTO Blade Server
- Dell PowerEdge M710HD CTO Blade Server
- Dell PowerEdge M820 CTO Blade Server
- Dell PowerEdge M830 CTO Blade Server
Dell VRTX Blade Architecture

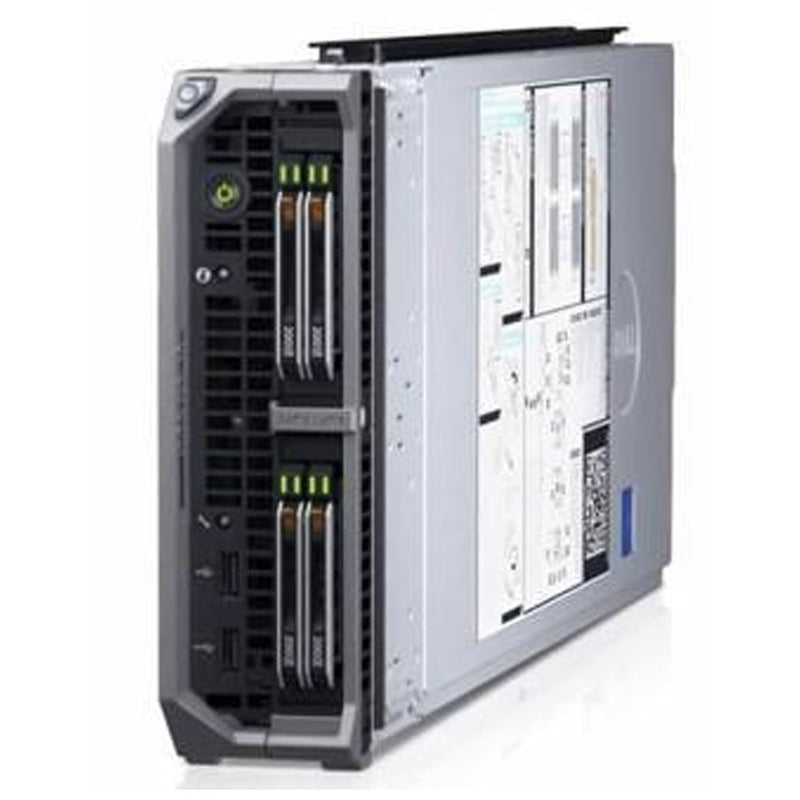

Deliver the compute power your demanding applications require with the flexible PowerEdge M630 blade server, a member of the 13th generation of PowerEdge servers. Designed for the PowerEdge M1000e blade server chassis and the PowerEdge VRTX modular infrastructure, the M630 offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities

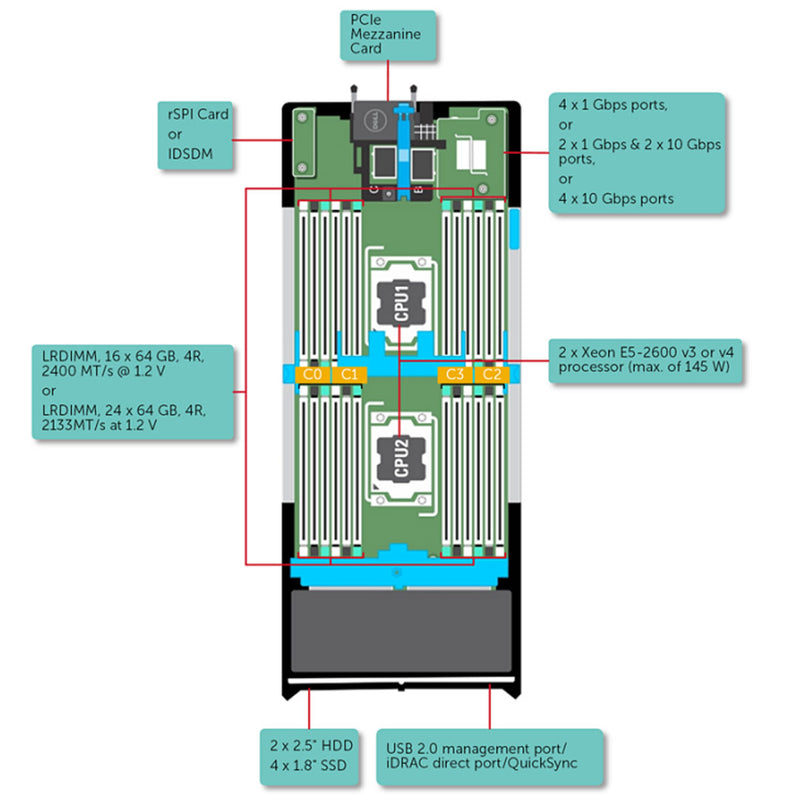

| TECHNICAL SPECIFICATIONS FOR DELL POWEREDGE M630 BLADE SERVER | |
|---|---|
| Form Factor; Enclosure | Half-Height Blade with up to 16 nodes in a 10U M1000e Chassis Up to four nodes in a VRTX chassis |
| Processors | Intel® Xeon® E5-2600 v4 Series Processors |
| Processor Sockets | 2 |
| Cache | 2.5MB per core Core Options: 4, 6, 8, 10, 12, 16, 18, 20, 22 |
| Dimensions | Height: 7.79" Width: 1.98" Depth: 22.2" |
| Memory | Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
| Chipset | Intel C610 |

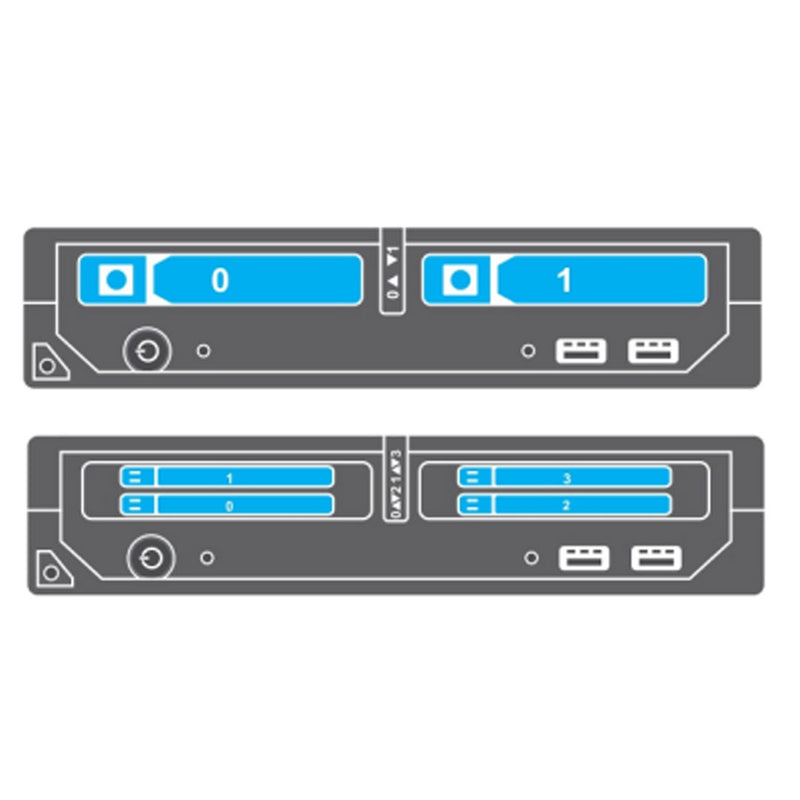

| Primary Storage | Hot-plug Hard Drive Options: PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 4 x 1.8" SSD 2 x 2.5" PCIe SSD |
| RAID Controller Options | Internal: PERC S130 (software RAID) PERC H330 PERC H730 PERC H730p |
| Optional Adapters | Broadcom® 5719 Dual and Quad-Port 1Gb NIC Broadcom® 57810 Dual-Port 10Gb DA/SFP+ CNA Broadcom® 57810 Dual-Port 10Gb Base-T Network Adapter Intel Ethernet I350 Dual and Quad-Port 1Gb Server Adapter Intel Ethernet X540 Dual-Port 10GBASE-T server adapter Mellanox® ConnectX®-3 Dual-Port 10Gb Direct Attach/SFP+ Server Network Adapter Mellanox® ConnectX®-3 Dual-Port 40Gb Direct Emulex LPe16000B, Single and Dual-Port 16Gb Fibre Channel HBA Emulex LPe16002B, 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D Dual-Port PCIe 10GbE CNA QLogic® 2560 Single-Port 8Gb Optical Fibre Channel HBA QLogic® 2562 Dual-Port 8Gb Optical Fibre Channel HBA QLogic® 2660 Single-Port 16Gb Fibre Channel HBA, Full Height QLogic® 2662 Dual-Port 16Gb Fibre Channel HBA, Full Height |
| I/O Mezzanine Cards | 2 x PCIe 3.0 (x8) mezzanine cards |
| Power Supplies and Fans | Supplied by M1000e Blade Enclosure or VRTX M1000e: 2700W Platinum or 3000W Titanium PSU Options needed |
| Remote Management | iDRAC8 with Lifecycle Controller iDRAC8 Express (default) iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade) 16GB vFlash media (upgrade) |
| Systems Management | IPMI 2.0 Compliant Dell OpenManage™ Essentials Dell OpenManage Power Center Dell OpenManage Mobile Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management Dell OpenManage Plug-in for Oracle® Database Manager Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft System Center Dell OpenManage Integration for VMware® vCenter |
| Operating Systems | Microsoft® Windows Server® 2008 R2 Microsoft® Windows Server 2012 Microsoft Windows Serer 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux VMware® ESX® |
