Specs
Quick Specs
1U rack server
Processor | Max Cores: 40 Cores2x 3rd Gen Intel Xeon Scalable
Memory | Max: RDIMM 1TB | LRDIMM 2TB16 DDR4 RDIMM/LRDIMM 3200Mhz
Boot:BOSS-S1
IDSDM
S150 (SW RAID)
PERC H345, H350, H355, H745, H750, HBA345, HBA355i
- 6 NVMe on the 24 Bay NVMe
- 2 NVMe + 4 Drives on the NVMe Universal
- 6 Drives on the 24 Bay Direct
- 3 Drives on the 12 Bay
None
LOM:1 x 1 GbE LOM riser
OCP:1 x OCP 3.0 x16 Gen4
iDRAC:BMC with Virtual Media and Console (default)
PCIe Slots:Up to 4 x PCIe Gen4 slots (3 x16, 1 x8) with support for SNAP I/O modules
GPU:Low-profile (Half-height) 70 W GPU
- Dell PowerEdge C6400
- --------------------------------
- Dell PowerEdge C6420
- Dell PowerEdge C6520
- Dell PowerEdge C6525
Ideal for:
- Data Analytics
- High-Performance Computing (HPC)
This is just 1 out of 3 Node servers supported.
The C6400 Enclosure Server must be configured separately.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge C6520, powered by the 3rd Generation Intel® Xeon® Scalable processors, is the ideal compute-dense server designed to support dynamic compute-at-scale business requirements in a dense form factor. The PowerEdge C6520 maximizes performance per U by supporting 4 dual-socket compute nodes in a 2U chassis with Air and Direct Liquid Cooling options to power the highest-performing processors. It supports 8 memory channels/CPU, up to 16 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge C6520 supports PCIe Gen 4 and up to 6 NVMe drives per node. This makes the PowerEdge C6520 an ideal server for hyper scale compute workloads requiring high scalability and high performance such as High-Performance Computing (HPC), high-performance data analytics (HPDA), financial modeling and high-frequency trading(HFT), Web Tech and XaaS Service Providers.
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business.
- Optional built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with VMware, Microsoft, ServiceNow, Ansible and many other tools
The Dell EMC PowerEdge C6520 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specification | |
|---|---|---|

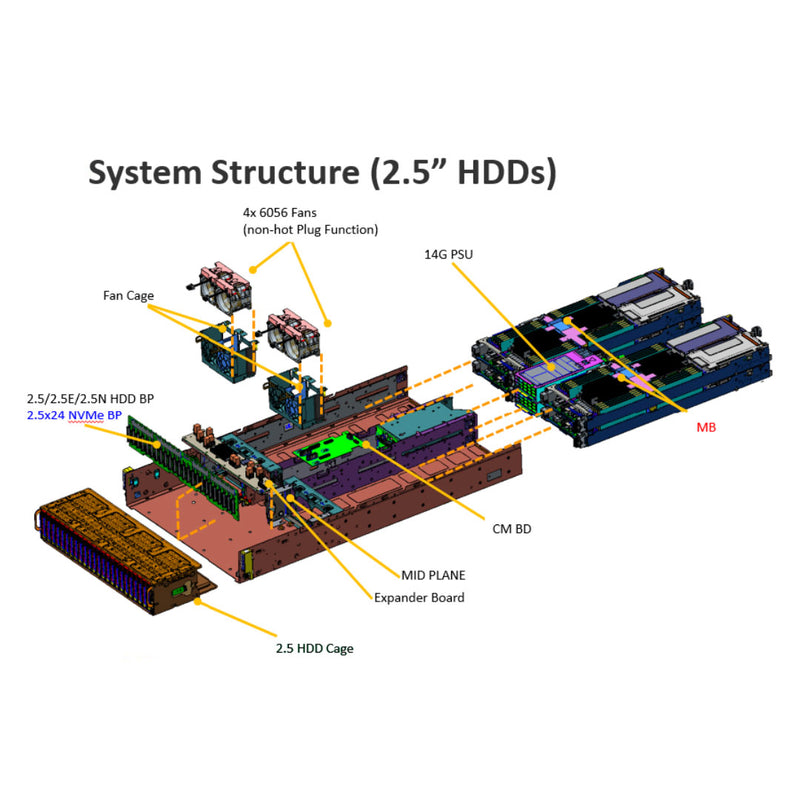

| Chassis | Dell EMC PowerEdge C6400 chassis | |

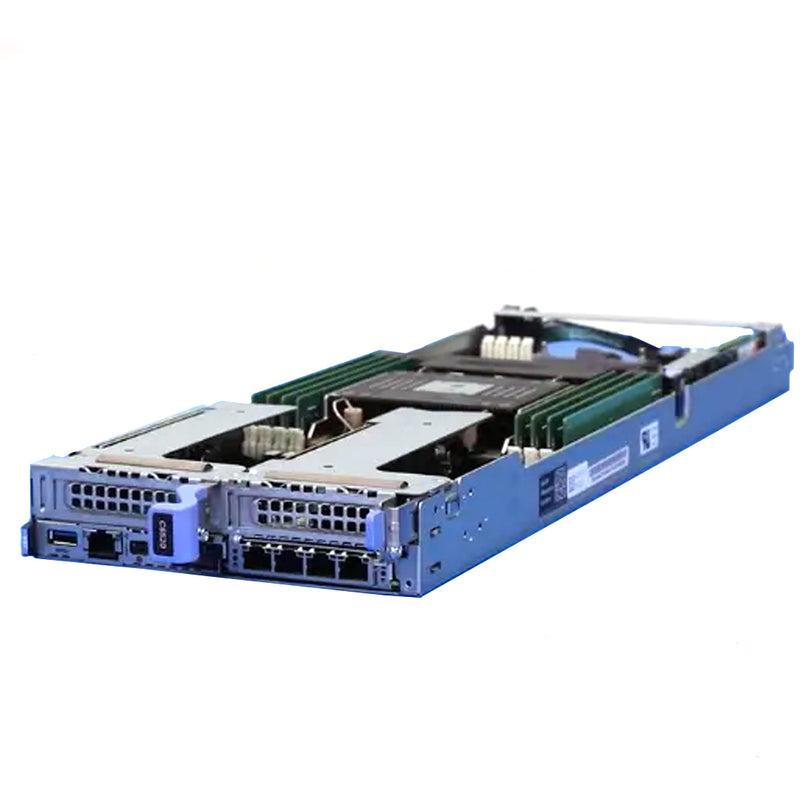

| Nodes | 4 hot-swappable dual-socket compute nodes in a 2U chassis | C6520 | |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors per node, with up to 40 cores per processor | |
| Memory |
| |
| Availability | Hot-plug redundant drives and PSUs | |
| Controllers |
| |
| Drive bays | Front bays:
| |
| Power supplies | Dual hot-plug redundant 100 - 240 V AC Platinum (2600 W, 2400 W, 2000 W, 1600 W) , 200 - 240 V AC Titanium (2600 W, 1600 W) Power supply units | |
| Cooling options | Air cooling, optional processor liquid cooling | |
| Fans | Non-Hot plug fans | |
| Dimensions | Height: 86.36 mm (3.4 inches) Width: 447.04 mm (17.6 inches) Depth: 802.64 mm (31.6 inches) | Weight: 45.6 kg (100.53 lb) for 12 x 3.5-inch direct backplane chassis 41.4 kg (91.27 lb) for 24 x 2.5-inch direct/NVMe backplane chassis 35 kg (77.16 lb) for system with no backplane |
| Sled height (U) | 1U | |
| Embedded/At-the-Server |
| |
| Consoles |
| |
| Mobility | OpenManage Mobile | |
| Integrations and Connections | OpenManage Integrations
| OpenManage Connections
|
| Integrated Security |
| |
| Embedded NIC | 1 x 1 GbE LOM riser | |
| Network cards | 1 x OCP 3.0 x16 Gen4 (for network controller) | |
| GPU options | Low-profile (Half-height) 70 W GPU | |

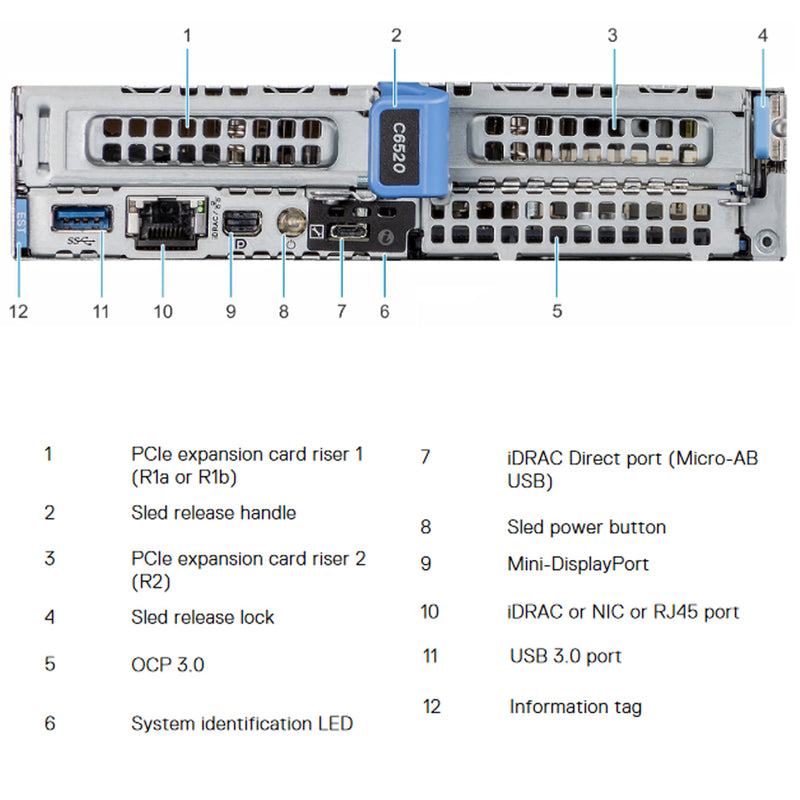

| Rear Ports |
| |
| PCIe | Up to 4 x PCIe Gen4 slots (3 x16, 1 x8) with support for SNAP I/O modules | |
| Supported Operating Systems |
| |
Spec Sheet 4
| Feature | PowerEdge C6520 | PowerEdge C6420 |
|---|---|---|
| Chassis | C6400 chassis | C6400 chassis |
| Processor | Up to two 3rd Generation Intel® Xeon® Processor Scalable family | Up to two 2nd Generation Intel® Xeon® Processor Scalable family |
| Air and direct contact liquid cooling. | Air and direct contact liquid cooling. | |
| Configuration restrictions apply due to thermal or power limits. | Configuration restrictions apply due to thermal or power limits. | |
| Memory | DDR4: 8 channels per processor | DDR4: 6 channels per processor |
| Up to 16x RDIMMs and LRDIMMs | Up to 12x RDIMMs and LRDIMMS | |
| Speed: up to 3200 MT/s | Speed: 2900 MT/s | |
| Storage | Backplanes: ● 24 x 2.5-inch (direct and NVMe with two universal slots) ● 24 x 2.5-inch all NVMe ● 12 x 3.5-inch ● No backplane |
Backplanes: ● 24 x 2.5-inch (direct, expander and NVMe with two universal slots) ● 12 x 3.5-inch direct ● No-backplane |
| Internal: uSD card, M.2 SATA BOSS 1.5 | No support for persistent memory | |
| Internal: uSD card, M.2 SATA BOSS 1.0 | No support for persistent memory | |
| Storage controllers | HW RAID: PERC 10: H350, H345, HBA355i, HBA345, H750 and H745 | HW RAID: PERC 9 Mini (Mini H330, H730P, HBA330) |
| Chipset: SATA | Chipset: SATA | |
| SW RAID: Yes, S150 | SW RAID: Yes, S140 | |
| I/O slots | 2 PCIe Gen4 HH/HL slots, x16 (network, storage, AIC) | 1 PCIe Gen3 HH/HL slot, x16 |
| 1 OCP3 Gen4 slot x16 | 1 x16 OCP Slot (network) | |
| - | 1 MEZZ slot x8 (storage) | |
| LOM | Single port 1 Gbe LOM (Broadcom) | Single port 1 Gbe LOM (Intel) |
| PSU | Support for 2 x 1600 W, 2000 W, 2400 W, and 2600 W | Support for 2 x 1600 W, 2000 W, and 2400 W |
| Support 1+1 with FTR | Support 1+1 with FTR | |
| Systems management | iDRAC9 with Lifecycle Controller | iDRAC9 with Lifecycle Controller |
| Accelerators | At least one GPU/FPGA/PAC (up to 75W) | NA |
| CSIL | Tier-1 + CMT approved exception countries | Tier-1 + CMT approved exception countries |
