Riser Config Specs
| Riser Configurations |
Expansion card risers |
PCIe Slots | Form factor | Controlling processor |
Slot's electrical bandwidth/ physical connector |
|---|---|---|---|---|---|
|
RC4: 1 x16 LP + 2 x16 DW + 2nd OCP |

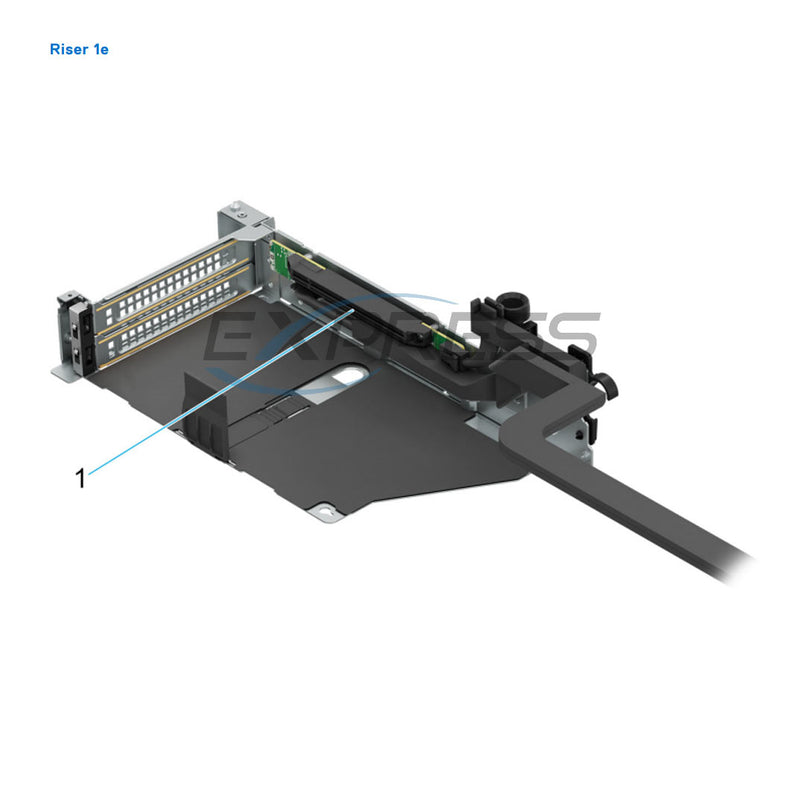

R1e_DW | 2 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) |

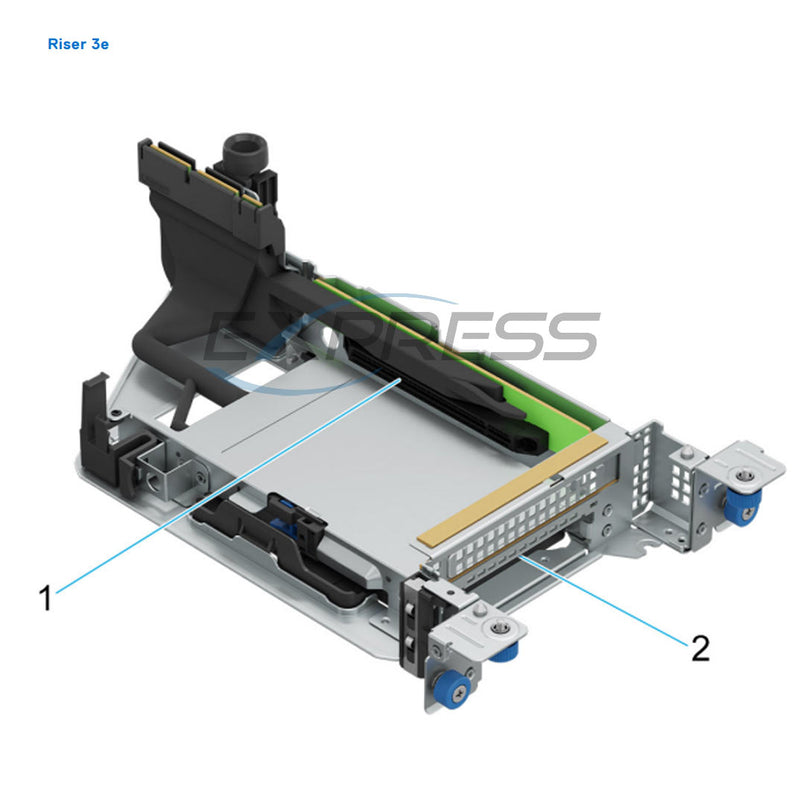

| R3e | 4 | Full height | OCP3 | PCIe Gen5 x16 (4C+ connector) | |

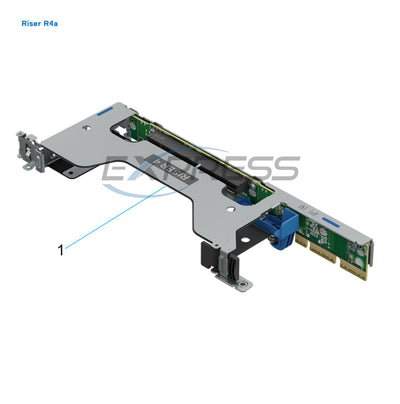

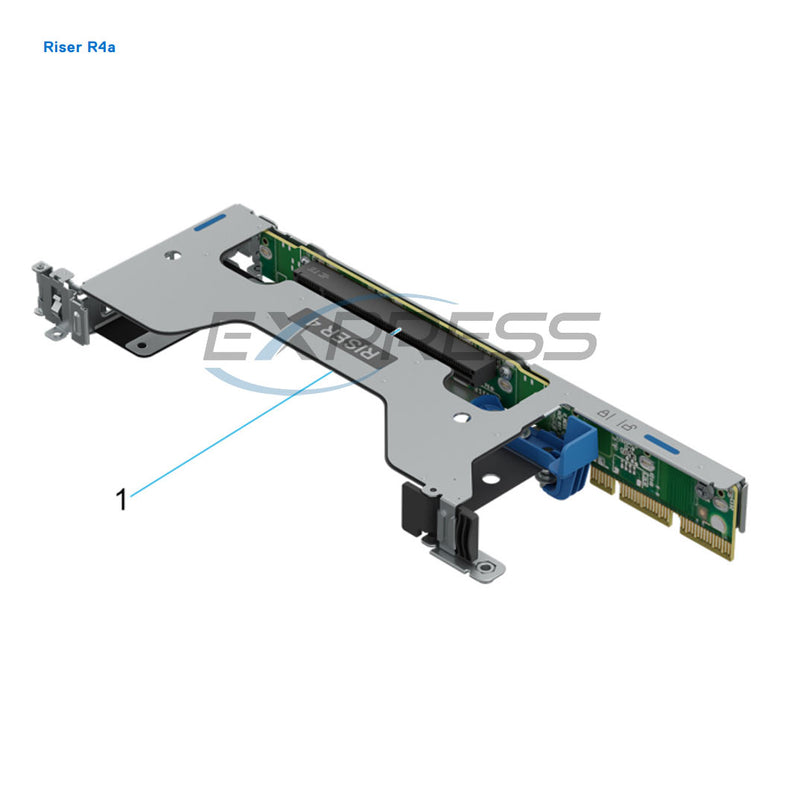

| R4a | 9 | Low profle | Processor 0 | PCIe Gen5 x16 (x16 connector) | |

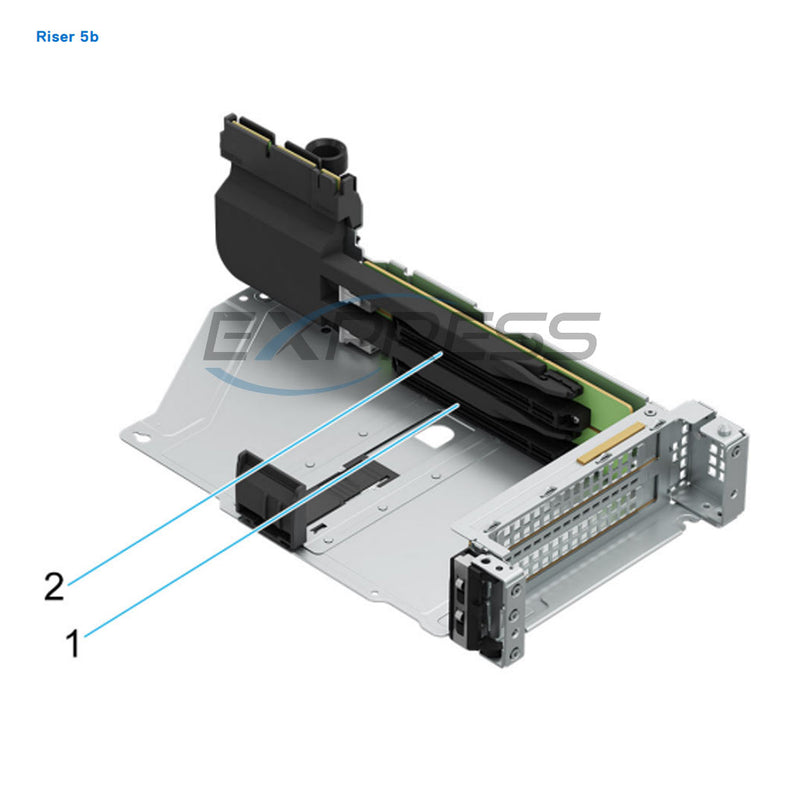

| R5b_DW | 7 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| OCP3 | 10 | OCP3 | Processor 0 | PCIe Gen5 x16 (4C+ connector) | |
| BOSS | 6 | BOSS | Processor 0 | PCIe Gen3 x4 (1C Connector) |
Compatible With:
- Dell PowerEdge R7715
