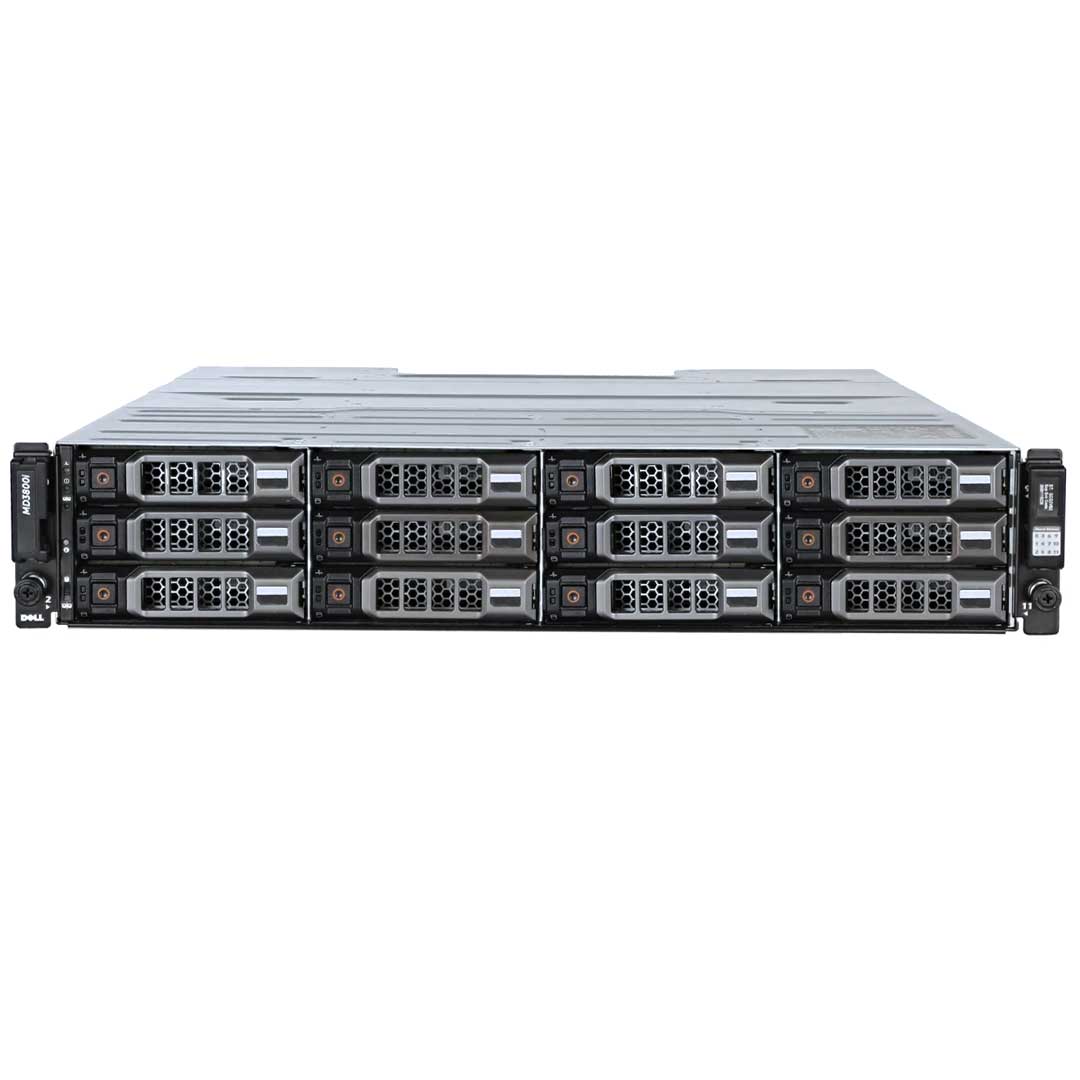

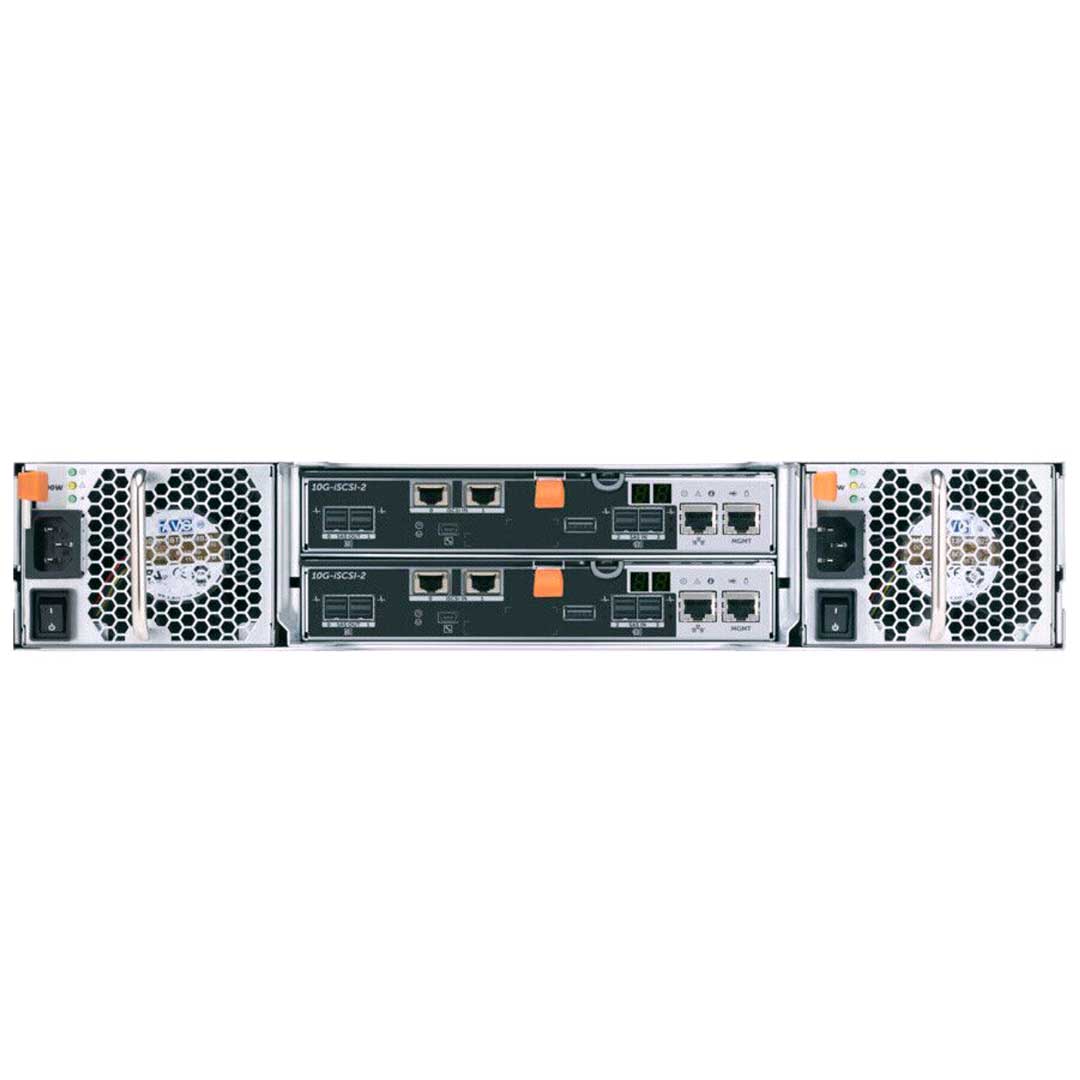

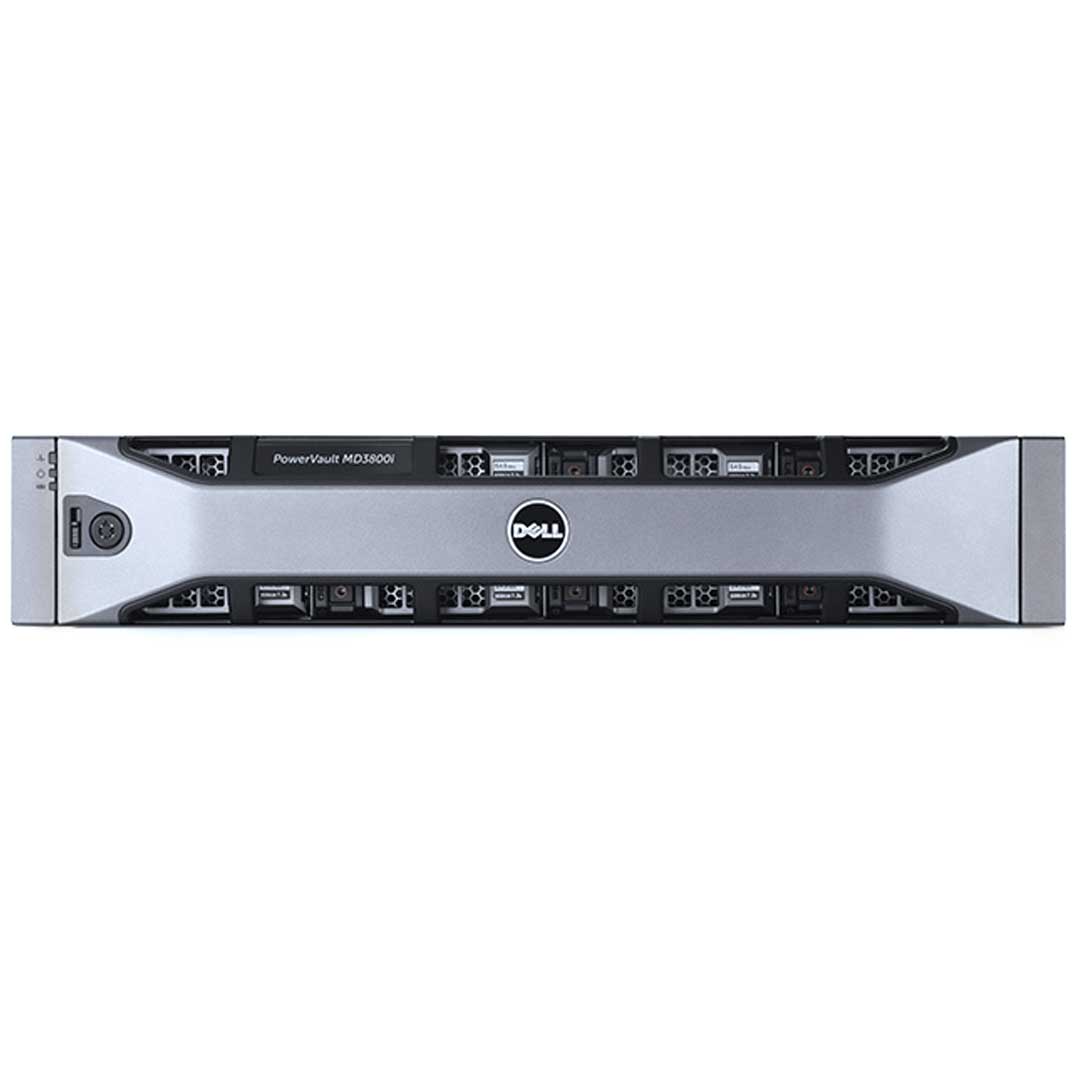

Dell PowerVault MD3800i 12x3.5" 10GBASE-T iSCSI SAN Storage Array CTO
Configure for Pricing
Quick Specs
Form Factor:
2U rack server
Storage | Max: 12012 LFF SAS, NL-SAS (HDD/SSD)
Mix and match drives:Supported

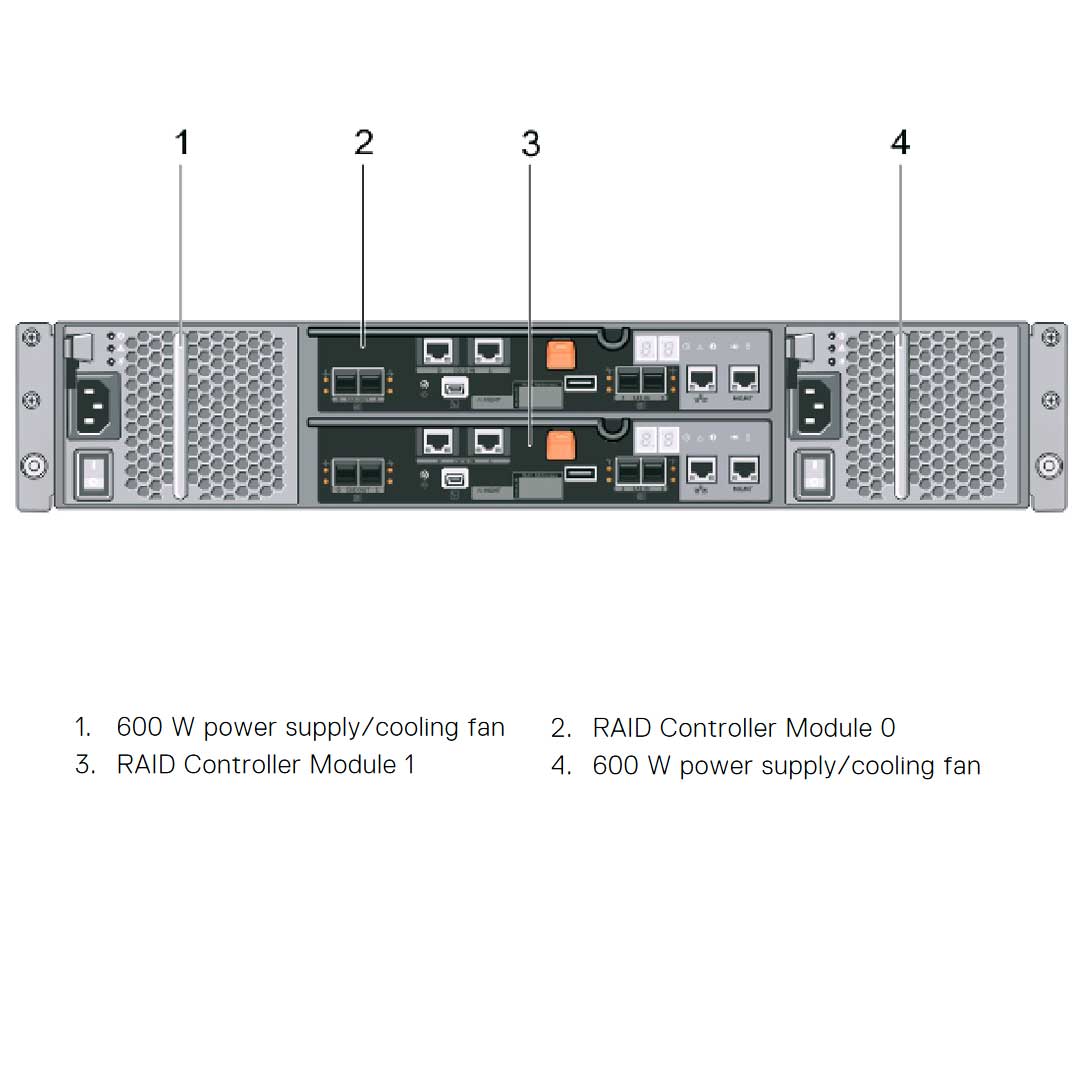

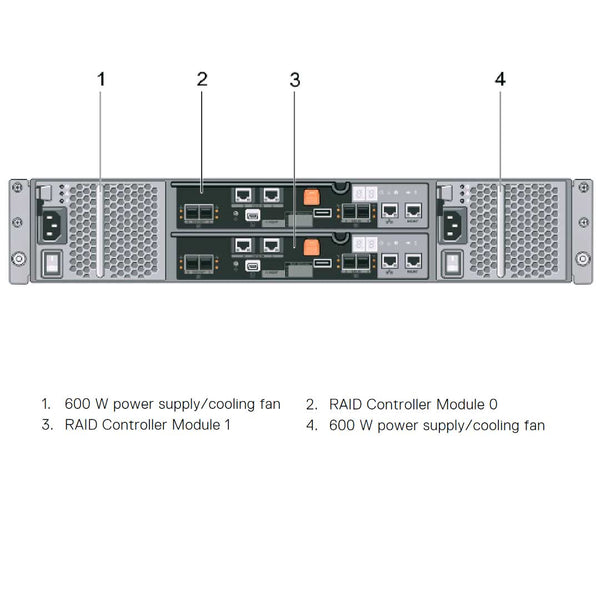

Controllers:Supports up to 2
Cache Per Controller:4GB. 8GB

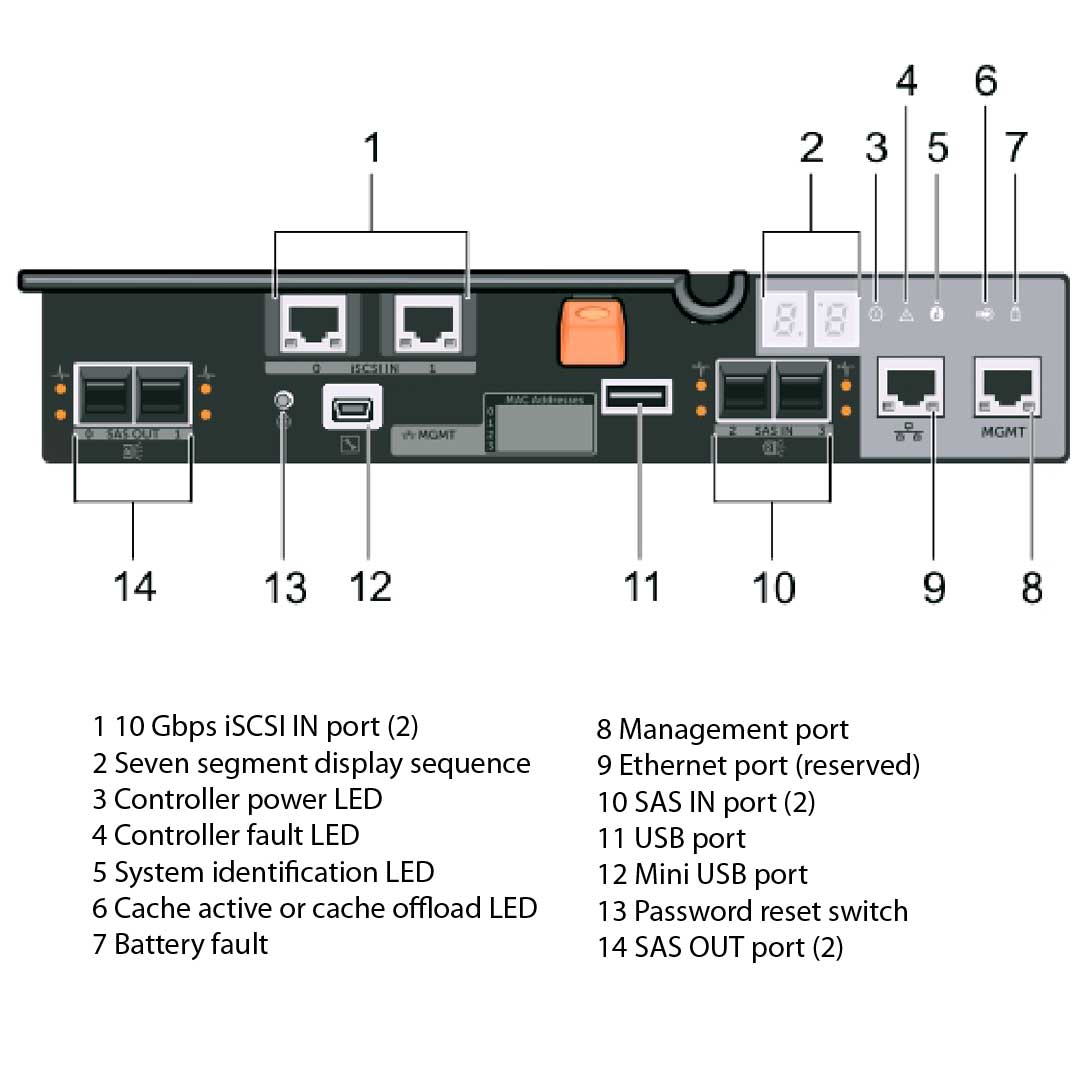

Ports Per Controller:- Two 12Gb/s SAS FC Fibre Channel &
Two 10GbE Base-T iSCSI Host Connectivity - Two 12Gb/s SAS FC Fibre Channel Expansion Enclosures
- One RJ-45 1Gb Ethernet Management
- One RJ-45 1Gb Ethernet Reserved
Host Connectivity:
Single or Dual controllers support up to 64 servers on 12-drive and 24-drive 2U arrays
Expansion Storage:Up to 120 drives using MD1200 or the MD1220 enclosures
Support for 192 physical disks is a premium feature and requires activation.
The Dell EMC PowerVault MD3800i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 12 3.5" HDD/SSD drives and up to 64 servers directly connected per controller, with a maximum of 120 drives when combined with expansion enclosures.
The Dell EMC PowerVault MD3800i and 3820i Series storage array provide 10/1000GbE Base-T connectivity to the host server. It enables access to 64 physical hosts.
Keeping pace with the latest technology

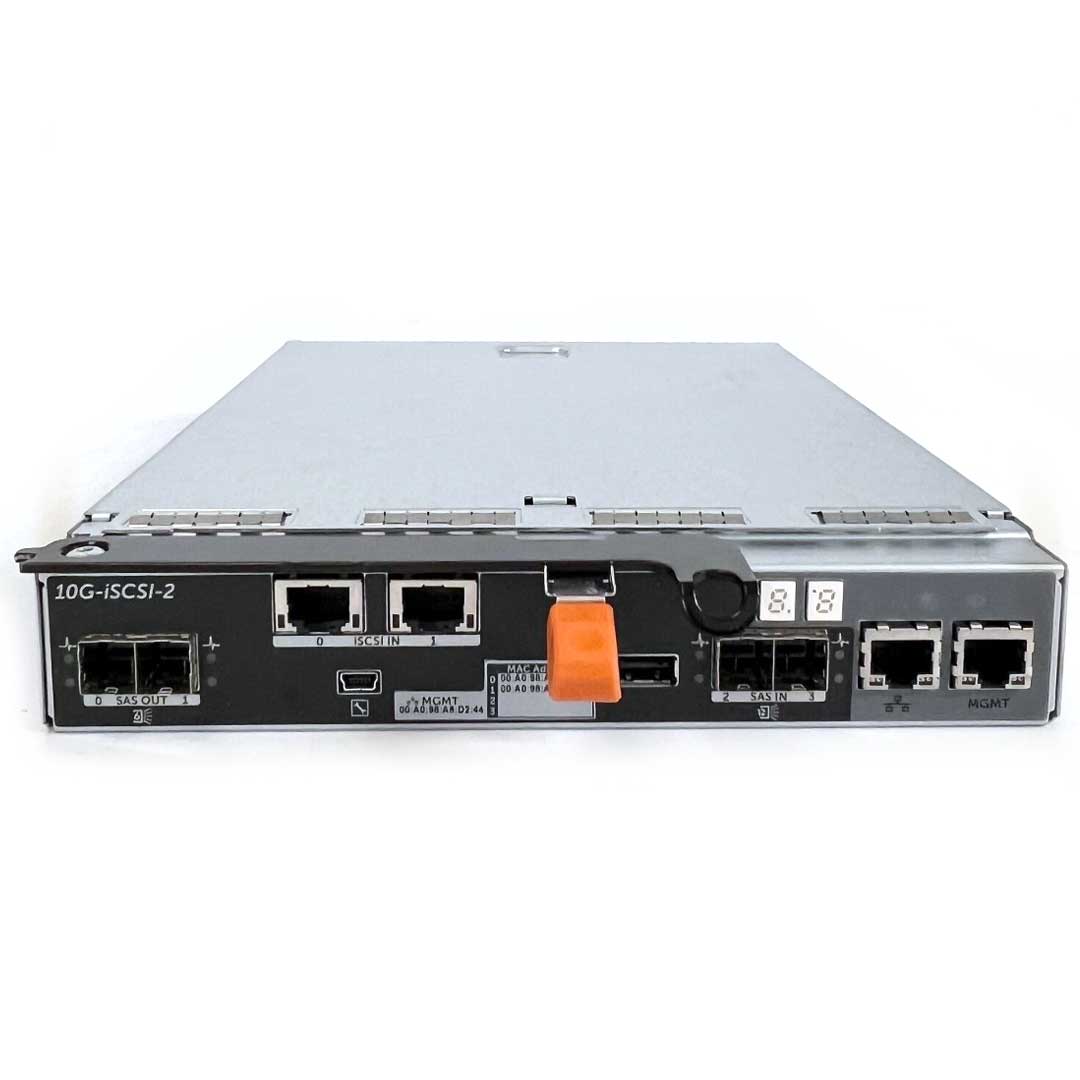

The RAID controller modules provide high-performance, advanced virtual disk configuration, and fault-tolerant disk subsystem management. Each RAID controller module contains 4GB or 8GB of mirrored cache for high availability and a battery-powered cache offload mechanism.
Versatile options your way
The MD3800i iSCSI array series offers two 10Gb Ethernet iSCSI SAN solutions that are ideal for entry-level storage consolidation in virtualized environments that require high availability and high performance. The array series supports a range of drive types, enclosures, and RAID levels all within a single array.
