Dell PowerVault MD3460 60x3.5" 12Gb SAS Storage Array CTO

Name: Dell PowerVault MD3460 60x3.5" 12Gb SAS Storage Array CTO
Brand: Dell
SKU: DPV-MD3460-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPV-MD3460-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Dell PowerVault MD3460 (60 x 3.5") Storage Array Chassis Quote

Bezel (Optional)

Dell PowerVault MD3460 4U Bezel | F4P31 Quote

Controller

Supports up to (2) Controllers
Do not Mix Caches.

Rail Kit (Optional)

Dell 4U Static Rail Kit | FNKJY Quote Dell PowerVault 4U Rail Kit Quote

Power Supplies

Must have (2) PSU.

Dell PowerVault 1755W Power Supply Unit (PSU) Quote

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

4U rack server

Storage | Max: 120 Disks

60 LFF SAS, NL-SAS, SED (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

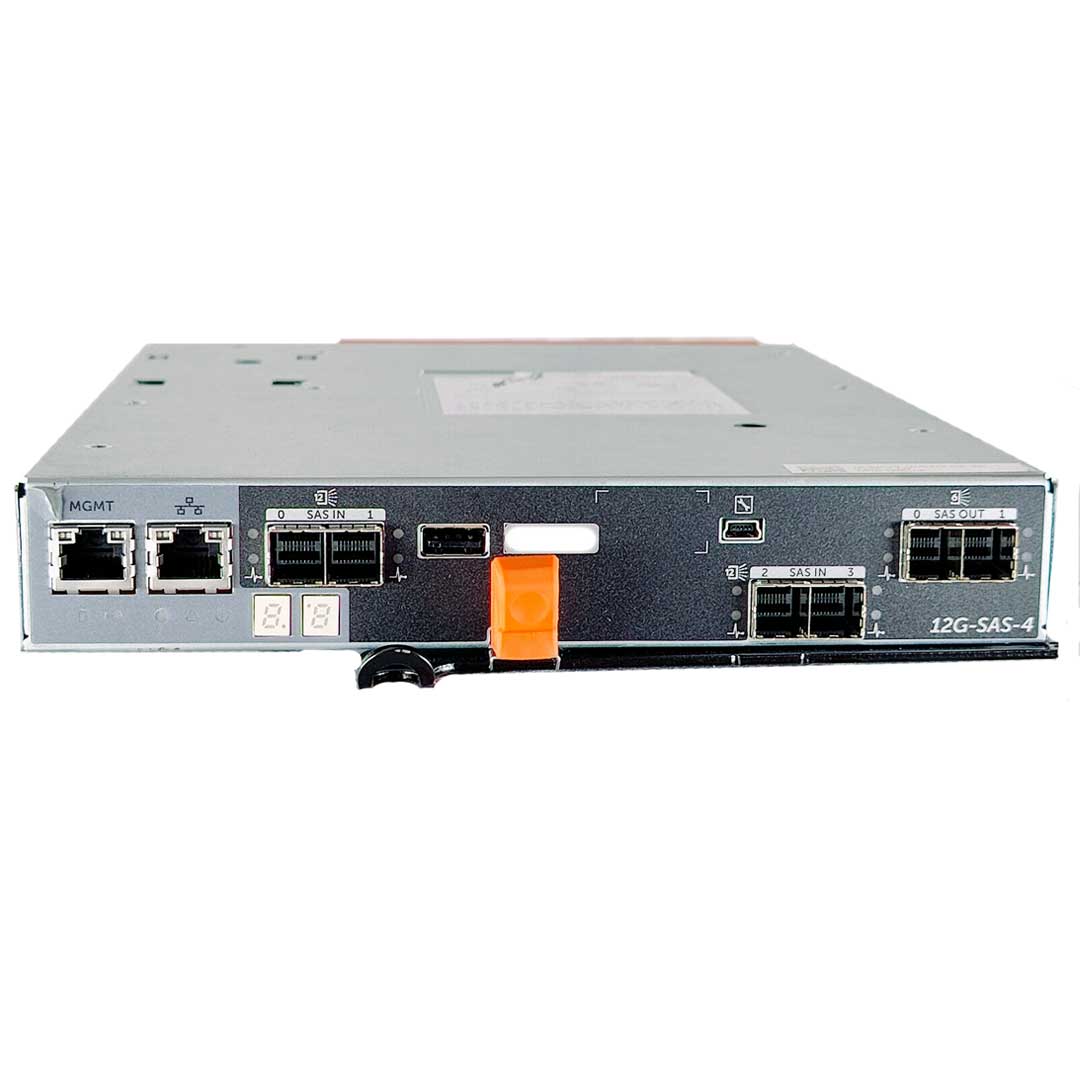

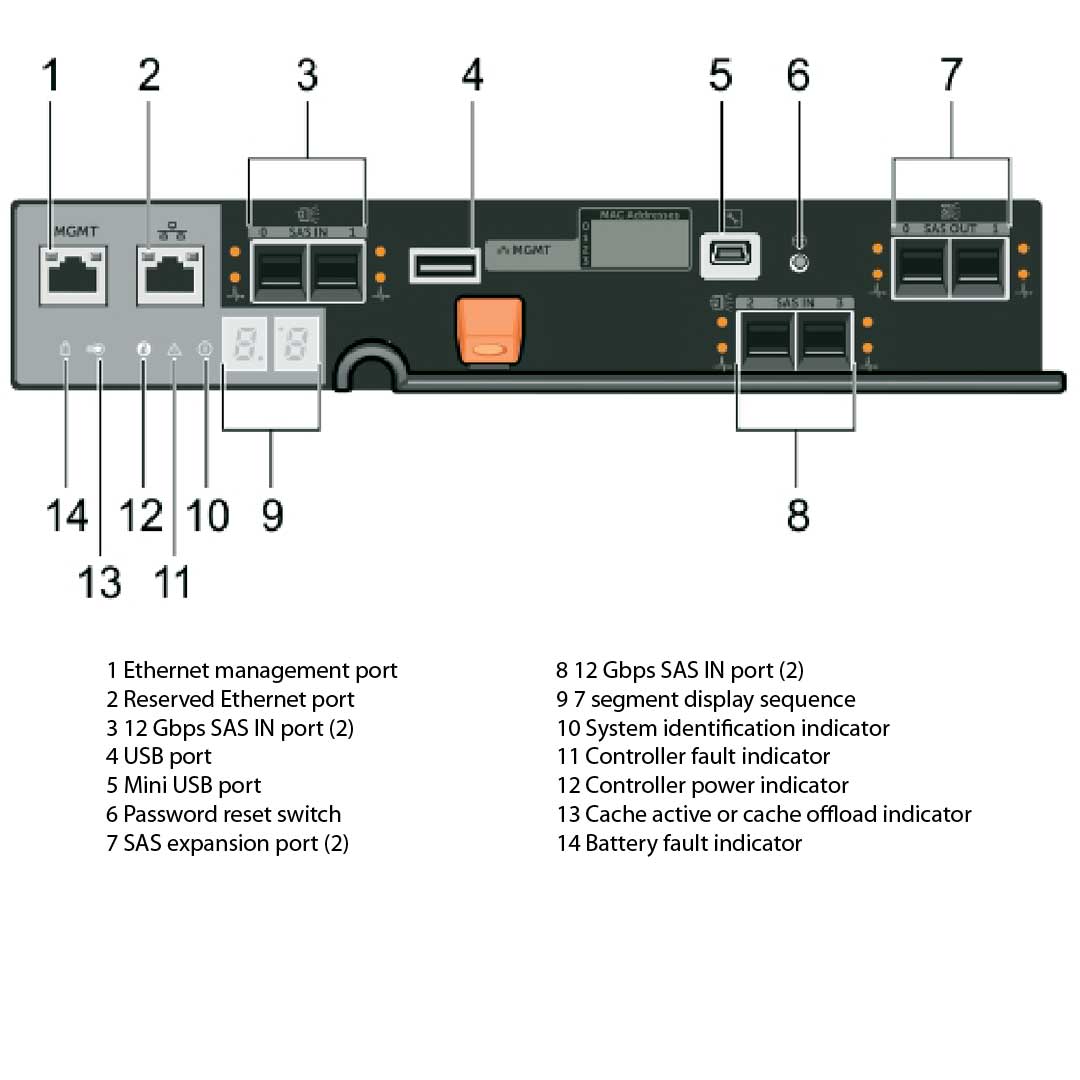

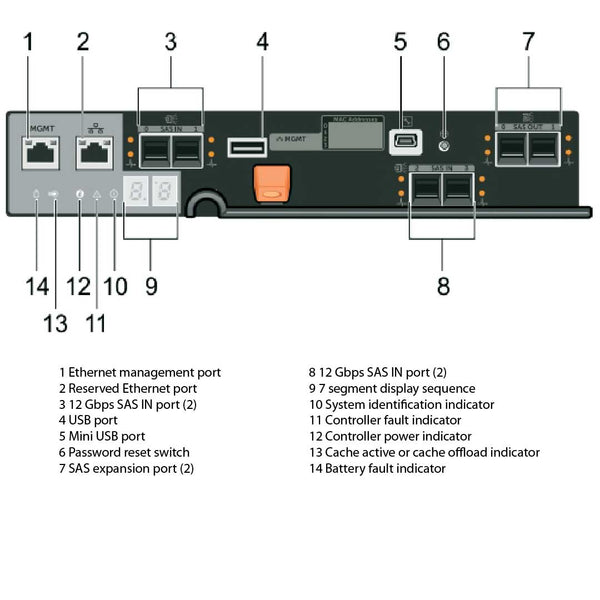

Ports Per Controller:

Four 12Gb SAS Host Connectivity
Two 6Gb SAS Expansion Connectivity
One RJ-45 1Gb Ethernet Remote Management
One RJ-45 1Gb Reserved Port

Host Connectivity:

Single Controller Models:

Supports up to 4 servers directly connected

Dual Controller Models:

Supports up to 8 servers directly connected in a non-HA configuration or 4 servers in a HA configuration

Expansion Storage:

Scale up to 120 total drives using MD3060e expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

Keeping pace with the latest technology

The new 12Gb SAS controllers offer the latest technology in high-speed connectivity. The MD3 models offer improved performance and double the existing bandwidth. Your data should be available when you need it. The MD3 Series offers 8GB cache on dual-controller options in SAS, providing up to 16 GB total cache per array. The next generation of MD3 has the efficiency you need to meet your demanding I/O requirements. You get high availability and high performance without sacrificing ease of use.

Versatile options your way

Reduce the effort required to store and manage your data. The MD3 Series is available in 12 x 3.5” hard drive or 24 x 2.5” hard drive form factors, or in the high-density enclosure that holds up to 60 x 2.5” or 3.5” hard drives. And because your storage needs are almost guaranteed to grow, capacity can be added as you need it. The 60-HDD array can expand to 120 drives (180 drives with premium feature kit) with its own, specially designed high-density enclosure, the MD3060e.

Below are general configuration rules for MD3400 series of arrays.

Up to 2 direct attached MD3060e with redundant I/O paths to a dual controller storage array
Up to 32 physical hosts can be supported on a single storage system (includes both single and dual controller models)
SSD drives are limited to a single shelf (60 drives for a MD3460 )
MD3060e storage enclosure can be add to a MD3460 storage array for expansion up to 120 disks (180 disks with premium feature kit)

Up to 30 hard disk drives per disk group in a RAID 5 & RAID 6
Up to 120 hard disk drives per disk group in a RAID1/10
RAID level configurations 0, 1, 5, 6 or 10.
Disk groups with different RAID levels can coexist in a single storage system.
Disk groups are comprised of either SSD or SAS drives. A given disk group cannot have both SSD and SAS drives.
Up to 512 virtual disks (LUNs) per storage array
Each virtual disk can support 128 snapshots, with a maximum of 512 snapshots per storage array.
