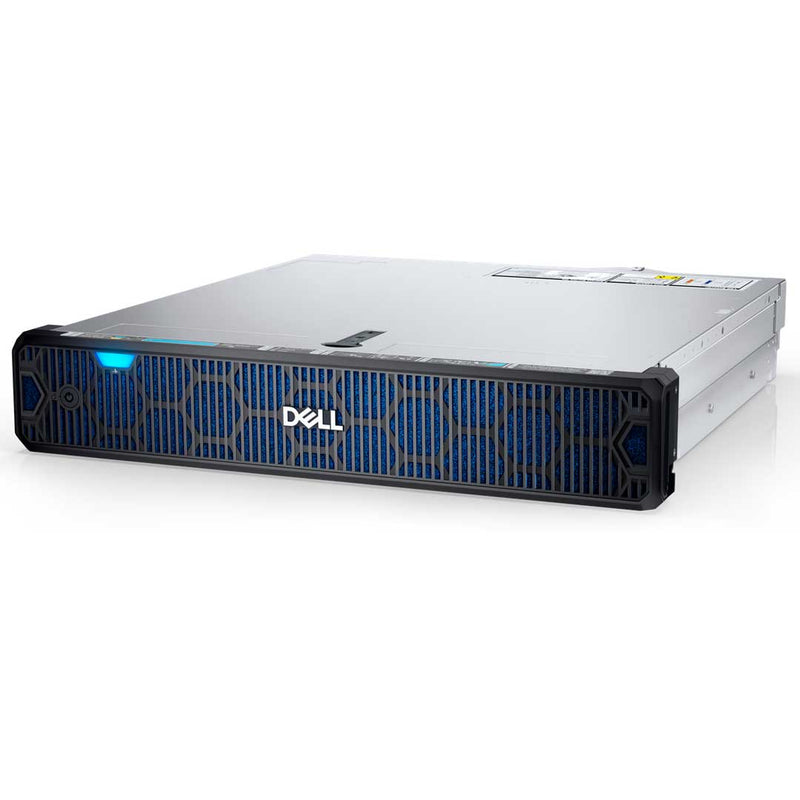

Dell PowerEdge XR7620 Rack Server CTO

Dell

| CTO Servers |

DPE-XR7620-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Select Processor

Supports up to 2 Processors

4th Generation Intel® Xeon® Scalable Processors

Supports up to 2 Processors

Airflow

Normal Airflow is I/O to PSU (Black or Red)
Reverse Airflow is PSU to I/O (Blue)

Bezel (Optional)

Memory (Optional)

Supports up to 16 DIMMs

Storage Controllers (Optional)

The PERC12 controllers are the only controllers to support NVMe and E3.S drives.

SFF SAS Drives (Optional)

Supports up to 4 Drives

SFF SATA Drives (Optional)

Supports up to 4 Drives

SFF NVMe Drives (Optional)

Supports up to 4 Drives

E3.S EDSFF Drives (Optional)

Supports up to 8 drives

Risers (Optional)

View the Riser Configurations for more details

OCP 3.0 (Optional)

The OCP 3.0 is a x8 Slot
Supports up to 4 ports at 25GbE or 100 GbE (with OCP cable).
View the manual for more details.

GPU (Optional)

Up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPU
or up to 2 x 300 W (Double Width Full Height/Full Length)

Boot Devices (Optional)

The BOSS-N1 and the Internal USB can't be installed together.

Rugged Military Kit (Optional)

The MIL kit provides rugged protection for the PowerEdge XR7620 server.

Rail Kits (Optional)

Trusted Platform Manual (Optional)

iDRAC9 Management (Optional)

Power Supply Units (PSU)

Supports up to 2 Power Supply Units
Do not mix PSUs

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U Rack Server

Processor | Max: 32 Cores

2x 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor

Memory | Max: 2TB

16x DDR5 RDIMM 4800Mhz

Storage | Max: 61.44TB

4x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 61.44TB
8x E3.S NVMe Max: 51.2TB

RAID Controller:

S160
H355, H755, H965i, HBA355i, HBA355e

Boot Options:

BOSS-N1, Internal USB

Lom / OCP:

4 x 25 GbE SFP+ LOM
1 x OCP card 3.0 (Optional)

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)

GPU:

Up to 5 x 75 W SW
Up to 2 x 300 W DW

Other XR Versions:

(Click to View)

Ideal for:

  • Artificial Intelligence (AI)
  • Data Analytics
  • Edge Servers
  • Point-of-Sale (POS)
  • Video Analytics
Dell Technology’s short depth enterprise edge server

The new Dell PowerEdge XR7620 is a short-depth 2U, 2-socket server with datacenter-level compute delivering high-performance, high-capacity and reduced latency. Purpose-built for the edge, the PowerEdge XR7620 is designed for the most demanding workloads including industrial automation, video analytics, point of sale analytics, AI inferencing and edge point device aggregation.

Dell PowerEdge XR7620 CTO
Built to endure

Designed to bring acceleration to the edge.

  • Operates in temperatures ranging from -5 ° C to 55 ° C, is MIL and NEBS tested

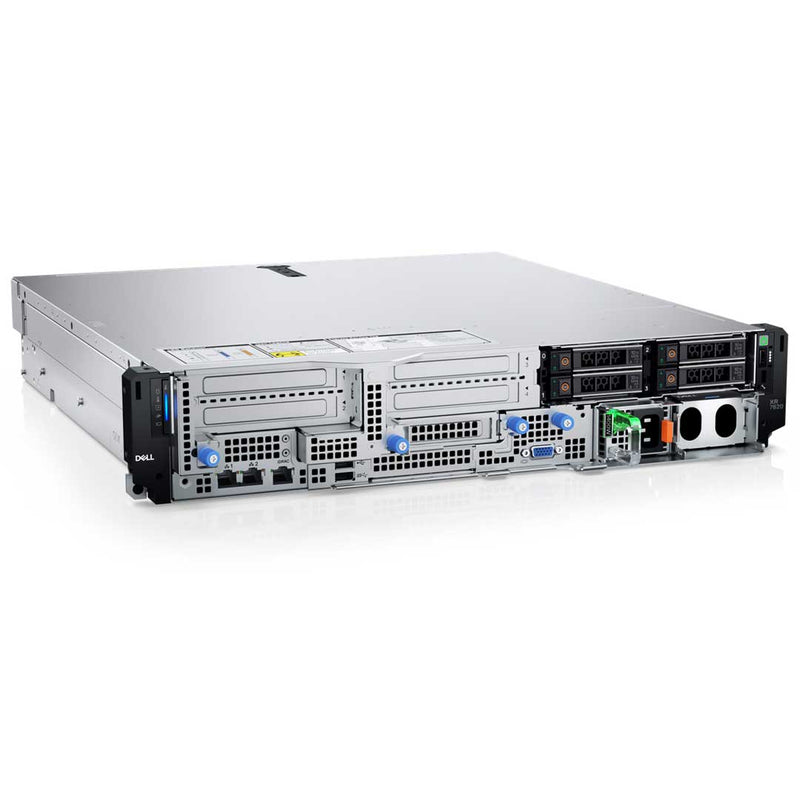

  • Easily serviceable with rear/front facing I/O and power options
  • Short-depth design allows flexibility in tight edge environments

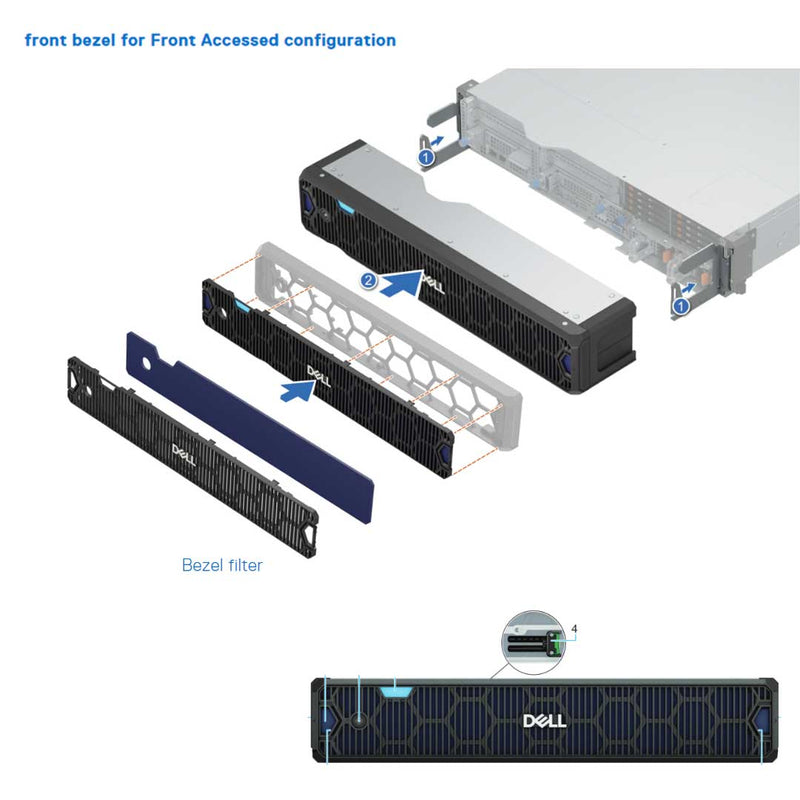

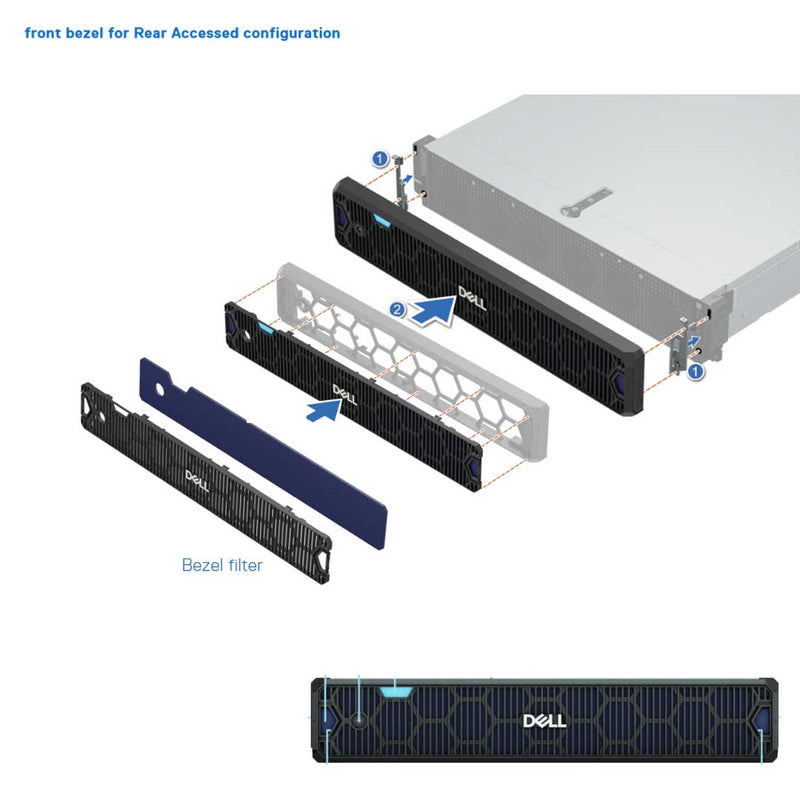

  • Built rugged to withstand dusty, harsh environments along with additional security from the optional lockable intelligent bezel
Purpose-built for the Edge
  • Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H* and NEBS Level 3* tested
  • Offers easy serviceability with reversible I/O & power
  • Short-depth (472 mm) chassis to fit in space constrained environments
  • Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Dell PowerEdge XR7620 CTO Rack Server
Datacenter-level compute
  • Two Intel® Xeon® Scalable Processors with up to 32 cores per processor for ultimate edge performance
  • Integration with PCIe Gen5 doubles the data transfer rate from PCIe Gen4 for faster more efficient data transfer
  • Includes latest memory DDR5, 50% memory capacity over DDR4, increasing bandwidth.
Acceleration where it’s needed
  • Up to two double-wide GPU accelerators to support demanding workloads
  • E3 NVME storage utilizes a limited-space design with more storage density, making it ideal for data-intensive workloads at the edge
Dell PowerEdge XR7620 Base Knowledge

The airflow in this XR7620 Rack server from Dell is the main difference between each option in this system. The Black band on the PSU indicates it’s a normal airflow and the blue band on the PSU is a reverse airflow system. The next major difference in the Dell XR7620 Rack Server is the Drives Supported.

Internal storage configuration:
  • 8 x E3.s NVMe direct
  • 8 x E3.s NVMe RAID
  • 4 x 2.5" SAS\SATA RAID
  • 4 x 2.5" U.2 NVMe direct

NOTE: The system with E3.S and U.2 NVMe drives can support up to Gen4 only.

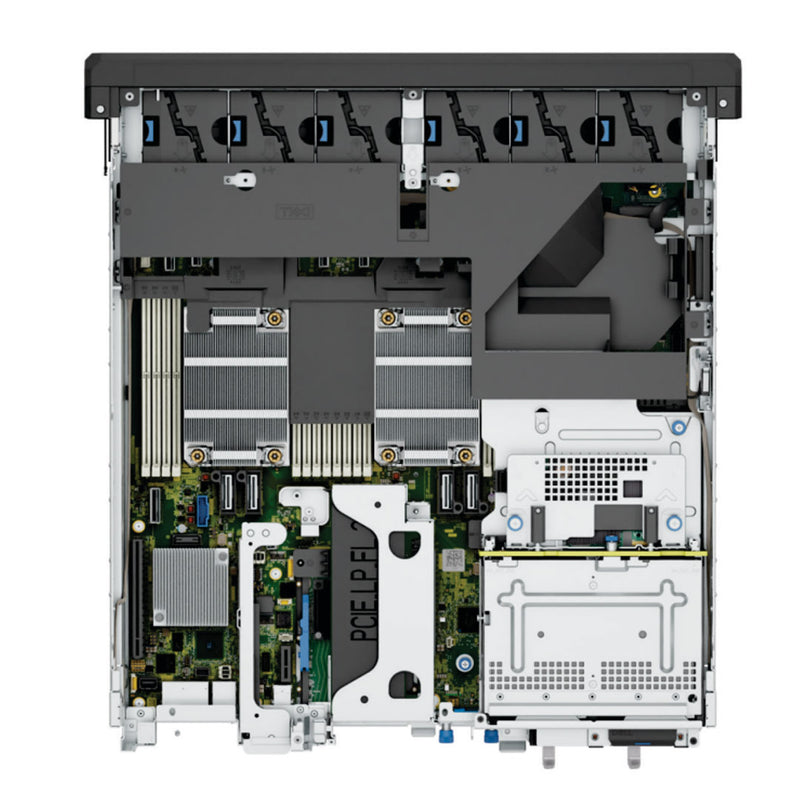

Image of the XR7620 Chassis by Dell.
Memory

The Dell XR7620 Rack Server supports up to 16x ECC DDR5 RDIMM only, with a max of 2TB at speeds up to 4800 MT/s. Do not mix DIMM module types or mix x4 and x8 DIMMs within a memory channel.

DIMM type Rank Capacity DIMM rated voltage and speed Operating Speed
1 DIMM per channel (DPC)
RDIMM 1 R 16 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s
2 R 32 GB, 64 GB, 128 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s
Expansion Slots

With Single Wide and Double Wide GPU support, you will need a few risers. With 2 similar configurations up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) you will have all the options you need to install up to 5 SW GPUs or up to 2 DW GPUs.

Riser Configuration 2 offers the XR7620 GPU Ready option.
Config No. Riser configuration No. of Processors PERC type supported
1 R1B+R2B+R3 2 fPERC
2 R1A+R2A+R3 2 fPERC
Image of the Risers 1A and 1B for the Dell XR7620 Rack Server. Riser 1A & 1B
Image of the Risers 2A and 2B for the Dell XR7620 Rack Server. Riser 2A & 2B
Image of the Risers 3 for the Dell XR7620 Rack Server. Riser 3
GPU

This system can support up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length). Below are all the GPUs supported by the Dell XR7620 Rack Server.

NOTE: Riser Configuration 2 offers the XR7620 GPU Ready option.

Platform support details GPU details
GPU Name Maximum Qty. Riser configuration support PCIe Form Factor Power
NVIDIA A2 5 Riser Config 1 x8 SW 60 W
1 Riser Config 2 x8 SW 60 W
NVIDIA L4 5 Riser Config 1 x16 SW 70 W
1 Riser Config 2 x16 SW 70 W
NVIDIA A30 2 Riser Config 2 x16 DW 165 W
NVIDIA A100 2 Riser Config 2 x16 DW 300 W
NVIDIA A800 (China Only) 2 Riser Config 2 x16 DW 300 W
Intel PVC 300 W 2 Riser Config 2 x16 DW 300 W
Networking / Boot Option

Like most Gen 16 Dell servers the system comes with 2 x 1 GbE LOM and an optional 1 x OCP card 3.0 slot. The OCP slot can support up to 4 ports at 25GbE. You also can install NIC Adapters in one of the 5 PCIe slots depending on the Riser Configuration you install.

The PowerEdge XR7620 system supports two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded on the LAN on Motherboard (LOM) and up to four ports integrated on the Open Compute Project (OCP) cards.

Feature Specifications
LOM 1 Gb x 2
(Optional) OCP card (OCP 3.0) 1GbE x 4, 10 GbE x 2, 10 GbE x 4, 25 GbE x 2 SFP28, 25 GbE x 4 SFP28
NOTE:

On the system board, the supported OCP PCIe width is x8; when x16 PCIe width is installed, it is downgraded to x8.
Image of the BOOT Riser on the XR7620 Rack server by Dell. Boot Optimized Storage Solution (BOSS)

BOSS is a RAID solution that is designed to boot operating systems and segregate operating system boot drives from data on server-internal storage. The BOSS-N1 has its own dedicated slot on the system board.

M.2 devices are read intensive with 480 GB or 960 GB capacity

Storage Controllers

The Gen 16 Dell XR7620 Rack server supports PERC11 and PERC12 controllers. The system supports fPERC style of controllers for RAID and SAS control. The PERC12 controllers are the only controllers to support NVMe and E3.S drives.

Performance Level Controller and Description
Entry S160
Value H355, HBA355i
Value Performance H755
Premium Performance H965i
Dell PowerEdge XR7620 2U front perc.
Rugged Military Kit
Purpose-built for the Edge
  • Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H* and NEBS Level 3* tested
  • Offers easy serviceability with reversible I/O & power
  • Short-depth (472 mm) chassis to fit in space constrained environments
  • Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Dell PowerEdge XR7620 CTO Rack Server
Image of the MIL Drive Bracket on the Dell XR7620 Rugged Rack Server MIL Drive Bracket

Align and slide the storage MIL bracket on the drive cage. Using a Phillips 1 screwdriver, tighten the screws securing the storage MIL bracket on the drive cage.

Image of the Power Supply Bracket on the Dell XR7620 Rugged Rack Server Power Supply Bracket

Align the power supply bracket to the rear of the power supply cage and slide it in to secure it in place. Using a Phillips 1 screwdriver, secure the power supply rugged bracket.

Image of the System Cover on the Dell XR7620 Rugged Rack Server System Cover

Align the tabs on the system cover with the guide slots on the system. Close the system cover release latch. Using a Phillips 1 screwdriver, tighten the screw to secure the system cover.

Power & Dimensions

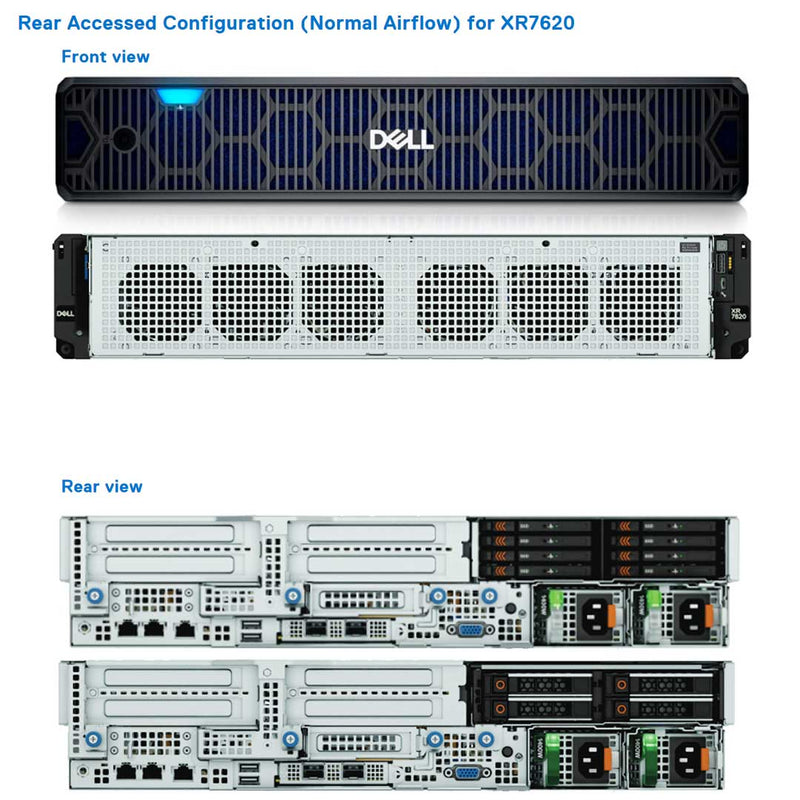

Supports up to 2 Hot Swap Power Supplies. If only one is installed the PSU blank will be installed for the second PSU. Front Access Reverse Airflow Config has a BLUE band on the PSU while the Rear Access Normal Flow Config has a black/red band.

Rear Accessed configuration:
  • Width: 6 mm (19")
  • Height: 8 mm (3.41")
  • Length: 8 mm (17.6") Ear to rear wall
  • Length: 3 mm (19.53") with bezel
  • Length: 8 mm (18.57") without bezel
  • Weight: Max 21.16 kg (46.64lbs)

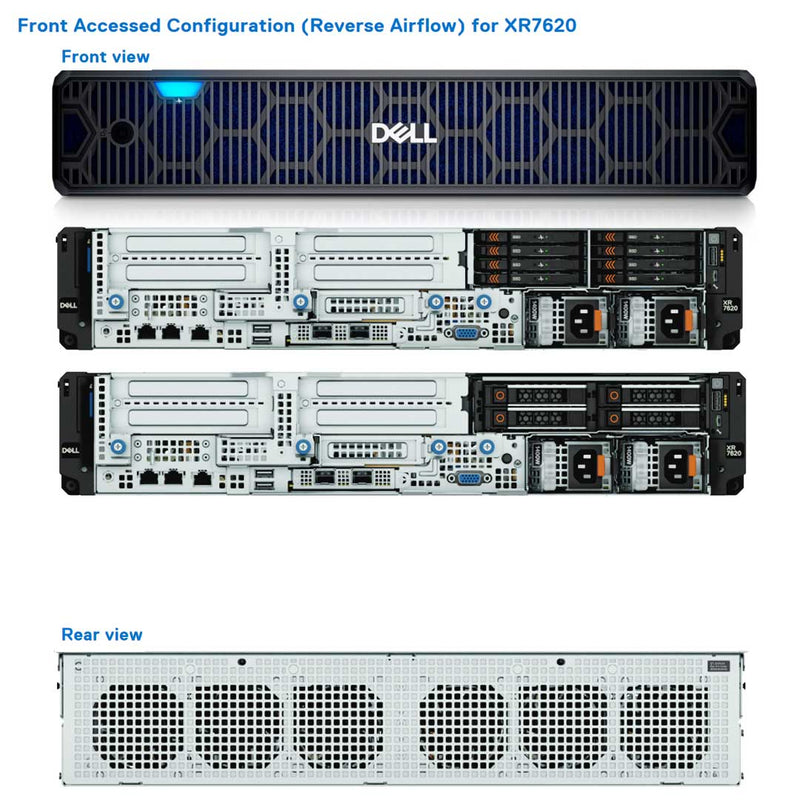

Front Accessed configuration:
  • Width: 6 mm (19")
  • Height: 8 mm (3.41")
  • Length: 572 mm (22.51") with bezel
  • Length: 8 mm (18.57") without bezel
  • Weight: Max 21.16 kg (46.64lbs)
