Dell PowerEdge R7525 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Supports (2) AMD EPYC Processor

AMD EPYC Gen2

AMD EPYC Gen3

Bezel (Optional)

Optional bezel or security bezel

Liquid Cooled System (Optional)

Liquid Cooling, and Cabling kits
If you choose the Liquid Cooling, please also select the REAR I\/O Card as well.

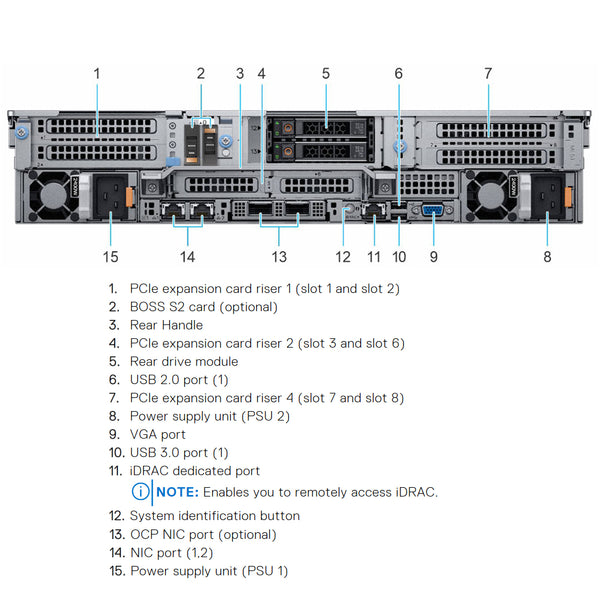

Rear Drive Modules (Optional)

Supports up to (2 or 4) x 2.5” SAS\/SATA (HDD\/SSD)

Memory

Supports up to (32) DIMMs DDR4

RAID Controllers (Optional)

Default S150 Software (SATA, NVMe) RAID controller
Not all PCIe Riser configuration support fPERCs or aPERCs. Please read the detailed table in the description or the manual below for more details.

HDD 3.5" Drives (Optional)

HDD 2.5" Drives (Optional)

If the 3.5" Chassis was selected. These drive will come in a 3.5" HD Carrier

SSD 2.5" Drives (Optional)

If the 3.5" Chassis was selected. These drive will come in a 3.5" HD Carrier

SSD (2.5") NVMe Drives (Optional)

PCI Supported Configurations (Optional)

Config 3 and 6 are for GPUs installations.
Please click "View Item" or read the table below for more information about each configuration.

GPU (Optional)

Up to three double wide 300W or six single wide 75W accelerators
GPU\/FPGA is not supported in 12 x 3.5-inch backplane and 24 x 2.5-inch NVMe configuration systems.
In Liquid Cooling system, maximum two DW GPUs are supported.
All GPU/FPGA cards require L-type heat sink and GPU shroud

OCP 3.0 (Optional)

OCP x16 Mezz 3.0

Dual Internal SD Module (IDSDM) (Optional)

USB card goes in same slot as IDSDM, Both can't be installed

Internal USB Module (Optional)

USB card goes in same slot as IDSDM, Both can't be installed

Boot Optimized Storage Subsystem (BOSS-S2 or BOSS-S1): (Optional)

The system supports either BOSS-S1 or BOSS-S2. It cannot support both the cards together
The BOSS-S1 is a PCIe Card
The BOSS-S2 is a Module and is Hot-Swappable

Optical Drive (Optional)

Only Supported on the 8x 3.5" Chassis

Trusted Platform Module (Optional)

iDRAC9

Default iDRAC9 Express

Power Supplies

Supports up to (2) PSU's
Do not mix.

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs
Form Factor:

2U rack server

Processor | Max: 64 Cores

2x 2nd or 3rd Gen AMD EPYC

Memory | Max: 2TB RDIMM | 4TB LRDIMM

32 ECC DDR4 RDIMM/LRDIMM 3200Mhz

Storage | Max: N/A

Front bays:
Up to 8 x 3.5” SAS/SATA (HDD)
Up to 12 x 3.5” SAS/SATA (HDD)
Up to 8 x 2.5” NVMe
Up to 16 x 2.5” SAS/SATA (SSD/HDD)
Up to 24 x 2.5” SAS/SATA (SSD/HDD)
Up to 24 x 2.5” NVMe

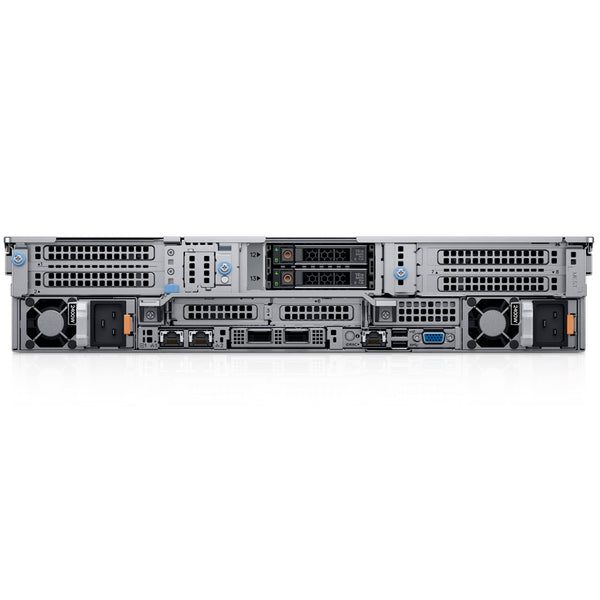

Rear bays:
2 or 4x 2.5” SAS/SATA (HDD/SSD)

Boot Options

Boot Optimized Server Storage (BOSS-S2) Hot-Swap
Boot Optimized Server Storage (BOSS-S1) Cold-Swap
IDSDM

RAID Controller: (fPERC)

S150 (SATA SW RAID 0, 1, 5 and 10.)
H345, H745, H755, H755N, H840, 12Gb/s SAS HBA

NIC/LOM

2 x 1GE LOM with BCM5720 lan controller

Networking Options

OCP 3.0 x16 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 8 x PCIe Gen4 slots

GPU:

Up to three double wide 300W
Or six single wide 75W accelerators

Other Versions

(Click to View)

Ideal for:
  • Data Analytics
  • Virtual Desktop Interface (VDI)

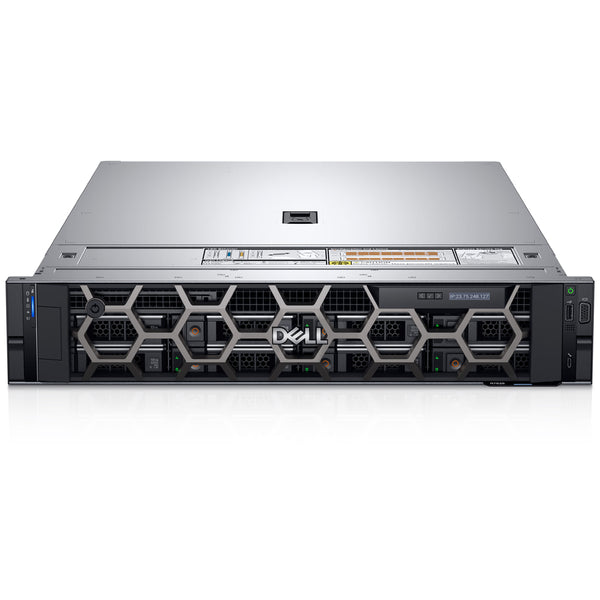

The Dell EMC PowerEdge R7525 is a dual-socket 2U rack server built for flexible I/O and networking configurations. Powered by AMD EPYC Generation 2 and Generation 3 processors, it supports up to 32 DIMMs, PCIe Gen4 expansion slots, and a range of network interface technology options.

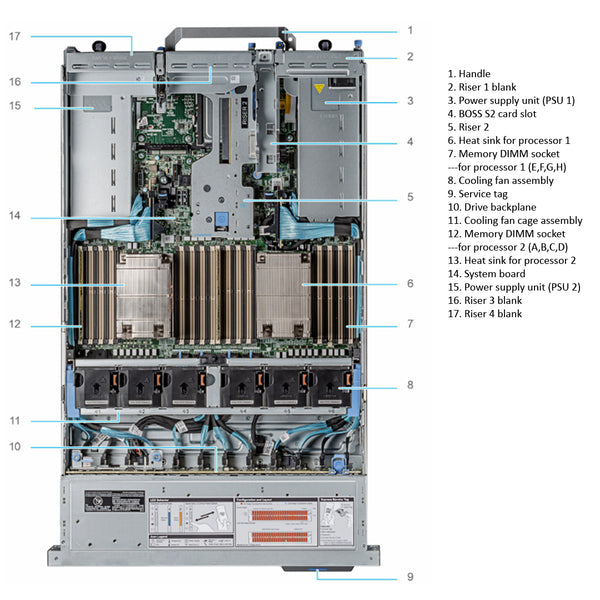

Heatsink & Fans & Liquid Colling

The R7525 includes 6 hot-swappable fans and offers two heat sink types — installing any GPUs requires the L-type heat sink along with the GPU shroud.

The new liquid cooling solution efficiently regulates system temperature while offering leak detection through iDRAC via the Liquid Leak Sensor (LLS) mechanism, capable of identifying leaks as small as 0.02ml or as large as 0.2ml. Liquid cooling isn't required across all systems — it's primarily intended for GPU-equipped configurations. Refer to the manual for more details.

Heat sink Processor TDP
STD HSK < 180 W
2U HPR (Silver) HSK >= 180 W
L-type HSK Supports all TDP (system should be installed with GPU/ FGPA/long PCIe cards)
NOTE: All GPU/FGPA cards require 1U L-type HSK and GPU shroud.
NOTE: In Liquid Cooling system, maximum two DW GPUs are supported.

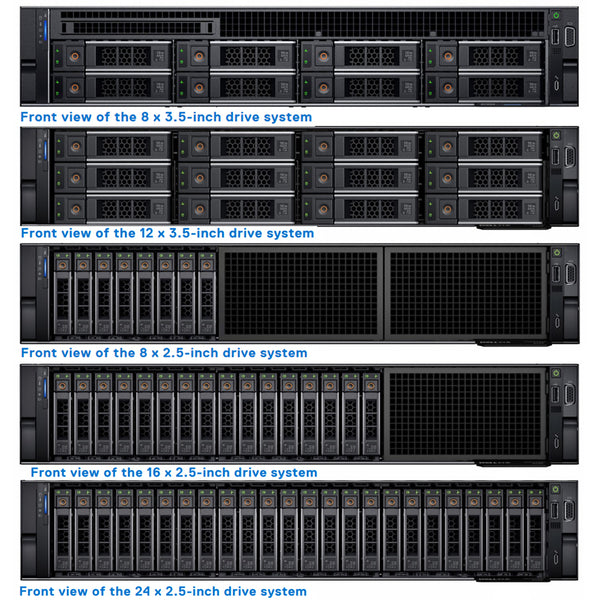

Storage Configurations
System configuration Cooling fan Foam requirement Rear Drives Supported GPU Supported
12 x 3.5-inch SAS or SATA High performance (silver grade) fan Not required Yes No
8 x 3.5-inch SAS/SATA High performance (silver grade) fan Required No Yes
8 x 2.5-inch SAS/SATA/NVMe High performance (silver grade) fan Not required No Yes
16 x 2.5-inch SAS/SATA High performance (silver grade) fan Not Required No Yes
16 x 2.5-inch SAS/SATA + 8 NVMe High-performance (gold grade) fan Required No Yes
24 x 2.5-inch SAS/SATA/NVMe High-performance (gold grade) fan Not Required Yes Yes
24 x 2.5-inch NVMe High-performance (gold grade) fan Not Required No No
NOTE: 12 x 3.5-inch and 24 x 2.5-inch NVMe system does not support GPU/FPGA card
Dell PowerEdge R7525 8 Bay 3.5-Inch Chassis 8x 3.5" SAS/SATA
Dell PowerEdge R7525 12 Bay 3.5-Inch Chassis 12x 3.5" SAS or SATA
Dell PowerEdge R7525 8 Bay 2.5-Inch Chassis 8x 2.5" SAS/SATA/NVMe
Dell PowerEdge R7525 16 Bay 2.5-Inch Chassis 16x 2.5" SAS/SATA
Dell PowerEdge R7525 16 Bay + 8 Bay 2.5-Inch Chassis 16x 2.5" SAS/SATA + 8 NVMe

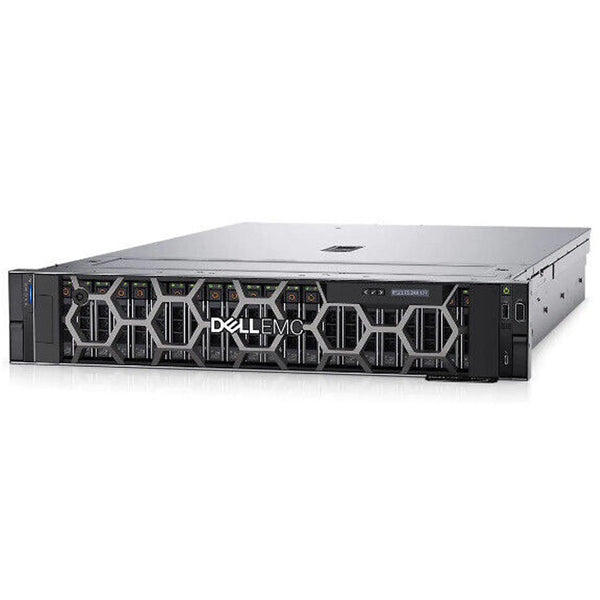

Dell PowerEdge R7525 24 Bay 2.5-Inch Chassis 24x 2.5" SAS/SATA/NVMe
Dell PowerEdge R7525 24 Bay NVMe 2.5-Inch Chassis 24x 2.5" NVMe
Dell PowerEdge R7525 2 Bay Rear 2.5-Inch Chassis 2 or 4x 2.5" SAS/SATA
Storage Controllers

This system stands out with its S150 software RAID, supporting both SATA and NVMe drives, alongside fPERC compatibility in select configurations. When selecting a PCIe configuration, be sure to check which PERC type it supports — full details are available in the manual below.

Performance level Description
Entry S150 (SATA, NVMe)
Software RAID SATA
Value H745 (internal), H345, HBA345 (internal), H840 (external), 12Gbps SAS HBA (external)
Value Performance H755N (internal), HBA355 (internal), HBA355E (external)
Image of the Front PERC in the R7525 Rack Server by Dell.

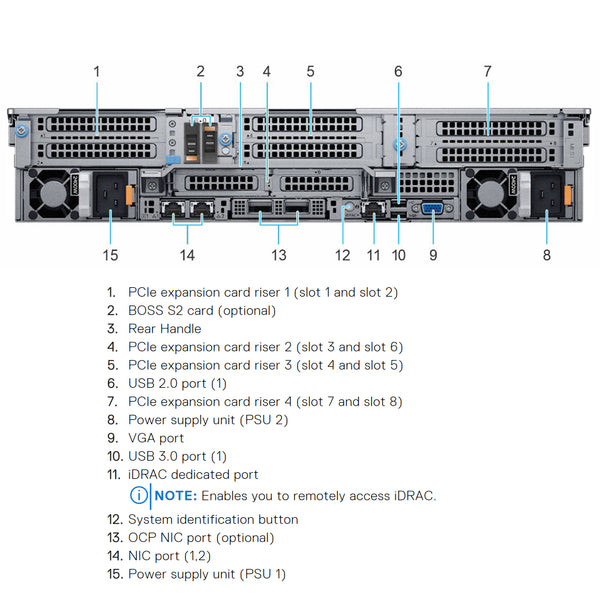

PCIe Riser Configuration

Fifteen riser configurations are available on this server, with Configuration 3 or 6 recommended for GPU support depending on GPU size. The table below outlines all available options, and the manuals offer further detail.

Config # RSR Configuration # of CPUs PERC type supported Rear Storage Possible
0 NO RSR 2 None No
1 R1B 1 Front PERC No
2 R1B+R4B 2 Front PERC / PERC Adapter No
3-1 R1A+R2A+R3A+R4A (FL) 2 Front PERC / PERC Adapter No
3-2 R1A+R2A+R3A+R4A (HL) 2 Front PERC / PERC Adapter No
4 R1B+R2A+R3B+R4B 2 Front PERC / PERC Adapter No
6 R1C+R2A+ R3A+R4C 2 PERC Adapter No
7 R1D+R2A+R3B+R4D 2 None No
8-1 R1A+R2A+R4A (FL) 2 PERC Adapter Yes
8-2 R1A+R2A+R4A (HL) 2 PERC Adapter Yes
9 R1B+R2A+R4B 2 PERC Adapter Yes
10 R2A+R4B 2 PERC Adapter Yes
11 R1D+R2A+R3B+R4B 2 None No
12-1 R1D+R2A+R3A+R4A (FL) 2 None No
12-2 R1D+R2A+ R3A+R4A (HL) 2 None No
13-1 R1A+R2A+ R3A (FL) 2 Front PERC/ PERC Adapter No
13-2 R1A+R2A+ R3A (HL) 2 Front PERC/ PERC Adapter No
14 R1B+R2A+ R3B 2 Front PERC/ PERC Adapter No
15 R1D+R4D 1 None No
Networking LOM/OCP 3.0

The PowerEdge R7525 system supports two Network Interface Controller (NIC) ports embedded on the LOM card.

The PowerEdge R7525 system also supports OCP NIC port integrated on the optional OCP card.

Feature Specifications
LOM card 1 GB x 2
OCP card (OCP 3.0) 1 GbE x 4, 10 GbE x 2, 25 GbE x 2, 25 GbE x 4, 50 GbE x 2, 100 GbE x 2
Image of the Dell PowerEdge R7525 Networking OCP 3.0 Card

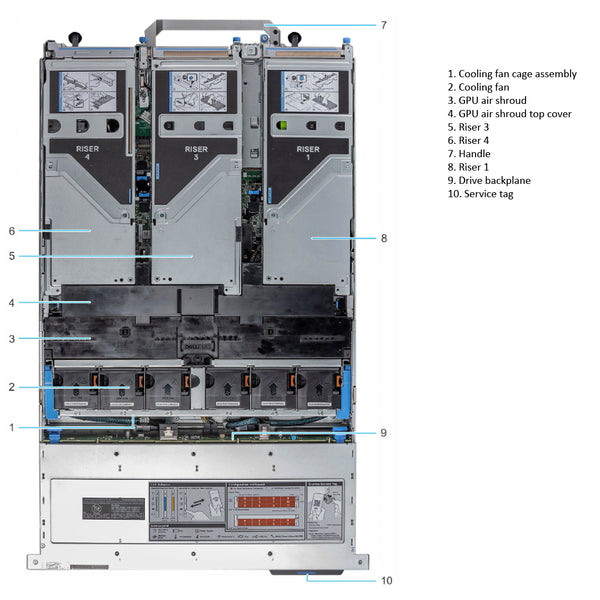

GPU Options

The R7525 can hold up to 6 SW or 3 DW GPUs. Below you will see a few rules to follow with GPU installations.

  • 12 x 3.5-inch and 24 x 2.5-inch NVMe systems do not support GPU/FPGA cards.
  • All GPU/FPGA cards require an L-type heat sink and GPU shroud, irrespective of the length.
  • The GPU air shroud top cover is part of the GPU air shroud.
  • Low Profile and Full Height T4 cards are installed in order to support maximun 6 pcs T4 in x 16 slots.
Riser Riser slots Processor System riser configuration Riser/card type GPU slots
Riser 1 Slot 1 Processor 1 Configuration 3 R1A - FH/FL or HL 2
Slot 2 Processor 1 Configuration 6 R1C - FH/HL 1, 2
Riser 2 Slot 3 Processor 1 Configuration 3 or 6 R2A - HH/HL 3, 6
Slot 6 Processor 2
Riser 3 Slot 5 Processor 2 Configuration 3 R3A - FH/FL or HL 5
Configuration 6 R3A - FH/HL
Riser 4 Slot 7 Processor 2 Configuration 3 R4A - FH/FL or HL 7
Slot 8 Configuration 6 R4C - FH/HL 7, 8
FH - Full Height, FL - Full Length, HH - Half Height, HL - Half Length
Boot Options

The R7525 can only support 1 BOSS type at a time.

The IDSDM and Internal USB use the same slot. Only 1 can be installed at a time.

Dell PowerEdge R7525 BOSS s1 BOSS-S1
Dell PowerEdge R7525 BOSS s2 BOSS-S2
Dell PowerEdge R7525 IDSDM IDSDM
Dell PowerEdge R7525 Dell PowerEdge R7525 USBInternal USB
Power, Dimensions & Weight
Power Options (Hot-Swap)

The R7525 system supports two redundant PSUs. Either 60mm or 86mm depending on the wattage of the PSU. For more power limitations and rules please refer to the manual below.

  • 800W Platinum
  • 1400W Platinum
  • 2400W Platinum
Dimensions & Weight:
  • Width: 434.0mm (17.09”)
  • Height: 86.8mm (3.42”)
  • Length: 736.29mm (28.99”)
  • Weight:
    • 8 x 3.5": 33.2 kg (73.19 lb)
    • 12 x 3.5": 36.3 kg (80.02 lb)
    • 8 x 2.5" : 24.6 kg (54.23 lb)
    • 16 x 2.5": 26.6 kg (58.64 lb)
    • 24 x 2.5": 28.6 kg (63.05 lb)

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Processors

Bezel

Liquid Cooled System

Rear Drive Modules

Memory

RAID Controllers

HDD 3.5" Drives

HDD 2.5" Drives

SSD 2.5" Drives

SSD (2.5") NVMe Drives

PCI Supported Configurations

GPU

OCP 3.0

Dual Internal SD Module (IDSDM)

Internal USB Module

Boot Optimized Storage Subsystem (BOSS-S2 or BOSS-S1):

Optical Drive

Trusted Platform Module

iDRAC9

Power Supplies

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

FeatureTechnical Specification
ProcessorTwo 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
MemoryDDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S
Storage controllers
  • HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
  • Chipset SATA/SW RAID(S150): Yes
  • PERC11 – H755, H755N
Drive baysFront bays:
  • Up to 8 x 3.5” SAS/SATA (HDD)
  • Up to 12 x 3.5” SAS/SATA (HDD)
  • Up to 16 x 2.5” SAS/SATA (SSD/HDD)
  • Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)
Rear Bays:
  • Up to 2 x 2.5” SAS/SATA (HDD/SSD)
Power supplies
  • 800W Platinum
  • 1400W Platinum
  • 2400W Platinum
FansStandard/High Performance/Very High Performance
Hot Plug Fans
DimensionsHeight: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 736.29mm (28.99”)
Weight: 36.3KG (80lb)
Form Factor2U Rack Server
Embedded mgmt
  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 BLE/wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ SoftwareConsoles
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manage
  • OpenManage Mobile
Integrations & ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
  • AMD Secure Memory Encryption (SME)
  • AMD Secure Encrypted Virtualization (SEV)
Embedded NIC2 x 1GE LOM
Networking OptionsOCP x16 Mezz 3.0
GPU OptionsUp to three double wide 300W
Or six single wide 75W accelerators
PortsFront Ports:
  • 1 x Dedicated iDRAC direct micro-USB
  • 1 x USB 2.0
  • 1 x VGA
Internal Ports:
  • 1 x USB 2.0
Rear Ports
  • 1 x Ethernet
  • 1 x Serial (optional)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Power Button
PCIeUp to 8 x PCIe Gen4 slots
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi

Spec Sheet 4

Feature PowerEdge R7525 PowerEdge R7425
Processor Two AMD® EPYC™ Generation 2 or Generation 3 processors. Two AMD Naples™ socket SP3 compatible processors
CPU Interconnect Inter-chip global memory interconnect (xGMI-2) AMD Socket to Socket Global Memory Interface (xGMI)
Memory 32x DDR4 RDIMM, LRDIMM, 3DS 32x DDR4 RDIMM, LRDIMM
Disk Drives 3.5-inch, 2.5-inch: 12G SAS, 6G SATA, NVMe HDD 3.5-inch, 2.5-inch: 12G SAS, 6G SATA HDD
Storage Controllers H755, H755N, H745, HBA345, HBA355, HBA355E, H345, H840, 12G SAS HBA
SW RAID: S150		 Adapters: H330, H730P, H740P, H840 , HBA330, 12G SAS HBA
SW RAID: S140
PCIe SSD Up to 24x PCIe SSD Up to 24x PCIe SSD
PCIe Slots Up to 8 (PCIe 4.0) Up to 8(Gen3 x16)
rNDC 2 x 1 GB Select Network Adapter NDC: 4 x 1 GB, 4 x 10 GB, 2 x 10 GB + 2 x 1 GB, or 2 x 25 GB
OCP Yes for OCP 3.0 NA
USB Ports Front: 1 x USB 2.0, 1 x iDRAC USB (Micro-AB USB)
Rear: 1 x USB 3.0, 1 x USB 2.0
Internal: 1 x USB 3.0		 Front: 1 x USB2.0, 1 x iDRAC USB(Micro USB) , Optional 1xUSB 3.0 front port
Rear: 2 x USB3.0
Internal: 1 xUSB3.0
Rack Height 2U 2U
Power Supplies Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W, Titanium 1100 W Mixed Mode AC/HVDC, (-48 V) 1100 W DC PSU AC Platinum : 2400 W, 2000 W, 1600 W, 1100 W, 495 W
750 W AC Platinum: Mixed Mode HVDC ( for China only), Mixed Mode AC, DC ( DC for China only)
1100 W -48 V DC Gold
System Management LC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore LC 3.x, OpenManage, QuickSync 2.0, Digital License Key, iDRAC9, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash
GPU 3 x 300 W (DW) or 6 x 75 W (SW) 3 x 300 W (DW) or 6 x 150 W (SW)
Availability Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM

You may also like
