Specs
Quick Specs
- Models: HBA330+ 12Gb SAS HBA
- Drive Types: 12 Gb/s SAS
- PCI Support: PCI-e 3.0
- SAS Connectors: 2x4 External
- Cache Memory: No Cache
- Write Back Cache: No Cache
- RAID Levels: No RAID - Pass Through Only
- Max Drive Support: 255
- RAID Support: No RAID - Pass Through Only
Part Number:
- J7TNV

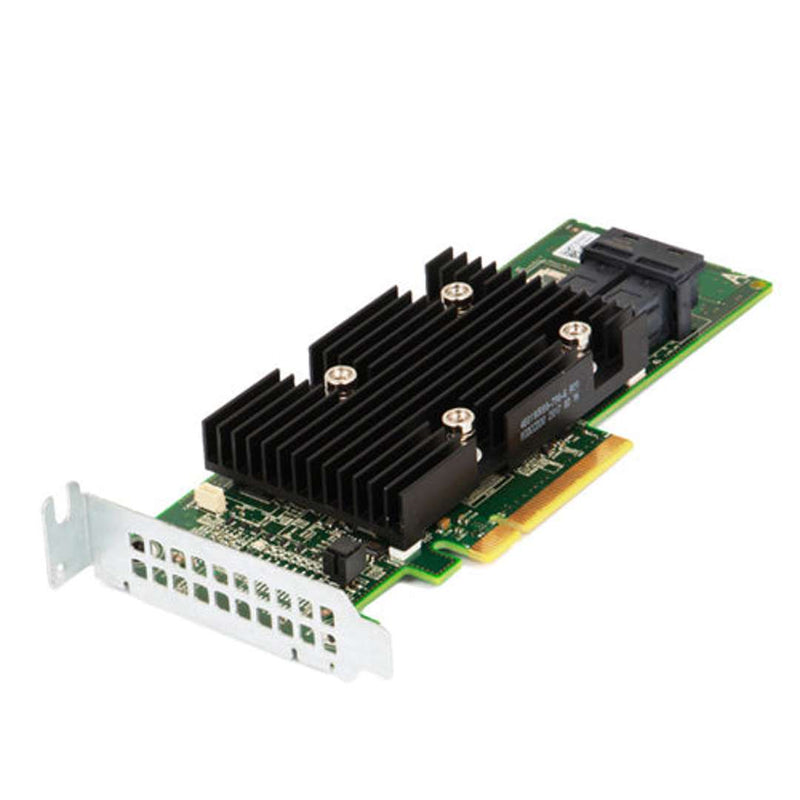

The Dell PERC 9 HBA330+ 12Gb SAS Low Profile Controller offers eight-port 12Gbps PCIe connectivity, supporting SAS and SATA drives at multiple speeds. Designed for high-capacity server environments, it handles up to 255 drives with reliable pass-through operation for storage flexibility.
Ideal for file, web, database, and email servers, the HBA330+ provides tiered storage options with minimal maintenance. Featuring Dell’s trusted PERC reliability, it offers support for physical disk power management to optimize energy efficiency while maintaining strong data protection for cost-sensitive applications.
Compatible With:
- Dell C4130
- Dell C6420
- Dell R440
- Dell R540
- Dell R740
- Dell R740xd
- Dell R740xd2
- Dell R7425
- Dell R840
- Dell R940xa
(Click to View)
Spec Sheet 4
| Feature | PERC H330 | PERC H730 | PERC H730P | PERC H730P MX | PERC H830 | PERC FD33xD/FD33xS |
|---|---|---|---|---|---|---|
| RAID Levels | 0, 1, 5, 10, 50 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Enclosures per port | Not applicable | Not applicable | Not applicable | Not applicable | 8 (4 per port) | Not applicable |
| Processor | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset |
| Battery Backup Unit | No | Yes | Yes | Yes | Yes | Yes |
| Non-Volatile cache | None | Yes | Yes | Yes | Yes | Yes |
| Cache policy | No | 1 GB DDR3 1333 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache |
|
NOTE: H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended.
|
||||||
| Cache function |
Write Through and No Read Ahead |
Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead |
| Maximum number of virtual disks | 16 | 64 | 64 | 64 | 240 | 64 |
| Maximum number of virtual disks per disk group | 16 | 16 | 16 | 16 | 16 | 16 |
| Hot swap devices supported | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware XOR Engine | No | Yes | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated and global hot spare | Yes | Yes | Yes | Yes | Yes | Yes |
| Drives Types | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 6 Gbps SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS |
| PCIe Support | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 |
| Non-RAID or pass through mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Queue Depth | 895 | 928 | 928 | 928 | 928 | 928 |
