HPE ProLiant Apollo 2000 Server (G10) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- (4) Chassis Options
- (2) Node Options
- Intel Xeon 1st & 2nd Gen Scalable processors
- Max 8TB DDR4 Memory
- Embedded dual 10GbE NIC
- HPE Dynamic Smart Array S100i storage controller
- Supports NVMe Storage
- Supports Intel® Optane™ DC persistent memory
- Supports HPE InfiniBand 200Gb 1-port Adapter
- HPE's Silicon Root of Trust
- HPE iLO 5 ASIC
- GPU Supported
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Financial/Trading Servers
- Video Analytics
- Video Streaming
- Virtual Desktop Interface (VDI)
- Virtualization
- Virtual Machines (VM)
- Web Tech
- Anything as a service (Xaas)
The HPE Apollo 2000 Gen10 Server is a high-density, 2U platform designed for performance and scalability. It supports up to four hot-plug ProLiant Gen10 servers per chassis, powered by Intel Xeon Scalable processors with up to 26 cores and 1.5 TB of DDR4 SmartMemory. With flexible storage options, including up to 24 SFF SAS/SATA or NVMe drives, and advanced networking like 100 Gb/s InfiniBand, it excels in demanding workloads such as HPC, AI/ML, and big data analytics, making it ideal for scalable enterprise and edge applications.

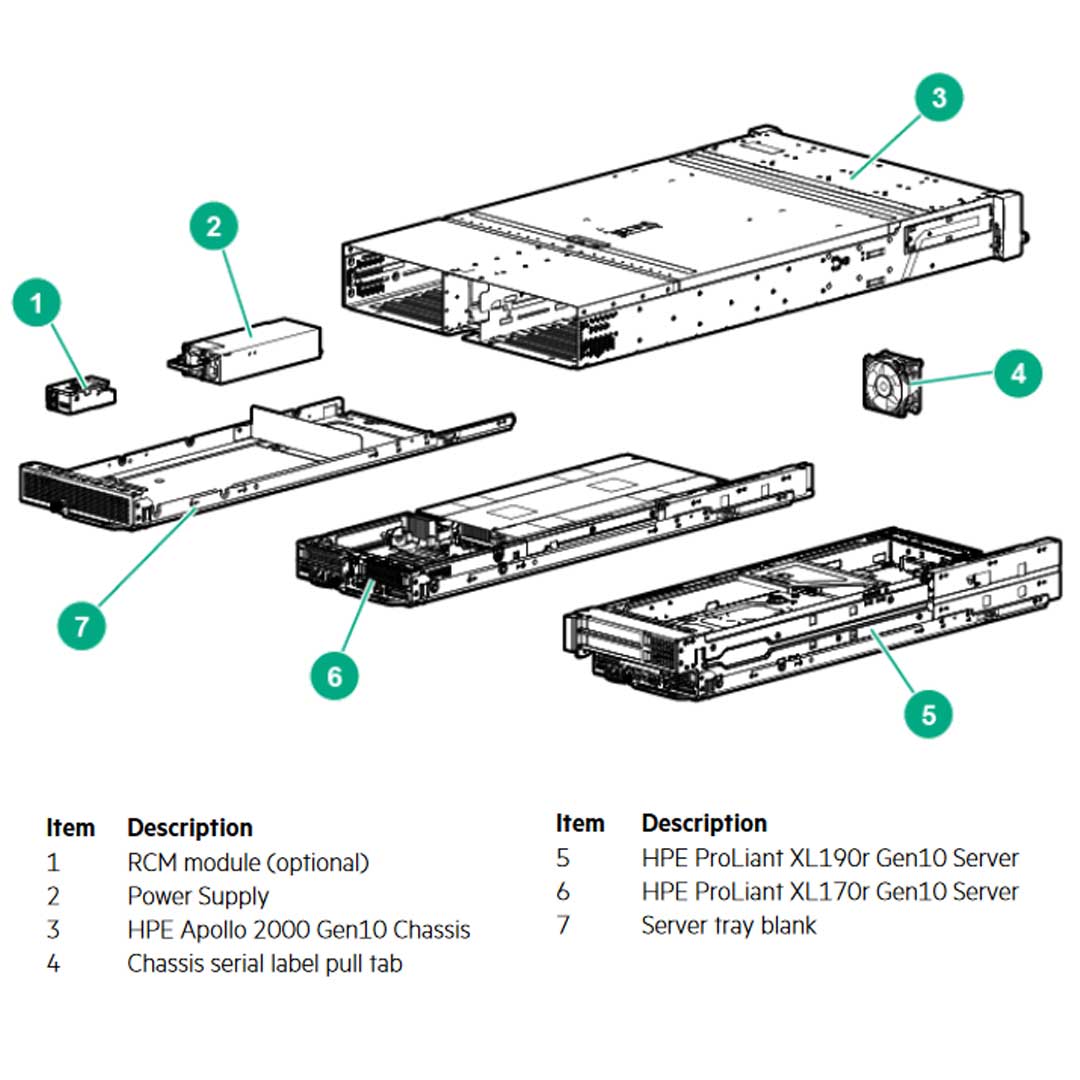

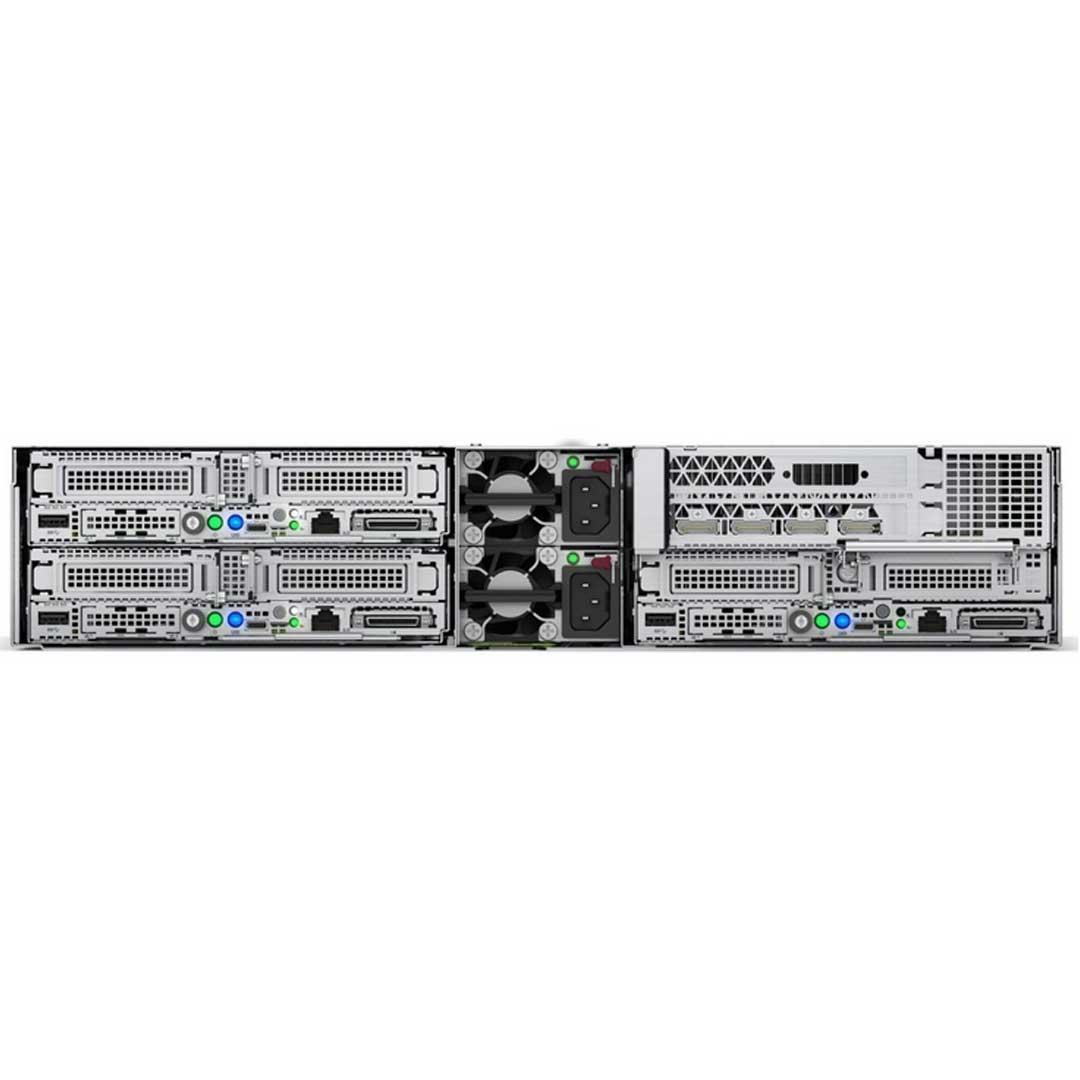

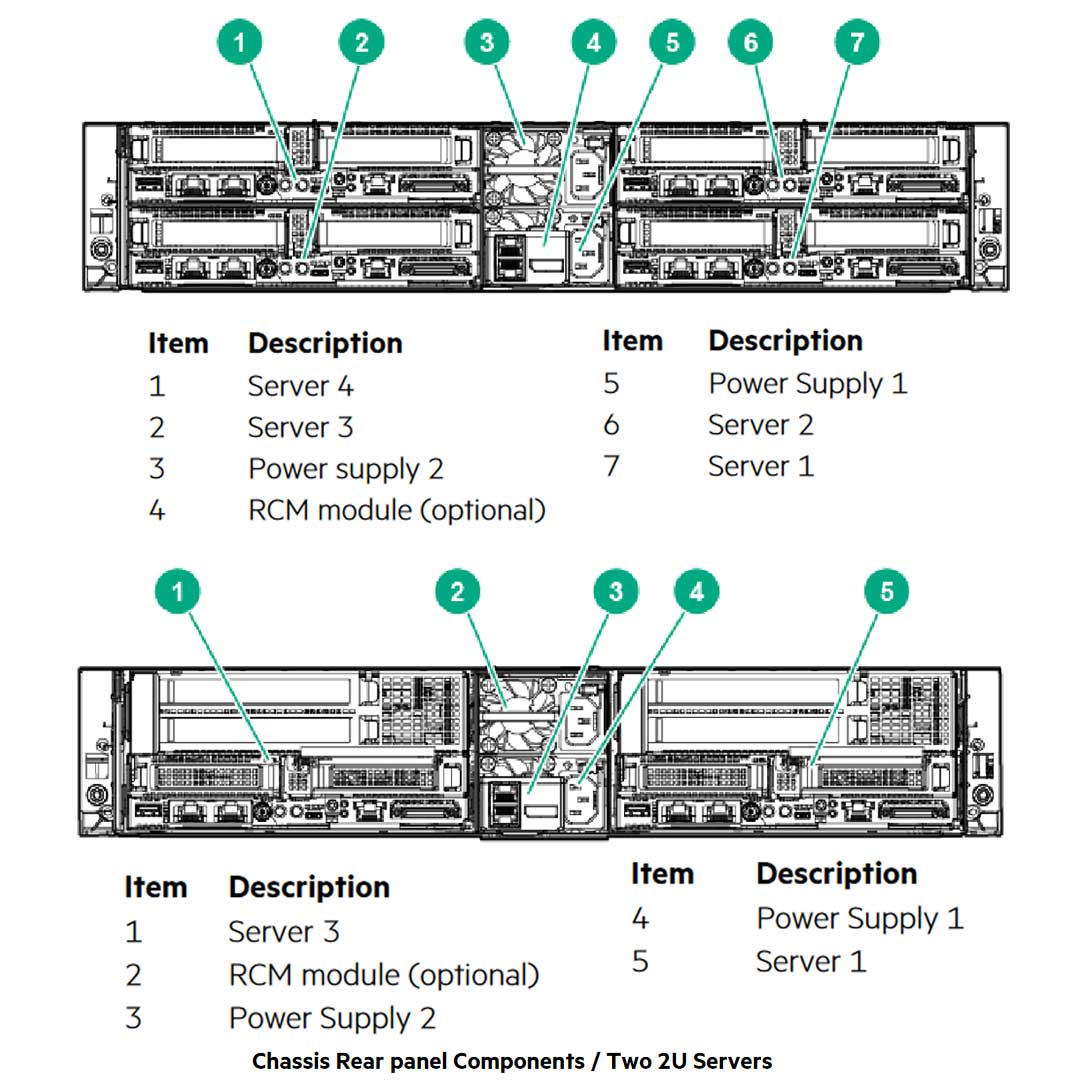

A chassis requires that four (4) server tray slots be populated with either the server nodes or an HPE Apollo 2000 Server Tray Blank Kit.
Supports up to (4) 1U XL170r Node Servers
Supports up to (2) 2U XL190r Node Servers
CTO Configuration Support
Need help with the configuration? Contact us today!
Chassis Options

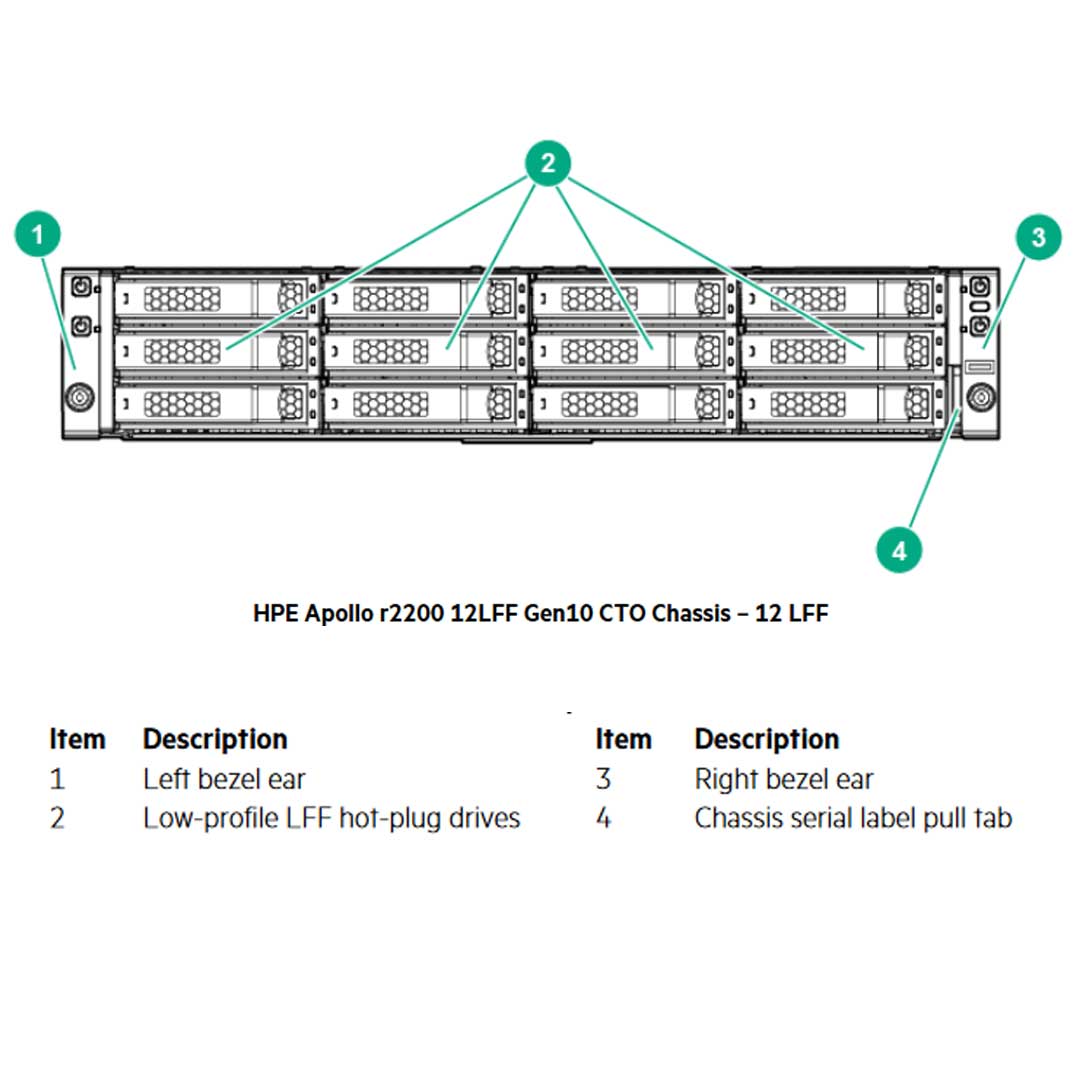

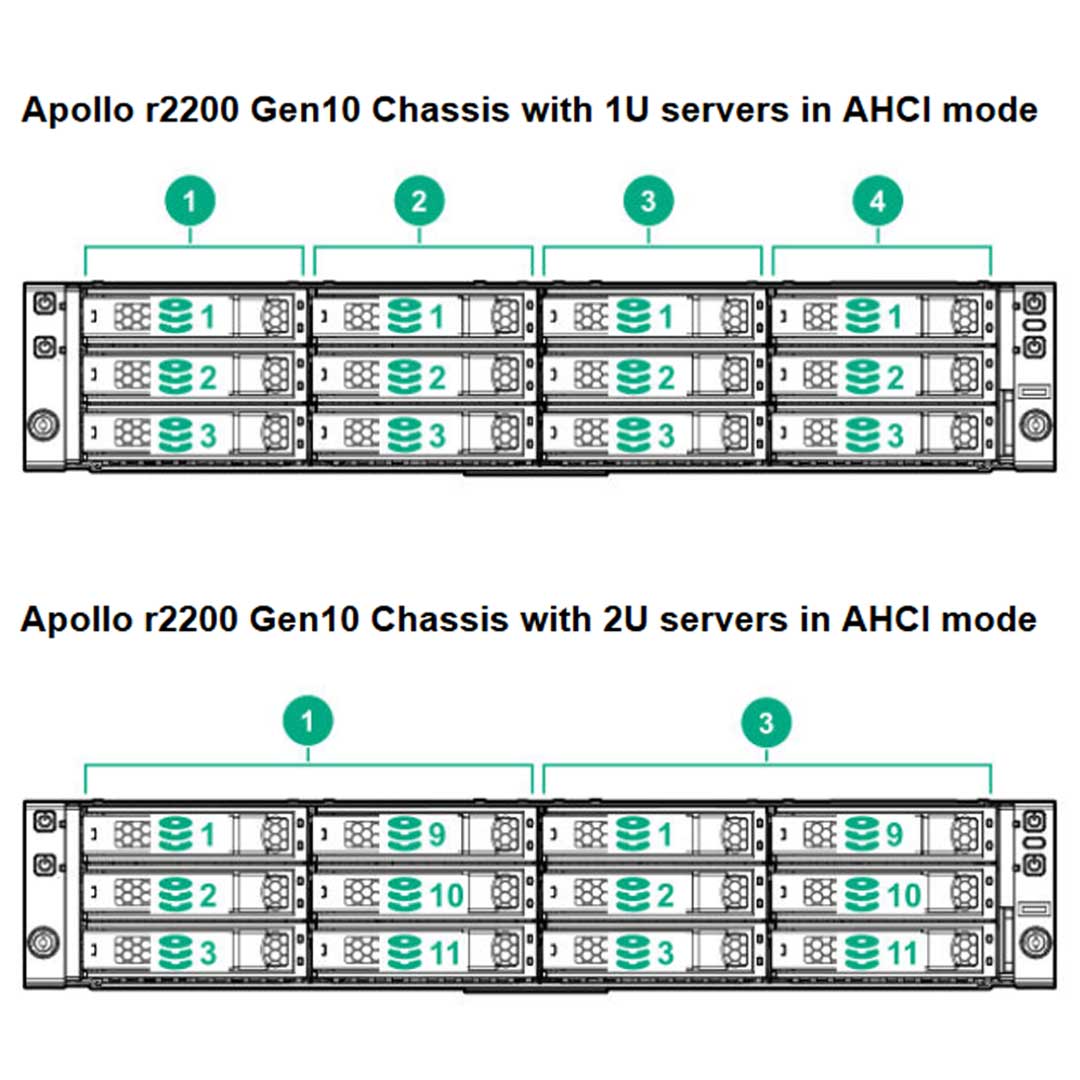

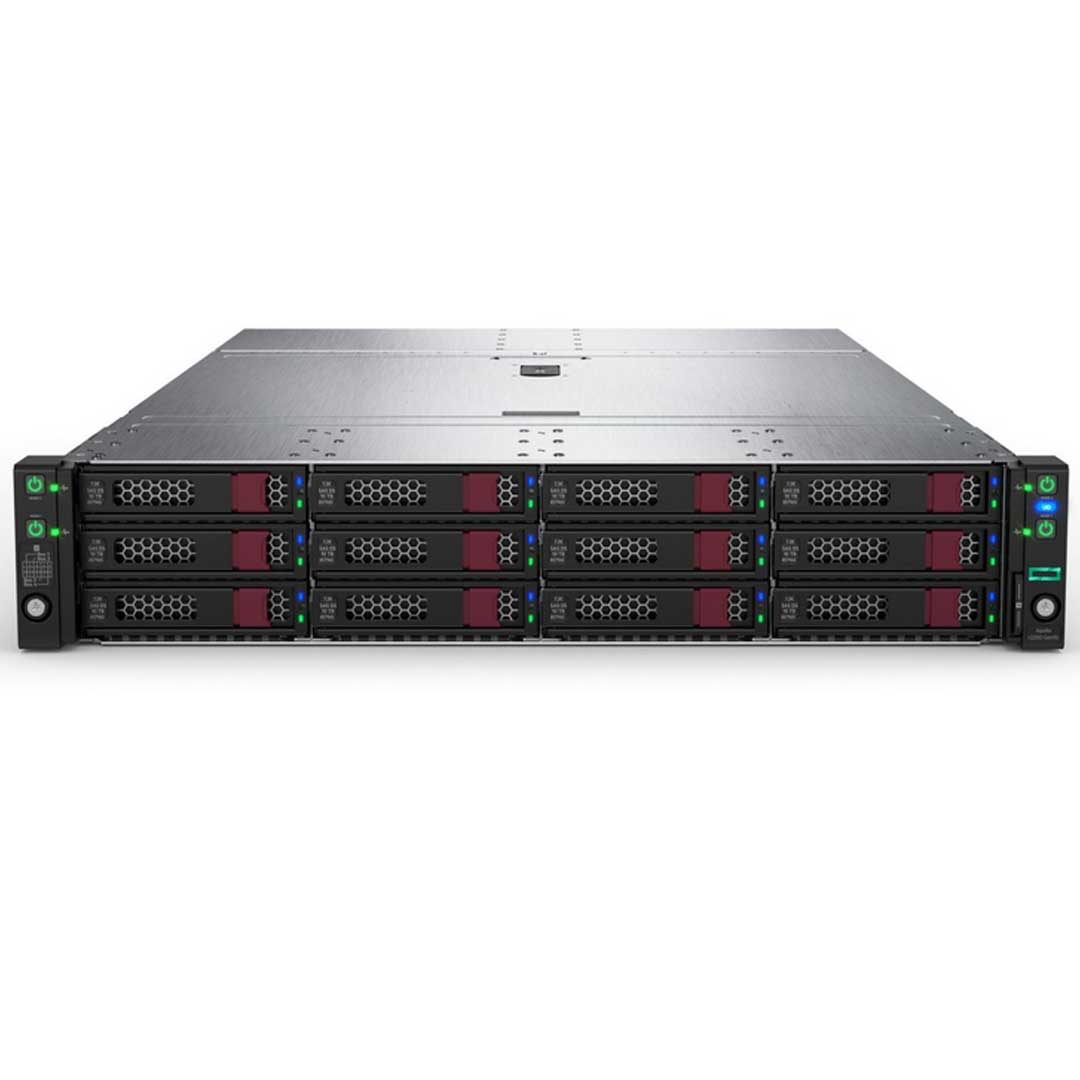

Apollo r2200 G10 12 LFF
867156-B21
Apollo r2600 G10 24 SFF
867158-B21

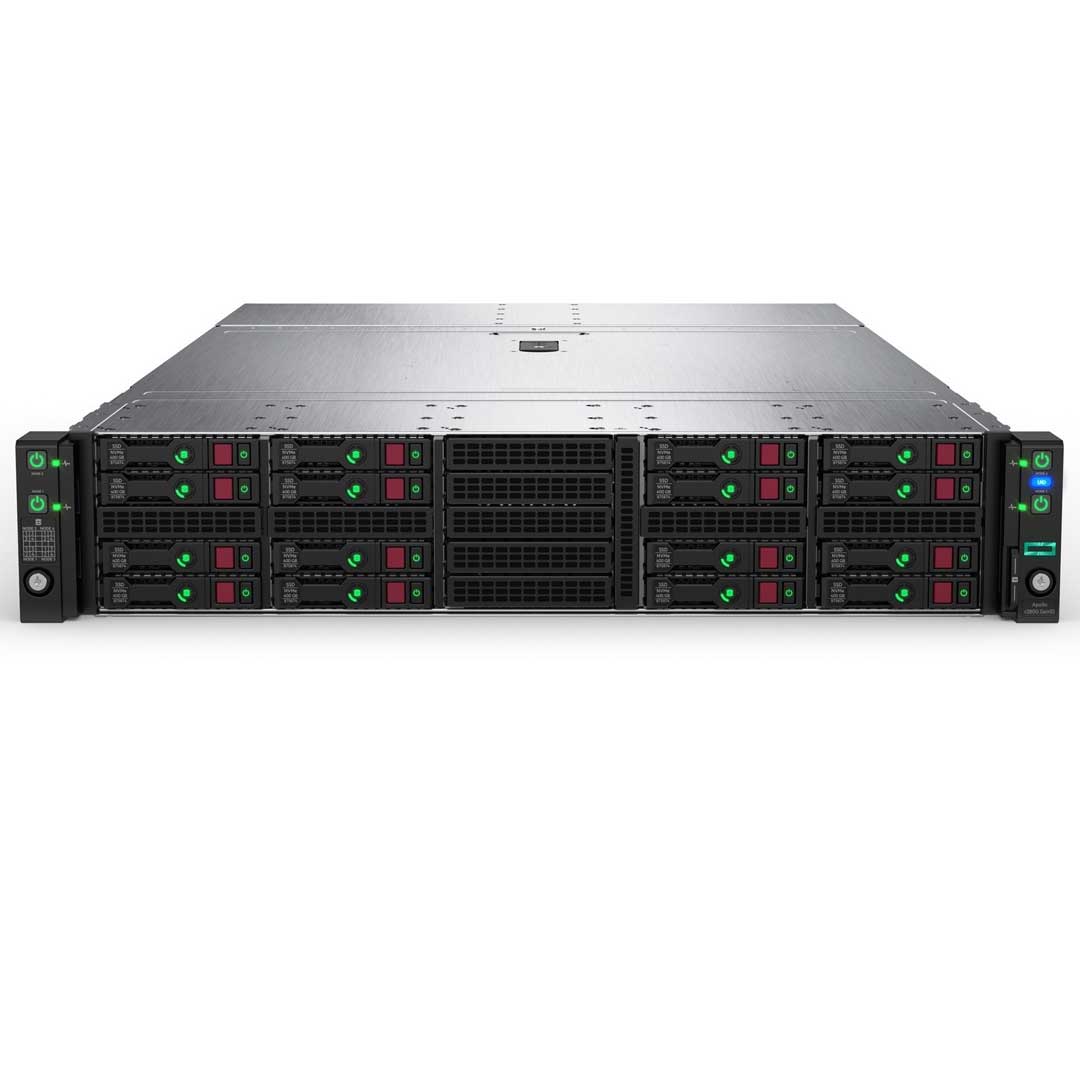

Apollo r2800 G10 16 SFF w/ NVMe
867159-B21 | 874800-B21

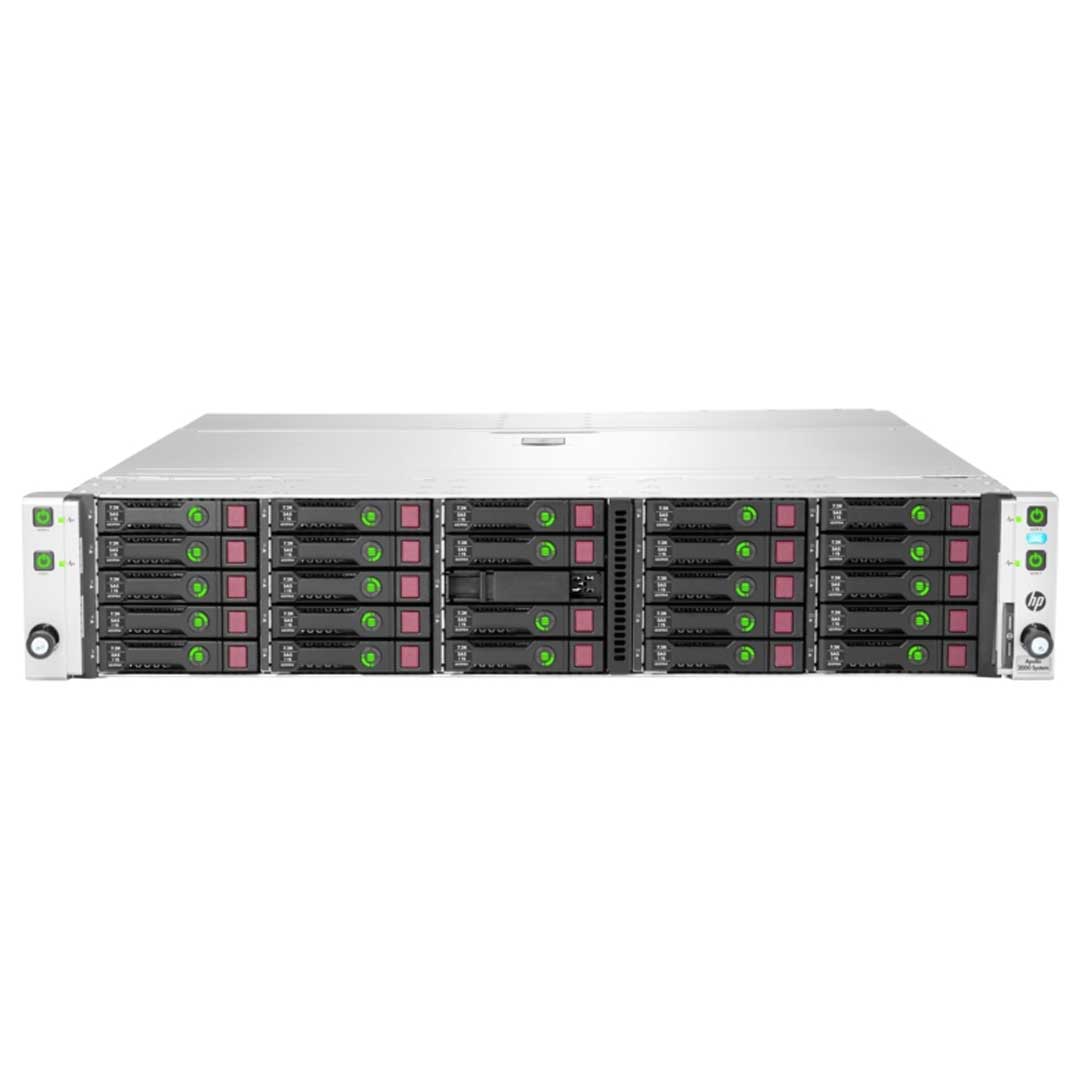

Apollo r2800 G10 24 SFF w/ Exp
867159-B21 | 874797-B21

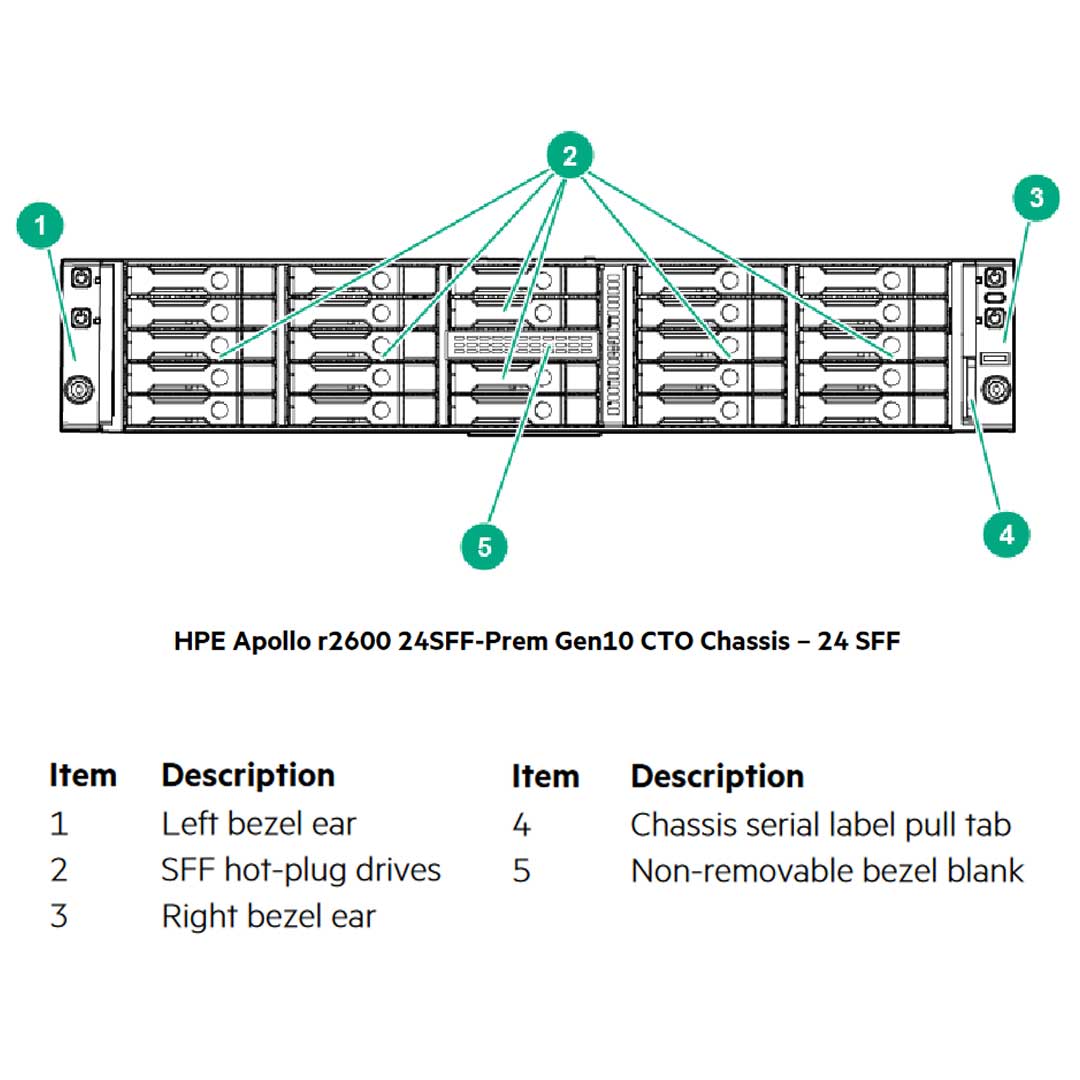

HPE Apollo r2600 Chassis
Supports 24SFF or 16SFF+8 NVMe on the same backplane.

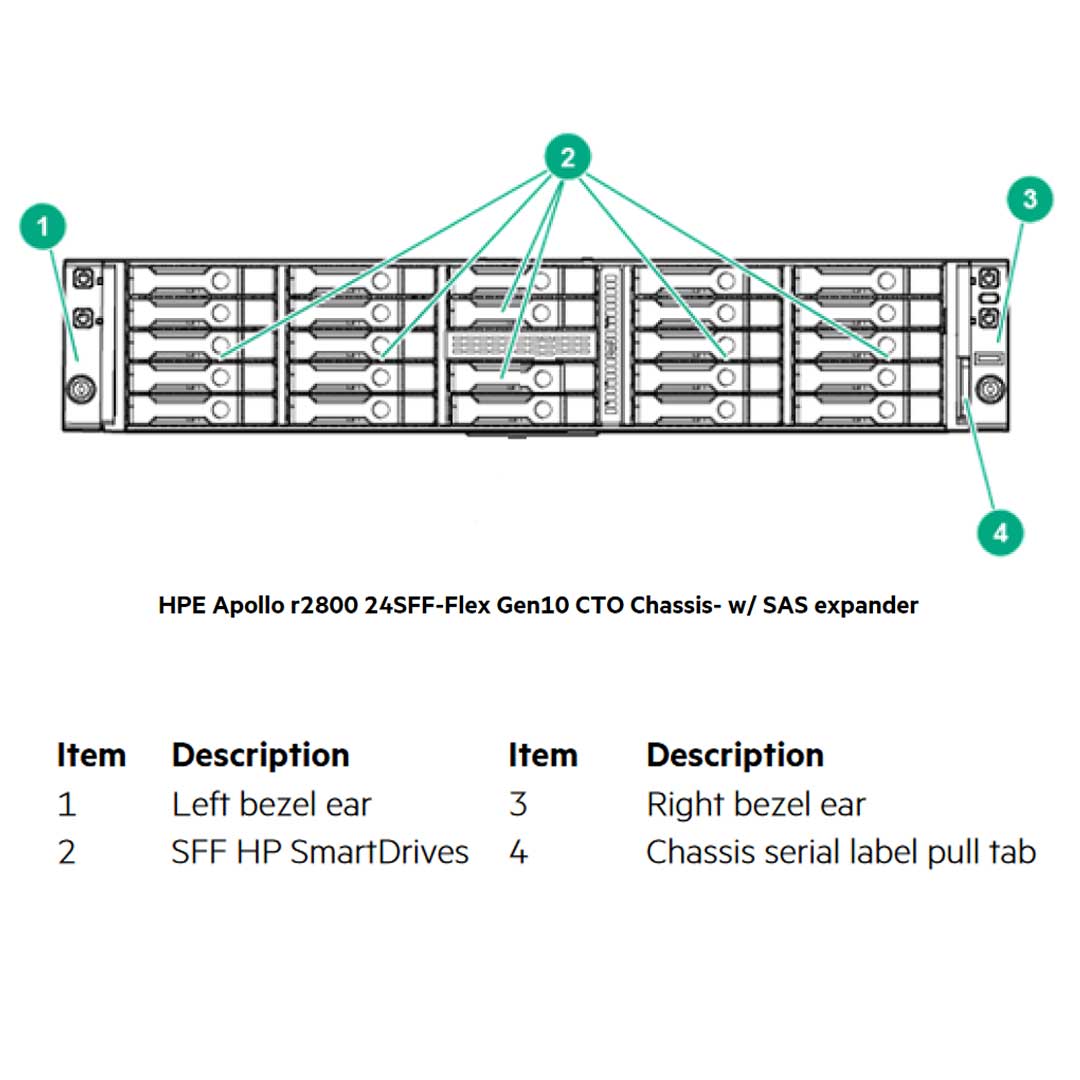

HPE Apollo r2800 Chassis w/ ExpanderThe HPE Apollo r2800 Chassis with the Expander Backplane offers flexible drive mapping, enabling custom allocations across server nodes to meet workload demands. It supports SAS and SATA hard drives, but only SAS drives are used when both types are selected in RAID configurations. Ideal for adaptable storage needs.
Note: If B140i is the primary controller, then you can only select SATA drives.
HPE Apollo 1U XL170r
- 12 LFF | SAS 7.2k 30TB 3 x 10TB
- 12 LFF | SAS 15k 2.7TB 3 x 900GB
- 12 LFF | SATA 30TB 3x 10TB
- 12 LFF | SATA SSD 11.52TB 3x 3.84TB
- 12 LFF | SAS SSD 4.8TB 3x 1.6TB
- 24 SFF | SAS 7.2k 12TB 6x 2TB
- 24 SFF | SAS 10k 14.4TB 6 x 2.4TB
- 24 SFF | SAS 15k 5.4TB 6x 900GB
- 24 SFF | SATA 12TB 6x 2TB
- 24 SFF | SATA SSD 23.04TB 6x 3.84TB
- 24 SFF | SAS SSD 23.04TB 6x 3.84TB
- 24 SFF | (6) NVMe
HPE Apollo 2U XL190r
- 12 LFF | SAS 7.2k 60TB 6x 10TB
- 12 LFF | SAS 15k 5.4TB 6x 900GB
- 12 LFF | SATA 60TB 6x 10TB
- 12 LFF | SATA SSD 23.04TB 6x 3.84TB
- 12 LFF | SAS SSD 9.6TB 6x 1.6TB
- 24 SFF | SAS 7.2k 24TB 12x 2TB
- 24 SFF | SAS 10k 28.8TB 12x 2.4TB
- 24 SFF | SAS 15k 10.8TB 12x 900GB
- 24 SFF | SATA 24TB 12x 2TB
- 24 SFF | SATA SSD 24.08TB 12x 3.8TB
- 24 SFF | SAS SSD 46.08TB 12x 3.84TB
- 24 SFF | (6) NVMe
Node Options
Mixing Server Nodes is Supported

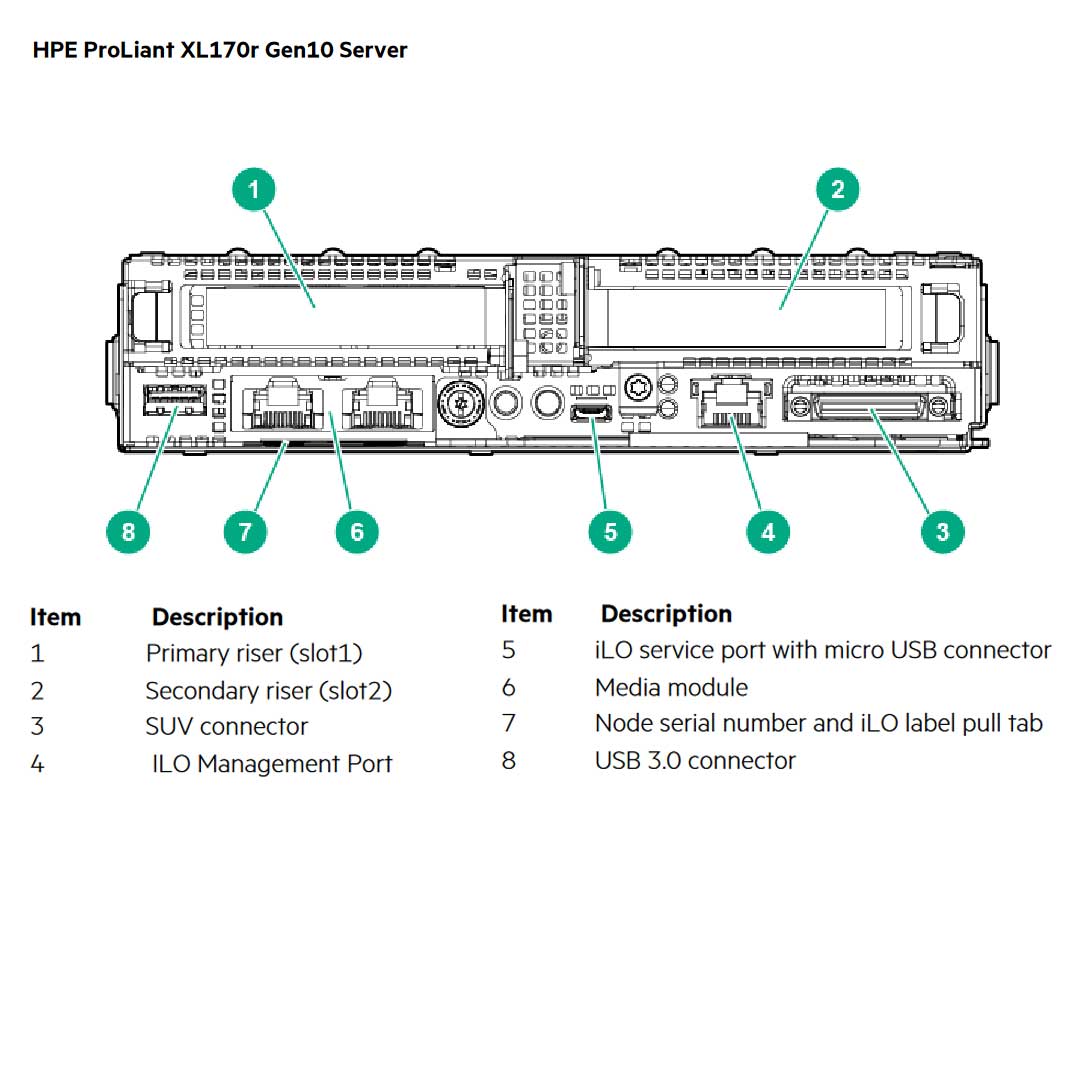

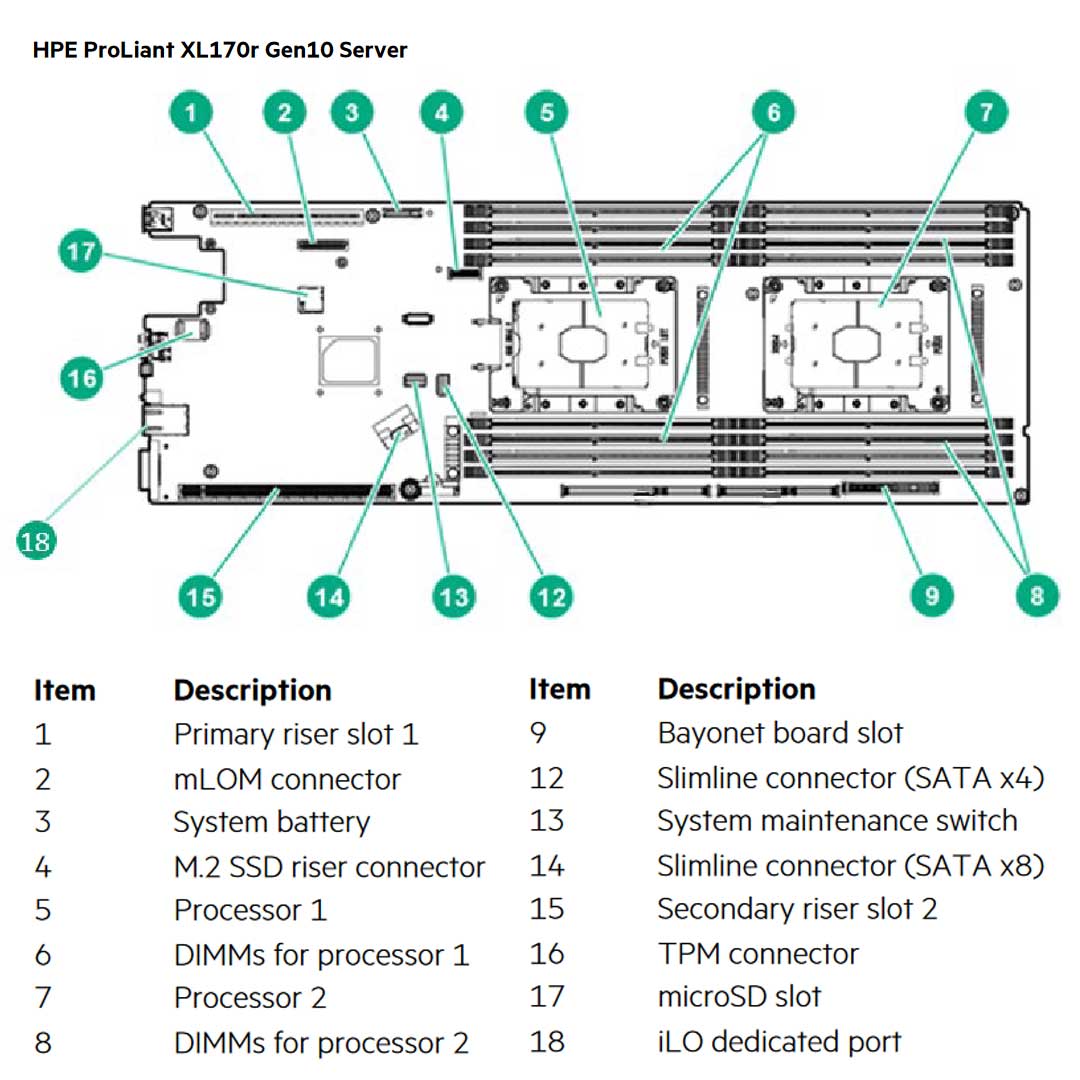

1U XL170r | 867055-B21 (Max 4)
QuickSpecs Manual
(2) Intel Xeon 1st & 2nd Gen Scalable processors
(16) 2933MT/s DDR4 DIMM
(2) PCIe Slots across (3) Riser Options
Support for FlexibleLOM
HPE iLO (Firmware: HPE iLO 5)
GPUs Not Supported

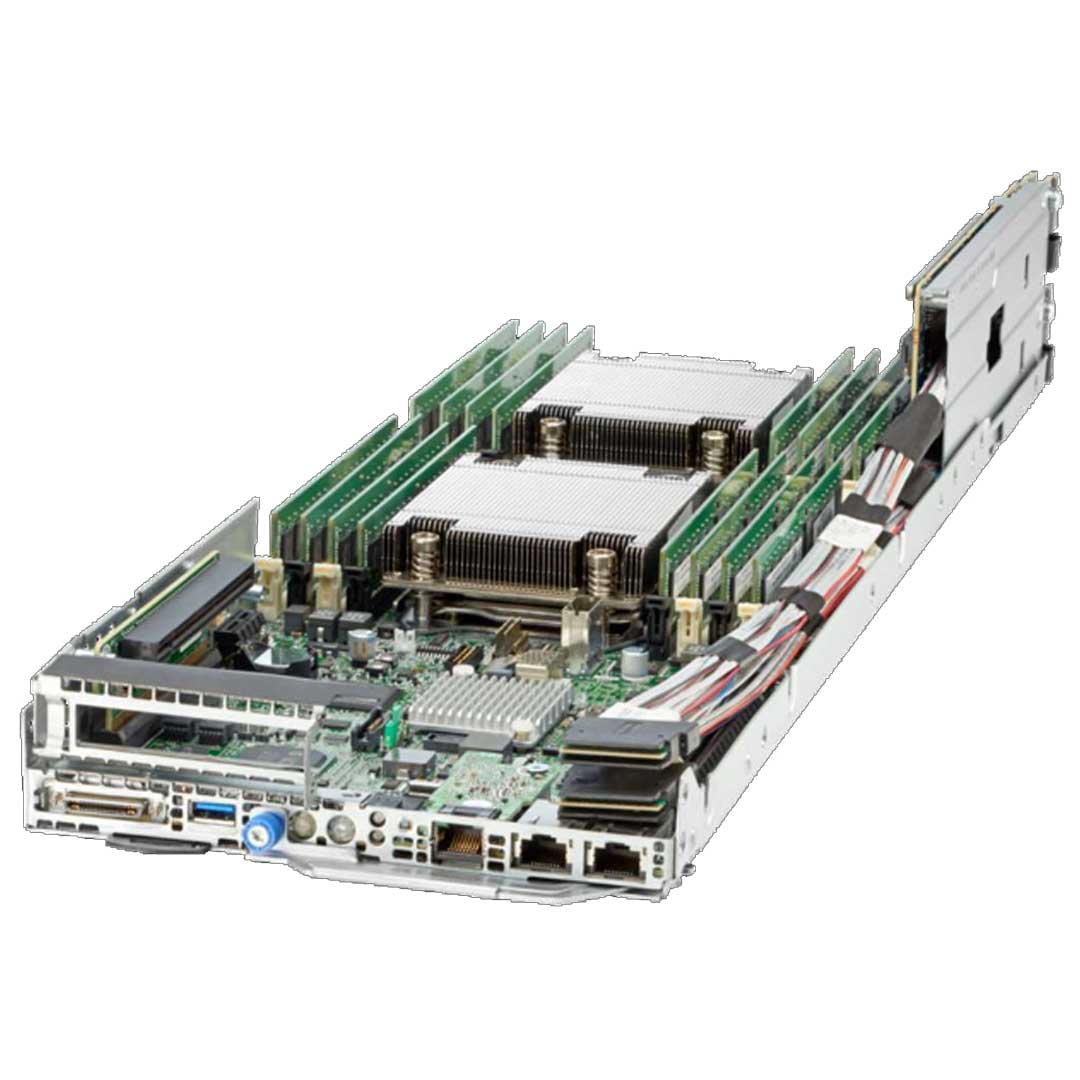

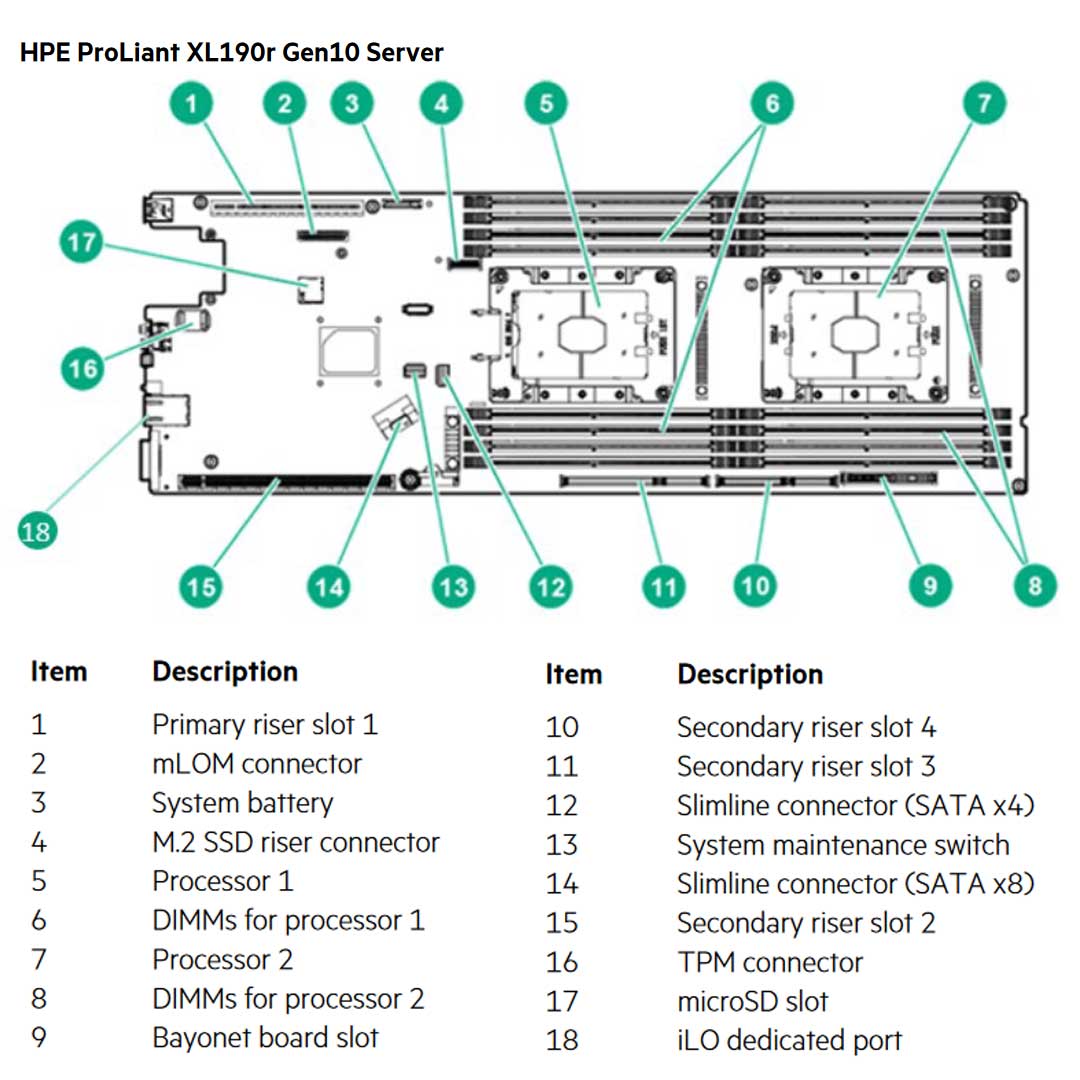

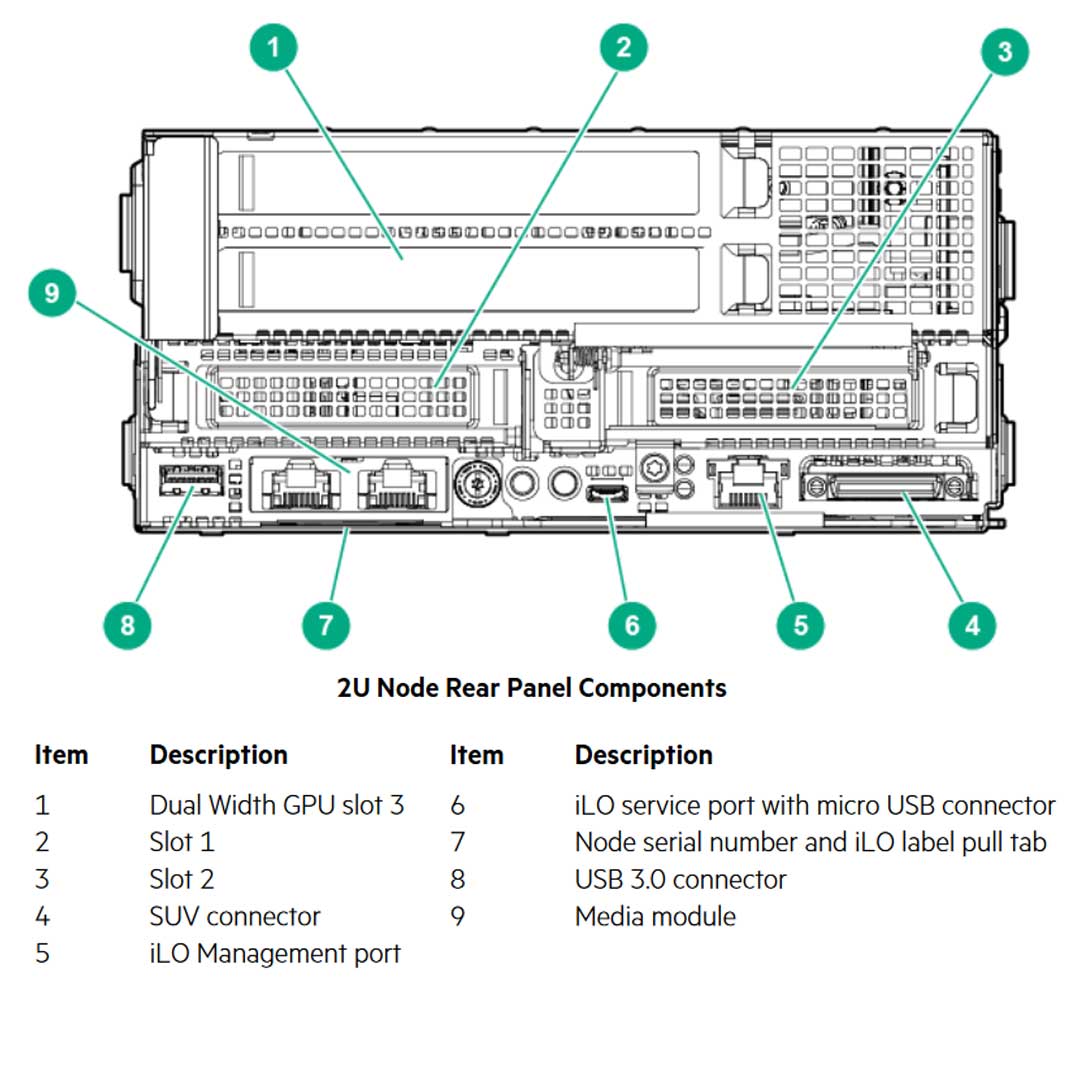

2U XL190r | 867056-B21 (Max 2)
QuickSpecs Manual
(2) Intel Xeon 1st & 2nd Gen Scalable processors
(16) 2933MT/s DDR4 DIMM
(4) PCIe Slots across (Many) Riser Options
Support for FlexibleLOM
HPE iLO (Firmware: HPE iLO 5)
(4) GPUs Supported
HPE Apollo 2000 Gen10 NVMe Drives

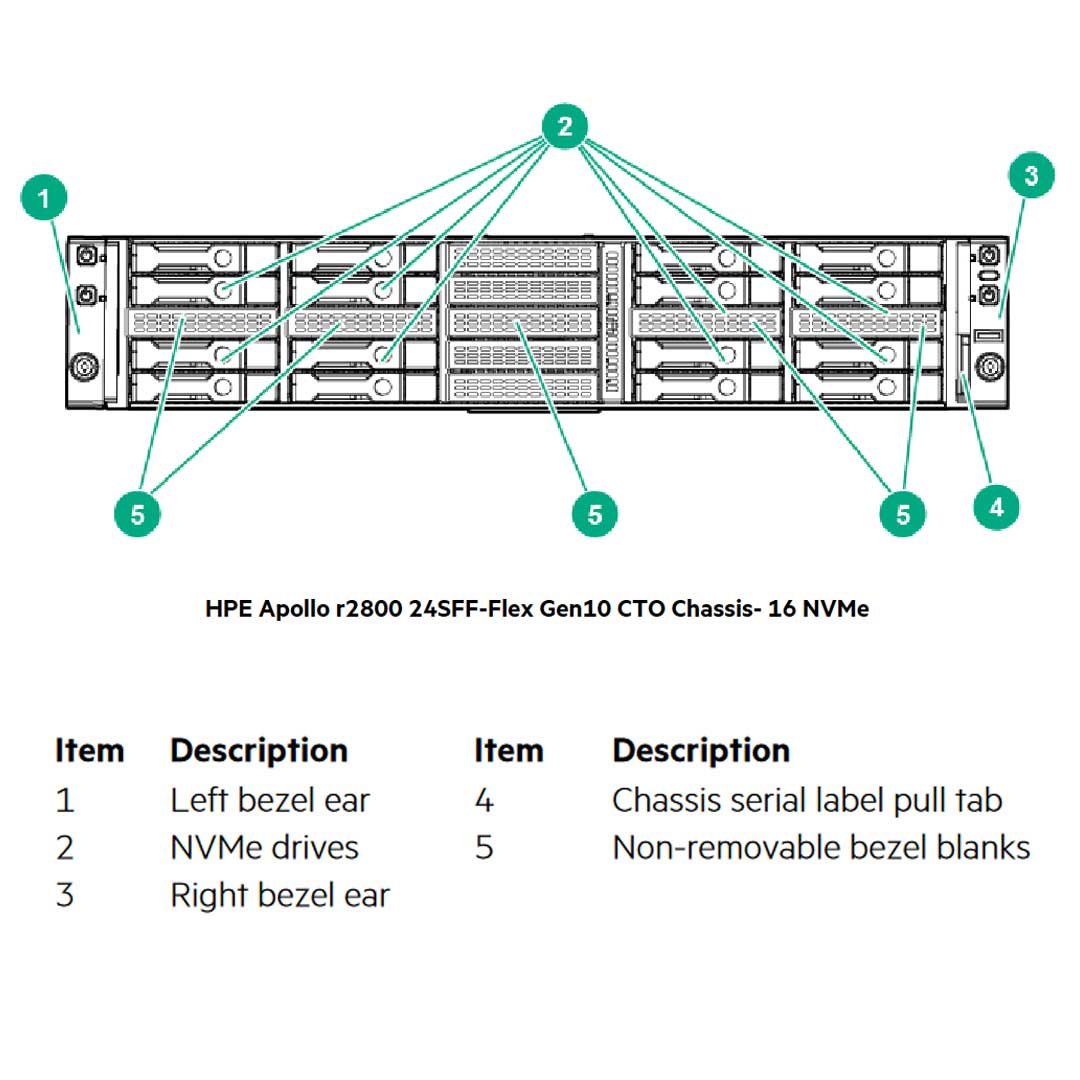

NVMe drives are supported on two of the Chassis options. The r2600 and the r2800 16NVMe version. In the r2600 the same backplane is used for the 24 SFF or the 16SFF+8NVMe. To support the NVMe you will need to install one of the following Riser Kits:
NVMe Supported Risers
- HPE XL170r Gen10 16NVMe P2 LP Riser Kit (874304-B21)
- HPE XL190r Gen10 16NVMe FLOM Riser Kit (874849-B21)

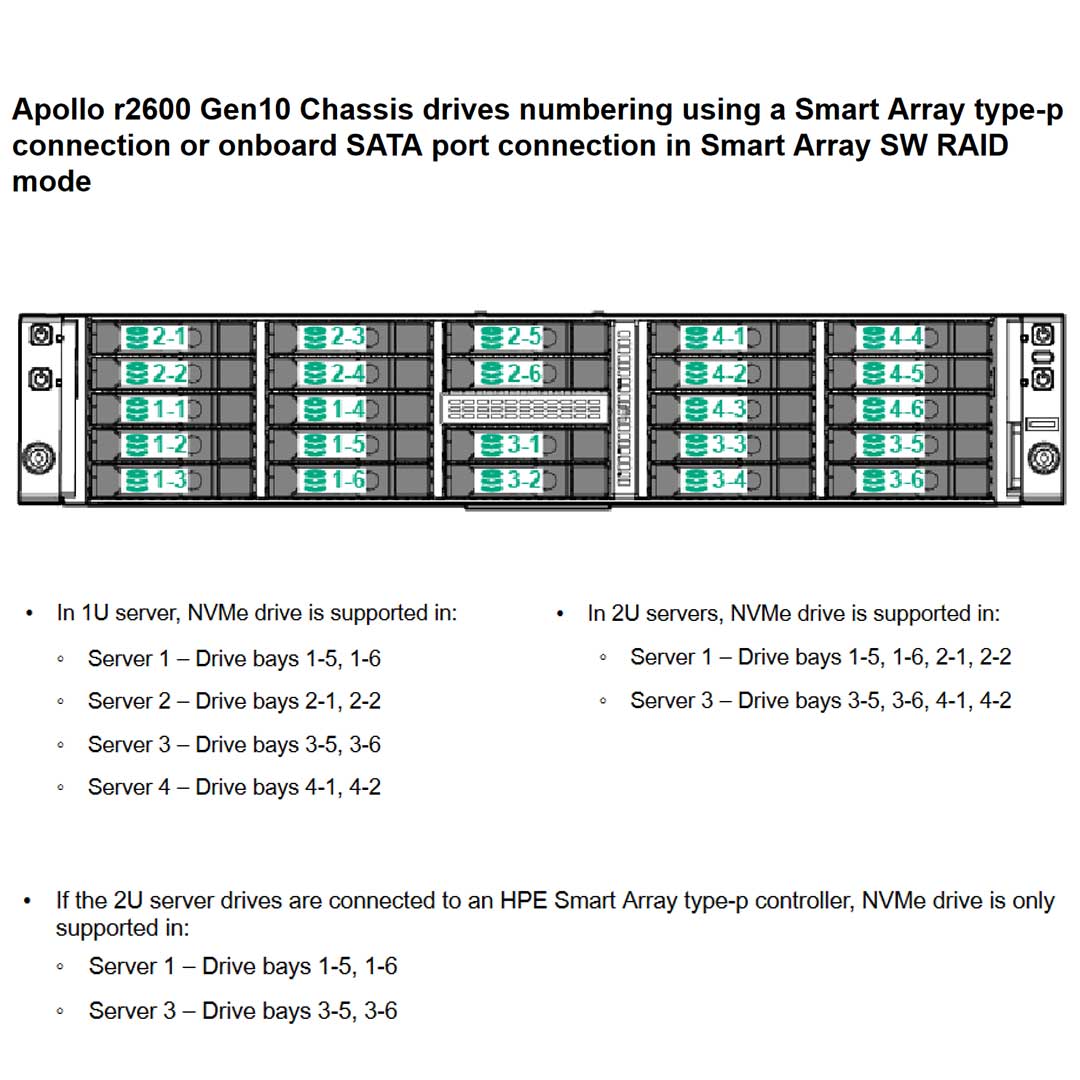

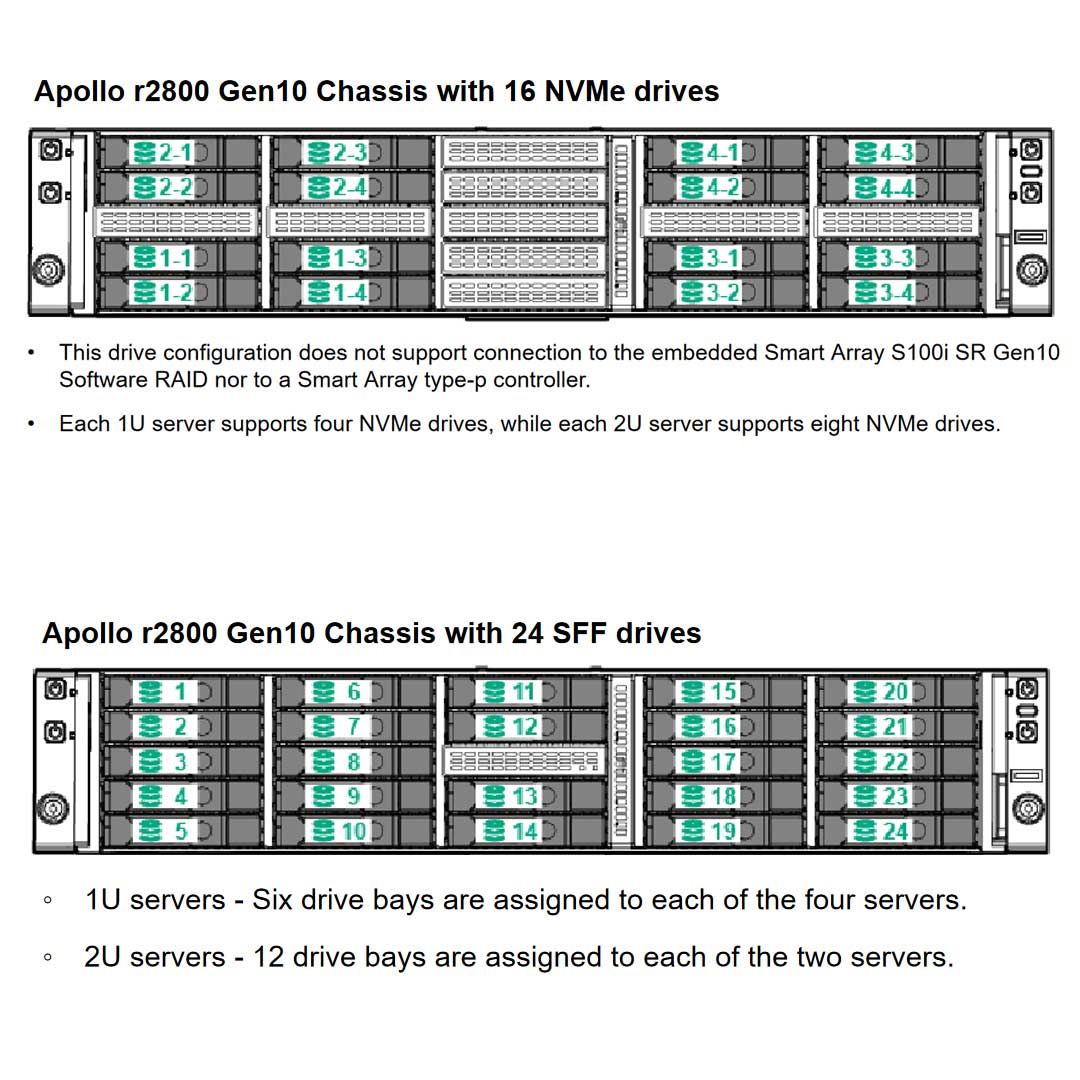

NVMe Drive Assignment

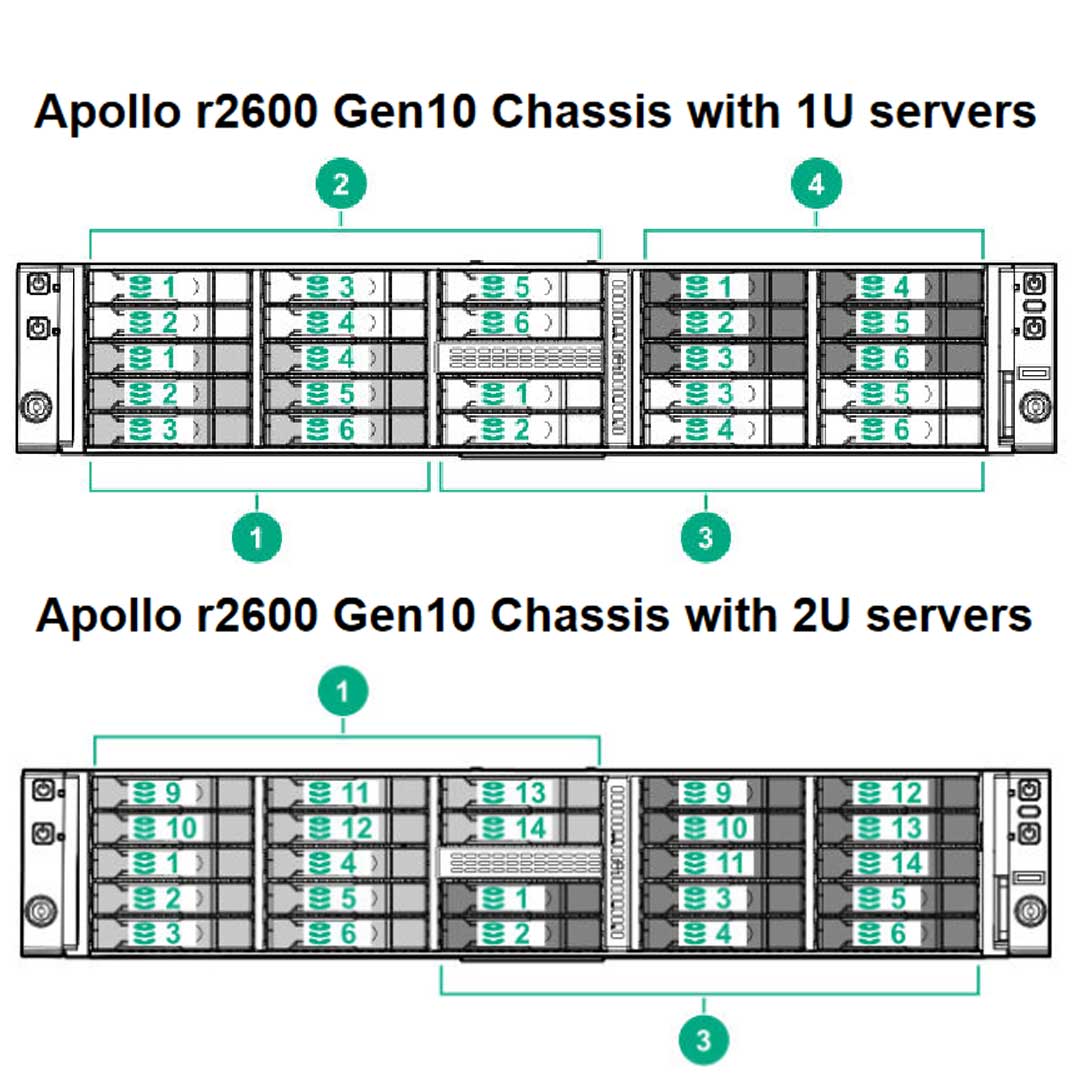

The NVMe drives are supported only in certain Drive Bays for both the r2600 and the r2800 chassis.
Drive Allocation Per Server- r2600 8x NVMe - 2x NVMe per XL170r
- r2600 8x NVMe - 4x NVMe per XL190r
- r2800 16x NVMe - 4x NVMe per XL170r
- r2800 16x NVMe - 8x NVMe per XL190r
View all NVMe Configurations
HPE Apollo 2000 Gen10 PCI Risers
The HPE XL170r Gen10 has 2 x16 PCI-3 3.0 slots. The second slot can be used either for a Low-Profile PCIe card or for the FlexibleLOM network adapters that are supported.
The HPE XL190r Gen10 server has the same configuration options as the XL170r for CPU and memory but has additional PCIe slots in multiple configurations providing support for additional expansion cards and support for (4) accelerators per XL190r Node server.
View XL190r 4x GPU Riser
HPE Apollo 2000 Gen10 Cooling
The HPE Apollo 2000 Gen10 server comes with 4 Rotor fans as standard with the option to install another 4 fans (874308-B21) for redundancy. Dual-rotor fan (882107-001) 9–10 must be installed if the 1800 W–2200 W power supply is installed and these Fans are powered by this power cable (882172-001).

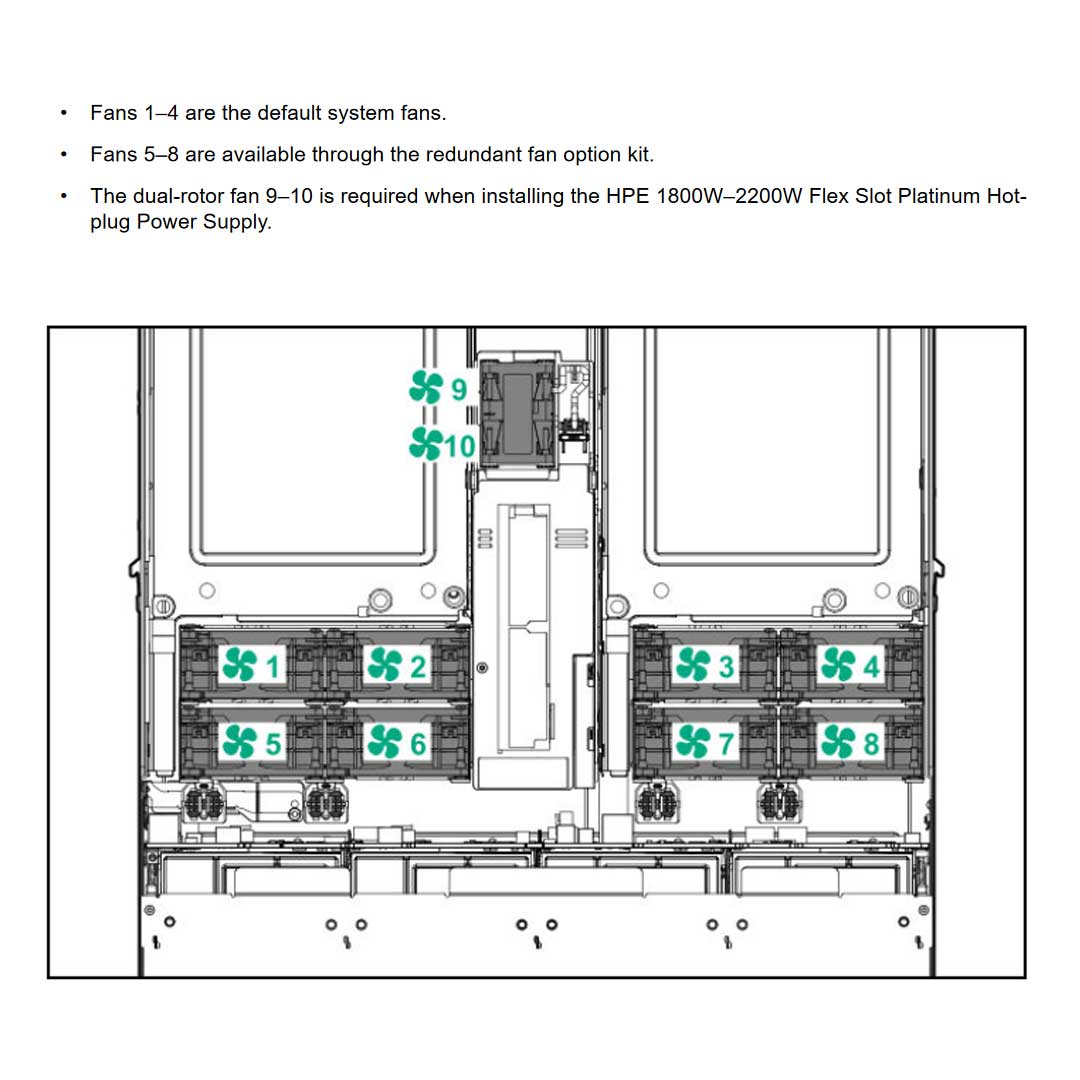

- Fans 1–4 are the default system fans.
- Fans 5–8 are available through the redundant fan option kit.
- The dual-rotor fan 9–10 is required when installing the HPE 1800W–2200W Flex Slot Platinum Hotplug Power Supply.
View Fan Bay Numbering
HPE Apollo 2000 Gen10 Rack Consolidation Module (RCM)
HP Apollo 2000 Rack Consolidation Module Kit (798211-B21) is an optional RCM (Rack Consolidation Management) module kit that allows iLO aggregation at the chassis level and also has the port for the HPE APM. The RCM Module consists of 2 iLO ports for redundancy. It can also be daisy-chained to connect to a Top of the Rack (TOR) management switch. If using the RCM module iLO port or the dedicated iLO management port module to connect to a network, the network must operate at a speed of 1Gb/s.
HPE Apollo Platform Manager Kit (APM)
The HPE Advanced Power Manager (APM) now called Apollo Platform Manager Kit (741192-B21) is an optional rack-level management solution designed to enhance power efficiency and simplify hardware management. It automatically discovers hardware components and provides server-level power control, including power on/off, server metering, dynamic power capping, and configurable power-up dependencies and sequencing. APM consolidates Ethernet access to all resident iLOs, supports asset management, and offers rack-level event logging, RADIUS authentication, and an integrated serial concentrator. Additional features include support for up to 11 local user accounts, a read-only service port, and compatibility with SNMP, SSH, Syslogd, and Telnet protocols.
Note: If using the RCM module iLO port or the dedicated iLO management port module to connect to a network, the network must operate at a speed of 1Gb/s.
NOTE: Each HPE APM can connect up to 10 chassis via consolidated chassis management cable
HPE Apollo 2000 Gen10 Flex Slot your power!
The HPE Apollo 2000 Gen10 server features a versatile and efficient power system with hot-swappable, redundant PSUs ranging from 500W to 1600W, supported by Advanced Power Management (APM) and Redundant Configuration Management (RCM) for dynamic power distribution and seamless redundancy. These PSUs, available in 80 PLUS Platinum and Titanium efficiencies, require appropriate fan configurations to maintain optimal cooling. Together, these features ensure reliable operation, energy efficiency, and scalability, making the server well-suited for demanding data center environments.
HPE Lights Out! | iLO 5 ASIC
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
iLO RESTful API is Redfish API
conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards.
Dimensions & Weight
Apollo r2200 12 Bay
Dimensions (H x W x D):
- 3.44 x 17.64 x 33.40in
- 8.73 x 44.80 x 86.33cm
Weight:
- Min: 28.88 lb (13.1 kg)
- Max: 112.19 lb (46.70 kg)
Apollo r2600 24 Bay
Dimensions (H x W x D):
- 3.44 x 17.64 x 32.40in
- 8.73 x 44.81 x 82.81cm
Weight:
- Min: 28.00 lb (12.7 kg)
- Max: 103.27 lb (46.84 kg)
Apollo r2800 24 Bay
Dimensions (H x W x D):
- 3.44 x 17.64 x 32.40in
- 8.73 x 44.81 x 82.27cm
Weight:
- Min: 28.00 lb (12.7 kg)
- Max: 102.96 lb (46.70 kg)
XL170r Gen10 1U | 867055-B21
Dimensions (H x W x D):
- 1.63 x 7.27 x 25.91in
- 4.13 x 18.45 x 65.80cm
Weight:
- Min: N/A
- Max: 15.23 lb (6.91 kg)
XL190r Gen10 2U | 867056-B21
Dimensions (H x W x D):
- 3.32 x 7.27 x 27.36in
- 8.43 x 18.45 x 69.47cm
Weight:
- Min: N/A
- Max: 25.1 lb (11.39 kg)
