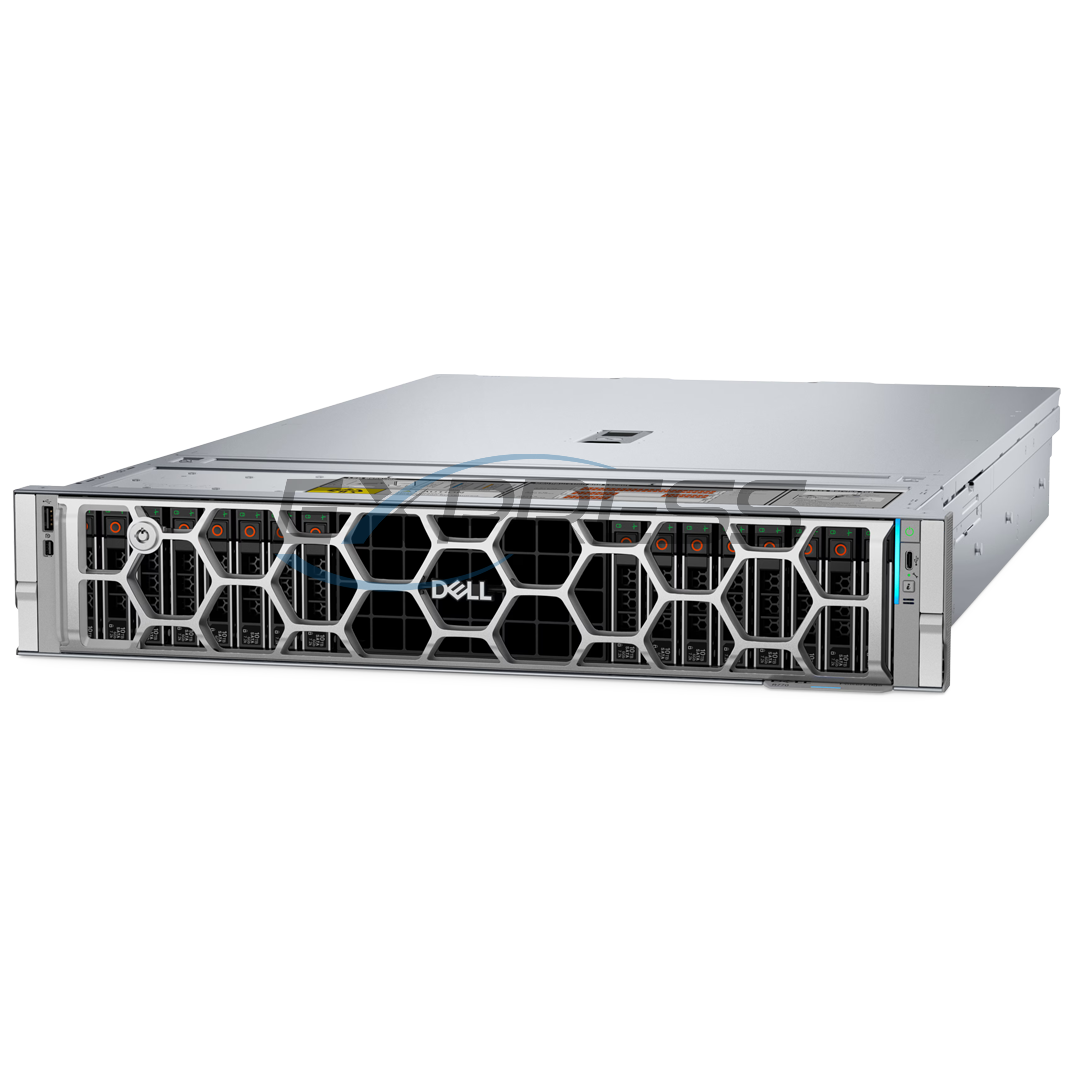

Dell PowerEdge R770 (SAS/SATA/NVMe) Rack Server CTO

Name: Dell PowerEdge R770 (SAS/SATA/NVMe) Rack Server CTO
Brand: Dell
SKU: DPE-R770-UNI-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPE-R770-UNI-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

Quick Specs

Form Factor:

2U rack server

Processor | Max: 144 E-Cores / 88 P-Cores

2x Intel Xeon 6 E-Core / P-Core

Memory | Max: 8TB

32 ECC DDR5 RDIMM 6400Mhz
Supports registered ECC DDR5 DIMMs only

Storage | Max: 245.6TB

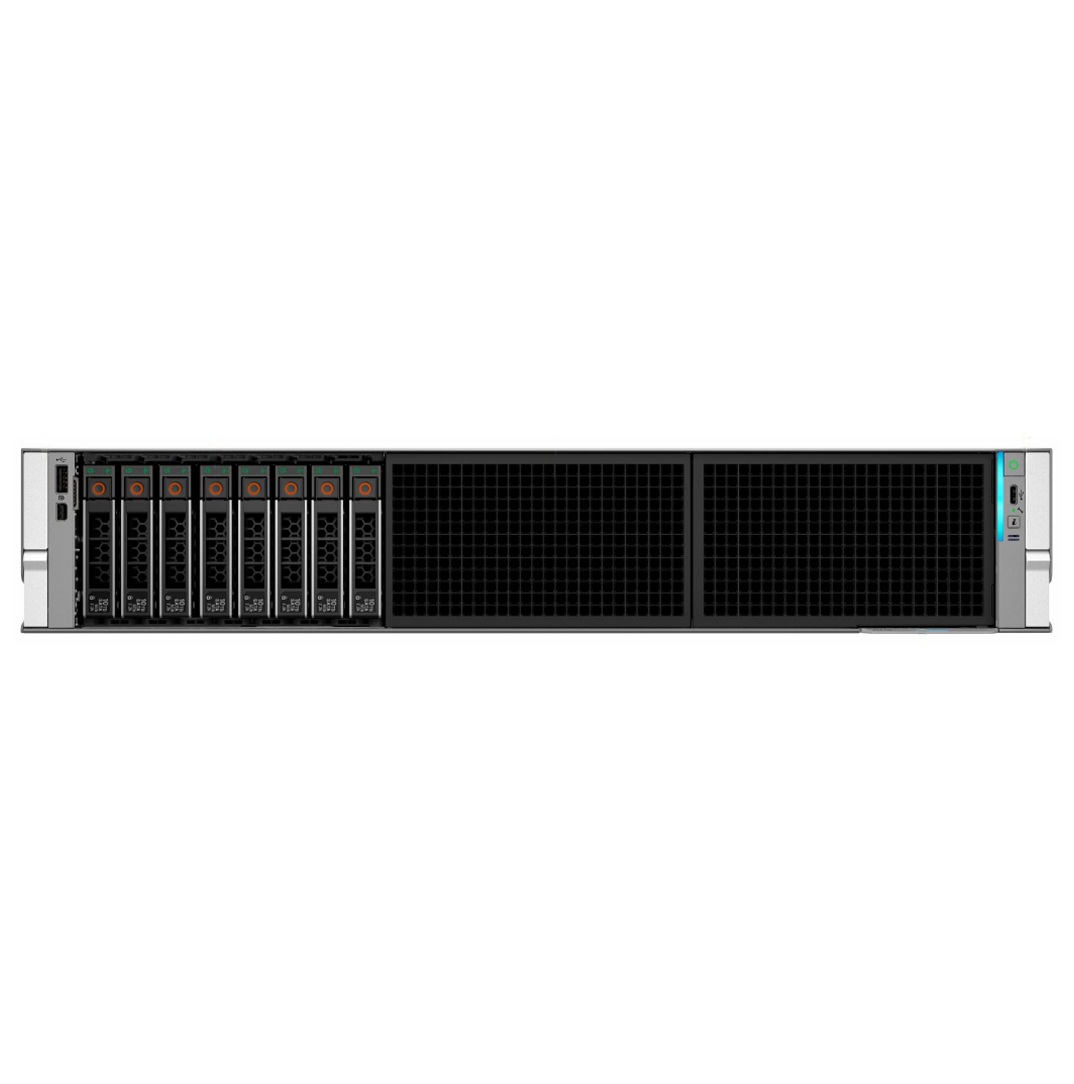

8 SFF SAS/SATA Max: 122.88TB
8 SFF U.2 NVMe Max: 245.6TB
16 SFF SAS/SATA Max: 61.44TB
16+8 SFF SAS/SATA+NVMe Max: 292.16TB
24 SFF SAS/SATA Max: 92.16TB

Rear Drives | Max: N/A

40 EDSFF Chassis Only

Storage Controller:

H365i, H965i, H975i
H965e, HBA465e

Boot Options:

BOSS-N1
BOSS-N1 DC-MHS
USB

Networking Options (NOC):

Rear I/O Supports 2x OCP 3.0

Remote Management:

iDRAC10

PCIe Slots:

8x G5

GPU:

Up to 6 x 75W SW
or 2 x 450W DW

Ideal for:

AI
Cloud-Native Applications
Database
Virtualization

The Dell PowerEdge R770 is a 2U, dual-socket rack server designed for high-performance computing with enhanced power efficiency. It supports virtualization, AI inferencing, cloud-native apps, hyperscale workloads, and scale-out databases.

Max Performance:

Equipped with two Intel® Xeon® 6 processors (E-cores and P-cores), it delivers up to 1.69x better performance per watt than previous models, boosting rack density and computational power with GPU support. Available in rear I/O hot aisle or front I/O cold aisle configurations, the front I/O design improves serviceability, uptime, and cooling efficiency. Dell’s Smart Power and Cooling Technology optimizes air cooling, reducing energy consumption for operational savings.

Air-cooled at peak performance

The PowerEdge R770 offers rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle enhances serviceability, reduces maintenance time, and improves efficiency, reliability, and uptime, supporting sustainability by optimizing cooling and energy use. Dell’s Smart Power and Cooling Technology, tailored for air cooling, significantly cuts energy consumption for long-term operational savings.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.

Intel Xeon 6th Gen

The Intel® Xeon® 6 series of processors offers both E-Core and P-Core processors. Mixing of CPUs is not supported.

Xeon E-Cores

The Intel® Xeon® 6 series single threaded processor stack is comprised entirely of efficiency cores (E-Cores) providing ultra-high core counts optimized for power efficient operations.

• Optimized for single-threaded workloads

• Up to 144 cores at 330 W TDP

• 6400 MT/s DDR5 memory

• Up to four 24 GT/s UPI 2.0

• PCIe 5.0 with up to 88 lanes per CPU

• Security features (SGX)

Xeon P-Cores

The Intel® Xeon® 6 series processor stack is comprised entirely of performance cores (P-Cores), providing high core counts optimized for power and performance.

• Optimized for multi-threaded applications and workloads

• Up to 86 cores at 350 W TDP

• 6400 MT/s DDR5 memory

• Up to four 24 GT/s UPI 2.0

• PCIe 5.0 with up to 88 lanes per CPU

• Security features (SGX)

Cooling Options

1U STD Heatsink
TDP > 200W

L-Type Heatsink (GPU)
TDP <= 250W

Dell PowerEdge R770 1U EXT Heatsink (GPU)<br> TDP <= 250W

1U EXT Heatsink (GPU)
TDP <= 250W

Dell PowerEdge R770 2U EXT Heatsink (GPU)<br> TDP <= 250W

2U EXT Heatsink (FIO)
TDP >= 200W

Liquid Cooling (DLC)

High-Performance (Silver) Fan

Supports up to 4 set Standard (STD) hot-swappable cooling fans, each consisting of a dual fan module.

High-Performance (Gold) Fan

The High-Performance (Gold) Fan is required for Most GPU configs.

High-Performance (Platinum) Fan

The High-Performance (Platinum) Fanrequired when either the Nvidia H200 NVL or RTX Pro 6000 is installed.

Please view the "Table 59. Thermal restriction matrix" in the tech manual below for more details.

Memory Options

The Dell PowerEdge R770 holds up to 32x DDR5 DIMMs

DIMM type	Rank	Capacity	DIMM voltage and speed	E-core processor		P-core processor
DIMM type	Rank	Capacity	DIMM voltage and speed	1 DIMM per channel (DPC)	2 DIMM per channel (DPC)	1 DIMM per channel (DPC)	2 DIMM per channel (DPC)
RDIMM	1R	16 GB	DDR5 (1.1 V), 6400 MT/s	N/A	N/A	Up to 6400 MT/s	N/A
	2R	32 GB	DDR5 (1.1 V), 6400 MT/s	Up to 6400 MT/s	N/A	Up to 6400 MT/s	Up to 5200 MT/s
		64 GB	DDR5 (1.1 V), 6400 MT/s	Up to 6400 MT/s	Up to 5200 MT/s	Up to 6400 MT/s	Up to 5200 MT/s
		96 GB	DDR5 (1.1 V), 6400 MT/s	N/A	N/A	Up to 6400 MT/s	Up to 5200 MT/s
		128 GB	DDR5 (1.1 V), 6400 MT/s	N/A	N/A	Up to 6400 MT/s	Up to 5200 MT/s
	8R	256 GB	DDR5 (1.1 V), 6400 MT/s	N/A	N/A	N/A	Up to 5200 MT/s

Storage Controllers (Internal)

Front H965i DC-MHS

RAID: 0, 1, 5, 6, 10, 50, and 60
Non–RAID: Yes
Host bus type: PCIe 4.0 x16
Processor: Broadcom RAID-on-chip, SAS4116W chipset
Power Backup unit: Battery
Cache memory: 8 GB DDR4 3200 MT/s cache
Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe

Dual Front H975i DC-MHS

Per Controller
RAID: 0, 1, 5, 6, 10, 50, and 60
Non–RAID: Yes
Host bus type: PCIe 5.0 x16
Processor: Broadcom RAID-on-chip, SAS5132W chipset
Power Backup unit: Supercapacitor
Cache memory: Integrated RAID cache
Cache function: Write-back, write-through, always write-back, no read-ahead
Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
maximum SAS/SATA: Not supported
maximum NVMe: 32 drives

Front H365i DC-MHS

RAID: 0, 1, and 10
Non–RAID: Yes
Host bus type: PCIe 4.0 x8 @ 16Gbps
Processor: Broadcom RAID-on-chip, SAS4016 chipset
Power Backup unit: No
Cache memory: No
Cache function: Write-through
Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model.
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives

Riser Configurations

The system supports either Front I/O configuration (system with front risers) or Rear I/O configuration (system with rear risers).

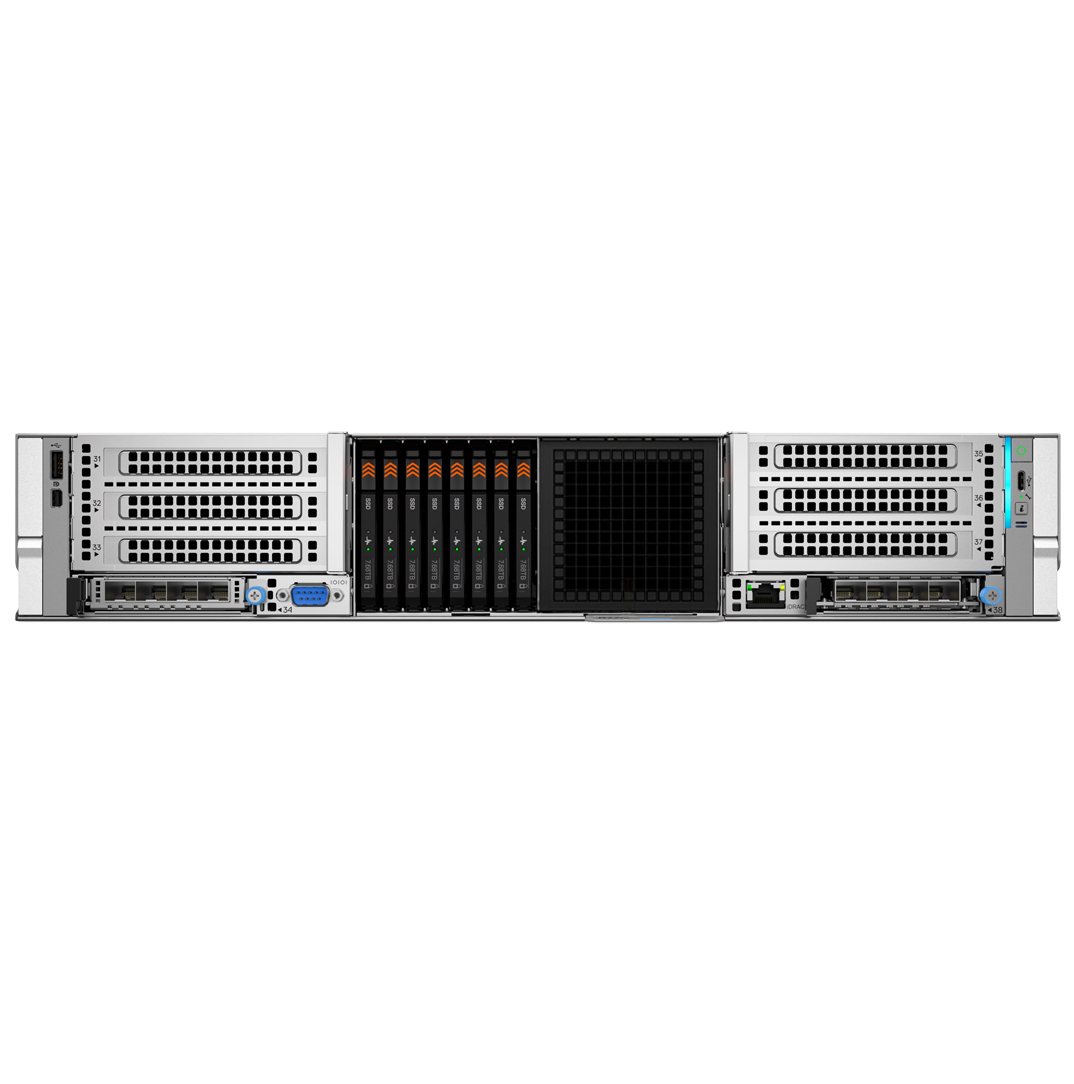

Dell PowerEdge R770 Front I/O (FIO)

Dell PowerEdge R770 Rear I/O (RIO)

OCP is also supported in front of the system for some configurations, called the Floating OCP Paddle Card (FLOP). Additionally, the Front I/O OCP supports both internal latch and thumbscrew versions, providing flexibility in installation and maintenance

Riser Assemblies

Riser (RF1a)

Riser (RF2a)

Riser (RF3a)

Riser (RF4a)

Riser (R1a)

Riser (R1 4xE3.S)

Riser (R1b)

Riser (R1b FL)

Riser (R2a)

Riser (R2b)

Riser (R3a)

Riser (R3c)

Riser (R3e)

Riser (R4a)

Riser (R4b)

Riser (R4c)

Riser (R5a)

Riser (R5b)

Riser (R5b FL)

Riser (R5c)

Riser Configurations

Riser Configurations	Expansion card risers	PCIe Slots	Form factor	Controlling processor	Slot's electrical bandwidth/ physical connector
RC 0: 1x OCP	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 0: 1x OCP	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
RC 1 (front): 2 x 16 FH (Gen5) + 1 x 16 OCP (Gen5) + optional BOSS	RF1a	31	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	BOSS	34	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	RF3a	36	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	RF4a	38	OCP	Processor 1	PCIe Gen5 x16 (OCP 4C+ connector)
RC 2 (front): 2 x16 FH (Gen5) + 2 x16 OCP (Gen5) & rear optional BOSS	RF1a	31	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	RF2a	34	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
	RF3a	36	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	RF4a	38	OCP	Processor 1	PCIe Gen5 x16 (OCP 4C+ connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
RC 6:1 (rear): 4 x16 FH (Gen5) + 2 x16 OCP (Gen5) + optional BOSS	R1b	2	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R2b	3	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3e	4	OCP	Processor 1	PCIe Gen5 x16 (OCP 4C+ connector)
	R4b	9	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R5b	7	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 6:2 2 x 16 FH (Gen5) + 2 x 16 OCP (Gen5) + 2 x 16 DWFL (Gen5) + optional BOSS	R1b	2	Double Width	Processor 1	PCIe Gen5 x16 (x16 connector)
	R2b	3	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3e	4	OCP	Processor 1	PCIe Gen5 x16 (OCP 4C+ connector)
	R4b	9	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R5b	7	Double Width	Processor 0	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 7: 6 x 8FH (Gen5) + 2 x 16FH (Gen5) & 1 x16 OCP (Gen5) + optional BOSS	R1a	1	Full Height	Processor 1	PCIe Gen5 x8 (x16 connector)
	R1a	2	Full Height	Processor 1	PCIe Gen5 x8 (x16 connector)
	R2b	3	Full height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3a	4	Full height	Processor 1	PCIe Gen5 x8 (x16 connector)
	R3a	5	Full height	Processor 1	PCIe Gen5 x8 (x16 connector)
	R4b	9	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R5a	7	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R5a	8	Full height	Processor 0	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 11-1: 3 x 16FH (Gen5) + 2 x 16 LP (Gen5) + 2nd OCP x 8 (Gen5) + 1x8 / x 16 OCP (Gen5)	R1b	2	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R2a	3	Low Profile	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3c	4	OCP	Processor 1	PCIe Gen5 x8 (OCP 4C+ connector)
	R3c	5	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	R5b	7	Full Height	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
	R4a	9	Low Profile	Processor 0	PCIe Gen5 x16 (x16 connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 11-2: 2 x 16 DWFL (Gen5) + 2 x 16LP (Gen5) + 1 x 16 FH (Gen5) + 2nd OCP X 8 (Gen5) + 1 x 8 / x 16 OCP (Gen5)	R1b	2	Double Width	Processor 1	PCIe Gen5 x16 (x16 connector)
	R2a	3	Low Profile	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3c	4	OCP	Processor 1	PCIe Gen5 x8 (OCP 4C+ connector)
	R3c	5	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	R5b	7	Double Width	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
	R4a	9	Low Profile	Processor 0	PCIe Gen5 x16 (x16 connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 12: 6 x 16FH (Gen5) + 2nd OCP x 8 (Gen5) & 1 x 8 / x 16 OCP (Gen5)	R1b	2	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R2b	3	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3c	4	OCP	Processor 1	PCIe Gen5 x8 (OCP 4C+ connector)
	R3c	5	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	R5c	7	Full Height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R5c	8	Full Height	Processor 0	PCIe Gen5 x16 (x16 connector)
	R4b	9	Full Height	Processor 0	PCIe Gen5 x16 (x16 connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 14: 4 x 8 FH + 2 x 16 LP + 1 x 8 OCP (Gen5)	R2a	3	Low Profile	Processor 1	PCIe Gen5 x16 (x16 connector)
	R3c	4	OCP	Processor 1	PCIe Gen5 x8 (OCP 4C+ connector)
	R3c	5	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	R5a	7	Full Height	Processor 0	PCIe Gen5 x8 (x16 connector)
	R5a	8	Full Height	Processor 0	PCIe Gen5 x8 (x16 connector)
	R4a	9	Low Profile	Processor 0	PCIe Gen5 x16 (x16 connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)
RC 15: 1 x 16 FH (G5) + 1 x 8 FH (G5) + 2nd OCP x 8 (G5) + 1 x 8 OCP (G5)	R3c	4	OCP	Processor 1	PCIe Gen5 x8 (OCP 4C+ connector)
	R3c	5	Full Height	Processor 1	PCIe Gen5 x16 (x16 connector)
	BOSS	6	BOSS	Processor 0	PCIe Gen3 x4 (1C connector)
	R4c	9	Full Height	Processor 0	PCIe Gen5 x8 (x16 connector)
	OCP	10	OCP	Processor 0	PCIe Gen5 x16 (OCP 4C+ connector)

GPU Options

Platform support details
GPU Name	Maximum Qty.	Riser configuration support	PCIe	Form Factor	Power
NVIDIA L4	2	RC 1, RC 2, RC 6-2, RC 7, RC 11-1	x16	SW	72 W
NVIDIA H100 NVL	4	RC 6-1	x16	SW	72 W
NVIDIA H100	2	RC 6-2, RC 11-2	x16	DW	400 W
NVIDIA L40s	2	RC 6-2, RC 11-2	x16	DW	350 W
NVIDIA A16	2	RC 6-2, RC 11-2	x16	DW	250 W
NVIDIA H200 NVL	2	RC 6-2, RC 11-2	x16	DW	450 W
NVIDIA RTX Pro 6000	2	RC 6-2, RC 11-2	x16	DW	450 W

Minimum requirements for supporting NVIDIA H200 NVL and NVIDIA RTX Pro 6000 GPUs:

All fan modules must be High performance Platinum Fan (HPR Platinum) type

The puck power cables that are required for GPU installations are specific to the slot: DPN: DCNHT for slot 2 and DPN: K8FW0 for slot 7.

Boot Options

BOSS-N1 DC-MHS

BOSS-N1 Interposer

Internal USB Boot

Control Panel Options (LCP)

Secondary blank (Default)

Secondary with optional KVM

Secondary with optional Quick Sync 2.0

Power Supply Units (PSU)

Not sure what power supply to use. Dell has a calculator for you - Click Here

Form factor	Output	Power cord
60 mm	800 W mixed mode	C13
	1100 W mixed mode	C13
	1400 W -48 VDC	Lotes RN5T2
	1500 W mixed mode	C13
	1500 W mixed mode 277Vac & HVDC	APP/Saf-D-Grid
	1800 W mixed mode	C13
73.5 mm	2400 W mixed mode	C19
	3200 W mixed mode	C19
	3200 W mixed mode 277Vac & HVDC	APP/Saf-D-Grid

Dimensions & Weight

Dimensions

Width: 18.98"
Length: 30.95"
Height: 3.41"

Weight

8 x EDSFF E3.S 25.89 kg (57.07 pound)
16 x EDSFF E3.S 28.53 kg (62.89 pound)
8 x 2.5-inch SAS/SATA drives 27.2 kg (59.96 pounds)
8 x 2.5-inch Universal 27.2 kg (59.96 pounds)
16 x 2.5-inch SAS/SATA 29.5 kg (65.03 pounds)
16 x 2.5-inch + 8 x 2.5-inch SAS/SATA 31.33 kg (69.07 pounds)
24 x 2.5-inch SAS/SATA drives 32.08 kg (70.72 pounds)
32 x EDSFF E3.S 31.24 kg (68.87 pounds)
40 x EDSFF E3.S 30.96 kg (68.25 pounds)

Current Configuration

(List below serves as quick links to each section)

Select Chassis

Select up two Processors

Cooling Options

Memory for E-Core Processors

Memory for P-Core Processors

8x NVMe Drive Cage

Drives SATA

Drives SAS

Drives U.2 NVMe

Storage Controllers

GPU Options

Networking OCP 3.0

Riser Configurations

Boot Options

Left Control Panel (LCP)

Power Supply Units (PSU)

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Current Configuration

Select Chassis

Select up two Processors

Cooling Options

Memory for E-Core Processors

Memory for P-Core Processors

8x NVMe Drive Cage

Drives SATA

Drives SAS

Drives U.2 NVMe

Storage Controllers

GPU Options

Networking OCP 3.0

Riser Configurations

Boot Options

Left Control Panel (LCP)

Power Supply Units (PSU)

ECS Warranty

Dell PowerEdge R770 (SAS/SATA/NVMe) Rack Server CTO

READ ME

Select Chassis

Select up two Processors

Intel Xeon E-Core

Intel Xeon P-Core

Cooling Options (Optional)

Memory for E-Core Processors (Optional)

Memory for P-Core Processors (Optional)

8x NVMe Drive Cage (Optional)

Drives SATA (Optional)

Drives SAS (Optional)

Drives U.2 NVMe (Optional)

Storage Controllers (Optional)

GPU Options (Optional)

Networking OCP 3.0 (Optional)

Riser Configurations (Optional)

Boot Options (Optional)

Left Control Panel (LCP)

Power Supply Units (PSU)

ECS Warranty

Quick Specs

Ideal for:

Riser Assemblies

Riser Configurations

Current Configuration

Select Chassis

Select up two Processors

Cooling Options

Memory for E-Core Processors

Memory for P-Core Processors

8x NVMe Drive Cage

Drives SATA

Drives SAS

Drives U.2 NVMe

Storage Controllers

GPU Options

Networking OCP 3.0

Riser Configurations

Boot Options

Left Control Panel (LCP)

Power Supply Units (PSU)

ECS Warranty

You may also like

Currency
