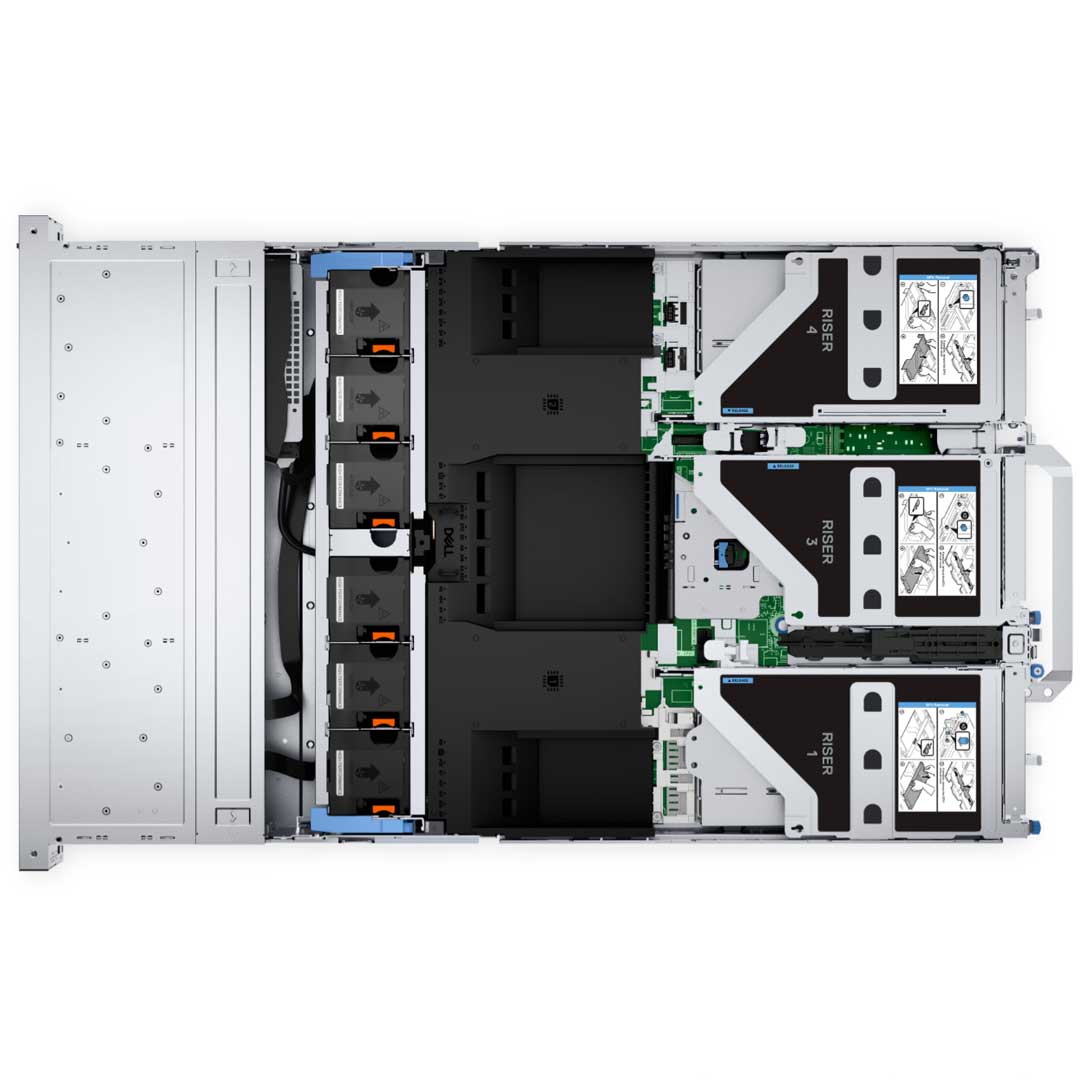

Dell PowerEdge R760 Rack Server (16x 2.5" EDSFF E3.S) CTO

Max Performance

• Add up to two Next Generation Intel® Xeon® Scalable processors with up to 56 cores for faster and more accurate processing performance.
• Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4400 MT/sec (2DPC) or 4800 MT/sec for 1DPC (16 DDR5 RDIMMs max).
• Support for GPUs including 2 x double-wide or 6 x single-wide for workloads requiring acceleration.

Gain agility

• Achieve maximum efficiency with multiple chassis designs that are tailored to your desired workloads and business objectives.
• Storage options include up to 12 x 3.5” SAS3/SATA; or up to 24 x 2.5” SAS4/SATA, plus up to 24 x NVMe U.2 Gen4, 16 x NVME E3.S Gen5*.
• Multiple Gen4 and Gen5 riser configurations (up to 8 x PCIe slots) with interchangeable components that seamlessly integrate to address customer needs over time.

There is no 16-bay backplane. Each of these configurations below is built with multiple 8 EDSFF E3.S Backplanes.

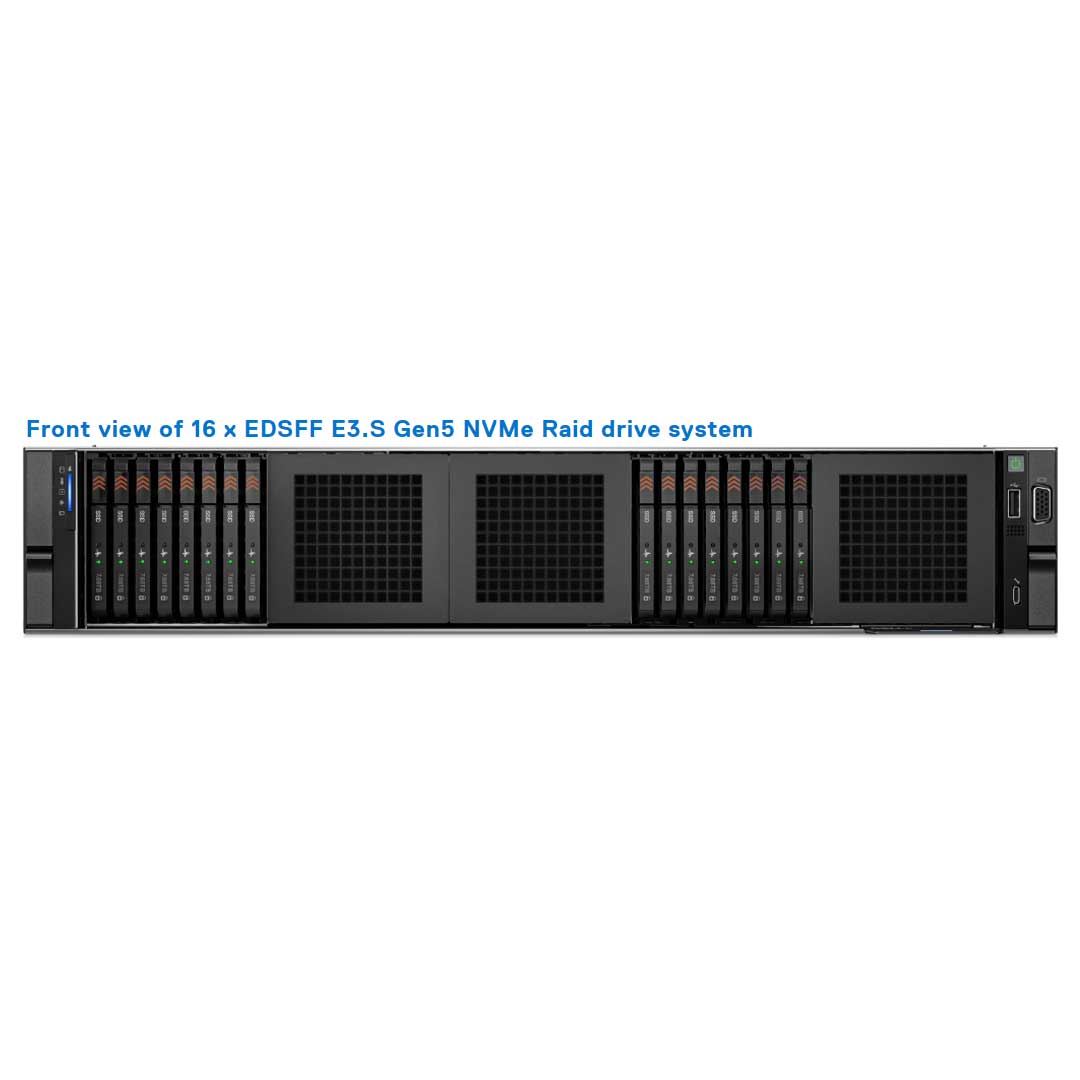

• 16 x EDSFF E3.S (Gen5 x 4 NVMe Direct)

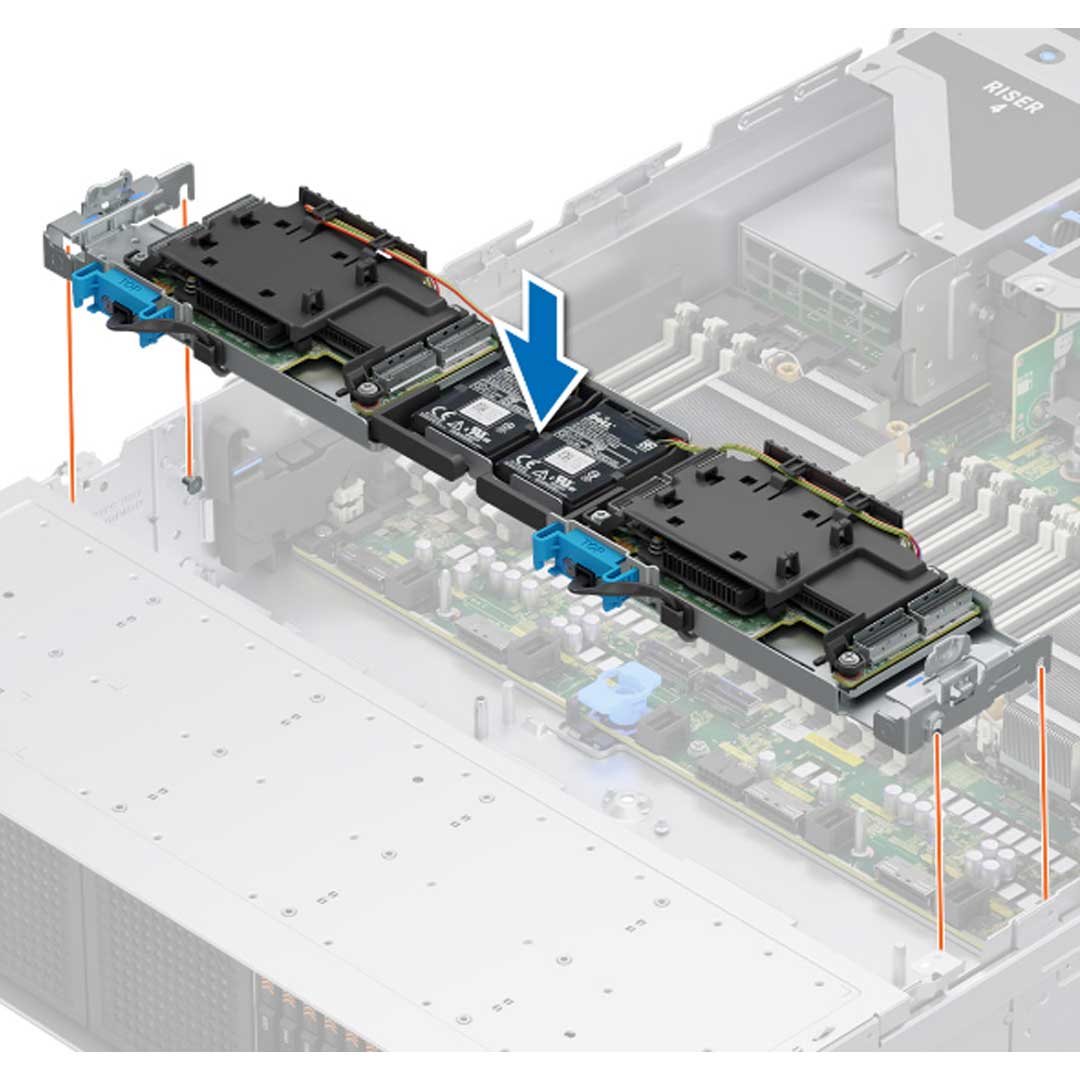

• 16 x EDSFF E3.S (NVMe RAID) - Dual fPERC (H965i)

Up to 2 x 4th Gen Intel® Xeon® Scalable or Intel® Xeon® Max Processors with up to 56 cores

There are three types of heat sinks for this Dell R760 Rack server. The heat sink option is based on the configuration and the TDP of the CPU. Any TPD above 250W will be liquid-cooled.

• STD HSK ≤ 165 W (supports only 2.5-inch drives and non-GPU configuration)
• 2U HPR HSK 165 W–350 W (supports 2.5-inch drives and non-GPU configuration)
• L-type HSK Supports all GPU/FPGA configurations

Any Processors TPD above 250W will need the liquid-cooled system installed.
CPUs 9480, 9470, 8470Q and 6458Q are supported only in liquid cooling configuration.

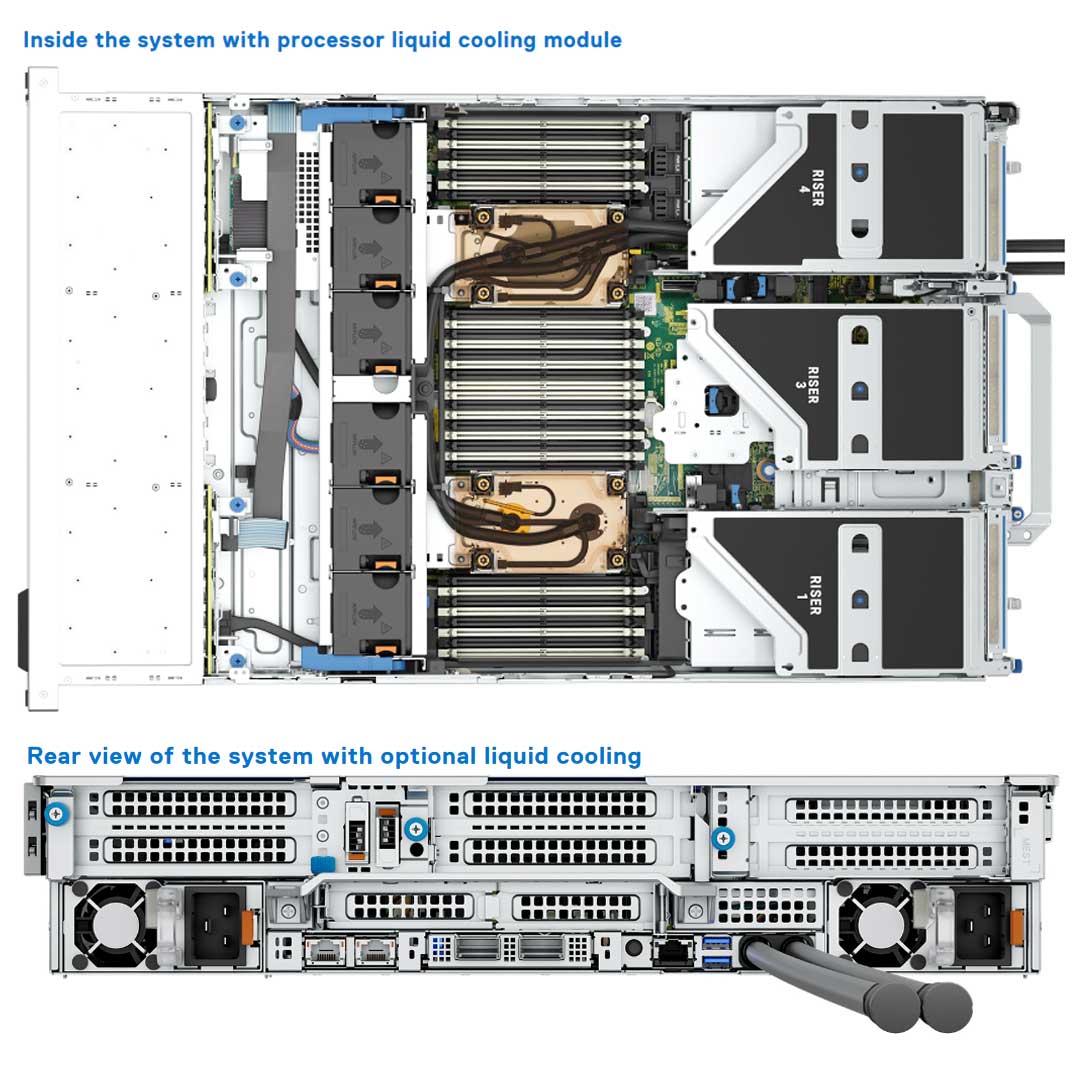

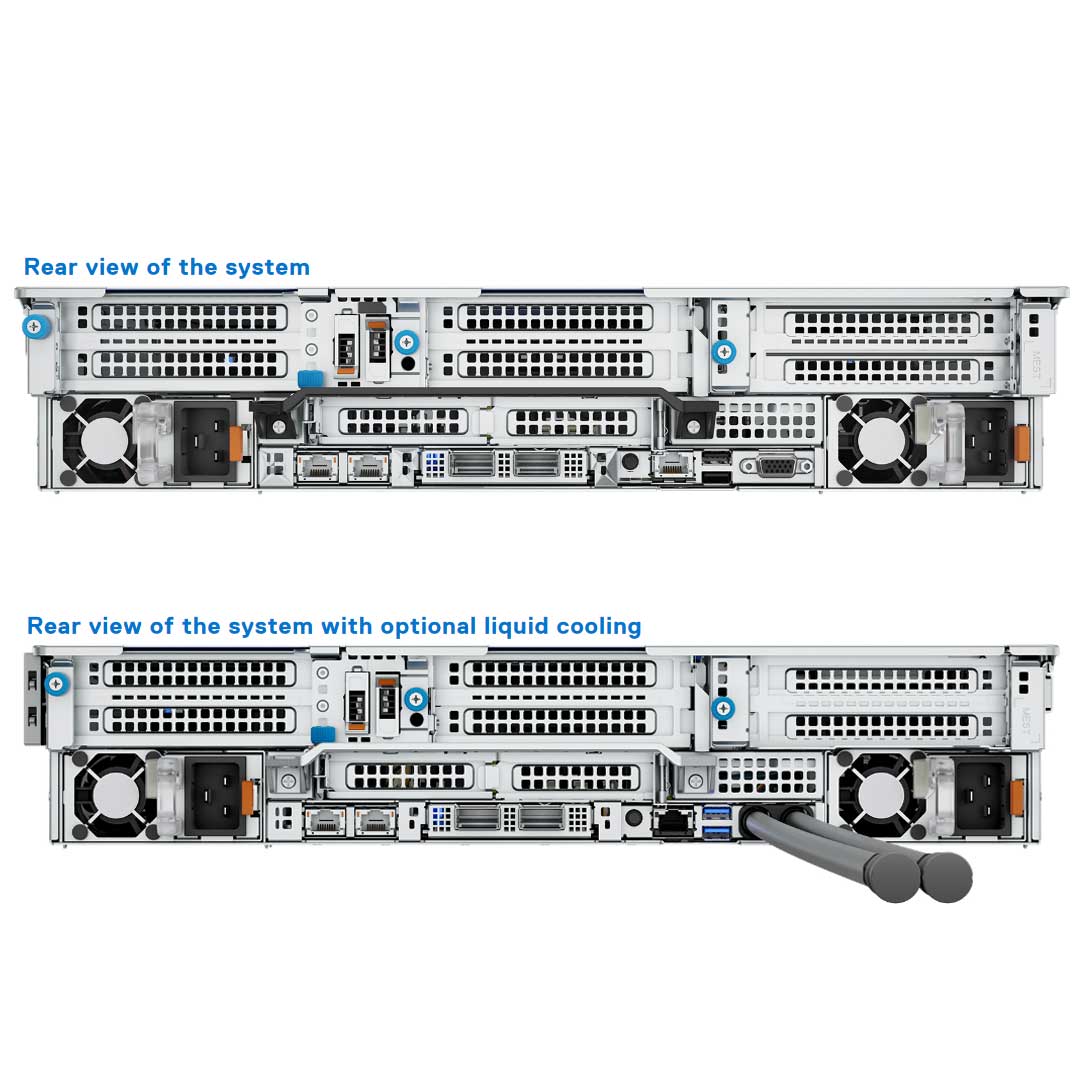

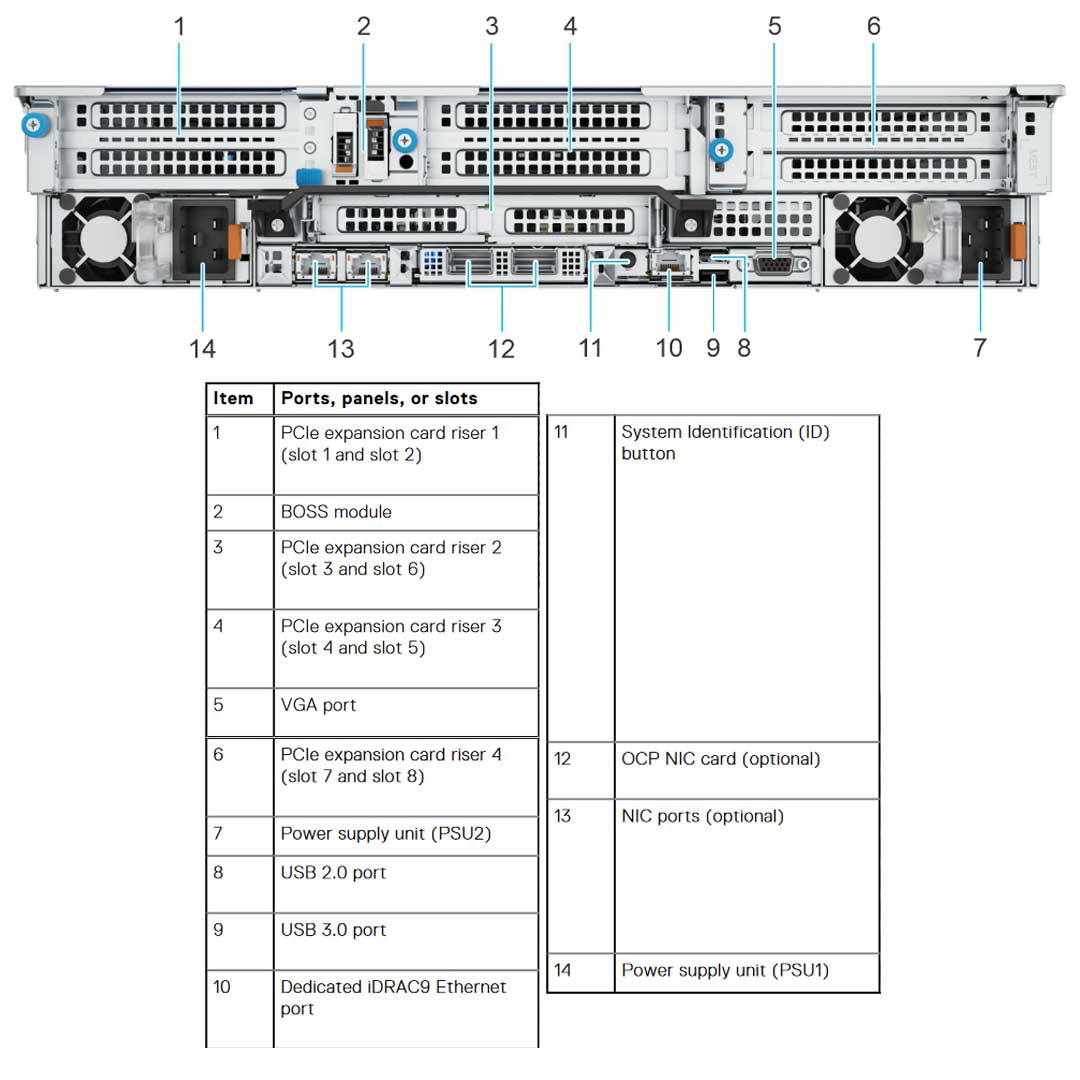

There are two different cooling systems for this Dell Gen 16 Server. Either air-cooled or Liquid Cooled. If the DLC is installed on the CPUs then the rear VGA port will be removed. There is an option to replace the VGA port in the front or the rear, but the rear option takes up a PCIe slot.

All GPU/FGPA cards require 1U L-type HSK and GPU shroud.
GPU configuration supports only High performance Gold (HPR Gold) fan.

With fans, each system comes with 6 hot swap fans. The fans change based on the configuration and TDP of the CPU just like the heat sink. Below are the types of fans the system supports.

• Standard (STD) fans
• High-performance Silver (HPR Silver) fans
• High-performance Gold (HPR Gold) fans
• For TDP that are 250W+ requires DLC

If you do plan to install the rear drive in the Dell R760 Rack Server, then you will need to install the High-Performance Gold Fan (HPR GOLD Fan) unless the CPU TDP is 270W or greater.

When installing the rear drives, each cage will need an extra fan to support the rear drives. Each rear Drive cage also has an airflow baffle that will need to be installed as well. These will be installed when you order the rear drives.

Rear drives supported on the 12 LFF and the 24 SFF Chassis.

Like most Dell systems, this server has a Boot option with 2x M.2 NVMe drives in the optional BOSS-N1 card. The BOSS-N1s position will change based on what Risers or rear drives are installed.

Installing the BOSS-N1 card carrier does not require the system to be powered off. System shutdown is only required when installing the BOSS-N1 controller card module.

Up to two double-wide 350 W, or six single-wide 75 W accelerators. If GPUs are installed the Air Shroud will need to be changed from the default Air Shroud to the GPU Air Shroud. The GPU air shroud also has a “filler” that must be installed if a single-width GPU card or empty riser is used.
All GPU/FGPA cards require 1U L-type HSK and GPU shroud.

• Double Width (DW) GPU only supported on Riser Configurations 3-2, 5-2, or 10-2
• RC 5-2: Supports DW GPU only on slot 7
• RC 10-2: Only supports a single processor configuration.
• RC 10-2: Supports DW GPU only on slot 2.

Two redundant Hot-Swap AC or DC power supply units.

• 2800 W Titanium 200—240 VAC or 240 HVDC,
• 2400 W Platinum 100—240 VAC or 240 HVDC,
• 1800 W Titanium 200—240 VAC or 240 HVDC,
• 1400 W Platinum 100—240 VAC or 240 HVDC,
• 1100 W Titanium 100—240 VAC or 240 HVDC,
• 1100 W LVDC -48 — -60 VDC,
• 800 W Platinum 100—240 VAC or 240 HVDC,
• 700 W Titanium 200—240 VAC or 240 HVDC,

Width with Ears: 482.0 mm (18.97")
Width without Ears: 434.0 mm (17.08")
Height: 86.8 mm (3.41")
Length: 736.29 mm (28.98") Ear to PSU handle
Weight: A server with fully populated drives 36.1 kg (79.58 lbs)
A server without drives and PSU installed 25.1 kg (55.33 lbs)
