Quick Specs
Form Factor:
1U rack server
Processor | Max: 2 or 4 Cores1 x Intel Xeon Scalable
Memory | Max: 1TB4 DDR3 UDIMM 1600Mhz
Storage | Max: N/A2 LFF or SFF SAS/SATA (HDD/SSD)
Embedded NIC:Broadcom® 5720 dual-port 1Gb LOM
Rear Storage:None
PCIe Slots:1x PCIe 3.0
Remote management:iDRAC7 with Lifecycle Controller (optional)
Chassis Depth:Short 15.5” chassis depth:

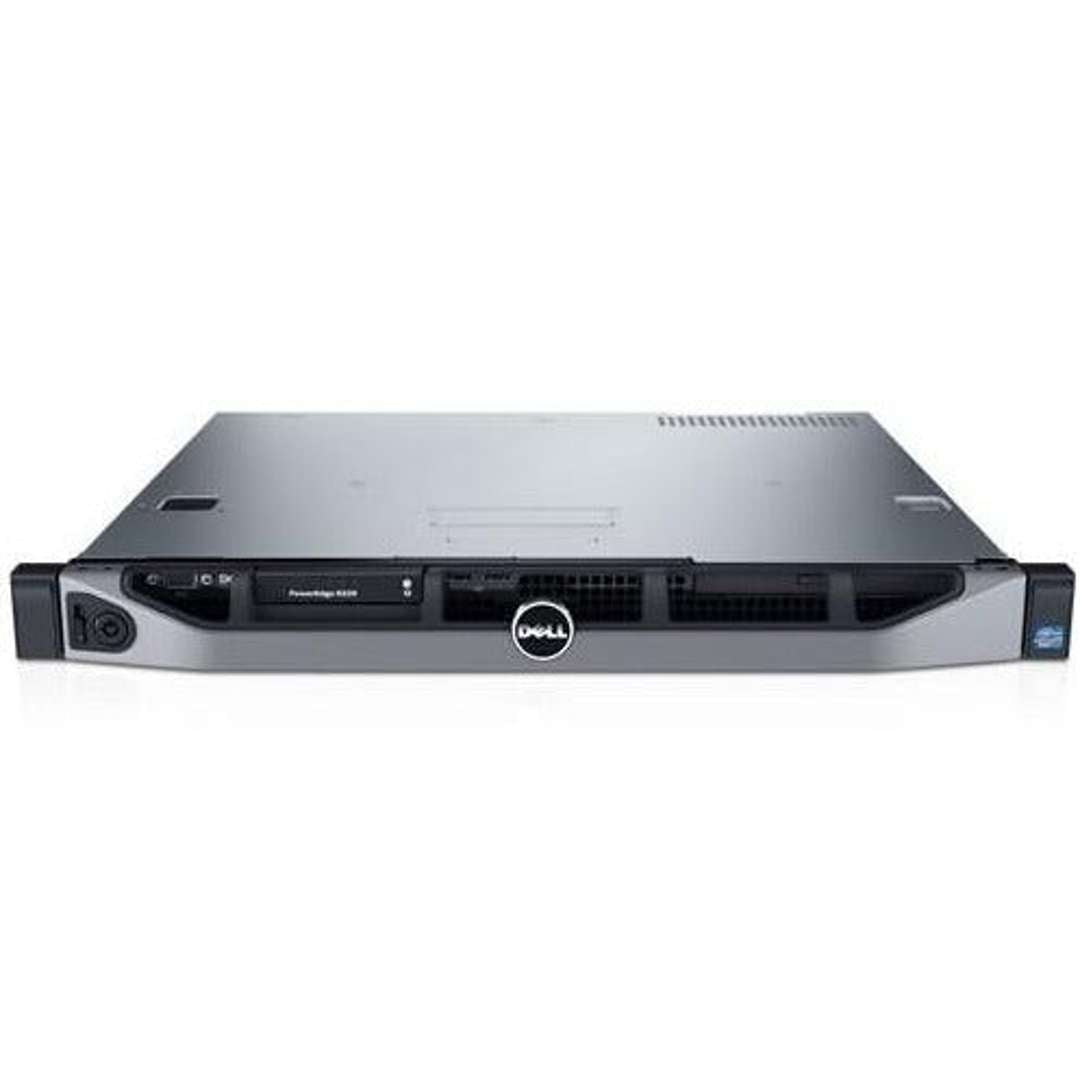

The one-socket 1U Dell PowerEdge R220 rack server delivers performance, data storage and protection, and intuitive systems management in a short-depth form factor optimized for constrained spaces.
The PowerEdge R220 1U rack server is an excellent choice for growing businesses and organizations needing a short depth, rack-optimized chassis delivering performance, data protection and enterprise-class systems management. The R220 is ideal for web hosting, mail serving, file and print serving, video streaming, as well as a wide range of general-purpose productivity applications — and with a short chassis depth of 15.5” and quiet office acoustics, you can install it virtually anywhere.
Realize greater efficiency
Drive applications and media faster with powerful, multi-core Intel Xeon E3-1200 v3 processors — boasting 33% more cache per core than previous generation E3 processors. Or, choose from a range of Intel Celeron, Pentium or Core processors to meet your specific performance and budget requirements.
- Experience faster response times with four DIMM slots for memory expansion up to 32GB.
- Drive fast I/O transfers and application performance with a latest-generation, widest-bandwidth PCIe 3.0 x16 expansion slot.
- Protect critical workloads requiring continuous access to data with hardware RAID options.
Discover greater versatility
Specifically designed for space-constrained environments, the PowerEdge R220 has a short depth 15.5” chassis and quiet-office acoustics so it can operate unobtrusively virtually anywhere. And, with five USB ports, you can quickly and flexibly attach more devices.
Quiet and compact design
Install your server in a wide range of settings, thanks to a short chassis depth of (15.5") that makes the R220 more compact than competitive servers. Easily deploy in a short-depth rack, on a countertop or in a data center and have ample space for cabling or for connecting devices to the 5 USB ports.
Quiet, office-level acoustics
Makses this server ideal for open-office environments and can reduce noise in data centers.
Memory
The Dell PowerEdge R220 provides a high-performance, high-speed memory interface capable of low latency response and high throughput. Intel-based R220 systems offer up to 4 DIMMs and up to 32GB memory.
| Capacity (GB) | Speed MT/s | Type | Ranks Per DIMM | Data Width | Mirroring | Advanced ECC | Voltage |
|---|---|---|---|---|---|---|---|
| 4GB | 1600 | UDIMM | 2 | x8 | NA | NA | 1.35V |
| 8GB |
Storage Controllers
The newest line of PERC (PowerEdge RAID Controller) cards offers high I/O performance for database applications and streaming digital media environments. Internal RAID controllers have a dedicated connection to the system board. The R220 supports the new PERC 8 family of controllers with improved functionality and faster performance.
| Capacity (GB) | Speed MT/s | Type | Ranks Per DIMM | Data Width | Mirroring |
|---|---|---|---|---|---|
| PERC H810 External | 8-port, external and 6Gb/s PCIe RAID controller | Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache | 0, 1, 10, 5, 50, 6, 60 | Adapter | Premium performance |
| PERC H310 Internal | 8-port, internal 6Gb/s PCIe RAID | No hot-swap. No support for tape or RAID 10, 5, 50 | 0, 1 | Integrated mini-type | Value |
| PERC S110 Software RAID | 3Gb/s SATA software RAID controller | Supports up to 2 drives maximum. No expansion, Microsoft Windows only. No hotswap. No support for tape or RAID 10, 5 | 0, 1 | System boardembedded SATA | Entry-level |
Dimensions & Weight
Dimensions
- Depth: 429mm (16.88")
- Width: 434mm (17.08")
- Height: 42.4mm (1.66")
- Weight: 8.05 kg (17.76 lb)
