Quick Specs
1U rack server
Processor | Max: 24 Cores2x 3rd Gen Intel Xeon Scalable
Memory | Max: 1TB16 DDR4 RDIMM 2933Mhz
Storage | Max: LFF 64TB or SFF 61.48TB4x 3.5" SAS/NL-SAS/SATA (HDD/SSD)
8x 2.5" SAS/NL-SAS/SATA (HDD/SSD)
S150 (SW RAID SATA)
H345, H355, H745, H755, H840, HBA355i, HBA355e
2x 1 Gb with BCM5720 LAN controller
OCP 3.0:x16 Gen4
Boot Options:BOSS-S1 (2x M.2 SATA)
Internal dual SD module (IDSDM)
Internal USB
iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe 4.0
GPU:None
Ideal for:
- Corporate IT
- Virtualization

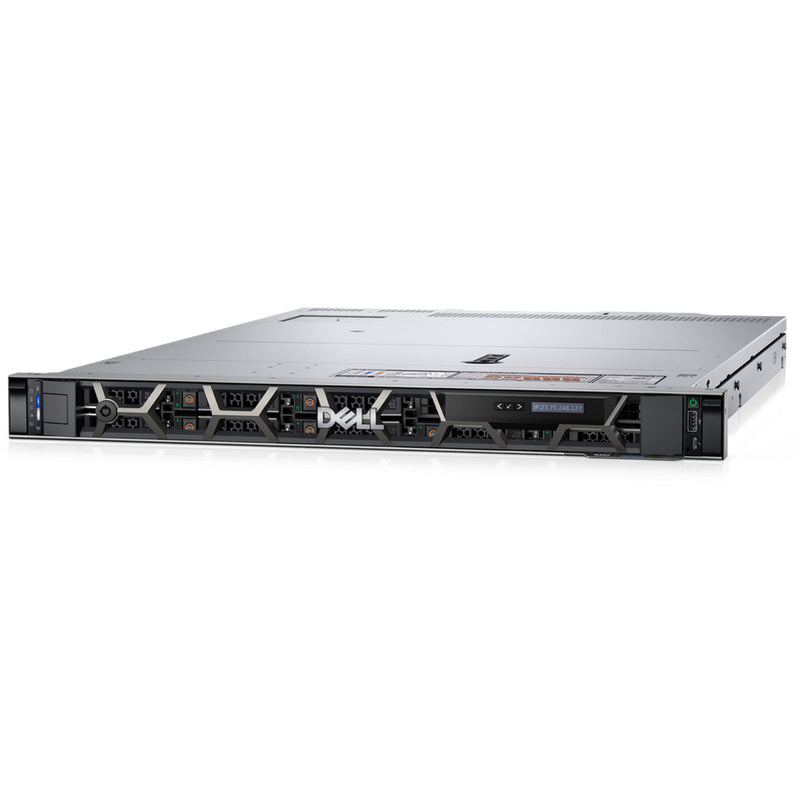

The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers exceptional value and density with excellent performance.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R450 is a 1U, two-socket entry-level server that offers the best value for organizations seeking updated processing, I/O, and storage capabilities in a dense form factor. It lets you:
- Add additional power: Adds additional power with up to two 3rd generation Intel Xeon Scalable processors with up to 24 cores per socket
- Built with faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
- Improve throughput, reduce latency with up to 2 PCIe Gen4 slots
- Include flexible local storage: Offers up to 8x 2.5-inches HDDs or SSDs; or up to 4x 3.5-inches HDDs or SSDs
- Support distinctive needs: Perfect for smaller infrastructures and light virtualization demands
Increase efficiency and accelerate operations with autonomous compute infrastructure
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Built-in proactive resilience through a complete portfolio of solutions
From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise class security that minimizes risk for any organization, from small business to hyperscale.
- Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
- Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment
- Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
| DIMM Speed (MT/s) | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM |
|---|---|---|---|
| 3200 | RDIMM | 8 GB | Rank 1 |
| 3200 | RDIMM | 16 GB | Rank 2 |
| 3200 | RDIMM | 32 GB | Rank 2 |
| 3200 | RDIMM | 64 GB | Rank 2 |
| Feature | OCP 3.0 |
|---|---|
| Form factor | SFF and LFF |
| PCIe Gen | Gen4 |
| Max PCIe width | x16 |
| Max of ports | 4 |
| Port type | BT/SFP/SFP+/SFP28/SFP56 |
| Max port speed | 100Gbe |
| NC-SI | Yes |
| WoL | Yes |
| Power consumption | 15 W ͂150 W |
| Feature | Configurations |
|---|---|
| Configurations | Config0. with 1x LP |
| Expansion card risers | R1 |
| PCIe Slots | 1 |
| Controlling processor | Processor 1 |
| Height | Low Profile |
| Length | Half length |
| Slot width | x16 |
| WoL | Yes |
| Power consumption | 15 W ͂150 W |
| Feature | Configurations |
|---|---|
| Configurations | Config1. with 2x LP |
| Expansion card risers | R1 + R2c |
| PCIe Slots | 1 & 3 |
| Controlling processor | Processor 1 & 2 |
| Height | Low Profile |
| Length | Half length |
| Slot width | x16 |
| WoL | Yes |
| Power consumption | 15 W ͂150 W |
Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HWcontroller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
15G PERC Controller offerings will be a heavy leverage of 14G PERC family. The Value and Value Performance levels will carryover to 15G from 14G. New to 15G, is the Harpoon-based Premium Performance tier offering. This high-end offering will driveIOPs performance and enhanced SSD performance
15G PERC Controller offerings will be a heavy leverage of 14G PERC family. The Value and Value Performance levels will carryover to 15G from 14G. New to 15G, is the Harpoon-based Premium Performance tier offering. This high-end offering will driveIOPs performance and enhanced SSD performance.
| Performance Level | Controller and Description |
|---|---|
| Entry | S150 (SATA) SW RAID SATA |
| Value | H355, H345, HBA355 (Internal/External) |
| Value Performance | H745, H755 |
The IDSDM is unsupported if the Internal USB module is installed. You must choose between which one you would like to install. The IDSDM is perfect for booting the Hypervisor OS.
The Internal USB and IDSDM take up the same slot so they are not supported together. You must choose which one to install.
The BOSS M.2 Drives have their own dedicated BOSS Riser Kit that supports 1 Riser card with 2 M.2 SATA Drives. This BOSS is designed to boot a full OS system without allocating a drive to it.
| Form factor | Output | Class |
|---|---|---|
| Redundant 60 mm | 600 W AC | Platinum |
| 700 W Mixed Mode | Titanium | |
| 800 W AC | Platinum | |
| 1100 W Mixed Mode | Titanium | |
| 1100 W -48V | N/A |
- Width: 482mm (18.97")
- Height: 42.8mm (1.68")
- Depth:
- 3.5" 712.95mm (28.06")
- 2.5" 662.19mm (26.07")
- Weight:
- 3.5" 18.62 kg (41.05 pound)
- 2.5" 16.58 kg (36.55 pound)
