-*Image may differ from actaul product

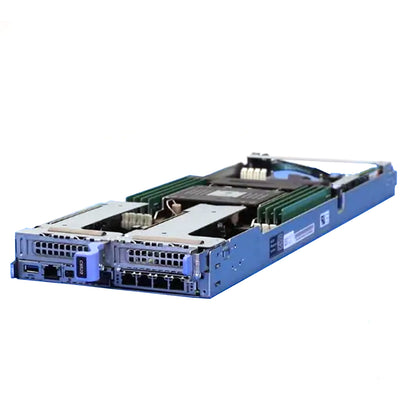

Dell PowerEdge C6520 Barebone Node Chassis

Price: Request a Quote

Brand:

Dell

MPN:

DPE-C6520-CHASSIS

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge C6520 Barebone Node Chassis

Quick Specs

Form Factor:

1U rack server

Processor | Max Cores: 40 Cores

2x 3rd Gen Intel Xeon Scalable

Memory | Max: RDIMM 1TB | LRDIMM 2TB

16 DDR4 RDIMM/LRDIMM 3200Mhz

Boot:

BOSS-S1
IDSDM

Controllers:

S150 (SW RAID)
PERC H345, H350, H355, H745, H750, HBA345, HBA355i

Storage:

6 NVMe on the 24 Bay NVMe
2 NVMe + 4 Drives on the NVMe Universal
6 Drives on the 24 Bay Direct
3 Drives on the 12 Bay

Rear Storage:

None

LOM:

1 x 1 GbE LOM riser

OCP:

1 x OCP 3.0 x16 Gen4

iDRAC:

BMC with Virtual Media and Console (default)

PCIe Slots:

Up to 4 x PCIe Gen4 slots (3 x16, 1 x8) with support for SNAP I/O modules

GPU:

Low-profile (Half-height) 70 W GPU

Compatible Options:

Ideal for:

Data Analytics
High-Performance Computing (HPC)

This is just 1 out of 3 Node servers supported.
The C6400 Enclosure Server must be configured separately.

Innovate at scale with challenging and emerging workloads

The Dell EMC PowerEdge C6520, powered by the 3rd Generation Intel® Xeon® Scalable processors, is the ideal compute-dense server designed to support dynamic compute-at-scale business requirements in a dense form factor. The PowerEdge C6520 maximizes performance per U by supporting 4 dual-socket compute nodes in a 2U chassis with Air and Direct Liquid Cooling options to power the highest-performing processors. It supports 8 memory channels/CPU, up to 16 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge C6520 supports PCIe Gen 4 and up to 6 NVMe drives per node. This makes the PowerEdge C6520 an ideal server for hyper scale compute workloads requiring high scalability and high performance such as High-Performance Computing (HPC), high-performance data analytics (HPDA), financial modeling and high-frequency trading(HFT), Web Tech and XaaS Service Providers.

Accelerate operational efficiency with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business.

Optional built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
Full-stack management integration with VMware, Microsoft, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge C6520 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
Maintain server firmware safety with digitally signed firmware packages
Prevent unauthorized configuration or firmware change with system lockdown
Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

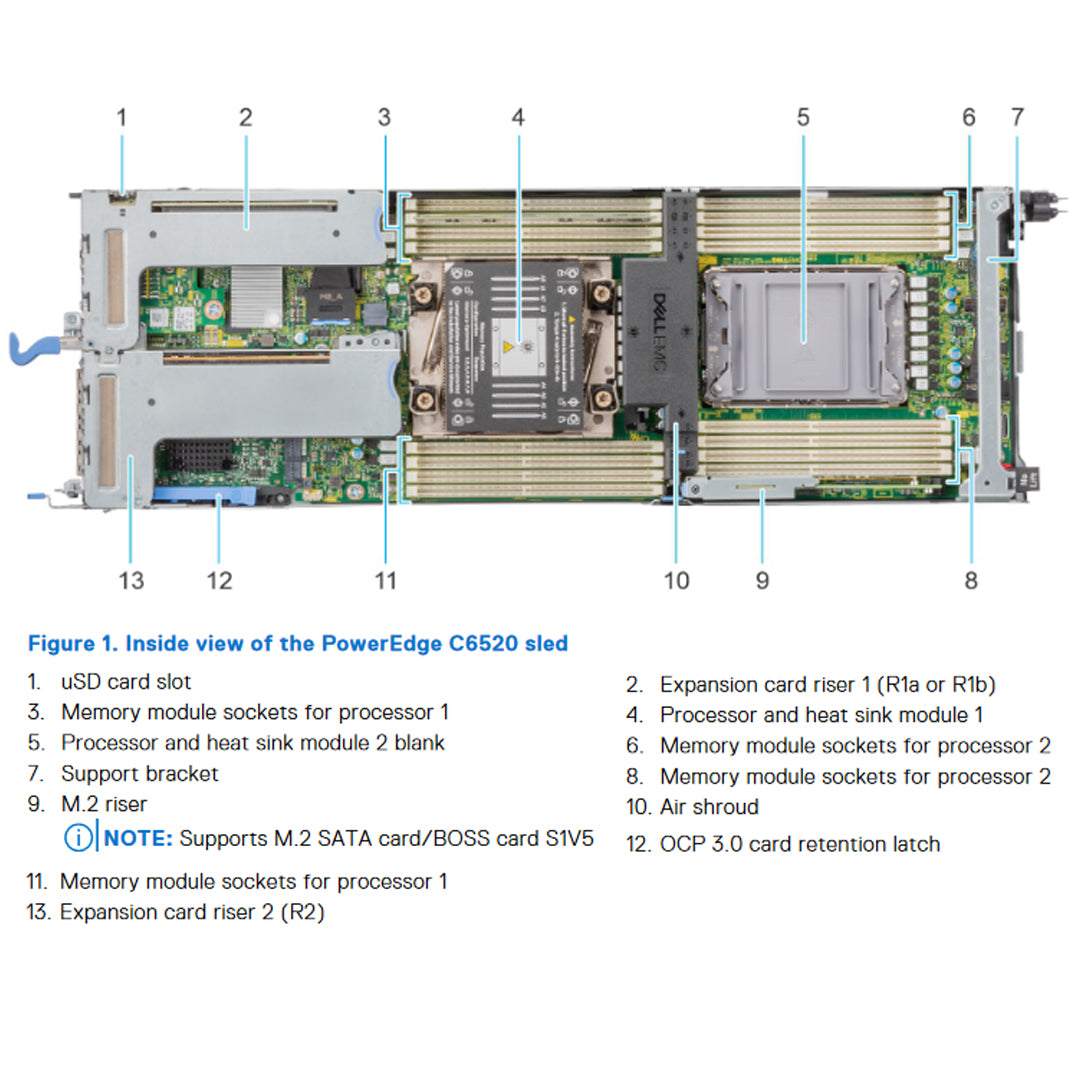

Memory

The PowerEdge C6520 supports up to 16 DIMMs in a 2S configuration, with up to 2 TB of memory capacity and speeds of up to3200 MT/s. The PowerEdge C6520 has eight DIMM channels per processor with one DIMM per channel (DPC).

The PowerEdge C6520 supports 16 GB/32 GB/64 GB (registered) RDIMMs. It supports 128 GB LRDIMMs and it will notsupport UDIMMs or persistent memory.

DIMM type	DIMM ranking	Capacity	DIMM rated voltage, speed	1 DPC
RDIMM	1R	8 GB	DDR4 (1.2 V), 3200	D:3200
RDIMM	2R	16 GB, 32 GB, 64 GB	DDR4 (1.2 V), 3200	D:3200
LRDIMM	4R	128 GB	DDR4 (1.2 V), 3200	D:3200

PCIe Options

This Node server has two different risers, both have a x16 slot for a PCIe Adapter or GPU card. But Riser 1B has two Micro SD slots for boot.

There is also a dedicated slot on the system board for the BOSS-S1 M.2 Riser. This Riser holds two M.2 NVMe drives for boot.

Image of the risers in the C6520 Node Server

Networking Supported

The system comes with a Single port 1 Gbe LOM (Broadcom) for networking. It also has an optin to upgrade the networking with the OCP3 Gen4 slot x16. This OCP slot can support a OCP NIC Card with speeds up to 25Gb per port. If the OCP card is not installed a blank filler will be installed for airflow reasons.

Storage and Controllers

Storage per sled per chassis

6 NVMe on the 24 Bay NVMe
2 NVMe + 4 Drives on the NVMe Universal
6 Drives on the 24 Bay Direct
3 Drives on the 12 Bay

Performance Level	Controller & Description
Entry Level	S150 (SATA, NVMe) SW RAID SATA, NVMe
Value	H350, H345, HBA355i, HBA345
Value Performance	H750, H745

GPU Guide

When either of the risers is installed in the C6520 Node Server. You can install any PCI adapter or a single-width GPU. With 4 Nodes installed in a chassis, you can have up to 4 GPUs in one enclosure. Please read the manual for more information on which slot can support GPU and other Adapters.

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Dell PowerEdge C6520 Barebone Node Chassis Spec Sheet

Manuals

Base Standard Capabilities

Feature	Technical Specification

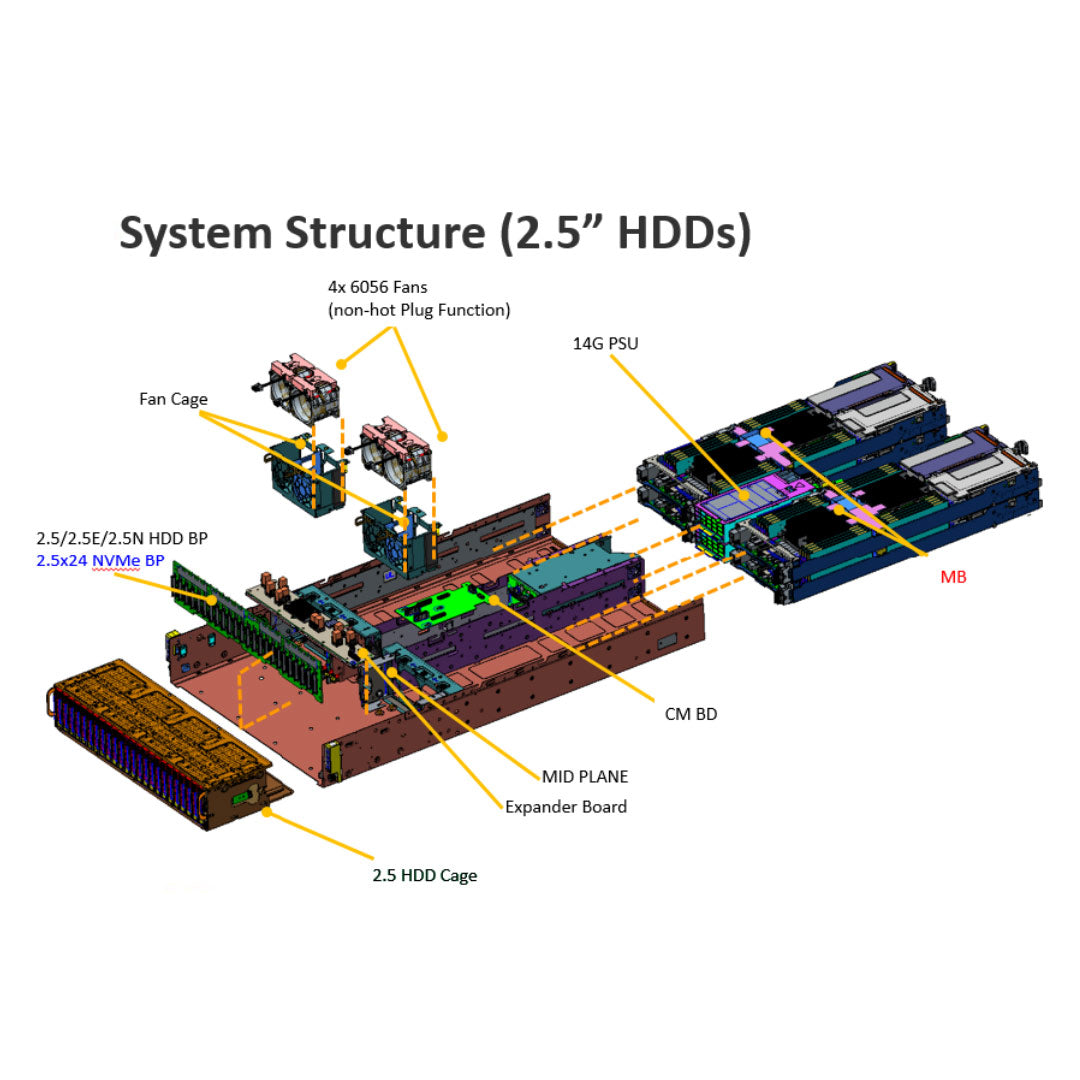

Chassis	Dell EMC PowerEdge C6400 chassis
Nodes	4 hot-swappable dual-socket compute nodes in a 2U chassis \| C6520
Processor	Up to two 3rd Generation Intel Xeon Scalable processors per node, with up to 40 cores per processor
Memory	16 DDR4 DIMM slots, supports RDIMM of 1 TB max or LRDIMM of 2 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
Availability	Hot-plug redundant drives and PSUs
Controllers	Internal controllers: PERC H745, H750, HBA345, HBA355i, S150, H345, H350 Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card
Drive bays	Front bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB
Power supplies	Dual hot-plug redundant 100 - 240 V AC Platinum (2600 W, 2400 W, 2000 W, 1600 W) , 200 - 240 V AC Titanium (2600 W, 1600 W) Power supply units
Cooling options	Air cooling, optional processor liquid cooling
Fans	Non-Hot plug fans
Dimensions	Height: 86.36 mm (3.4 inches) Width: 447.04 mm (17.6 inches) Depth: 802.64 mm (31.6 inches)	Weight: 45.6 kg (100.53 lb) for 12 x 3.5-inch direct backplane chassis 41.4 kg (91.27 lb) for 24 x 2.5-inch direct/NVMe backplane chassis 35 kg (77.16 lb) for system with no backplane
Sled height (U)	1U
Embedded/At-the-Server	iDRAC9 iDRAC Direct iDRAC Service Module
Consoles	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations VMware vCenter and vRealize Operations Manager Microsoft System Center I Red Hat Ansible Modules BMC Truesight	OpenManage Connections IBM Tivoli Netcool/OMNIbus BM Tivoli Network Manager IP Edition Micro Focus Operations Manager i Nagios Core Nagios XI
Integrated Security	TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ Digitally Signed Firmware Chassis Intrusion Alert Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC Enterprise or Datacenter)
Embedded NIC	1 x 1 GbE LOM riser
Network cards	1 x OCP 3.0 x16 Gen4 (for network controller)
GPU options	Low-profile (Half-height) 70 W GPU

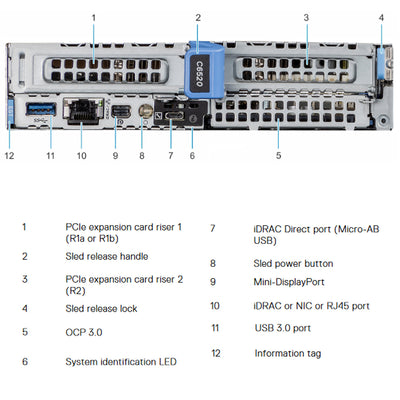

Rear Ports	1 x iDRAC Direct (Micro-AB USB) port 1 x Mini-DisplayPort 1 x iDRAC or NIC port or RJ45 1 x USB 3.0
PCIe	Up to 4 x PCIe Gen4 slots (3 x16, 1 x8) with support for SNAP I/O modules
Supported Operating Systems	Canonical Ubuntu Server LTS CentOS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi/vSAN Windows Preinstallation Environment (WinPE) 64-bit drivers

Spec Sheet 4

Feature	PowerEdge C6520	PowerEdge C6420
Chassis	C6400 chassis	C6400 chassis
Processor	Up to two 3rd Generation Intel® Xeon® Processor Scalable family	Up to two 2nd Generation Intel® Xeon® Processor Scalable family
	Air and direct contact liquid cooling.	Air and direct contact liquid cooling.
	Configuration restrictions apply due to thermal or power limits.	Configuration restrictions apply due to thermal or power limits.
Memory	DDR4: 8 channels per processor	DDR4: 6 channels per processor
	Up to 16x RDIMMs and LRDIMMs	Up to 12x RDIMMs and LRDIMMS
	Speed: up to 3200 MT/s	Speed: 2900 MT/s
Storage	Backplanes: ● 24 x 2.5-inch (direct and NVMe with two universal slots) ● 24 x 2.5-inch all NVMe ● 12 x 3.5-inch ● No backplane	Backplanes: ● 24 x 2.5-inch (direct, expander and NVMe with two universal slots) ● 12 x 3.5-inch direct ● No-backplane
	Internal: uSD card, M.2 SATA BOSS 1.5	No support for persistent memory
	Internal: uSD card, M.2 SATA BOSS 1.0	No support for persistent memory
Storage controllers	HW RAID: PERC 10: H350, H345, HBA355i, HBA345, H750 and H745	HW RAID: PERC 9 Mini (Mini H330, H730P, HBA330)
	Chipset: SATA	Chipset: SATA
	SW RAID: Yes, S150	SW RAID: Yes, S140
I/O slots	2 PCIe Gen4 HH/HL slots, x16 (network, storage, AIC)	1 PCIe Gen3 HH/HL slot, x16
	1 OCP3 Gen4 slot x16	1 x16 OCP Slot (network)
	-	1 MEZZ slot x8 (storage)
LOM	Single port 1 Gbe LOM (Broadcom)	Single port 1 Gbe LOM (Intel)
PSU	Support for 2 x 1600 W, 2000 W, 2400 W, and 2600 W	Support for 2 x 1600 W, 2000 W, and 2400 W
PSU	Support 1+1 with FTR	Support 1+1 with FTR
Systems management	iDRAC9 with Lifecycle Controller	iDRAC9 with Lifecycle Controller
Accelerators	At least one GPU/FPGA/PAC (up to 75W)	NA
CSIL	Tier-1 + CMT approved exception countries	Tier-1 + CMT approved exception countries

Category: 15g, 16-dimms, 3200-mhz, 4-pcie-slots, cpu-gen-3, ddr4, dell, dell_components, memory-1tb, memory-2tb, node-server, pcie-4, processor-cores-64-core, processor-count-2, server-ff-barebone, server-ff-node
