Home / Cisco / Cisco Ucs X-Series X9508 M7 7U Enclosure Chassis | UCSX-9508-D=
SKU: UCSX-9508-D=

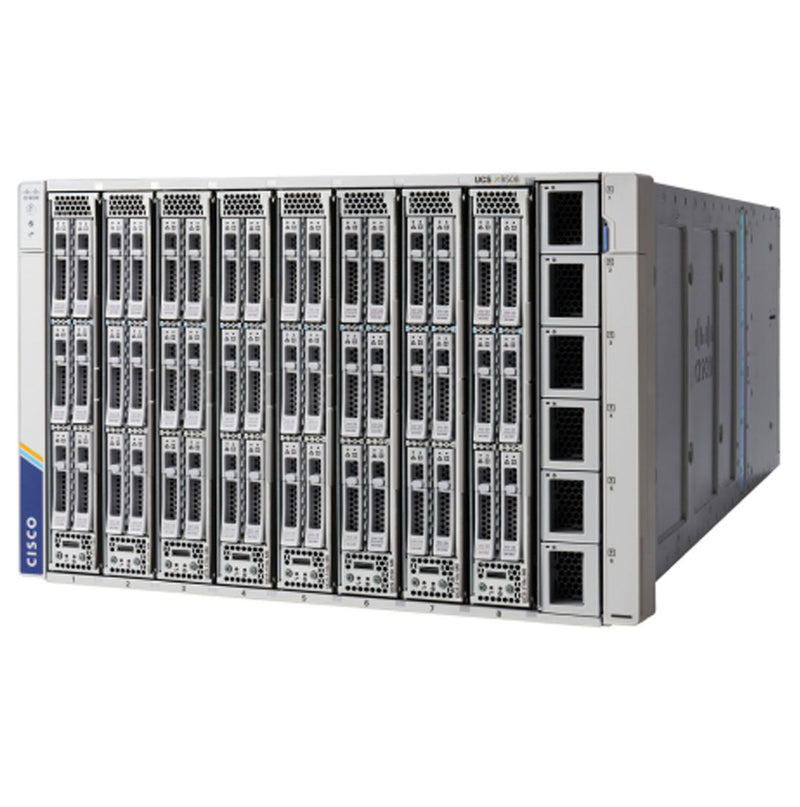

Cisco Ucs X-Series X9508 M7 7U Enclosure Chassis | UCSX-9508-D=

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco X9508 M7 7U Enclosure
  •  Chassis with or without IFM, PSU - Nodes are not offered/configurable in this SKU
  • Supports Up to (8) Nodes
  • (4) Nodes Options | x210c, x210c Universal, x210c GPU or X440p GPU
  • (2) Intelligent Fabric Modules (IFMs)
  • (2) X-Fabric Modules (X-FMs)
  • (6) Hot Swap Fans

The Cisco UCS X-Series Modular System starts with the X9508 chassis, designed for adaptability and hybrid cloud integration. Its midplane-free architecture enables I/O connectivity via front-loading compute nodes intersecting with rear I/O modules, supported by PCIe Gen4 and future protocols.

The 7RU chassis houses up to 8 flexible slots for compute nodes, GPUs, disk storage, and NVMe resources. Two intelligent fabric modules connect to Cisco UCS 6400/6536 Fabric Interconnects, while X-Fabric Technology facilitates modular updates for evolving technologies. Six 2800W PSUs provide efficient power delivery with multiple redundancy options. Advanced thermal management supports future liquid cooling for high-power processors.

The Cisco UCS X-Series Direct adds self-contained integration with internal Cisco UCS Fabric Interconnects 9108, enabling unified fabric connectivity and management through Cisco Intersight or UCS Manager.

Other Versions:

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Hyper-Converged infrastructure (HCI)
  • Language Model
  • Machine Learning (ML)
  • Network Function Virtualization (NFV)
  • Retail Servers
  • Telecom Networks
  • Video Analytics
  • Video Streaming
  • Virtualization
  • Virtual Machines (VM)
  • Web Tech
  • Anything as a service (Xaas)
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Capability/Feature Description
7 RU Chassis The X9508 chassis has 8x front-facing flexible slots. These can house a combination of compute nodes and a pool of future I/O resources that may include GPU accelerators, disk storage, and nonvolatile memory.
Compute Node Support
  • General
    • Support for 2-CPU single slot and 4-CPU dual slot compute nodes
  • Compute Nodes
    • Supports CPUs and future GPUs with 300W+ TDP, and 900W+ per compute node TDP
    • Support for highest end DDR/persistent memory configurations
    • Support for a minimum of 2 Mezzanine slots for premium VIC, GPU, and FPGA expansion
Intelligent Fabric Module 2x Cisco UCS 9108 Intelligent Fabric Modules (IFMs) at the top of the chassis that connect the chassis to upstream Cisco UCS 6400 series or 6536 Fabric Interconnects. Each IFM features the following:
  • Up to 100 Gbps of unified fabric connectivity per compute node
  • 8x 25-Gbps SFP28 or 8x 100-Gbps QSFP28 uplink ports
  • The unified fabric carries management traffic to the Cisco Intersight cloud-operations platform, Fibre Channel over Ethernet (FCoE) traffic, and production Ethernet traffic to the fabric interconnects
Fabric Interconnect Module 2x Cisco UCS Fabric Interconnect 9108 100G Modules (FIs) at the top of the chassis that connect the chassis to upstream Top-of-Rack (ToR) switches. Each FI features the following:
  • Up to 100 Gbps of unified fabric connectivity per compute node
  • Integrated 1/10/25/40/100 Gigabit Ethernet, FCoE, and Fibre Channel switch offering up to 1.6 Tbps throughput and up to 8 ports. The switch has 6 40/100-Gbps Ethernet ports and 2 unified ports that can support 40/100-Gbps Ethernet ports or 8 Fibre Channel ports after break-out at 8/16/32-Gbps FC speeds
Cisco UCS X-Fabric technology At the bottom rear of the X9508 chassis are slots ready to house X-Fabric modules that can flexibly connect the compute modules with I/O devices. The "X" in Cisco UCS X-Fabric technology denotes a variable that can evolve with new technology developments.
Next Generation Power and Thermal Capability
  • Power supplies
    • Six 2800-Watt power supplies providing 54 V power
  • 4x 100 mm dual counter-rotating fans
  • N, N+1, N+2, and N+N redundancy
  • 300 Watt+ total power dissipation for compute nodes
Density and Form Factor
  • Industry-leading socket density per RU
  • Minimum of 8 compute slots
  • 32 DIMM socket support on a 2-socket compute node (beginning with the Ice Lake CPU family) and 64 DIMM socket support on a 4-socket compute node (beginning with the Sapphire Rapids CPU family)
  • Power, thermal, and form factor support for smart NICs, FPGA accelerators, and GPU cards
Fabric Bandwidth
  • Data fabric connectivity to compute nodes of 200 Gbps Ethernet speeds per compute node
  • Provision for future fabric expansion
Chassis Storage Support
  • Local storage
Virtual Card Interface (VIC) Support
  • Cisco VIC ASIC
  • 25G throughput
  • 100G throughput
