SKU: UCSX-9508=

Cisco Ucs X-Series X9508 M6 7U Enclosure Chassis | UCSX-9508=

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco X9508 M6 7U Enclosure
  •  Chassis with or without IFM, PSU - Nodes are not offered/configurable in this SKU
  • Supports Up to (8) Nodes
  • (4) Nodes Options | x210c, x210c Universal, x210c GPU or X440p GPU
  • (2) Intelligent Fabric Modules (IFMs)
  • (2) X-Fabric Modules (X-FMs)
  • (6) Hot Swap Fans

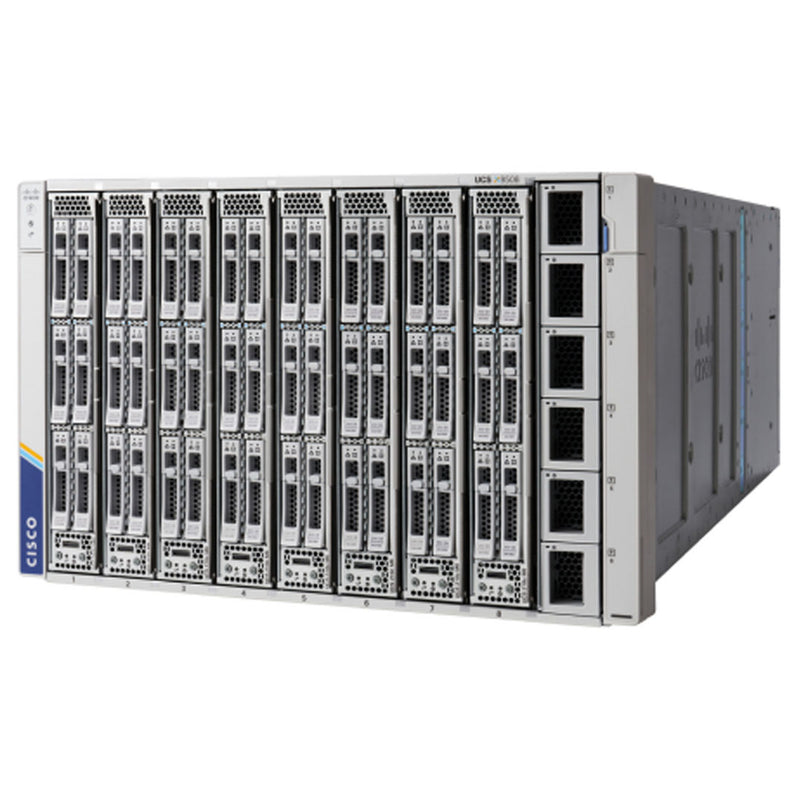

The Cisco UCS X-Series Modular System starts with the X9508 chassis, designed for adaptability and hybrid cloud integration. Its midplane-free architecture enables I/O connectivity via front-loading compute nodes intersecting with rear I/O modules, supported by PCIe Gen4 and future protocols.

The 7RU chassis houses up to 8 flexible slots for compute nodes, GPUs, disk storage, and NVMe resources. Two intelligent fabric modules connect to Cisco UCS 6400/6536 Fabric Interconnects, while X-Fabric Technology facilitates modular updates for evolving technologies. Six 2800W PSUs provide efficient power delivery with multiple redundancy options. Advanced thermal management supports future liquid cooling for high-power processors.

The Cisco UCS X-Series Direct adds self-contained integration with internal Cisco UCS Fabric Interconnects 9108, enabling unified fabric connectivity and management through Cisco Intersight or UCS Manager.

Other Versions:

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Hyper-Converged infrastructure (HCI)
  • Language Model
  • Machine Learning (ML)
  • Network Function Virtualization (NFV)
  • Retail Servers
  • Telecom Networks
  • Video Analytics
  • Video Streaming
  • Virtualization
  • Virtual Machines (VM)
  • Web Tech
  • Anything as a service (Xaas)
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Capability/FeatureDescription
ChassisThe Cisco UCS X210c M6 Compute Node mounts in a Cisco UCS X9508 chassis.
CPU
  • One or two 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake).
  • Each CPU has 8 channels with up to 2 DIMMs per socket, for up to 16 DIMMs per CPU.
ChipsetIntel® C621A series chipset.
Memory
  • 32 total 3200-MHz DIMM slots (16 per CPU).
  • Support for Advanced ECC.
  • Support for registered ECC DIMMs (RDIMMs).
  • Support for load-reduced DIMMs (LR DIMMs).
  • Support for Intel® Optane™ Persistent Memory Modules (PMem), only in designated slots.
  • Up to 8 TB DDR4 DIMM memory capacity (32x 256 GB DIMMs).
  • Up to 12 TB memory capacity (16x 256 GB DIMMs and 16x 512 GB PMem).
Mezzanine Adapter (Rear)
  • An optional Cisco UCS Virtual Interface Card 14825 can occupy the server’s mezzanine slot at the bottom of the chassis. A bridge card extends this VIC’s 2x 50 Gbps of network connections up to the mLOM slot and out through the mLOM’s IFM connectors, bringing the total bandwidth to 100 Gbps per fabric—a total of 200 Gbps per server.
  • An optional UCS PCIe Mezz card for X-Fabric is also supported in the server’s mezzanine slot. This card’s I/O connectors link to the Cisco UCS X-Fabric modules for X-series Gen4 PCIe node access.
mLOM
  • The modular LAN on motherboard (mLOM) cards (the Cisco UCS VIC 14425/15420 and 15230) is located at the rear of the compute node.

    • The Cisco UCS VIC 14425/15420 is a Cisco designed PCI Express (PCIe) based card that supports two 2x25G-KR network interfaces to provide Ethernet communication to the network by means of the Intelligent Fabric Modules (IFMs) in the Cisco UCS X9508 chassis. The Cisco UCS VIC 14425 mLOM can connect to the rear mezzanine adapter card with a bridge connector.
    • The Cisco UCS VIC 15230 is a Cisco designed PCI Express (PCIe) based card that supports two 2x100G-KR network interfaces to provide Ethernet communication to the network by means of the Intelligent Fabric Modules (IFMs) in the Cisco UCS X9508 chassis.
Mezzanine Adapters (Front)One front mezzanine connector that supports:
  • Up to 6 x 2.5-inch SAS and SATA RAID-compatible SSDs
  • Up to 6 x 2.5-inch NVMe PCIe drives
  • A mixture of up to six SAS/SATA or NVMe drives
  • A mixture of up to two GPUs and up to two NVMe drives
Note: Drives require a RAID or pass-through controller in the front mezzanine module slot or a front mezzanine GPU module.
Additional StorageDual 80 mm SATA 3.0 M.2 cards (up to 960 GB per card) on a boot-optimized hardware RAID controller.
VideoVideo uses a Matrox G200e video/graphics controller.
  • Integrated 2D graphics core with hardware acceleration
  • DDR4 memory interface supports up to 512 MB of addressable memory (16 MB is allocated by default to video memory)
  • Supports display resolutions up to 1920 x 1200 32 bpp@60Hz
  • Video is available with an OCuLink connector on the front panel. An adapter cable (PID UCSX-C-DEBUGCBL) is required to connect the OCuLink port to the transition serial USB and video (SUV) octopus cable.
Front Panel InterfacesOCuLink console port. Note that an adapter cable is required to connect the OCuLink port to the transition serial USB and video (SUV) octopus cable.
Power SubsystemPower is supplied from the Cisco UCS X9508 chassis power supplies. The Cisco UCS X210c M6 Compute Node consumes a maximum of 1300 W.
FansIntegrated in the Cisco UCS X9508 chassis.
Integrated Management ProcessorThe built-in Cisco Integrated Management Controller enables monitoring of Cisco UCS X210c M6 Compute Node inventory, health, and system event logs.
Baseboard Management Controller (BMC)ASPEED Pilot IV.
ACPIAdvanced Configuration and Power Interface (ACPI) 6.2 Standard Supported. ACPI states S0 and S5 are supported. There is no support for states S1 through S4.
Front Indicators
  • Power button and indicator
  • System activity indicator
  • Location button and indicator
Management
  • Cisco Intersight software (SaaS, Virtual Appliance and Private Virtual Appliance)
  • Starting with UCS Manager (UCSM) 4.3(2) or later
Fabric InterconnectCompatible with the Cisco UCS 6454, 64108 and 6536 fabric interconnects.
ChassisCompatible with the Cisco UCS 9508 X-Series Server Chassis

Spec Sheet 4

Capability/Feature Description
7 RU Chassis The X9508 chassis has 8x front-facing flexible slots. These can house a combination of compute nodes and a pool of future I/O resources that may include GPU accelerators, disk storage, and nonvolatile memory.
Compute Node Support General:
  • Support for 2-CPU single slot and 4-CPU dual slot compute nodes
Compute Nodes:
  • Supports CPUs and future GPUs with 300W+ TDP, and 900W+ per compute node TDP
  • Support for highest-end DDR/persistent memory configurations
  • Support for a minimum of 2 Mezzanine slots for premium VIC, GPU, and FPGA expansion
Intelligent Fabric Module 2x Cisco UCS 9108 Intelligent Fabric Modules (IFMs) at the top of the chassis that connect the chassis to upstream Cisco UCS 6400 series or 6536 Fabric Interconnects. Each IFM features the following:
  • Up to 100 Gbps of unified fabric connectivity per compute node
  • 8x 25-Gbps SFP28 or 8x 100-Gbps QSFP28 uplink ports. The unified fabric carries management traffic to the Cisco Intersight cloud-operations platform, Fibre Channel over Ethernet (FCoE) traffic, and production Ethernet traffic to the fabric interconnects.
Fabric Interconnect Module 2x Cisco UCS Fabric Interconnect 9108 100G Modules (FIs) at the top of the chassis that connect the chassis to upstream Top-of-Rack (ToR) switches. Each FI features the following:
  • Up to 100 Gbps of unified fabric connectivity per compute node
  • Integrated 1/10/25/40/100 Gigabit Ethernet, FCoE, and Fibre Channel switch offering up to 1.6 Tbps throughput and up to 8 ports. The switch has 6 40/100-Gbps Ethernet ports and 2 unified ports that can support 40/100-Gbps Ethernet ports or 8 Fibre Channel ports after break-out at 8/16/32-Gbps FC speeds.
Cisco UCS X-Fabric Technology At the bottom rear of the X9508 chassis are slots ready to house X-Fabric modules that can flexibly connect the compute modules with I/O devices. The "X" in Cisco UCS X-Fabric technology denotes a variable that can evolve with new technology developments.
Next Generation Power and Thermal Capability
  • Six 2800-Watt power supplies providing 54 V power
  • 4x 100 mm dual counter-rotating fans
  • N, N+1, N+2, and N+N redundancy
  • 300 Watt+ total power dissipation for compute nodes
Density and Form Factor
  • Industry-leading socket density per RU
  • Minimum of 8 compute slots
  • 32 DIMM socket support on a 2-socket compute node (beginning with the Ice Lake CPU family) and 64 DIMM socket support on a 4-socket compute node (beginning with the Sapphire Rapids CPU family)
  • Power, thermal, and form factor support for smart NICs, FPGA accelerators, and GPU cards
Fabric Bandwidth
  • Data fabric connectivity to compute nodes of 200 Gbps Ethernet speeds per compute node
  • Provision for future fabric expansion
Chassis Storage Support Local storage
Virtual Card Interface (VIC) Support
  • Cisco VIC ASIC
  • 25G throughput
  • 100G throughput
